RF Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Type | Voltage - Peak Reverse (Max) | Current - Max | Capacitance @ Vr, F | Resistance @ If, F | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BAP70Q,125RF DIODE PIN 50V 125MW 5TSOP |
16,906 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | PIN - 2 Pair CA + CC | 50V | 100 mA | 0.3pF @ 20V, 1MHz | 1.9Ohm @ 100mA, 100MHz | 125 mW | -65°C ~ 150°C (TJ) | - | - | 5-TSOP |
|
SMP1352-079LFRF DIODE PIN 200V 250MW SC79 |
6,372 |
|
Datasheet |
- | SC-79, SOD-523 | Tape & Reel (TR) | Active | PIN - Single | 200V | - | 0.35pF @ 20V, 1MHz | 1.35Ohm @ 100mA, 100MHz | 250 mW | -65°C ~ 150°C (TA) | - | - | SC-79 |
|
BAT15099E6327HTSA1DIODE SCHOTTKY 4V 100MW SOT143-4 |
3,471 |
|
Datasheet |
- | TO-253-4, TO-253AA | Tape & Reel (TR) | Active | Schottky - 2 Independent | 4V | 110 mA | 0.35pF @ 0V, 1MHz | - | 100 mW | 150°C (TJ) | - | - | PG-SOT-143-3D |
|
BAT15099E6433HTMA1DIODE SCHOTTKY 4V 100MW SOT143-4 |
1,240 |
|
Datasheet |
- | TO-253-4, TO-253AA | Tape & Reel (TR) | Active | Schottky - 2 Independent | 4V | 110 mA | 0.35pF @ 0V, 1MHz | - | 100 mW | 150°C (TJ) | - | - | PG-SOT-143-3D |
|
SMS3924-040LFDIODE SCHOTTKY 70V 75MW SOD882 |
8,158 |
|
Datasheet |
- | SOD-882 | Tape & Reel (TR) | Active | Schottky - Single | 70V | 50 mA | - | - | 75 mW | 150°C (TJ) | - | - | SOD-882 |
|
SMP1320-075LFRF DIODE PIN 50V 250MW SC70-3 |
3,006 |
|
Datasheet |
- | SC-70, SOT-323 | Tape & Reel (TR) | Active | PIN - 1 Pair Series Connection | 50V | - | 0.3pF @ 30V, 1MHz | 900mOhm @ 10mA, 100MHz | 250 mW | -65°C ~ 150°C (TA) | - | - | SC-70-3 |
|
|
BAT15099RE6327HTSA1DIODE SCHOTTKY 4V 100MW SOT143-4 |
2,474 |
|
Datasheet |
- | TO-253-4, TO-253AA | Tape & Reel (TR) | Active | Schottky - Cross Over | 4V | 110 mA | 0.5pF @ 0V, 1MHz | - | 100 mW | 150°C (TJ) | - | - | PG-SOT-143-3D |
|
SMP1302-003LFRF DIODE PIN 200V 250MW SOT23 |
40,280 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | PIN - 1 Pair Common Anode | 200V | - | 0.3pF @ 30V, 1MHz | 1.5Ohm @ 100mA, 100MHz | 250 mW | -65°C ~ 150°C (TA) | - | - | SOT-23-3 |
|
CLA4604-000DIODE LIMITER SILICON 30-60V |
7,700 |
|
Datasheet |
CLA | Die | Tray | Active | PIN - Single | 60V | 200 mA | - | 2.5Ohm @ 10mA, 1MHz | 650 mW | -65°C ~ 175°C (TJ) | - | - | Die |
|
SMP1325-087LFRF DIODE PIN 2W 2QFN |
8,895 |
|
Datasheet |
- | 2-VSFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | - | 200 mA | 0.6pF @ 20V, 1MHz | 550mOhm @ 100mA, 100MHz | 2 W | -55°C ~ 175°C (TJ) | - | - | 2-QFN (2x2) |
|
CDC7630-000RF DIODE SCHOTTKY 2V 75MW CHIP |
8,200 |
|
Datasheet |
- | Die | Bulk | Active | Schottky - Single | 2V | 100 mA | - | - | 75 mW | -55°C ~ 150°C (TA) | - | - | Chip |
|
|
CDF7621-000RF DIODE SCHOTTKY 2V CHIP |
4,700 |
|
Datasheet |
- | Die | Bulk | Active | Schottky - Single | 2V | - | - | - | - | - | - | - | Chip |
|

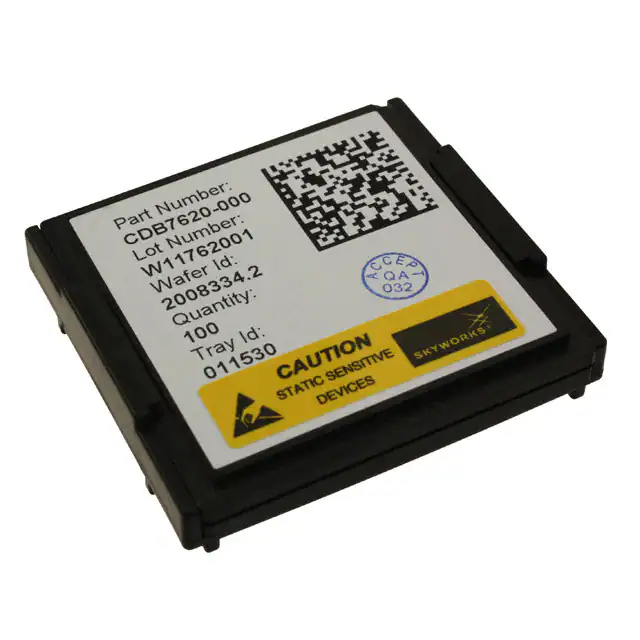

CDB7620-000RF DIODE SCHOTTKY 2V CHIP |
200 |
|
Datasheet |
- | Die | Bulk | Active | Schottky - Single | 2V | - | 0.15pF @ 0V, 10MHz | 30Ohm @ 10mA, 10MHz | - | - | - | - | Chip |
|
|
CDC7631-000RF DIODE SCHOTTKY 2V 75MW CHIP |
900 |
|
Datasheet |
- | Die | Bulk | Active | Schottky - Single | 2V | 100 mA | - | - | 75 mW | -55°C ~ 150°C (TA) | - | - | Chip |
|
MA4P303-134RF DIODE PIN 200V DIE |
900 |
|
Datasheet |
- | Die | Bulk | Active | PIN - Single | 200V | - | 0.15pF @ 10V, 10MHz | 1.5Ohm @ 10mA, 500MHz | - | 175°C (TJ) | - | - | Die |
|
MADP-007448-1146DTDIODE,PIN,PLASTIC,STR |
2,532 |
|
Datasheet |
SMPP | SC-70, SOT-323 | Tape & Reel (TR) | Active | PIN - 1 Pair Series Connection | 100V | 150 mA | 0.25pF @ 50V, 1MHz | 2Ohm @ 10mA, 100MHz | - | 175°C (TJ) | - | - | SC-70-3 |
|
|
MA4P404-132RF DIODE PIN 250V DIE |
1,100 |
|
Datasheet |
- | Die | Bulk | Active | PIN - Single | 250V | - | 0.2pF @ 50V, 1MHz | 700mOhm @ 50mA, 500MHz | - | 175°C (TJ) | - | - | Die |
|
MA4E1318RF DIODE SCHOTTKY 7V |
9,100 |
|
Datasheet |
- | 2-SMD | Bulk | Active | Schottky - Anti-Parallel | 7V | - | 0.06pF @ 0V, 1MHz | - | - | -65°C ~ 125°C (TJ) | - | - | - |
|
MADP-007436-12790TDIODE,PIN,PLASTIC,LEADFREE |
17,321 |
|
Datasheet |
SMPP | SC-79, SOD-523 | Tape & Reel (TR) | Active | PIN - Single | 75V | 150 mA | 1pF @ 20V, 1MHz | 500mOhm @ 10mA, 100MHz | 200 mW | 175°C (TJ) | - | - | SC-79 |
|
MADP-007455-12790TRF DIODE PIN 100V |
10,826 |
|
Datasheet |
- | SC-79, SOD-523 | Tape & Reel (TR) | Active | PIN - Single | 100V | 150 mA | 0.35pF @ 50V, 1MHz | 3Ohm @ 10mA, 100MHz | - | 175°C (TJ) | - | - | SC-79 |
