RF Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Type | Voltage - Peak Reverse (Max) | Current - Max | Capacitance @ Vr, F | Resistance @ If, F | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSS20-046-0805SCHOTTKY DIODE,CHIP-PACKAGE, 080 |
8,554 |
|
Datasheet |
- | 0805 (2012 Metric) | Tray | Active | Schottky - Single | 1V | 35 mA | 0.2pF @ 500mV, 1MHz | - | 100 mW | -65°C ~ 150°C | - | - | 0805-2 |
|
MSS30-248-B20SCHOTTKY DIODE,BEAMLEAD, B20 |
7,328 |
|
- |
- | B20 | Tray | Active | Schottky - 1 Pair Series Connection | 2V | 50 mA | 0.15pF @ 0V, 1MHz | 7Ohm @ 5mA, 1MHz | 100 mW | -65°C ~ 150°C | - | - | B20 |
|
MMD805-E25DIODE,SRD-CHIP-PACKAGE, E25 |
8,981 |
|
- |
MMDx | E25 | Tray | Active | Step Recovery Diode | 60V | 150 mA | 3.57pF @ 6V, 1MHz | - | 250 mW | -65°C ~ 175°C | - | - | E25 |
|
MSS20-046-E28SCHOTTKY DIODE,BEAMLEAD, E28-S |
4,921 |
|
- |
- | E28 | Bulk | Active | Schottky - Single | 1V | 35 mA | 0.2pF @ 500mV, 1MHz | - | 100 mW | -65°C ~ 150°C | - | - | E28 |
|
MSS20-046-E25SCHOTTKY DIODE,BEAMLEAD, E25 |
3,662 |
|
Datasheet |
- | E25 | Tray | Active | Schottky - Single | 1V | 35 mA | 0.18pF @ 0V, 1MHz | - | 100 mW | -65°C ~ 150°C | - | - | E25 |
|
MGS803GAAS SCHOTTKY CHIP |
9,549 |
|
Datasheet |
MGS8xx | Die | Tray | Active | Schottky - 1 Pair Series Connection | 5V (Min) | 50 mA | 0.06pF @ 0V, 1MHz | 7Ohm @ 5mA, 1MHz | 75 mW | -65°C ~ 150°C | - | - | Chip |
|
MMP7066-11DIE, DIODE, PIN |
2,760 |
|
Datasheet |
- | Die | Tray | Active | PIN - Single | 500V | 150 mA | 0.1pF @ 100V, 1MHz | 15Ohm @ 1mA, 100MHz | - | 175°C (TJ) | - | - | Die |
|
MEST2G-080-025PIN, SI BEAM LEAD,CM27 |
7,153 |
|
- |
- | CM27 | Tray | Active | PIN - Single | 500V | 200 mA | 0.09pF @ 50V, 1MHz | 970mOhm @ 100mA, 500MHz | 80 W | -40°C ~ 175°C (TJ) | - | - | CM27 |
|
MSS60-841-E45SCHOTTKY DIODE,BEAMLEAD, E45-1 |
9,485 |
|
Datasheet |
- | E45 | Tray | Active | Schottky - 1 Bridge | 6V | 50 mA | 0.35pF @ 0V, 1MHz | 23Ohm @ 5mA, 1MHz | 100 mW | -65°C ~ 150°C | - | - | E45 |
|

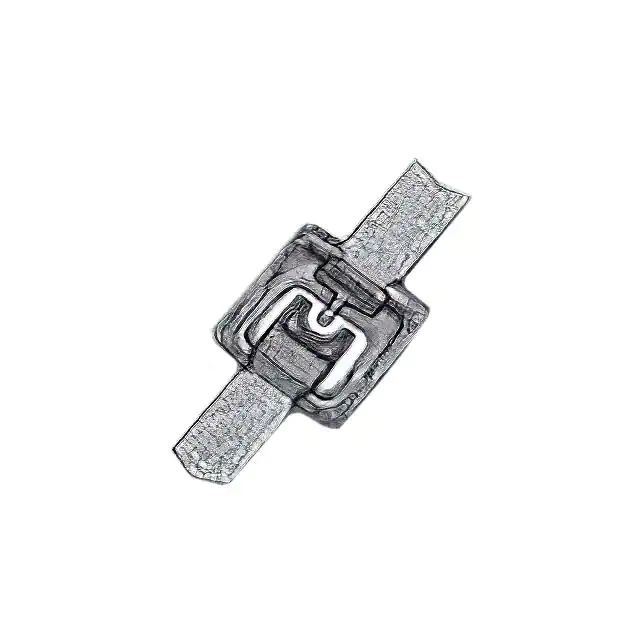

MSS20-140-B10DSCHOTTKY DIODE,BEAMLEAD, B10D |
7,966 |
|
- |
- | B10D | Tray | Active | Schottky - Single | 1V | 35 mA | 0.08pF @ 0V, 1MHz | - | 100 mW | -65°C ~ 150°C | - | - | B10D |
|
MSS40-148-B10BSCHOTTKY DIODE,BEAMLEAD, B10B |
9,376 |
|
- |
- | B10B | Tray | Active | Schottky - Single | 3V | 50 mA | 0.15pF @ 0V, 1MHz | 7Ohm @ 5mA, 1MHz | 100 mW | -65°C ~ 150°C | - | - | B10B |
|
MMD805-C12COM SRD-CHIP, C12 |
4,983 |
|
- |
MMDx | Die | Tray | Active | Step Recovery Diode | 60V | 150 mA | 3.5pF @ 6V, 1MHz | - | 250 mW | -65°C ~ 175°C | - | - | Chip |
|
MSS60-848-H40SCHOTTKY DIODE,BEAMLEAD, H40 |
2,788 |
|
- |
- | H40 | Tray | Active | Schottky - 1 Bridge | 6V | 50 mA | 0.51pF @ 0V, 1MHz | 13Ohm @ 5mA, 1MHz | 100 mW | -65°C ~ 150°C | - | - | H40 |
|
|
MSS60-448-E45RSCHOTTKY DIODE,BEAMLEAD, E45R-1 |
4,990 |
|
Datasheet |
- | E45 | Tray | Active | Schottky - 1 Bridge | 3.5V | 50 mA | 0.38pF @ 0V, 1MHz | 13Ohm @ 5mA, 1MHz | 100 mW | -65°C ~ 150°C | - | - | E45 |
|
|
MGS902SCHOTTKY DIODE,GAAS-BEAMLEAD, GB |
6,585 |
|
Datasheet |
MGS9xx | 2-SMD, Flat Leads | Tray | Active | Schottky - Anti-Parallel | 5V (Min) | 50 mA | 0.1pF @ 0V, 1MHz | 7Ohm @ 5mA, 1MHz | 75 mW | -65°C ~ 150°C | - | - | GB210 |
|
MMDB30-E28XDIODE, BEAMLEAD SRD, E28X |
7,958 |
|
Datasheet |
MMDx | E28 | Tray | Active | Standard - Single | 14V | 50 mA | 0.33pF @ 6V, 1MHz | - | 250 mW | -65°C ~ 175°C | - | - | E28 |
|
|
MSS20-141-B10DSCHOTTKY DIODE,BEAMLEAD, B10D |
2,036 |
|
- |
- | B10D | Tray | Discontinued at Digi-Key | Schottky - Single | 1V | 35 mA | 0.08pF @ 0V, 1MHz | - | 100 mW | -65°C ~ 150°C | - | - | B10D |
|
MSS20-055-H27SCHOTTKY DIODE,BEAMLEAD, H27 |
8,305 |
|
Datasheet |
- | H27 | Tray | Active | Schottky - Single | 1V | 35 mA | 0.32pF @ 0V, 1MHz | - | 100 mW | -65°C ~ 150°C | - | - | H27 |
|
MSS39-152-H20SCHOTTKY DIODE,BEAMLEAD, H20-2 |
9,417 |
|
- |
- | H20 | Tray | Active | Schottky - Single | 3.5V | 50 mA | 0.36pF @ 0V, 1MHz | - | 100 mW | -65°C ~ 150°C | - | - | H20 |
|
|
MMP7027-11DIODE,PIN,DIE |
4,172 |
|
Datasheet |
MMP7027 | Die | Tray | Active | PIN - Single | 100V | - | 0.1pF @ 10V, 1MHz | 700mOhm @ 75mA, 1MHz | - | -55°C ~ 150°C | - | - | Die |
