Bridge Rectifiers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Type | Technology | Voltage - Peak Reverse (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Current - Reverse Leakage @ Vr | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EFE15CBRIDGE RECT 1P 600V 75A MODULE |
9,688 |
|
Datasheet |
- | Module | Bulk | Obsolete | Single Phase | Standard | 600 V | 75 A | - | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount | Module |
|
|
EFF15FBRIDGE RECT 1P 1.2KV 100A MODULE |
3,272 |
|
Datasheet |
- | Module | Bulk | Obsolete | Single Phase | Standard | 1.2 kV | 100 A | 1.4 V @ 100 A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount | Module |
|

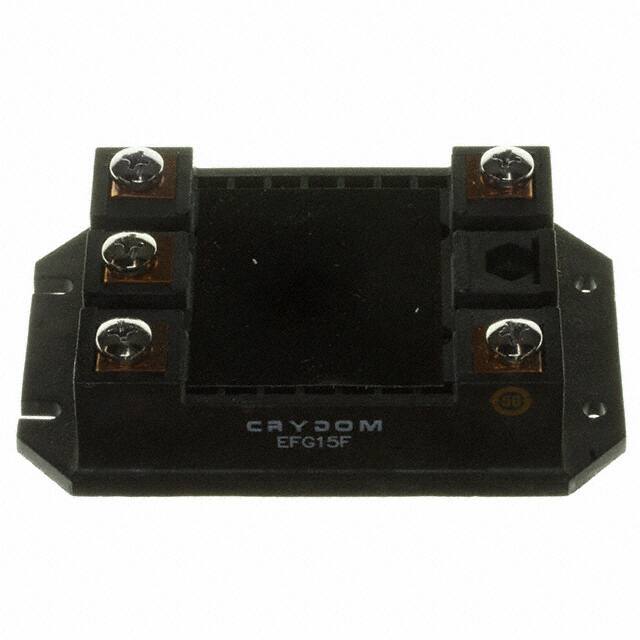

EFG15FBRIDGE RECT 1P 1.2KV 125A MODULE |
9,296 |
|
Datasheet |
- | Module | Bulk | Obsolete | Single Phase | Standard | 1.2 kV | 125 A | 1.4 V @ 100 A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount | Module |
|
|
EFG15GBRIDGE RECT 1P 1.4KV 125A MODULE |
2,664 |
|
Datasheet |
- | Module | Bulk | Obsolete | Single Phase | Standard | 1.4 kV | 125 A | 1.55 V @ 125 A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount | Module |
|
2KBP005M-E4/51BRIDGE RECT 1PHASE 50V 2A KBPM |
7,434 |
|
Datasheet |
- | 4-SIP, KBPM | Tray | Obsolete | Single Phase | Standard | 50 V | 2 A | 1.1 V @ 3.14 A | 5 µA @ 50 V | -55°C ~ 165°C (TJ) | - | - | Through Hole | KBPM |
|
|
2KBP01M-E4/51BRIDGE RECT 1PHASE 100V 2A KBPM |
3,177 |
|
Datasheet |
- | 4-SIP, KBPM | Tray | Obsolete | Single Phase | Standard | 100 V | 2 A | 1.1 V @ 3.14 A | 5 µA @ 100 V | -55°C ~ 165°C (TJ) | - | - | Through Hole | KBPM |
|
|
2KBP02M-E4/51BRIDGE RECT 1PHASE 200V 2A KBPM |
7,583 |
|
Datasheet |
- | 4-SIP, KBPM | Tray | Obsolete | Single Phase | Standard | 200 V | 2 A | 1.1 V @ 3.14 A | 5 µA @ 200 V | -55°C ~ 165°C (TJ) | - | - | Through Hole | KBPM |
|
|
2KBP04M-E4/51BRIDGE RECT 1PHASE 400V 2A KBPM |
2,385 |
|
Datasheet |
- | 4-SIP, KBPM | Tray | Obsolete | Single Phase | Standard | 400 V | 2 A | 1.1 V @ 3.14 A | 5 µA @ 400 V | -55°C ~ 165°C (TJ) | - | - | Through Hole | KBPM |
|
|
2KBP06M-E4/51BRIDGE RECT 1PHASE 600V 2A KBPM |
3,177 |
|
Datasheet |
- | 4-SIP, KBPM | Tray | Obsolete | Single Phase | Standard | 600 V | 2 A | 1.1 V @ 3.14 A | 5 µA @ 600 V | -55°C ~ 165°C (TJ) | - | - | Through Hole | KBPM |
|
|
2KBP10M-E4/51BRIDGE RECT 1PHASE 1KV 2A KBPM |
6,731 |
|
Datasheet |
- | 4-SIP, KBPM | Tray | Obsolete | Single Phase | Standard | 1 kV | 2 A | 1.1 V @ 3.14 A | 5 µA @ 1000 V | -55°C ~ 165°C (TJ) | - | - | Through Hole | KBPM |
|
MB1510W-BPBRIDGE RECT 1P 1KV 15A MB-35W |
6,122 |
|
Datasheet |
- | 4-Square, MB-35W | Bulk | Obsolete | Single Phase | Standard | 1 kV | 15 A | 1.2 V @ 7.5 A | 10 µA @ 1000 V | -55°C ~ 125°C (TJ) | - | - | Through Hole | MB-35W |
|
|
MB151W-BPBRIDGE RECT 1P 100V 15A MB-35W |
8,419 |
|
Datasheet |
- | 4-Square, MB-35W | Bulk | Obsolete | Single Phase | Standard | 100 V | 15 A | 1.2 V @ 7.5 A | 10 µA @ 100 V | -55°C ~ 125°C (TJ) | - | - | Through Hole | MB-35W |
|
|
MB152W-BPBRIDGE RECT 1P 200V 15A MB-35W |
5,731 |
|
Datasheet |
- | 4-Square, MB-35W | Bulk | Obsolete | Single Phase | Standard | 200 V | 15 A | 1.2 V @ 7.5 A | 10 µA @ 200 V | -55°C ~ 125°C (TJ) | - | - | Through Hole | MB-35W |
|
|
MB154W-BPBRIDGE RECT 1P 400V 15A MB-35W |
9,398 |
|
Datasheet |
- | 4-Square, MB-35W | Bulk | Obsolete | Single Phase | Standard | 400 V | 15 A | 1.2 V @ 7.5 A | 10 µA @ 400 V | -55°C ~ 125°C (TJ) | - | - | Through Hole | MB-35W |
|
|
MB156W-BPBRIDGE RECT 1P 600V 15A MB-35W |
3,798 |
|
Datasheet |
- | 4-Square, MB-35W | Bulk | Obsolete | Single Phase | Standard | 600 V | 15 A | 1.2 V @ 7.5 A | 10 µA @ 600 V | -55°C ~ 125°C (TJ) | - | - | Through Hole | MB-35W |
|
|
MB158W-BPBRIDGE RECT 1P 800V 15A MB-35W |
4,796 |
|
Datasheet |
- | 4-Square, MB-35W | Bulk | Obsolete | Single Phase | Standard | 800 V | 15 A | 1.2 V @ 7.5 A | 10 µA @ 800 V | -55°C ~ 125°C (TJ) | - | - | Through Hole | MB-35W |
|
|
MB2505W-BPBRIDGE RECT 1P 50V 25A MB-35W |
2,586 |
|
Datasheet |
- | 4-Square, MB-35W | Bulk | Obsolete | Single Phase | Standard | 50 V | 25 A | 1.2 V @ 12.5 A | 10 µA @ 50 V | -55°C ~ 125°C (TJ) | - | - | Through Hole | MB-35W |
|
|
MB2510W-BPBRIDGE RECT 1P 1KV 25A MB-35W |
4,543 |
|
Datasheet |
- | 4-Square, MB-35W | Bulk | Obsolete | Single Phase | Standard | 1 kV | 25 A | 1.2 V @ 12.5 A | 10 µA @ 1000 V | -55°C ~ 125°C (TJ) | - | - | Through Hole | MB-35W |
|
|
MB252W-BPBRIDGE RECT 1P 200V 25A MB-35W |
4,957 |
|
Datasheet |
- | 4-Square, MB-35W | Bulk | Obsolete | Single Phase | Standard | 200 V | 25 A | 1.2 V @ 12.5 A | 10 µA @ 200 V | -55°C ~ 125°C (TJ) | - | - | Through Hole | MB-35W |
|
|
MB254W-BPBRIDGE RECT 1P 400V 25A MB-35W |
9,156 |
|
Datasheet |
- | 4-Square, MB-35W | Bulk | Obsolete | Single Phase | Standard | 400 V | 25 A | 1.2 V @ 12.5 A | 10 µA @ 400 V | -55°C ~ 125°C (TJ) | - | - | Through Hole | MB-35W |
