Digital to Analog Converters (DAC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of Bits | Number of D/A Converters | Settling Time | Output Type | Differential Output | Data Interface | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | INL/DNL (LSB) | Architecture | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC2645CMS-L10#PBFIC DAC 10BIT V-OUT 16MSOP |
43 |
|
Datasheet |
- | 16-TFSOP (0.118", 3.00mm Width) | Tube | Active | Not Verified | 10 | 4 | 7.4µs (Typ) | Voltage - Buffered | No | PWM | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.2, ±0.5 (Max) | - | 0°C ~ 70°C | 16-MSOP | Surface Mount | - | - |
|

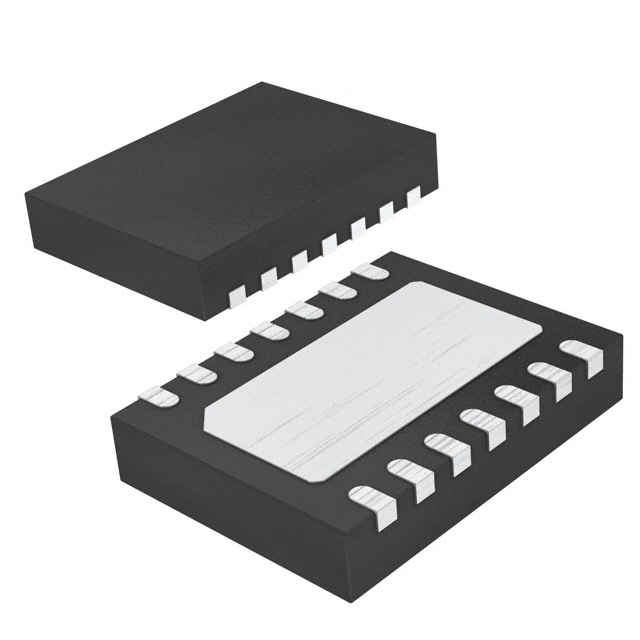

DAC60004IDMDTIC DAC 12BIT V-OUT 14VSON |
374 |
|
Datasheet |
- | 14-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | 12 | 4 | 8µs | Voltage - Buffered | No | SPI, DSP | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 125°C | 14-VSON (4x3) | Surface Mount | - | - |
|
|
LTC2637IMS-LZ8#PBFIC DAC 8BIT V-OUT 16MSOP |
69 |
|
Datasheet |
- | 16-TFSOP (0.118", 3.00mm Width) | Tube | Active | Not Verified | 8 | 8 | 3.5µs (Typ) | Voltage - Buffered | No | I2C | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.05, ±0.5 (Max) | - | -40°C ~ 85°C | 16-MSOP | Surface Mount | - | - |
|
MAX5812MEUT+TIC DAC 12BIT V-OUT SOT23-6 |
839 |
|
Datasheet |
- | SOT-23-6 | Tape & Reel (TR) | Active | Not Verified | 12 | 1 | 12µs | Voltage - Buffered | No | I2C | Supply | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±2, ±1 (Max) | String DAC | -40°C ~ 85°C | SOT-6 | Surface Mount | - | - |
|
AD9740ARZIC DAC 10BIT A-OUT 28SOIC |
36 |
|
Datasheet |
TxDAC® | 28-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | 10 | 1 | 11ns (Typ) | Current - Unbuffered | Yes | Parallel | External, Internal | 2.7V ~ 3.6V | 2.7V ~ 3.6V | ±0.15, ±0.12 | Current Source | -40°C ~ 85°C | 28-SOIC | Surface Mount | - | - |
|
LTC2601IDD-1#PBFIC DAC 16BIT V-OUT 10DFN |
621 |
|
Datasheet |
- | 10-WFDFN Exposed Pad | Tube | Active | Not Verified | 16 | 1 | 10µs (Typ) | Voltage - Buffered | No | SPI | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±13, ±1 (Max) | - | -40°C ~ 85°C | 10-DFN (3x3) | Surface Mount | - | - |
|
AD5306BRUZIC DAC 8BIT V-OUT 16TSSOP |
1,236 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) | Tube | Active | Not Verified | 8 | 4 | 8µs | Voltage - Buffered | No | I2C | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±0.15, ±0.02 | String DAC | -40°C ~ 105°C | 16-TSSOP | Surface Mount | - | - |
|
AD5683RBRMZ-3IC DAC 16BIT V-OUT 10MSOP |
67 |
|
Datasheet |
nanoDAC+® | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tube | Active | Not Verified | 16 | 1 | 7µs | Voltage - Buffered | No | SPI | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±3 (Max), ±1 (Max) | String DAC | -40°C ~ 105°C | 10-MSOP | Surface Mount | - | - |
|
LTC2634IMSE-LZ10#PBFIC DAC 10BIT V-OUT 10MSOP |
486 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Not Verified | 10 | 4 | 3.8µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.2, ±0.5 (Max) | - | -40°C ~ 85°C | 10-MSOP-EP | Surface Mount | - | - |
|
|
LTC2634IMSE-HZ10#PBFIC DAC 10BIT V-OUT 10MSOP |
120 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Not Verified | 10 | 4 | 4.2µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 5V | 5V | ±0.2, ±0.5 (Max) | - | -40°C ~ 85°C | 10-MSOP-EP | Surface Mount | - | - |
|
LTC1664IGN#PBFIC DAC 10BIT V-OUT 16SSOP |
301 |
|
Datasheet |
- | 16-SSOP (0.154", 3.90mm Width) | Tube | Active | Not Verified | 10 | 4 | 19µs (Typ) | Voltage - Unbuffered | No | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.6, ±0.2 | Oversampling Interpolating DAC | -40°C ~ 85°C | 16-SSOP | Surface Mount | - | - |
|
|
AD5313ARUZIC DAC 10BIT V-OUT 16TSSOP |
41 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) | Tube | Active | Not Verified | 10 | 2 | 9µs | Voltage - Buffered | No | SPI, DSP | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±0.5, ±0.05 | String DAC | -40°C ~ 105°C | 16-TSSOP | Surface Mount | - | - |
|
DAC8164IAPWIC DAC 14BIT V-OUT 16TSSOP |
31 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) | Bulk | Active | Not Verified | 14 | 4 | 10µs | Voltage - Buffered | No | SPI, DSP | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±1, ±0.3 | String DAC | -40°C ~ 105°C | 16-TSSOP | Surface Mount | - | - |
|
LTC7545ABSW#PBFIC DAC 12BIT A-OUT 20SOIC |
77 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | 12 | 1 | 1µs | Current - Unbuffered | No | Parallel | External | 5V, 14.25V ~ 15.75V | 5V, 14.25V ~ 15.75V | ±0.5 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 20-SO | Surface Mount | - | - |
|
MAX548ACUA+IC DAC 8BIT V-OUT 8UMAX |
142 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | Not Verified | 8 | 2 | 4µs (Typ) | Voltage - Unbuffered | No | SPI | Supply | 2.5V ~ 5.5V | 2.5V ~ 5.5V | -, ±0.9 (Max) | R-2R | 0°C ~ 70°C | 8-uMAX/uSOP | Surface Mount | - | - |
|
DAC8563SDGSTIC DAC 16BIT V-OUT 10VSSOP |
390 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Not Verified | 16 | 2 | 10µs (Typ) | Voltage - Buffered | No | SPI, DSP | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±4, ±0.2 | String DAC | -40°C ~ 125°C | 10-VSSOP | Surface Mount | - | - |
|
|
DAC8563TDGSTIC DAC 16BIT V-OUT 10VSSOP |
110 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Not Verified | 16 | 2 | 10µs (Typ) | Voltage - Buffered | No | SPI, DSP | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±4, ±0.2 | String DAC | -40°C ~ 125°C | 10-VSSOP | Surface Mount | - | - |
|
MAX522CSA+IC DAC 8BIT V-OUT 8SOIC |
460 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | 8 | 2 | 70µs (Typ) | Voltage - Buffered | No | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±1.5 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C | 8-SOIC | Surface Mount | - | - |
|
MX7533JCWE+IC DAC 10BIT A-OUT 16SOIC |
52 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | 10 | 1 | 800ns | Current - Unbuffered | Yes | Parallel | External | 5V ~ 16.5V | 5V ~ 16.5V | - | R-2R | 0°C ~ 70°C | 16-SOIC | Surface Mount | - | - |
|
MAX5741AUB+IC DAC 10BIT V-OUT 10UMAX |
3,258 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tube | Active | Not Verified | 10 | 4 | 10µs | Voltage - Buffered | No | SPI, DSP | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5, ±1 (Max) | String DAC | -40°C ~ 125°C | 10-uMAX/uSOP | Surface Mount | - | - |
Digital to Analog Converters (DAC) Electronic Components
Explore Digital to Analog Converters (DAC) electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
