Digital to Analog Converters (DAC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of Bits | Number of D/A Converters | Settling Time | Output Type | Differential Output | Data Interface | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | INL/DNL (LSB) | Architecture | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD7237AARZIC DAC 12BIT V-OUT 24SOIC |
34 |
|
Datasheet |
DACPORT® | 24-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | 12 | 2 | 8µs | Voltage - Buffered | No | Parallel | External, Internal | ±10.8V ~ 16.5V | - | ±1 (Max), ±0.9 (Max) | R-2R | -40°C ~ 85°C | 24-SOIC | Surface Mount | - | - |
|
AD3542RBCPZ16IC DAC 16BIT V-OUT 28LFCSP |
27 |
|
Datasheet |
- | 28-VFQFN, CSP | Tray | Active | Not Verified | 16 | 2 | 100ns | Voltage - Unbuffered | No | SPI | External, Internal | 4.75V ~ 5.25V | 1.71V ~ 1.89V | ±4 (Max), ±2 (Max) | Multiplying DAC | -40°C ~ 105°C | 28-LFCSP (4x4) | Surface Mount | - | - |
|
LTC2688IUJ-16#PBFIC DAC 16BIT V-OUT 40QFN |
14 |
|
Datasheet |
- | 40-WFQFN Exposed Pad | Tube | Active | Not Verified | 16 | 16 | 28µs | Voltage - Buffered | No | SPI | External, Internal | 4.75V ~ 5.25V | 1.71V ~ 5.55V | ±3LSB (Max), ±1 (Max) | Multiplying DAC | -40°C ~ 85°C | 40-QFN (6x6) | Surface Mount | - | - |
|
|
LTC2688HUJ-16#PBFIC DAC 16BIT V-OUT 40QFN |
53 |
|
Datasheet |
- | 40-WFQFN Exposed Pad | Tube | Active | Not Verified | 16 | 16 | 28µs | Voltage - Buffered | No | SPI | External, Internal | 4.75V ~ 5.25V | 1.71V ~ 5.55V | ±3LSB (Max), ±1 (Max) | Multiplying DAC | -40°C ~ 125°C | 40-QFN (6x6) | Surface Mount | - | - |
|
AD5361BSTZIC DAC 14BIT V-OUT 52LQFP |
104 |
|
Datasheet |
- | 52-LQFP | Tray | Active | Not Verified | 14 | 16 | 30µs | Voltage - Buffered | No | SPI, DSP | External | 8V ~ 16.5V, -4.5V ~ 16.5V | 2.5V ~ 5.5V | ±1 (Max), ±1 (Max) | String DAC | -40°C ~ 85°C | 52-LQFP (10x10) | Surface Mount | - | - |
|
DAC3482IRKDTIC DAC 16BIT A-OUT 88WQFN |
223 |
|
Datasheet |
- | 88-WQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | 16 | 2 | 10ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 3.14V ~ 3.46V | 1.14V ~ 1.32V | ±4, ±2 | Current Source | -40°C ~ 85°C | 88-WQFN-MR (9x9) | Surface Mount | - | - |
|
LTC1821-1BCGW#PBFIC DAC 16BIT V-OUT 36SSOP |
31 |
|
Datasheet |
- | 36-BSOP (0.295", 7.50mm Width) | Tube | Active | Not Verified | 16 | 1 | 2µs (Typ) | Voltage - Buffered | No | Parallel | External | ±4.5V ~ 16.5V | 5V | ±2 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C | 36-SSOP | Surface Mount | - | - |
|
AD7846JPZIC DAC 16BIT V-OUT 28PLCC |
208 |
|
Datasheet |
- | 28-LCC (J-Lead) | Tube | Active | Not Verified | 16 | 1 | 9µs | Voltage - Buffered | No | Parallel | External | ±11.4V ~ 15.75V | 5V | ±16 (Max), ±1 (Max) | String DAC | 0°C ~ 70°C | 28-PLCC (11.51x11.51) | Surface Mount | - | - |
|
AD5764RBSUZIC DAC 16BIT V-OUT 32TQFP |
24 |
|
Datasheet |
iCMOS® | 32-TQFP | Tray | Active | Not Verified | 16 | 4 | 10µs | Voltage - Buffered | No | SPI, DSP | External, Internal | 11.4V ~ 16.5V | 2.7V ~ 5.25V | ±2 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 32-TQFP (7x7) | Surface Mount | - | - |
|

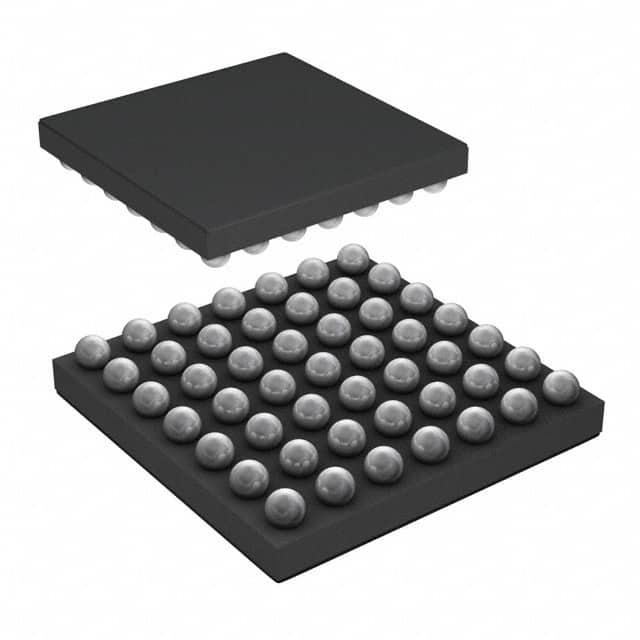

AD5767BCBZ-RL7IC DAC 12BIT V-OUT 49WLCSP |
1,083 |
|
Datasheet |
- | 49-UFBGA, WLCSP | Tape & Reel (TR) | Active | Not Verified | 12 | 16 | 12µs | Voltage - Unbuffered | No | SPI, DSP | External | 2.97V ~ 16V | - | ±1, ±1 | String DAC | -40°C ~ 105°C | 49-WLCSP (3.45x3.45) | Surface Mount | - | - |
|
AD5767BCPZ-RL7IC DAC 12BIT V-OUT 40LFCSP |
516 |
|
Datasheet |
- | 40-WFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Not Verified | 12 | 16 | 12µs | Voltage - Unbuffered | No | SPI, DSP | External | 2.97V ~ 16V | - | ±1, ±1 | String DAC | -40°C ~ 105°C | 40-LFCSP-WQ (6x6) | Surface Mount | - | - |
|
|
AD5764CSUZ-REEL7IC DAC 16BIT V-OUT 32TQFP |
577 |
|
Datasheet |
iCMOS® | 32-TQFP | Tape & Reel (TR) | Active | Not Verified | 16 | 4 | 10µs | Voltage - Buffered | No | SPI, DSP | External | ±11.4V ~ 16.5V | 2.7V ~ 5.25V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 32-TQFP (7x7) | Surface Mount | - | - |
|
LTC1592AIG#PBFIC DAC 16BIT A-OUT 16SSOP |
106 |
|
Datasheet |
SoftSpan™ | 16-SSOP (0.209", 5.30mm Width) | Tube | Active | Not Verified | 16 | 1 | 2µs (Typ) | Current - Unbuffered | Yes | SPI | External | 5V | 5V | ±0.4, ±0.2 | Multiplying DAC | -40°C ~ 85°C | 16-SSOP | Surface Mount | - | - |
|
AD5570BRSZIC DAC 16BIT V-OUT 16SSOP |
32 |
|
Datasheet |
- | 16-SSOP (0.209", 5.30mm Width) | Tube | Active | Not Verified | 16 | 1 | 16µs | Voltage - Buffered | No | SPI, DSP | External | ±11.4V ~ 16.5V | - | ±0.4, ±0.3 | R-2R | -40°C ~ 85°C | 16-SSOP | Surface Mount | - | - |
|
|
LTC2668HUJ-12#PBFIC DAC 12BIT V-OUT 40QFN |
39 |
|
Datasheet |
SoftSpan™ | 40-WFQFN Exposed Pad | Tube | Active | Not Verified | 12 | 16 | 15.5µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | ±4.5V ~ 15.75V | 1.71V ~ 5.5V | ±0.2, ±0.05 | - | -40°C ~ 125°C | 40-QFN (6x6) | Surface Mount | - | - |
|
DAC5681ZIRGCTIC DAC 16BIT A-OUT 64VQFN |
55 |
|
Datasheet |
- | 64-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | 16 | 1 | 10.4ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 3V ~ 3.6V | 1.7V ~ 1.9V | ±4, ±2 | Current Sink | -40°C ~ 85°C | 64-VQFN (9x9) | Surface Mount | - | - |
|
|
DAC8248FSZIC DAC 12BIT A-OUT 24SOIC |
12 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | 12 | 2 | 1µs | Current - Unbuffered | No | Parallel | External | 5V ~ 15V | 5V ~ 15V | ±1 (Max), ±4 (Max) | R-2R | -40°C ~ 85°C | 24-SOIC | Surface Mount | - | - |
|
LTC2757ACLX#PBFIC DAC 18BIT A-OUT 48LQFP |
183 |
|
Datasheet |
SoftSpan™ | 48-LQFP | Tray | Active | Not Verified | 18 | 1 | 2.1µs (Typ) | Current - Unbuffered | Yes | Parallel | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.4, ±0.4 | Multiplying DAC | 0°C ~ 70°C | 48-LQFP (7x7) | Surface Mount | - | - |
|
MAX547BCMH+DIC DAC 13BIT V-OUT 44MQFP |
84 |
|
Datasheet |
- | 44-QFP | Tray | Active | Not Verified | 13 | 8 | 5µs (Typ) | Voltage - Buffered | No | Parallel | External | ±5V | - | ±0.5, ±1 (Max) | R-2R | 0°C ~ 70°C | 44-MQFP (10x10) | Surface Mount | - | - |
|
AD9125BCPZIC DAC 16BIT A-OUT 72LFCSP |
21 |
|
Datasheet |
TxDAC+® | 72-VFQFN Exposed Pad, CSP | Tray | Active | Not Verified | 16 | 2 | 20ns (Typ) | Current - Unbuffered | Yes | Parallel | External, Internal | 3.13V ~ 3.47V | 1.71V ~ 1.89V | ±3.7, ±2.1 | Current Source | -40°C ~ 85°C | 72-LFCSP-VQ (10x10) | Surface Mount | - | - |
Digital to Analog Converters (DAC) Electronic Components
Explore Digital to Analog Converters (DAC) electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
