Digital to Analog Converters (DAC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of Bits | Number of D/A Converters | Settling Time | Output Type | Differential Output | Data Interface | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | INL/DNL (LSB) | Architecture | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX5802BAUB+TIC DAC 12BIT V-OUT 10UMAX |
0 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Not Verified | 12 | 2 | 4.5µs (Typ) | Voltage - Buffered | No | I2C | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5, ±0.2 | R-2R | -40°C ~ 125°C | 10-uMAX/uSOP | Surface Mount | - | - |
|
|
MAX5800AUB+TIC DAC 8BIT V-OUT 10UMAX |
0 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | 8 | 2 | 2.2µs (Typ) | Voltage - Buffered | No | I2C | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.05, ±0.05 | R-2R | -40°C ~ 125°C | 10-uMAX/uSOP | Surface Mount | - | - |
|
|
MAX5803AUB+TIC DAC 8BIT DUAL 10UMAX |
0 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | 8 | 1 | 2.8µs (Typ) | Voltage - Buffered | No | I2C | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.05, ±0.05 | R-2R | -40°C ~ 125°C | 10-uMAX/uSOP | Surface Mount | - | - |
|
MAX5715AAUD+TWIC DAC 12BIT SPI 14TSSOP |
0 |
|
Datasheet |
- | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | 12 | 4 | 4.5µs (Typ) | Voltage - Buffered | No | SPI, DSP | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5, ±0.2 | R-2R | -40°C ~ 125°C | 14-TSSOP | Surface Mount | - | - |
|
AD5535CKBCZIC DAC 14BIT SRL 124CSBGA |
0 |
|
Datasheet |
denseDAC | - | Tray | Obsolete | Not Verified | 14 | 32 | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MAX5700AUB+TIC DAC 8BIT V-OUT 10UMAX |
0 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | 8 | 2 | 2.2µs (Typ) | Voltage - Buffered | No | SPI, DSP | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.05, ±0.05 | - | -40°C ~ 125°C | 10-uMAX/uSOP | Surface Mount | - | - |
|
|
MAX5701AUB+TIC DAC 10BIT V-OUT 10UMAX |
0 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | 10 | 2 | 2.6µs (Typ) | Voltage - Buffered | No | SPI, DSP | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.25, ±0.1 | - | -40°C ~ 125°C | 10-uMAX/uSOP | Surface Mount | - | - |
|
MAX5703AKA+TIC DAC 8BIT V-OUT SOT23-8 |
0 |
|
- |
- | SOT-23-8 | Tape & Reel (TR) | Obsolete | Not Verified | 8 | 1 | 2.8µs (Typ) | Voltage - Buffered | No | SPI, DSP | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.05, ±0.05 | - | -40°C ~ 125°C | SOT-23-8 | Surface Mount | - | - |
|
|
MAX5703ATA+TIC DAC 8BIT V-OUT |
0 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | Not Verified | 8 | 1 | 2.8µs (Typ) | Voltage - Buffered | No | SPI, DSP | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.05, ±0.05 | - | -40°C ~ 125°C | - | - | - | - |
|
|
MAX5704AKA+TIC DAC 10BIT V-OUT SOT23-8 |
0 |
|
- |
- | SOT-23-8 | Tape & Reel (TR) | Obsolete | Not Verified | 10 | 1 | 5.2µs (Typ) | Voltage - Buffered | No | SPI, DSP | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.2, ±0.1 | - | -40°C ~ 125°C | SOT-23-8 | Surface Mount | - | - |
|
|
MAX5704ATA+TIC DAC 10BIT V-OUT |
0 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | Not Verified | 10 | 1 | 5.2µs (Typ) | Voltage - Buffered | No | SPI, DSP | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.2, ±0.1 | - | -40°C ~ 125°C | - | - | - | - |
|
|
MAX5801AUB+TIC DAC 10BIT V-OUT 10UMAX |
0 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | 10 | 2 | 2.6µs (Typ) | Voltage - Buffered | No | I2C | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.25, ±0.1 | R-2R | -40°C ~ 125°C | 10-uMAX/uSOP | Surface Mount | - | - |
.jpg)
|

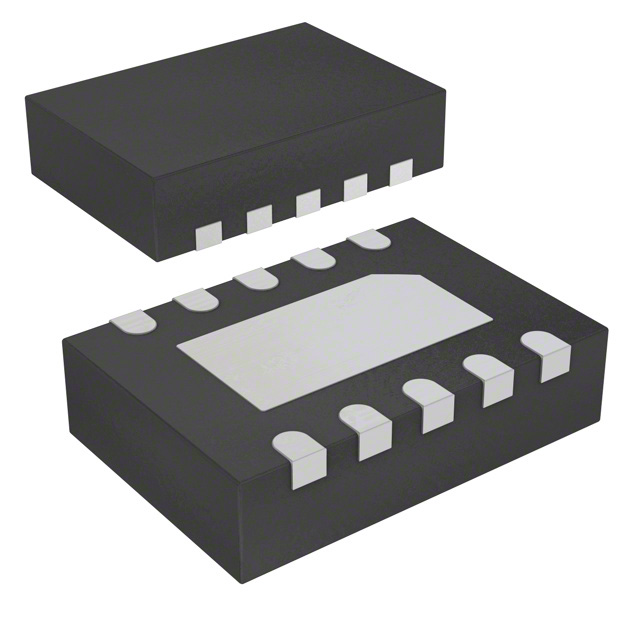

MAX5804ATA+TIC DAC 12BIT SPI |
0 |
|
- |
- | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | 10 | 1 | 5.2µs (Typ) | Voltage - Buffered | No | I2C | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.2, ±0.1 | R-2R | -40°C ~ 125°C | 10-TDFN (3x2) | Surface Mount | - | - |
|
|
MAX5715AAUD+WIC DAC 12BIT SPI |
0 |
|
Datasheet |
- | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Not Verified | 12 | 4 | 4.5µs (Typ) | Voltage - Buffered | No | SPI, DSP | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5, ±0.2 | R-2R | -40°C ~ 125°C | 14-TSSOP | Surface Mount | - | - |
|
|
MX7224TDIC DAC 8BIT V-OUT 18CERDIP |
0 |
|
Datasheet |
- | 18-CDIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | 8 | 1 | 5µs | Voltage - Buffered | No | Parallel | External | 11.4V ~ 16.5V, -5V | 14.25V ~ 15.75V | ±1 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C | 18-CERDIP | Through Hole | - | - |
|
|
MX7520SDIC DAC 10BIT A-OUT 16CERDIP |
0 |
|
Datasheet |
- | 16-CDIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | 10 | 1 | 500ns (Typ) | Current - Unbuffered | Yes | Parallel | External | 5V ~ 15V | 5V ~ 15V | ±9 (Max), - | R-2R | -55°C ~ 125°C | 16-CDIP SB | Through Hole | - | - |
|
|
MX7542GTDIC DAC 8BIT |
0 |
|
Datasheet |
- | 16-CDIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | 12 | 1 | 2µs | Current - Unbuffered | Yes | Parallel | External | 4.75V ~ 5.25V | 4.75V ~ 5.25V | ±0.5 (Max), ±1 (Max) | R-2R | -55°C ~ 125°C | 16-CDIP SB | Through Hole | - | - |
|
|
MX7542TDIC DAC 8BIT |
0 |
|
Datasheet |
- | 16-CDIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | 12 | 1 | 2µs | Current - Unbuffered | Yes | Parallel | External | 4.75V ~ 5.25V | 4.75V ~ 5.25V | ±0.5 (Max), ±1 (Max) | R-2R | -55°C ~ 125°C | 16-CDIP SB | Through Hole | - | - |
|
LTC2000ACY-11IC DAC 11BIT A-OUT 170BGA |
0 |
|
Datasheet |
- | 170-LFBGA | Tube | Obsolete | Not Verified | 11 | 1 | 2.2ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel, SPI | External, Internal | 1.8V ~ 1.92V, 3.135V ~ 3.465V | 1.8V ~ 1.92V, 3.135V ~ 3.465V | ±0.2, ±0.1 | Current Steering | 0°C ~ 70°C | 170-BGA (15x9) | Surface Mount | - | - |
|
|
LTC2000ACY-14IC DAC 14BIT A-OUT 170BGA |
0 |
|
Datasheet |
- | 170-LFBGA | Tube | Obsolete | Not Verified | 14 | 1 | 2.2ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel, SPI | External, Internal | 1.8V ~ 1.92V, 3.135V ~ 3.465V | 1.8V ~ 1.92V, 3.135V ~ 3.465V | ±0.5, ±0.2 | Current Steering | 0°C ~ 70°C | 170-BGA (15x9) | Surface Mount | - | - |
