Digital to Analog Converters (DAC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of Bits | Number of D/A Converters | Settling Time | Output Type | Differential Output | Data Interface | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | INL/DNL (LSB) | Architecture | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD767KPZ-REELIC DAC 12BIT V-OUT 28PLCC |
0 |
|
Datasheet |
- | 28-LCC (J-Lead) | Tape & Reel (TR) | Obsolete | Not Verified | 12 | 1 | 3µs | Voltage - Buffered | No | Parallel | External, Internal | ±11.4V ~ 16.5V | - | ±0.25, ±0.25 | Current Steering | 0°C ~ 70°C | 28-PLCC (11.51x11.51) | Surface Mount | - | - |
|
AD5313BRUZ-REELIC DAC 10BIT V-OUT 16TSSOP |
0 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | 10 | 2 | 9µs | Voltage - Buffered | No | SPI, DSP | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±0.5, ±0.05 | String DAC | -40°C ~ 105°C | 16-TSSOP | Surface Mount | - | - |
|
AD5620ARJZ-1500RL7IC DAC 12BIT V-OUT SOT23-8 |
0 |
|
Datasheet |
nanoDAC® | SOT-23-8 | Tape & Reel (TR) | Obsolete | Not Verified | 12 | 1 | 10µs | Voltage - Buffered | No | SPI, DSP | Internal | 2.7V ~ 3.3V | 2.7V ~ 3.3V | ±6 (Max), ±0.25 (Max) | String DAC | -40°C ~ 105°C | SOT-23-8 | Surface Mount | - | - |
|
|
AD5640ARJZ-2500RL7IC DAC 14BIT V-OUT SOT23-8 |
0 |
|
Datasheet |
nanoDAC® | SOT-23-8 | Tape & Reel (TR) | Obsolete | Not Verified | 14 | 1 | 10µs | Voltage - Buffered | No | SPI, DSP | Internal | 5V | 5V | ±8 (Max), ±0.5 (Max) | String DAC | -40°C ~ 105°C | SOT-23-8 | Surface Mount | - | - |
|
|
AD5640ARJZ-2REEL7IC DAC 14BIT V-OUT SOT23-8 |
0 |
|
Datasheet |
nanoDAC® | SOT-23-8 | Tape & Reel (TR) | Obsolete | Not Verified | 14 | 1 | 10µs | Voltage - Buffered | No | SPI, DSP | Internal | 5V | 5V | ±8 (Max), ±0.5 (Max) | String DAC | -40°C ~ 105°C | SOT-23-8 | Surface Mount | - | - |
|
|
AD5640BRJZ-2REEL7IC DAC 14BIT V-OUT SOT23-8 |
0 |
|
Datasheet |
nanoDAC® | SOT-23-8 | Tape & Reel (TR) | Obsolete | Not Verified | 14 | 1 | 10µs | Voltage - Buffered | No | SPI, DSP | Internal | 5V | 5V | ±4 (Max), ±0.5 (Max) | String DAC | -40°C ~ 105°C | SOT-23-8 | Surface Mount | - | - |
|
DAC715PBG4IC DAC 16BIT V-OUT 28DIP |
0 |
|
Datasheet |
- | 28-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | 16 | 1 | 10µs | Voltage - Buffered | No | Parallel | Internal | ±11.4V ~ 16.5V | - | ±4 (Max), ±4 (Max) | R-2R | -40°C ~ 85°C | 28-PDIP | Through Hole | - | - |
|
DAC7541AJUG4IC DAC 12BIT A-OUT 18SOIC |
0 |
|
Datasheet |
- | 18-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | 12 | 1 | 1µs | Current - Unbuffered | Yes | Parallel | External | 5V ~ 16V | 5V ~ 16V | ±1 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C | 8-SOIC | Surface Mount | - | - |
|
DAC7541AKPG4IC DAC 12BIT A-OUT 18DIP |
0 |
|
Datasheet |
- | 18-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | 12 | 1 | 1µs | Current - Unbuffered | Yes | Parallel | External | 5V ~ 16V | 5V ~ 16V | ±0.5 (Max), ±0.5 (Max) | R-2R | 0°C ~ 70°C | 18-PDIP | Through Hole | - | - |
|
DAC7545GLUG4IC DAC 12BIT A-OUT 20SOIC |
0 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | 12 | 1 | 2µs | Current - Unbuffered | No | Parallel | External | 5V ~ 15V | 5V ~ 15V | ±0.5 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 20-SOIC | Surface Mount | - | - |
|
|
DAC7545KUG4IC DAC 12BIT A-OUT 20SOIC |
0 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | 12 | 1 | 2µs | Current - Unbuffered | No | Parallel | External | 5V ~ 15V | 5V ~ 15V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 20-SOIC | Surface Mount | - | - |
|

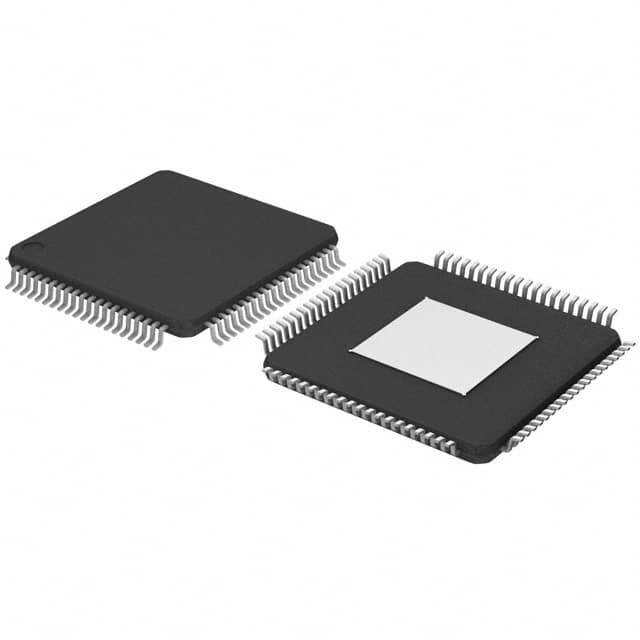

DAC1003D160HW/C1:5IC DAC 10BIT A-OUT 80HTQFP |
0 |
|
- |
- | 80-TQFP Exposed Pad | Tray | Active | Not Verified | 10 | 2 | 16ns (Typ) | Current - Unbuffered | Yes | Parallel | External, Internal | 3V ~ 3.6V | 3V ~ 3.6V | ±0.2, ±0.1 | Binary-Weighted DAC, String DAC | -40°C ~ 85°C | 80-HTQFP (12x12) | Surface Mount | - | - |
|
MAX5734BUTN+TIC DAC 16BIT V-OUT 56TQFN |
0 |
|
Datasheet |
- | 56-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | 16 | 32 | 20µs (Typ) | Voltage - Buffered | No | SPI, DSP | External | 5V | 2.7V ~ 5.25V | ±8, ±1 (Max) | Pipelined | 0°C ~ 85°C | 56-TQFN (8x8) | Surface Mount | - | - |
|
|
MAX5735BUTN+TIC DAC 16BIT V-OUT 56TQFN |
0 |
|
Datasheet |
- | 56-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | 16 | 32 | 20µs (Typ) | Voltage - Buffered | No | SPI, DSP | External | 5V | 2.7V ~ 5.25V | ±8, ±1 (Max) | Pipelined | 0°C ~ 85°C | 56-TQFN (8x8) | Surface Mount | - | - |
|
MAX5661GCB+TIC DAC 16BIT V OR A-OUT 64LQFP |
0 |
|
Datasheet |
- | 64-LQFP | Tape & Reel (TR) | Active | Not Verified | 16 | 1 | - | Voltage or Current - Buffered | No | SPI | External | 13.48V ~ 40V, ±13.48V ~ 15.75V | 5V | ±6, ±1 (Max) | - | -40°C ~ 105°C | 64-LQFP (10x10) | Surface Mount | - | - |
|
AD5398ABCBZ-REELIC DAC 10BIT A-OUT 9WLCSP |
0 |
|
Datasheet |
- | 9-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Not Verified | 10 | 1 | 250µs (Typ) | Current - Unbuffered | No | I2C | Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±1.5, ±1 (Max) | Current Sink | -30°C ~ 85°C | 9-WLCSP (1.52x1.69) | Surface Mount | - | - |
|
|
AD5821ABCBZ-REELIC DAC 10BIT A-OUT 9WLCSP |
0 |
|
Datasheet |
- | 9-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Not Verified | 10 | 1 | 250µs (Typ) | Current - Buffered | No | I2C | Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±1.5, ±1 (Max) | Current Sink | -40°C ~ 85°C | 9-WLCSP (1.52x1.69) | Surface Mount | - | - |
|
HI5728/6INZIC DAC 10BIT A-OUT 48TQFP |
0 |
|
Datasheet |
- | 48-LQFP | Tray | Obsolete | Not Verified | 10 | 2 | 35ns (Typ) | Current - Unbuffered | Yes | Parallel | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5, ±0.25 | Current Source | -40°C ~ 85°C | 48-LQFP (7x7) | Surface Mount | - | - |
|
CA3338AMZ96IC DAC 8BIT V-OUT 16SOIC |
0 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | 8 | 1 | 20ns (Typ) | Voltage - Buffered | No | Parallel | External | 5V | 5V | ±0.75 (Max), ±0.5 (Max) | R-2R | -40°C ~ 85°C | 16-SOIC | Surface Mount | - | - |
|
AD5045BRUZ-REEL7IC DAC 14BIT V-OUT 14TSSOP |
0 |
|
Datasheet |
nanoDAC® | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | 14 | 2 | 13µs | Voltage - Buffered | No | SPI, DSP | External | 5V | 5V | ±0.1, ±0.2 | R-2R | -40°C ~ 125°C | 14-TSSOP | Surface Mount | - | - |
