Digital to Analog Converters (DAC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of Bits | Number of D/A Converters | Settling Time | Output Type | Differential Output | Data Interface | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | INL/DNL (LSB) | Architecture | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD9776BSVZIC DAC 12BIT A-OUT 100TQFP |
0 |
|
Datasheet |
- | 100-TQFP Exposed Pad | Tray | Obsolete | Not Verified | 12 | 2 | - | Current - Unbuffered | Yes | Parallel | Internal | 3.13V ~ 3.47V | 1.7V ~ 1.9V, 3.13V ~ 3.47V | ±0.6, ±0.1 | Oversampling Interpolating DAC | -40°C ~ 85°C | 100-TQFP-EP (14x14) | Surface Mount | - | - |
|

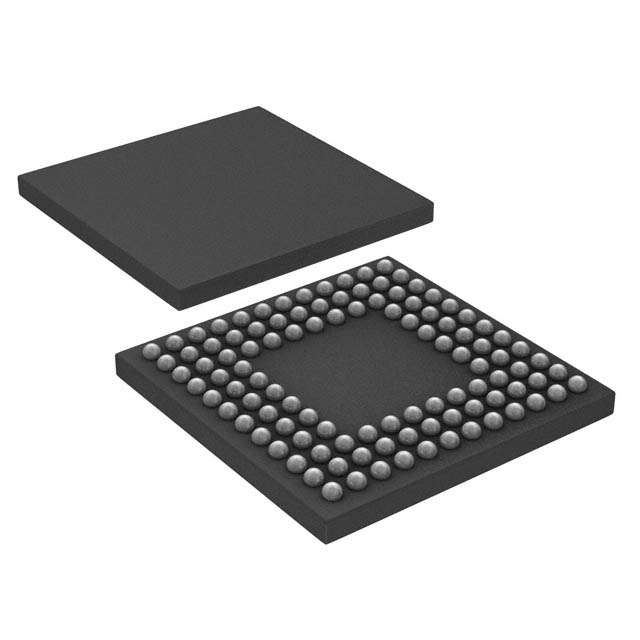

AD5378ABCIC DAC 14BIT V-OUT 108CSPBGA |
0 |
|
Datasheet |
- | 108-BGA, CSPBGA | Tray | Obsolete | Not Verified | 14 | 32 | 30µs | Voltage - Buffered | No | SPI, DSP | External | 8.5V ~ 16.5V , -3V ~ 16.5V | 2.7V ~ 5.5V | ±3 (Max), -1/+1.5 (Max) | String DAC | -40°C ~ 85°C | 108-CSPBGA (13x13) | Surface Mount | - | - |
|
AD5346BCPZIC DAC 8BIT V-OUT 40LFCSP |
0 |
|
Datasheet |
- | 40-WFQFN Exposed Pad, CSP | Tray | Obsolete | Not Verified | 8 | 8 | 8µs | Voltage - Buffered | No | Parallel | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±0.15, ±0.02 | String DAC | -40°C ~ 105°C | 40-LFCSP-WQ (6x6) | Surface Mount | - | - |
|
AD7541AJPZIC DAC 12BIT A-OUT 20PLCC |
0 |
|
Datasheet |
- | 20-LCC (J-Lead) | Tube | Obsolete | Not Verified | 12 | 1 | 600ns (Typ) | Current - Unbuffered | Yes | Parallel | External | 5V ~ 16V | 5V ~ 16V | ±1 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C | 20-PLCC (9x9) | Surface Mount | - | - |
|
AD7808BNZIC DAC 10BIT V-OUT 24DIP |
0 |
|
Datasheet |
- | 24-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | 10 | 8 | 4µs | Voltage - Buffered | No | SPI | External, Internal | 3V ~ 5.5V | 3V ~ 5.5V | ±4 (Max), ±0.125 | - | -40°C ~ 85°C | 24-PDIP | Through Hole | - | - |
|
AD7804BNZIC DAC 10BIT V-OUT 16DIP |
0 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | 10 | 4 | 4µs | Voltage - Buffered | No | SPI | External, Internal | 3V ~ 5.5V | 3V ~ 5.5V | ±3 (Max), ±0.125 | - | -40°C ~ 85°C | 16-PDIP | Through Hole | - | - |
|
AD7111ACNZIC DAC 17BIT A-OUT 16DIP |
0 |
|
Datasheet |
LOGDAC® | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | 17 | 1 | - | Current - Unbuffered | No | Parallel | - | 5V | 5V | - | R-2R | -40°C ~ 85°C | 16-PDIP | Through Hole | - | - |
|
AD5570BRSIC DAC 16BIT V-OUT 16SSOP |
0 |
|
Datasheet |
- | 16-SSOP (0.209", 5.30mm Width) | Tube | Obsolete | Not Verified | 16 | 1 | 16µs | Voltage - Buffered | No | SPI, DSP | External | ±11.4V ~ 16.5V | - | ±0.4, ±0.3 | R-2R | -40°C ~ 85°C | 16-SSOP | Surface Mount | - | - |
|
AD5620CRM-1IC DAC 12BIT V-OUT 8MSOP |
0 |
|
Datasheet |
nanoDAC® | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Obsolete | Not Verified | 12 | 1 | 10µs | Voltage - Buffered | No | SPI, DSP | Internal | 2.7V ~ 3.3V | 2.7V ~ 3.3V | ±1 (Max), ±0.25 (Max) | String DAC | -40°C ~ 105°C | 8-MSOP | Surface Mount | - | - |
|
|
AD5620CRM-3IC DAC 12BIT V-OUT 8MSOP |
0 |
|
Datasheet |
nanoDAC® | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Obsolete | Not Verified | 12 | 1 | 10µs | Voltage - Buffered | No | SPI, DSP | Internal | 5V | 5V | ±1 (Max), ±0.25 (Max) | String DAC | -40°C ~ 105°C | 8-MSOP | Surface Mount | - | - |
|
|
AD5640CRM-1IC DAC 14BIT V-OUT 8MSOP |
0 |
|
Datasheet |
nanoDAC® | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Obsolete | Not Verified | 14 | 1 | 10µs | Voltage - Buffered | No | SPI, DSP | Internal | 2.7V ~ 3.3V | 2.7V ~ 3.3V | ±4 (Max), ±0.5 (Max) | String DAC | -40°C ~ 105°C | 8-MSOP | Surface Mount | - | - |
|
|
AD5640CRM-2IC DAC 14BIT V-OUT 8MSOP |
0 |
|
Datasheet |
nanoDAC® | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Obsolete | Not Verified | 14 | 1 | 10µs | Voltage - Buffered | No | SPI, DSP | Internal | 5V | 5V | ±4 (Max), ±0.5 (Max) | String DAC | -40°C ~ 105°C | 8-MSOP | Surface Mount | - | - |
|
AD7392ANZIC DAC 12BIT V-OUT 20DIP |
0 |
|
Datasheet |
- | 20-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | 12 | 1 | 70µs (Typ) | Voltage - Buffered | No | Parallel | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±3 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 20-PDIP | Through Hole | - | - |
|
AD7394ARZIC DAC 12BIT V-OUT 14SOIC |
0 |
|
Datasheet |
- | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | 12 | 2 | 70µs (Typ) | Voltage - Buffered | No | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±2 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 14-SOIC | Surface Mount | - | - |
|
AD7937BRZIC DAC 12BIT A-OUT 24SOIC |
0 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | 12 | 2 | 1µs | Current - Unbuffered | No | Parallel | External | 5V | 5V | ±0.5 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 24-SOIC | Surface Mount | - | - |
|
|
AD7849BNZIC DAC 16BIT V-OUT 20DIP |
0 |
|
Datasheet |
- | 20-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | 16 | 1 | 10µs (Typ) | Voltage - Buffered | No | SPI | External | ±14.25V ~ 15.75V | 5V | ±16 (Max), ±0.9 (Max) | String DAC | -40°C ~ 85°C | 20-PDIP | Through Hole | - | - |
|
AD7547LPZIC DAC 12BIT A-OUT 28PLCC |
0 |
|
Datasheet |
- | 28-LCC (J-Lead) | Tube | Obsolete | Not Verified | 12 | 2 | 1.5µs | Current - Unbuffered | No | Parallel | External | 10.8V ~ 16.5V | 10.8V ~ 16.5V | ±0.5 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 28-PLCC (11.51x11.51) | Surface Mount | - | - |
|
MAX504CPD+IC DAC 10BIT V-OUT 14DIP |
0 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | 10 | 1 | 25µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | ±5V | 5V | ±0.5 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C | 14-PDIP | Through Hole | - | - |
.jpg)
|
MAX547BCQH+DIC DAC 13BIT V-OUT 44PLCC |
0 |
|
Datasheet |
- | 44-LCC (J-Lead) | Tube | Obsolete | Not Verified | 13 | 8 | 5µs (Typ) | Voltage - Buffered | No | Parallel | External | ±5V | - | ±0.5, ±1 (Max) | R-2R | 0°C ~ 70°C | 44-PLCC (16.59x16.59) | Surface Mount | - | - |
|
|
AD557JPZ-REELIC DAC 8BIT V-OUT 20PLCC |
0 |
|
Datasheet |
DACPORT® | 20-LCC (J-Lead) | Tape & Reel (TR) | Obsolete | Not Verified | 8 | 1 | 1.5µs | Voltage - Unbuffered | No | Parallel | Internal | 5V | 5V | ±0.5, - | R-2R | 0°C ~ 70°C | 20-PLCC (9x9) | Surface Mount | - | - |
