Digital to Analog Converters (DAC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of Bits | Number of D/A Converters | Settling Time | Output Type | Differential Output | Data Interface | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | INL/DNL (LSB) | Architecture | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD7243ANIC DAC 12BIT V-OUT 16DIP |
0 |
|
Datasheet |
DACPORT® | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | 12 | 1 | 10µs | Voltage - Buffered | No | SPI | External, Internal | ±10.8V ~ 16.5V | - | ±1 (Max), ±0.9 (Max) | R-2R | -40°C ~ 85°C | 16-PDIP | Through Hole | - | - |
|
AD7248AANIC DAC 12BIT V-OUT 20DIP |
0 |
|
Datasheet |
DACPORT® | 20-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | 12 | 1 | 7µs | Voltage - Buffered | No | Parallel | Internal | ±10.8V ~ 16.5V | 10.8V ~ 16.5V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 20-PDIP | Through Hole | - | - |
|
AD7247ABRIC DAC 12BIT V-OUT 24SOIC |
0 |
|
Datasheet |
DACPORT® | 24-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | 12 | 2 | 8µs | Voltage - Buffered | No | Parallel | External, Internal | ±10.8V ~ 16.5V | 10.8V ~ 16.5V | ±0.5 (Max), ±0.9 (Max) | R-2R | -40°C ~ 85°C | 24-SOIC | Surface Mount | - | - |
|
AD7243ARIC DAC 12BIT V-OUT 16SOIC |
0 |
|
Datasheet |
DACPORT® | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | 12 | 1 | 10µs | Voltage - Buffered | No | SPI | External, Internal | ±10.8V ~ 16.5V | - | ±1 (Max), ±0.9 (Max) | R-2R | -40°C ~ 85°C | 16-SOIC | Surface Mount | - | - |
|
AD660ANIC DAC 16BIT V-OUT 24DIP |
0 |
|
Datasheet |
DACPORT® | 24-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | 16 | 1 | 13µs | Voltage - Buffered | No | SPI | External, Internal | ±13.5V ~ 16.5V | 5V | ±4 (Max), ±4 (Max) | R-2R | -40°C ~ 85°C | 24-PDIP | Through Hole | - | - |
|

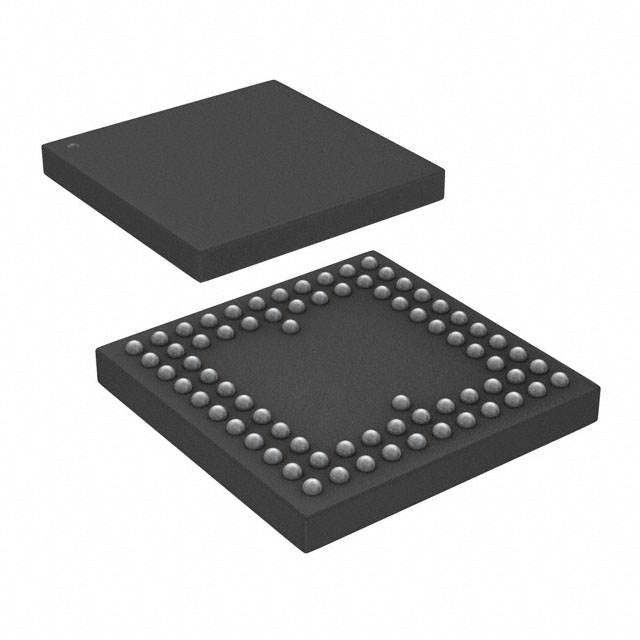

AD5516ABC-1IC DAC 12BIT V-OUT 74CSPBGA |
0 |
|
Datasheet |
- | 74-LBGA, CSPBGA | Tray | Obsolete | Not Verified | 12 | 16 | 32µs | Voltage - Unbuffered | No | SPI, DSP | External | ±4.75V ~ 15.75V, 5V | 2.7V ~ 5.25V | ±2 (Max), ±0.5 | String DAC | -40°C ~ 85°C | 74-CSPBGA (12x12) | Surface Mount | - | - |
|
AD669BRIC DAC 16BIT V-OUT 28SOIC |
0 |
|
Datasheet |
DACPORT® | 28-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | 16 | 1 | 13µs | Voltage - Buffered | No | Parallel | External, Internal | ±13.5V ~ 16.5V | 5V | ±2 (Max), ±2 (Max) | R-2R | -40°C ~ 85°C | 28-SOIC | Surface Mount | - | - |
|
|
DAC8248FPIC DAC 12BIT A-OUT 24DIP |
0 |
|
Datasheet |
- | 24-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | 12 | 2 | 1µs | Current - Unbuffered | No | Parallel | External | 5V ~ 15V | 5V ~ 15V | ±1 (Max), ±4 (Max) | R-2R | -40°C ~ 85°C | 24-PDIP | Through Hole | - | - |
|
DAC8412FPCIC DAC 12BIT V-OUT 28PLCC |
0 |
|
Datasheet |
- | 28-LCC (J-Lead) | Tube | Obsolete | Not Verified | 12 | 4 | 10µs (Typ) | Voltage - Buffered | No | Parallel | External | 5V ~ 15V, -15V | 5V | ±2 (Max), -1 | R-2R | -40°C ~ 85°C | 28-PLCC (11.51x11.51) | Surface Mount | - | - |
|
|
DAC8413FPCIC DAC 12BIT V-OUT 28PLCC |
0 |
|
Datasheet |
- | 28-LCC (J-Lead) | Tube | Obsolete | Not Verified | 12 | 4 | 10µs (Typ) | Voltage - Buffered | No | Parallel | External | 5V ~ 15V, -15V | 5V | ±2 (Max), -1 | R-2R | -40°C ~ 85°C | 28-PLCC (11.51x11.51) | Surface Mount | - | - |
|
|
DAC8420ESIC DAC 12BIT V-OUT 16SOIC |
0 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | 12 | 4 | 13µs (Typ) | Voltage - Buffered | No | SPI | External | 5V ~ 15V, -15V | 5V | ±0.5, ±0.25 | R-2R | -40°C ~ 85°C | 16-SOIC | Surface Mount | - | - |
|
|
DAC8420FSIC DAC 12BIT V-OUT 16SOIC |
0 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | 12 | 4 | 13µs (Typ) | Voltage - Buffered | No | SPI | External | 5V ~ 15V, -15V | 5V | ±1, ±0.25 | R-2R | -40°C ~ 85°C | 16-SOIC | Surface Mount | - | - |
|
DAC8426FSIC DAC 8BIT V-OUT 20SOIC |
0 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | 8 | 4 | 3µs (Typ) | Voltage - Buffered | No | Parallel | Internal | 13.5V ~ 16.5V | 13.5V ~ 16.5V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 20-SOIC | Surface Mount | - | - |
|
DAC8512FSIC DAC 12BIT V-OUT 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | 12 | 1 | 16µs (Typ) | Voltage - Buffered | No | SPI, DSP | Internal | 5V | 5V | ±0.75, ±0.75 | R-2R | -40°C ~ 85°C | 8-SOIC | Surface Mount | - | - |
|
|
DAC8800FSIC DAC 8BIT V-OUT 20SOIC |
0 |
|
Datasheet |
TrimDAC® | 20-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | 8 | 8 | 2µs | Voltage - Unbuffered | No | SPI | External | 4V ~ 16V, -12V | - | -, ±1 (Max) | String DAC | -40°C ~ 85°C | 20-SOIC | Surface Mount | - | - |
|

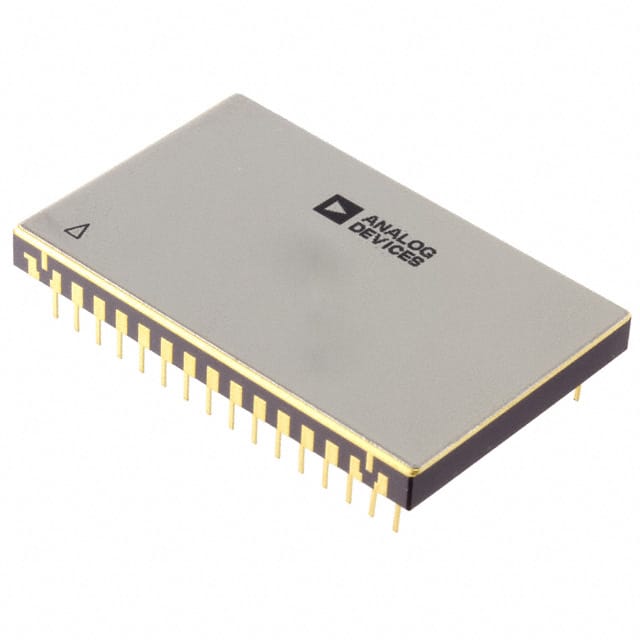

AD1139KIC DAC 18BIT A-OUT 32BBDIP-H |
0 |
|
Datasheet |
- | 32-CDIP (0.910", 23.12mm) | Tube | Obsolete | Not Verified | 18 | 1 | - | Current - Unbuffered | No | Parallel | Internal | 5V, ±15V | - | ±0.5 (Max), ±0.5 (Max) | - | 0°C ~ 70°C | 32-BBDIP-H | Through Hole | - | - |
|

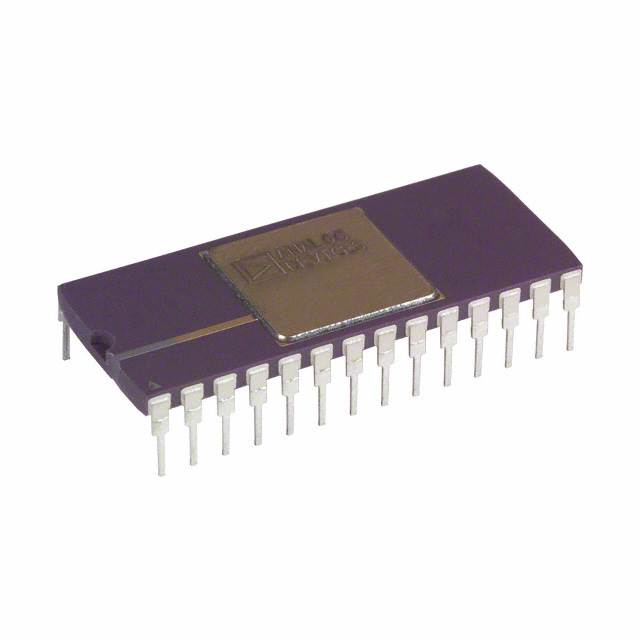

AD390JDIC DAC 12BIT V-OUT 28CDIP |
0 |
|
Datasheet |
- | 28-CDIP (0.600", 15.24mm) | Tube | Obsolete | Not Verified | 12 | 4 | 8µs | Voltage - Buffered | No | Parallel | External, Internal | ±13.5V ~ 16.5V | - | ±0.25, ±0.5 | - | 0°C ~ 70°C | 28-SBDIP-H | Through Hole | - | - |
|
|
AD420AR-32-REELIC DAC 16BIT V OR A-OUT 24SOIC |
0 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | 16 | 1 | 3ms | Voltage or Current - Buffered | No | SPI | External, Internal | 12V ~ 32V | 12V ~ 32V | - | Sigma-Delta | -40°C ~ 85°C | 24-SOIC | Surface Mount | - | - |
|
AD5301BRM-REEL7IC DAC 8BIT V-OUT 8MSOP |
0 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | 8 | 1 | 8µs | Voltage - Buffered | No | I2C | Supply | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±0.15, ±0.02 | String DAC | -40°C ~ 105°C | 8-MSOP | Surface Mount | - | - |
|
AD5304BRM-REELIC DAC 8BIT V-OUT 10MSOP |
0 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | 8 | 4 | 8µs | Voltage - Buffered | No | SPI, DSP | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±0.15, ±0.02 | String DAC | -40°C ~ 105°C | 10-MSOP | Surface Mount | - | - |
