Digital to Analog Converters (DAC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of Bits | Number of D/A Converters | Settling Time | Output Type | Differential Output | Data Interface | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | INL/DNL (LSB) | Architecture | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DAC5672MPFBREPIC DAC 14BIT A-OUT 48TQFP |
0 |
|
Datasheet |
- | 48-TQFP | Tape & Reel (TR) | Active | Not Verified | 14 | 2 | 20µs (Typ) | Current - Unbuffered | Yes | Parallel | External, Internal | 3V ~ 3.6V | 3V ~ 3.6V | ±1.1, ±0.75 | Current Source | -55°C ~ 125°C | 48-TQFP (7x7) | Surface Mount | - | - |
|
MX7538KEWG+TIC DAC 14BIT A-OUT 24SOIC |
0 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Not Verified | 14 | 1 | 1.5µs | Current - Unbuffered | No | Parallel | External | 11.4V ~ 15.75V | 11.4V ~ 15.75V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 24-SOIC | Surface Mount | - | - |
|
LTC2704CGW-14#TRPBFIC DAC 14BIT V-OUT 44SSOP |
0 |
|
Datasheet |
SoftSpan™ | 44-BSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Not Verified | 14 | 4 | 9µs (Typ) | Voltage - Buffered | No | SPI | External | ±4.5V ~ 16.5V | 2.7V ~ 5.5V | ±1 (Max), ±1 (Max) | - | 0°C ~ 70°C | 44-SSOP | Surface Mount | - | - |
|
LTC2666IUH-16#TRPBFIC DAC 16BIT V-OUT 32QFN |
0 |
|
Datasheet |
SoftSpan™ | 32-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | 16 | 8 | 20µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | ±4.5V ~ 15.75V | 5V | ±2.2, ±0.2 | - | -40°C ~ 85°C | 32-QFN (5x5) | Surface Mount | - | - |
|
LTC2756ACG#TRPBFIC DAC 18BIT A-OUT 28SSOP |
0 |
|
Datasheet |
SoftSpan™ | 28-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Not Verified | 18 | 1 | 2.1µs (Typ) | Current - Unbuffered | Yes | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5, ±0.25 | Multiplying DAC | 0°C ~ 70°C | 28-SSOP | Surface Mount | - | - |
|
|
MX7228KEWG+TIC DAC 8BIT V-OUT 24SOIC |
0 |
|
- |
- | 24-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | 8 | 8 | 5µs | Voltage - Buffered | No | Parallel | External | 10.8V ~ 16.5V, ±5V | 13.5V ~ 16.5V, 5V | ±1 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C | 24-SOIC | Surface Mount | - | - |
|
DAC71416RHARDIGITAL TO ANALOG CONVERTER |
0 |
|
Datasheet |
- | 40-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | 14 | 16 | 12µs (Typ) | Voltage - Buffered | No | SPI, DSP | Internal | 4.5V ~ 5.5V | 4.5V ~ 5.5V | ±0.5, ±0.5 | R-2R | -40°C ~ 125°C | 40-VQFN (6x6) | Surface Mount | - | - |
|
AD9735BBCZRLIC DAC 12BIT A-OUT 160CSPBGA |
0 |
|
Datasheet |
- | 160-LFBGA, CSPBGA | Tape & Reel (TR) | Active | Not Verified | 12 | 1 | - | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 1.7V ~ 1.9V, 3.13V ~ 3.47V | 1.7V ~ 1.9V, 3.13V ~ 3.47V | ±0.50, ±0.25 | Oversampling Interpolating DAC | -40°C ~ 85°C | 160-CSPBGA (12x12) | Surface Mount | - | - |
|
AD9785BSVZRLIC DAC 12BIT A-OUT 100TQFP |
0 |
|
Datasheet |
TxDAC+® | 100-TQFP Exposed Pad | Tape & Reel (TR) | Active | Not Verified | 12 | 2 | 20ns (Typ) | Current - Unbuffered | Yes | Parallel | Internal | 3.13V ~ 3.47V | 1.7V ~ 1.9V, 3.13V ~ 3.47V | ±0.3, ±0.2 | Oversampling Interpolating DAC | -40°C ~ 85°C | 100-TQFP-EP (14x14) | Surface Mount | - | - |
|

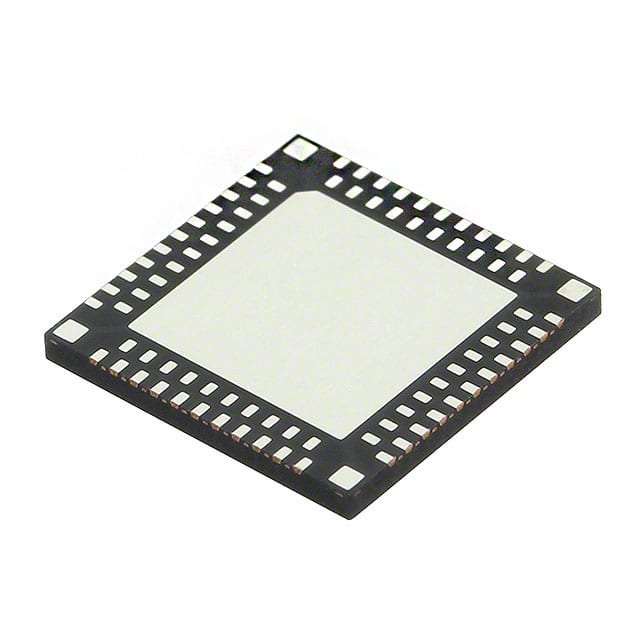

DAC3482IRKDRIC DAC 16BIT A-OUT 88WQFN |
0 |
|
Datasheet |
- | 88-WQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | 16 | 2 | 10ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 3.14V ~ 3.46V | 1.14V ~ 1.32V | ±4, ±2 | Current Source | -40°C ~ 85°C | 88-WQFN-MR (9x9) | Surface Mount | - | - |
|
DAC716UBIC DAC 16BIT V-OUT 16SOIC |
0 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | 16 | 1 | 10µs | Voltage - Buffered | No | SPI | Internal | ±11.4V ~ 16.5V | - | ±4 (Max), ±4 (Max) | R-2R | -40°C ~ 85°C | 16-SOIC | Surface Mount | - | - |
|
LTC2668CUJ-12#TRPBFIC DAC 12BIT V-OUT 40QFN |
0 |
|
Datasheet |
SoftSpan™ | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | 12 | 16 | 15.5µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | ±4.5V ~ 15.75V | 1.71V ~ 5.5V | ±0.2, ±0.05 | - | 0°C ~ 70°C | 40-QFN (6x6) | Surface Mount | - | - |
|
DAC8871SPWG4IC DAC 16BIT V-OUT 16TSSOP |
0 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) | Tube | Discontinued at Digi-Key | Not Verified | 16 | 1 | 1µs (Typ) | Voltage - Unbuffered | No | SPI | External | ±13.5V ~ 19.8V | 2.7V ~ 5.5V | ±1, ±0.25 | R-2R | -40°C ~ 105°C | 16-TSSOP | Surface Mount | - | - |
|
MAX536AEWEIC DAC 12BIT V-OUT 16SOIC |
0 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | 12 | 4 | 3µs (Typ) | Voltage - Buffered | No | SPI | External | 10.8V ~ 13.2V, -5V | - | ±0.15, ±1 (Max) | R-2R | -40°C ~ 85°C | 16-SOIC | Surface Mount | - | - |
|
MAX536AEPEIC DAC 12BIT V-OUT 16DIP |
0 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | 12 | 4 | 3µs (Typ) | Voltage - Buffered | No | SPI | External | 10.8V ~ 13.2V, -5V | - | ±0.15, ±1 (Max) | R-2R | -40°C ~ 85°C | 16-PDIP | Through Hole | - | - |
|
|
MAX537AEPEIC DAC 12BIT V-OUT 16DIP |
0 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | 12 | 4 | 5µs (Typ) | Voltage - Buffered | No | SPI | External | ±5V | - | ±0.15, ±1 (Max) | R-2R | -40°C ~ 85°C | 16-PDIP | Through Hole | - | - |
|
AD7228ABPZ-REELIC DAC 8BIT V-OUT 28PLCC |
0 |
|
Datasheet |
- | 28-LCC (J-Lead) | Tape & Reel (TR) | Active | Not Verified | 8 | 8 | 5µs, 7µs | Voltage - Buffered | No | Parallel | External | 10.8V ~ 16.5V, ±5V | 13.5V ~ 16.5V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 28-PLCC (11.51x11.51) | Surface Mount | - | - |
|
AD7543KRZ-REELIC DAC 12BIT A-OUT 16SOIC |
0 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Not Verified | 12 | 1 | 2µs | Current - Unbuffered | Yes | Serial | External | 5V | 5V | ±0.5 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 16-SOIC | Surface Mount | - | - |
|
AD7534JPZ-REELIC DAC 14BIT MULT W/BUFF 20PLCC |
0 |
|
Datasheet |
- | 20-LCC (J-Lead) | Cut Tape (CT) | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | 20-PLCC (9x9) | Surface Mount | - | - |
|
|
DAC81001PFBTIC DAC 16BIT V-OUT 48TQFP |
0 |
|
Datasheet |
DAC81001 | 48-TQFP | Tape & Reel (TR) | Active | Not Verified | 16 | 1 | 2.5µs (Typ) | Voltage - Unbuffered | No | SPI | External | 4.5V ~ 5.5V | 2.7V ~ 5.5V | ±4 (Max), ±1 (Max) | R-2R | -40°C ~ 125°C | 48-TQFP (7x7) | Surface Mount | - | - |
Digital to Analog Converters (DAC) Electronic Components
Explore Digital to Analog Converters (DAC) electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
