Digital to Analog Converters (DAC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of Bits | Number of D/A Converters | Settling Time | Output Type | Differential Output | Data Interface | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | INL/DNL (LSB) | Architecture | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MX7534JCWP+IC DAC 14BIT A-OUT 20SOIC |
0 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | 14 | 1 | 1.5µs | Current - Unbuffered | No | Parallel | External | 11.4V ~ 15.75V | 11.4V ~ 15.75V | ±2 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C | 20-SOIC | Surface Mount | - | - |
|
AD667JPZ-REELIC DAC 12BIT V-OUT 28PLCC |
0 |
|
Datasheet |
- | 28-LCC (J-Lead) | Tape & Reel (TR) | Active | Not Verified | 12 | 1 | 4µs | Voltage - Buffered | No | Parallel | External, Internal | ±11.4V ~ 16.5V | - | ±0.5, ±0.5 | R-2R | 0°C ~ 70°C | 28-PLCC (11.51x11.51) | Surface Mount | - | - |
|
DAC7725UBG4IC DAC 12BIT V-OUT 28SOIC |
0 |
|
Datasheet |
- | 28-SOIC (0.295", 7.50mm Width) | Tube | Discontinued at Digi-Key | Not Verified | 12 | 4 | 10µs | Voltage - Buffered | No | Parallel | External | ±14.25V ~ 15.75V | 5V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 28-SOIC | Surface Mount | - | - |
|
AD5762RCSUZ-REEL7IC DAC 16BIT V-OUT 32TQFP |
0 |
|
Datasheet |
iCMOS® | 32-TQFP | Tape & Reel (TR) | Active | Not Verified | 16 | 2 | 10µs | Voltage - Buffered | No | SPI, DSP | External, Internal | ±11.4V ~ 16.5V | 2.7V ~ 5.25V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 32-TQFP (7x7) | Surface Mount | - | - |
|
DAC8831MCDEPIC DAC 16BIT V-OUT 14SOIC |
2 |
|
Datasheet |
- | 14-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | 16 | 1 | 1µs (Typ) | Voltage - Unbuffered | No | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5, ±0.5 | R-2R | -55°C ~ 125°C | 14-SOIC | Surface Mount | - | - |
|
LTC1599BCN#PBFIC DAC 16BIT A-OUT 24DIP |
0 |
|
Datasheet |
- | 24-DIP (0.300", 7.62mm) | Tube | Active | Not Verified | 16 | 1 | 1µs (Typ) | Current - Unbuffered | Yes | Parallel | External | 5V | 5V | ±2 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C | 24-PDIP | Through Hole | - | - |
|
LTC1599BCG#TRPBFIC DAC 16BIT A-OUT 24SSOP |
0 |
|
Datasheet |
- | 24-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Not Verified | 16 | 1 | 1µs (Typ) | Current - Unbuffered | Yes | Parallel | External | 5V | 5V | ±2 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C | 24-SSOP | Surface Mount | - | - |
|
LTC1597-1BCG#TRPBFIC DAC 16BIT A-OUT 28SSOP |
0 |
|
Datasheet |
- | 28-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Not Verified | 16 | 1 | 1µs (Typ) | Current - Unbuffered | No | Parallel | External | 5V | 5V | ±2 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C | 28-SSOP | Surface Mount | - | - |
|
|
LTC1597BCG#TRPBFIC DAC 16BIT A-OUT 28SSOP |
0 |
|
Datasheet |
- | 28-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Not Verified | 16 | 1 | 1µs (Typ) | Current - Unbuffered | No | Parallel | External | 5V | 5V | ±2 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C | 28-SSOP | Surface Mount | - | - |
|
AD9780BCPZRLIC DAC 12BIT A-OUT 72LFCSP |
0 |
|
Datasheet |
- | 72-VFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Not Verified | 12 | 2 | - | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 3.13V ~ 3.47V | 1.7V ~ 1.9V, 3.13V ~ 3.47V | ±0.25, ±0.13 | Quad-Switch | -40°C ~ 85°C | 72-LFCSP-VQ (10x10) | Surface Mount | - | - |
|
AD5679RBCPZ-1-RL716-CH16-BITNANODAC+WITH2PPM/CREF |
0 |
|
Datasheet |
nanoDAC+® | 28-VFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Not Verified | 16 | 16 | 8µs | Voltage - Buffered | No | DSP, SPI | Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±1.8LSB, ±0.7LSB | String DAC | -40°C ~ 125°C | 28-LFCSP (4x4) | Surface Mount | - | - |
|
|
AD5679RBCPZ-2-RL7IC DAC 16BIT V-OUT 28LFCSP |
0 |
|
Datasheet |
nanoDAC+® | 28-VFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Not Verified | 16 | 16 | 8µs | Voltage - Buffered | No | DSP, SPI | Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±1.8LSB, ±0.7LSB | String DAC | -40°C ~ 125°C | 28-LFCSP (4x4) | Surface Mount | - | - |
|
AD5677RBCPZ-2-RL716-CH16-BITNANODAC+WITH2PPM/CREF |
0 |
|
- |
- | 28-VFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | - | 16 | 16 | 8µs | Voltage - Buffered | No | I2C | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±1.8, ±0.7 | String DAC | -40°C ~ 125°C | 28-LFCSP (4x4) | Surface Mount | - | - |
|
|
AD5677RBCPZ-1-RL716-CH16-BITNANODAC+WITH2PPM/CREF |
0 |
|
- |
- | 28-VFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | - | 16 | 16 | 8µs | Voltage - Buffered | No | I2C | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±1.8, ±0.7 | String DAC | -40°C ~ 125°C | 28-LFCSP (4x4) | Surface Mount | - | - |
|
LTC2755ACUP-16#TRPBFIC DAC 16BIT A-OUT 64QFN |
0 |
|
Datasheet |
SoftSpan™ | 64-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | 16 | 4 | 2µs (Typ) | Current - Unbuffered | Yes | Parallel | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.4, ±0.2 | Multiplying DAC | 0°C ~ 70°C | 64-QFN (9x9) | Surface Mount | - | - |
|
LTC2754ACUKG-16#TRPBFIC DAC 16BIT A-OUT 52QFN |
0 |
|
Datasheet |
SoftSpan™ | 52-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | 16 | 4 | 2µs (Typ) | Current - Unbuffered | Yes | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.4, ±0.2 | Multiplying DAC | 0°C ~ 70°C | 52-QFN (7x8) | Surface Mount | - | - |
|
MAX5110GTJ+IC DAC 14BIT 32TQFN |
0 |
|
Datasheet |
- | 32-WFQFN Exposed Pad | Tube | Obsolete | Not Verified | 14 | - | - | - | - | SPI | Internal | 3V | 3V | - | - | -40°C ~ 105°C | 32-TQFN (5x5) | Surface Mount | - | - |
|

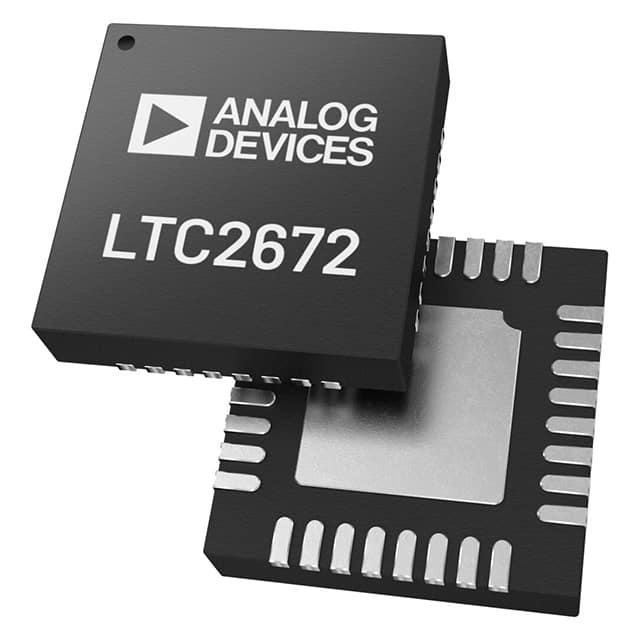

LTC2672IUH-16#TRPBFIC DAC 16BIT A-OUT 32LFCSP |
0 |
|
Datasheet |
SoftSpan™ | 32-WFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Not Verified | 16 | 5 | 21.1µs (Typ) | Current - Unbuffered | No | Serial, SPI | External, Internal | 2.85V ~ 5.5V | 1.7V ~ 5.5V | ±12, ±0.45LSB | Current Source | -40°C ~ 85°C | 32-LFCSP (5x5) | Surface Mount | - | - |
|
MAX500AEPE+IC DAC 8BIT V-OUT 16DIP |
0 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm) | Tube | Active | Not Verified | 8 | 4 | 4.5µs | Voltage - Buffered | No | I2C | External | 11.4V ~ 16.5V | 11.4V ~ 16.5V | ±0.5 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 16-PDIP | Through Hole | - | - |
|
LTC2662HUH-16#TRPBFIC DAC 16BIT A-OUT 32QFN |
0 |
|
Datasheet |
SoftSpan™ | 32-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | 16 | 5 | 8.7ms (Typ) | Current - Unbuffered | No | Serial, SPI | External, Internal | 2.85V ~ 5.5V | 1.71V ~ 5.5V | ±12, ±0.2 | Current Source | -40°C ~ 125°C | 32-QFN (5x5) | Surface Mount | - | - |
