Digital to Analog Converters (DAC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of Bits | Number of D/A Converters | Settling Time | Output Type | Differential Output | Data Interface | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | INL/DNL (LSB) | Architecture | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC2641IMS8-16#PBFIC DAC 16BIT V-OUT 8MSOP |
594 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | Not Verified | 16 | 1 | 1µs (Typ) | Voltage - Unbuffered | No | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5, ±0.5 | R-2R | -40°C ~ 85°C | 8-MSOP | Surface Mount | - | - |
|
LTC2641IDD-16#PBFIC DAC 16BIT V-OUT 8DFN |
10 |
|
Datasheet |
- | 8-WFDFN Exposed Pad | Tube | Active | Not Verified | 16 | 1 | 1µs (Typ) | Voltage - Unbuffered | No | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5, ±0.5 | R-2R | -40°C ~ 85°C | 8-DFN (3x3) | Surface Mount | - | - |
|
AD5541ABCPZ-REEL7IC DAC 16BIT V-OUT 10LFCSP |
2,750 |
|
Datasheet |
- | 10-VFDFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Not Verified | 16 | 1 | 1µs | Voltage - Unbuffered | No | SPI, DSP | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5, ±0.5 | R-2R | -40°C ~ 125°C | 10-LFCSP-WD (3x3) | Surface Mount | - | - |
|
|
AD5542ABCPZ-1-RL7IC DAC 16BIT V-OUT 10LFCSP |
137 |
|
Datasheet |
- | 10-VFDFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Not Verified | 16 | 1 | 1µs (Typ) | Voltage - Unbuffered | No | SPI, DSP | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5, ±0.5 | R-2R | -40°C ~ 85°C | 10-LFCSP-WD (3x3) | Surface Mount | - | - |
|
DAC80004IPWIC DAC 16BIT V-OUT 14TSSOP |
101 |
|
Datasheet |
- | 14-TSSOP (0.173", 4.40mm Width) | Tube | Active | Not Verified | 16 | 4 | 8µs | Voltage - Buffered | No | SPI, DSP | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 125°C | 14-TSSOP | Surface Mount | - | - |
|
LTC1590CS#TRPBFIC DAC 12BIT A-OUT 16SOIC |
7,054 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | 12 | 2 | 800ns | Current - Unbuffered | Yes | SPI | External | 5V | 5V | ±0.5 (Max), ±0.5 (Max) | R-2R | 0°C ~ 70°C | 16-SO | Surface Mount | - | - |
|
|
LTC1590CS#PBFIC DAC 12BIT A-OUT 16SOIC |
347 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | 12 | 2 | 800ns | Current - Unbuffered | Yes | SPI | External | 5V | 5V | ±0.5 (Max), ±0.5 (Max) | R-2R | 0°C ~ 70°C | 16-SO | Surface Mount | - | - |
|
MAX5822LEUA+IC DAC 12BIT V-OUT 8UMAX |
74 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | Not Verified | 12 | 2 | 12µs | Voltage - Buffered | No | I2C | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±2, ±1 (Max) | String DAC | -40°C ~ 85°C | 8-uMAX/uSOP | Surface Mount | - | - |
|
LTC1448CS8#PBFIC DAC 12BIT V-OUT 8SOIC |
1,443 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | 12 | 2 | 14µs (Typ) | Voltage - Buffered | No | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±5.5 (Max), ±0.2 | String DAC | 0°C ~ 70°C | 8-SO | Surface Mount | - | - |
|
|
LTC1448CS8#TRPBFIC DAC 12BIT V-OUT 8SOIC |
1,440 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | 12 | 2 | 14µs (Typ) | Voltage - Buffered | No | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±5.5 (Max), ±0.2 | String DAC | 0°C ~ 70°C | 8-SO | Surface Mount | - | - |
|
LTC1660IGN#PBFIC DAC 10BIT V-OUT 16SSOP |
203 |
|
Datasheet |
- | 16-SSOP (0.154", 3.90mm Width) | Tube | Active | Not Verified | 10 | 8 | 30µs (Typ) | Voltage - Unbuffered | No | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.6, ±0.2 | Oversampling Interpolating DAC | -40°C ~ 85°C | 16-SSOP | Surface Mount | - | - |
|

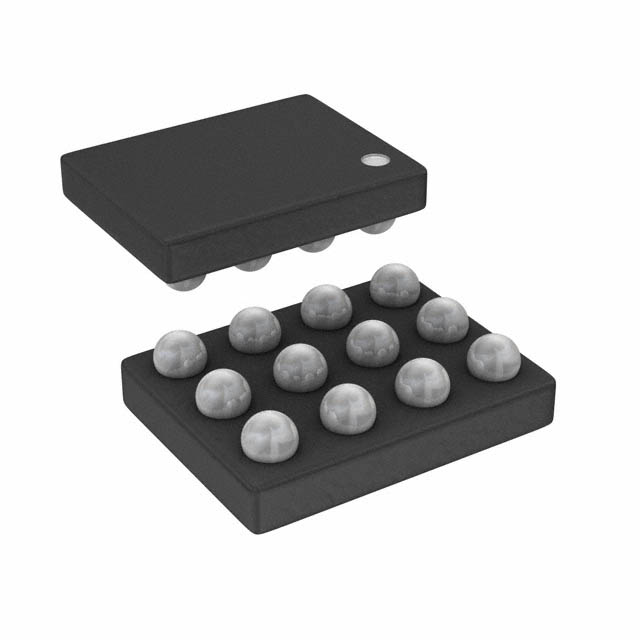

AD5664RBCBZ-3-RL7IC DAC 16BIT V-OUT 12WLCSP |
8,938 |
|
Datasheet |
nanoDAC® | 12-UFBGA, WLCSP | Tape & Reel (TR) | Active | Not Verified | 16 | 4 | 7µs | Voltage - Buffered | No | SPI, DSP | External, Internal | 2.7V ~ 3.6V | 2.7V ~ 3.6V | ±8, ±1 (Max) | String DAC | -40°C ~ 105°C | 12-WLCSP (1.67x2.25) | Surface Mount | - | - |
|
DAC8580IPWIC DAC 16BIT V-OUT 16TSSOP |
314 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) | Tube | Not For New Designs | Not Verified | 16 | 1 | 650ns | Voltage - Buffered | No | SPI | External | ±4V ~ 6V | 1.8V ~ 6V | -, ±0.25 | String DAC | -40°C ~ 85°C | 16-TSSOP | Surface Mount | - | - |
|
AD9716BCPZIC DAC 12BIT A-OUT 40LFCSP |
1,538 |
|
Datasheet |
TxDAC® | 40-VFQFN Exposed Pad, CSP | Tray | Active | Not Verified | 12 | 2 | - | Current - Unbuffered | Yes | Parallel | External, Internal | 1.7V ~ 3.5V | 1.7V ~ 1.9V | ±0.4, ±0.4 | Current Source | -40°C ~ 85°C | 40-LFCSP-VQ (6x6) | Surface Mount | - | - |
|
DAC1220E/2K5IC DAC 20BIT V-OUT 16SSOP |
2,646 |
|
Datasheet |
- | 16-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | 20 | 1 | 2ms | Voltage - Unbuffered | No | SPI | External | 5V | 5V | - | Sigma-Delta | -40°C ~ 85°C | 16-SSOP | Surface Mount | - | - |
|
AD5752AREZIC DAC 16BIT V-OUT 24TSSOP |
461 |
|
Datasheet |
iCMOS® | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Active | Not Verified | 16 | 2 | 12µs | Voltage - Buffered | No | SPI, DSP | External | ±4.5V ~ 16.5V | 2.7V ~ 5.5V | ±16 (Max), ±1 (Max) | String DAC | -40°C ~ 85°C | 24-TSSOP-EP | Surface Mount | - | - |
|
|
LTC2654BCGN-H16#PBFIC DAC 16BIT V-OUT 16SSOP |
841 |
|
Datasheet |
- | 16-SSOP (0.154", 3.90mm Width) | Tube | Active | Not Verified | 16 | 4 | 8.9µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 5V | 5V | ±2, ±0.3 | - | 0°C ~ 70°C | 16-SSOP | Surface Mount | - | - |
|
AD7398BRZIC DAC 12BIT V-OUT 16SOIC |
1,806 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | 12 | 4 | 6µs (Typ) | Voltage - Buffered | No | SPI | External | 2.7V ~ 5.5V, ±5V | 2.7V ~ 5.5V | ±1.5 (Max), ±1 (Max) | R-2R | -40°C ~ 125°C | 16-SOIC | Surface Mount | - | - |
|
MAX5541CSA+TIC DAC 16BIT V-OUT 8SOIC |
4,901 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | 16 | 1 | 1µs (Typ) | Voltage - Unbuffered | No | SPI | External | 5V | 5V | ±4, ±0.5 | R-2R | 0°C ~ 70°C | 8-SOIC | Surface Mount | - | - |
|
AD5541ABRMZ-REEL7IC DAC 16BIT V-OUT 10MSOP |
347 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Not Verified | 16 | 1 | 1µs | Voltage - Unbuffered | No | SPI, DSP | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5, ±0.5 | R-2R | -40°C ~ 125°C | 10-MSOP | Surface Mount | - | - |
Digital to Analog Converters (DAC) Electronic Components
Explore Digital to Analog Converters (DAC) electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
