Digital to Analog Converters (DAC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of Bits | Number of D/A Converters | Settling Time | Output Type | Differential Output | Data Interface | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | INL/DNL (LSB) | Architecture | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX537AEWE+IC DAC 12BIT V-OUT 16SOIC |
43 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | 12 | 4 | 5µs (Typ) | Voltage - Buffered | No | SPI | External | ±5V | - | ±0.15, ±1 (Max) | R-2R | -40°C ~ 85°C | 16-SOIC | Surface Mount | - | - |
|

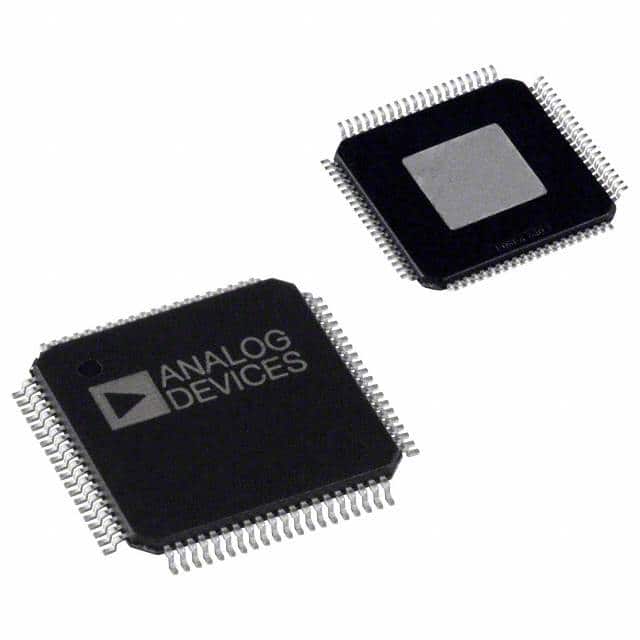

AD9773BSVZIC DAC 12BIT A-OUT 80TQFP |
11 |
|
Datasheet |
TxDAC+® | 80-TQFP Exposed Pad | Tray | Active | Not Verified | 12 | 2 | 11ns (Typ) | Current - Unbuffered | Yes | Parallel | External, Internal | 3.1V ~ 3.5V | 3.1V ~ 3.5V | ±0.4, ±0.2 | Current Source | -40°C ~ 85°C | 80-TQFP-EP (12x12) | Surface Mount | - | - |
|
ADDAC80D-CBI-VIC DAC 12BIT 24CERDIP |
0 |
|
Datasheet |
- | 24-CDIP (0.600", 15.24mm) | Tube | Active | Not Verified | 12 | 1 | 4µs | Voltage - Buffered | No | Parallel | External, Internal | ±11.4V ~ 16.5V | 4.5V ~ 16V | ±0.5 (Max), ±0.75 (Max) | R-2R | 0°C ~ 70°C | 24-CDIP | Through Hole | - | - |
|
AD9146BCPZIC DAC 16BIT A-OUT 48LFCSP |
0 |
|
Datasheet |
TxDAC+® | 48-WFQFN Exposed Pad, CSP | Tray | Active | Not Verified | 16 | 2 | 20ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 3.13V ~ 3.47V | 1.71V ~ 1.89V | ±3.7, ±2.1 | Current Source | -40°C ~ 85°C | 48-LFCSP (7x7) | Surface Mount | - | - |
|
AD7533UQIC DAC 10BIT A-OUT 16CDIP |
0 |
|
Datasheet |
- | 16-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | 10 | 1 | 800ns | Current - Unbuffered | Yes | Parallel | External | 5V ~ 15V | 5V ~ 15V | -, ±1 (Max) | R-2R | -55°C ~ 125°C | 16-CERDIP | Through Hole | - | - |
|
LTC1596-1AISW#PBFIC DAC 16BIT A-OUT 16SOIC |
42 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | 16 | 1 | 1µs (Typ) | Current - Unbuffered | Yes | SPI | External | 5V | 5V | ±0.35, ±0.2 | R-2R | -40°C ~ 85°C | 16-SO | Surface Mount | - | - |
|
|
LTC1596AISW#PBFIC DAC 16BIT A-OUT 16SOIC |
0 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | 16 | 1 | 1µs (Typ) | Current - Unbuffered | Yes | SPI | External | 5V | 5V | ±0.35, ±0.2 | R-2R | -40°C ~ 85°C | 16-SO | Surface Mount | - | - |
|
AD7835APZIC DAC 14BIT V-OUT 44PLCC |
7 |
|
Datasheet |
- | 44-LCC (J-Lead) | Tube | Active | Not Verified | 14 | 4 | 10µs (Typ) | Voltage - Buffered | No | Parallel | External | ±11.4V ~ 15.75V | 5V | ±2 (Max), ±0.9 (Max) | R-2R | -40°C ~ 85°C | 44-PLCC (16.59x16.59) | Surface Mount | - | - |
|
AD7225LPZIC DAC 8BIT V-OUT 28PLCC |
10 |
|
Datasheet |
- | 28-LCC (J-Lead) | Bulk | Active | Not Verified | 8 | 4 | 4µs | Voltage - Buffered | No | Parallel | External | 11.4V ~ 16.5V, -5V | 14.25V ~ 15.75V | ±0.5 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 28-PLCC (11.51x11.51) | Surface Mount | - | - |
|
MAX526CCNG+IC DAC 12BIT V-OUT 24DIP |
40 |
|
Datasheet |
- | 24-DIP (0.300", 7.62mm) | Tube | Active | Not Verified | 12 | 4 | 3µs (Typ) | Voltage - Buffered | No | Parallel | External | 10.8V ~ 16.5V, -5V | - | ±0.15, ±1 (Max) | R-2R | 0°C ~ 70°C | 24-PDIP | Through Hole | - | - |
|
AD9753ASTZIC DAC 12BIT A-OUT 48LQFP |
0 |
|
Datasheet |
TxDAC+® | 48-LQFP | Tray | Active | Not Verified | 12 | 1 | 11ns (Typ) | Current - Unbuffered | Yes | Parallel | External, Internal | 3V ~ 3.6V | 3V ~ 3.6V | ±0.5, ±0.4 | Current Source | -40°C ~ 85°C | 48-LQFP (7x7) | Surface Mount | - | - |
|
DAC8221GPZIC DAC 12BIT A-OUT 24DIP |
0 |
|
Datasheet |
- | 24-DIP (0.300", 7.62mm) | Bulk | Active | Not Verified | 12 | 2 | 1µs | Current - Unbuffered | No | Parallel | External | 5V ~ 15V | 5V ~ 15V | ±0.2, ±0.2 | R-2R | 0°C ~ 70°C | 24-PDIP | Through Hole | - | - |
|
AD669BNZIC DAC 16BIT V-OUT 28DIP |
8 |
|
Datasheet |
DACPORT® | 28-DIP (0.600", 15.24mm) | Tube | Active | Not Verified | 16 | 1 | 13µs | Voltage - Buffered | No | Parallel | External, Internal | ±13.5V ~ 16.5V | 5V | ±2 (Max), ±2 (Max) | R-2R | -40°C ~ 85°C | 28-PDIP | Through Hole | - | - |
|
AD7542GKNZIC DAC 12BIT A-OUT 16DIP |
9 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm) | Bulk | Active | Not Verified | 12 | 1 | 2µs | Current - Unbuffered | Yes | Parallel | External | 5V | 5V | ±0.5 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 16-PDIP | Through Hole | - | - |
|
AD7834BRZIC DAC 14BIT V-OUT 28SOIC |
8 |
|
Datasheet |
- | 28-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | 14 | 4 | 10µs (Typ) | Voltage - Buffered | No | SPI | External | ±11.4V ~ 15.75V | 5V | ±1 (Max), ±0.9 (Max) | R-2R | -40°C ~ 85°C | 28-SOIC | Surface Mount | - | - |
|
AD558KDIC DAC 8BIT V-OUT 16CDIP |
23 |
|
Datasheet |
DACPORT® | 16-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | 8 | 1 | 3µs | Voltage - Buffered | No | Parallel | Internal | 4.5V ~ 16.5V | 4.5V ~ 16.5V | ±0.25 (Max), - | R-2R | 0°C ~ 70°C | 16-CDIP | Through Hole | - | - |
|
LTC1821AIGW#PBFIC DAC 16BIT V-OUT 36SSOP |
25 |
|
Datasheet |
- | 36-BSOP (0.295", 7.50mm Width) | Tube | Active | Not Verified | 16 | 1 | 2µs (Typ) | Voltage - Buffered | No | Parallel | External | ±4.5V ~ 16.5V | 5V | ±0.35, ±0.2 | R-2R | -40°C ~ 85°C | 36-SSOP | Surface Mount | - | - |
|
|
LTC1821-1AIGW#PBFIC DAC 16BIT V-OUT 36SSOP |
0 |
|
Datasheet |
- | 36-BSOP (0.295", 7.50mm Width) | Tube | Active | Not Verified | 16 | 1 | 2µs (Typ) | Voltage - Buffered | No | Parallel | External | ±4.5V ~ 16.5V | 5V | ±0.35, ±0.2 | R-2R | -40°C ~ 85°C | 36-SSOP | Surface Mount | - | - |
|
AD9122SCPZ-EPIC DAC 16BIT A-OUT 72LFCSP |
11 |
|
Datasheet |
TxDAC+® | 72-VFQFN Exposed Pad, CSP | Tray | Active | Not Verified | 16 | 2 | 20ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 3.13V ~ 3.47V | 1.71V ~ 1.89V | ±3.7, ±2.1 | Current Source | -55°C ~ 105°C | 72-LFCSP-VQ (10x10) | Surface Mount | - | - |
|
|
AD7524SQIC DAC 8BIT A-OUT 16CDIP |
0 |
|
Datasheet |
- | 16-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | 8 | 1 | 500ns | Current - Unbuffered | Yes | Parallel | External | 5V ~ 15V | 5V ~ 15V | ±0.5 (Max), - | R-2R | -55°C ~ 125°C | 16-CERDIP | Through Hole | - | - |
Digital to Analog Converters (DAC) Electronic Components
Explore Digital to Analog Converters (DAC) electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
