Digital to Analog Converters (DAC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of Bits | Number of D/A Converters | Settling Time | Output Type | Differential Output | Data Interface | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | INL/DNL (LSB) | Architecture | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD7228KNZIC DAC 8BIT V-OUT 24DIP |
7 |
|
Datasheet |
- | 24-DIP (0.300", 7.62mm) | Tube | Active | Not Verified | 8 | 8 | 5µs, 7µs | Voltage - Buffered | No | Parallel | External | 10.8V ~ 16.5V, -5V | 13.5V ~ 16.5V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 24-PDIP | Through Hole | - | - |
|
AD5372BCPZIC DAC 16BIT V-OUT 56LFCSP |
39 |
|
Datasheet |
- | 64-VFQFN Exposed Pad, CSP | Tray | Active | Not Verified | 16 | 32 | 30µs | Voltage - Buffered | No | SPI, DSP | External | 9V ~ 16.5V, -4.5V ~ 16.5V | 2.5V ~ 5.5V | ±4 (Max), ±1 (Max) | String DAC | -40°C ~ 85°C | 64-LFCSP-VQ (9x9) | Surface Mount | - | - |
|
DAC8412EPZIC DAC 12BIT V-OUT 28DIP |
7 |
|
Datasheet |
- | 28-DIP (0.600", 15.24mm) | Tube | Active | Not Verified | 12 | 4 | 10µs (Typ) | Voltage - Buffered | No | Parallel | External | 5V ~ 15V, -15V | 5V | ±0.25, -1 | R-2R | -40°C ~ 85°C | 28-PDIP | Through Hole | - | - |
|
AD5378ABCZIC DAC 14BIT V-OUT 108CSPBGA |
5 |
|
Datasheet |
- | 108-BGA, CSPBGA | Tray | Active | Not Verified | 14 | 32 | 30µs | Voltage - Buffered | No | SPI, DSP | External | 8.5V ~ 16.5V , -3V ~ 16.5V | 2.7V ~ 5.5V | ±3 (Max), -1/+1.5 (Max) | String DAC | -40°C ~ 85°C | 108-CSPBGA (13x13) | Surface Mount | - | - |
|
AD5371BBCZIC DAC 14BIT V-OUT 100CSBGA |
29 |
|
Datasheet |
- | 100-LFBGA, CSPBGA | Tray | Active | Not Verified | 14 | 40 | 30µs | Voltage - Buffered | No | SPI, DSP | External | 9V ~ 16.5V, -4.5V ~ 16.5V | 2.5V ~ 5.5V | ±1 (Max), ±1 (Max) | String DAC | -40°C ~ 85°C | 100-CSPBGA (10x10) | Surface Mount | - | - |
|

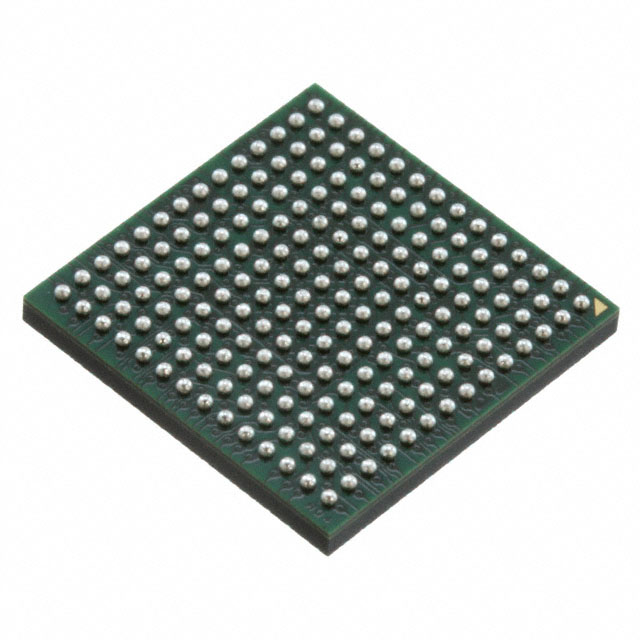

AD9148BBCZIC DAC 16BIT A-OUT 196CSPBGA |
22 |
|
Datasheet |
TxDAC+® | 196-LFBGA, CSPBGA | Tray | Active | Not Verified | 16 | 4 | 20ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 3.13V ~ 3.47V | 1.71V ~ 1.89V | ±3.7, ±2.1 | Current Source | -40°C ~ 85°C | 196-CSPBGA (12x12) | Surface Mount | - | - |
|
AD7846BPZIC DAC 16BIT V-OUT 28PLCC |
30 |
|
Datasheet |
- | 28-LCC (J-Lead) | Tube | Active | Not Verified | 16 | 1 | 9µs | Voltage - Buffered | No | Parallel | External | ±11.4V ~ 15.75V | 5V | ±8 (Max), ±0.5 (Max) | String DAC | -40°C ~ 85°C | 28-PLCC (11.51x11.51) | Surface Mount | - | - |
|
5962-8770103RAIC DAC 8BIT A-OUT 20CERDIP |
10 |
|
Datasheet |
- | 20-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | 8 | 2 | 400ns | Current - Unbuffered | No | Parallel | External | 5V ~ 15V | 5V ~ 15V | ±0.5 (Max), ±1 (Max) | R-2R | -55°C ~ 125°C | 20-CERDIP | Through Hole | - | - |
|
|
AD7228LNZIC DAC 8BIT V-OUT 24DIP |
3 |
|
Datasheet |
- | 24-DIP (0.300", 7.62mm) | Tube | Active | Not Verified | 8 | 8 | 5µs, 7µs | Voltage - Buffered | No | Parallel | External | 10.8V ~ 16.5V, -5V | 13.5V ~ 16.5V | ±0.5 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 24-PDIP | Through Hole | - | - |
|
AD558TDIC DAC 8BIT V-OUT 16CDIP |
6 |
|
Datasheet |
DACPORT® | 16-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | 8 | 1 | 3µs | Voltage - Buffered | No | Parallel | Internal | 4.5V ~ 16.5V | 4.5V ~ 16.5V | ±0.375 (Max), - | R-2R | -55°C ~ 125°C | 16-CDIP | Through Hole | - | - |
|
AD567JDIC DAC 12BIT A-OUT 28CDIP |
11 |
|
Datasheet |
- | 28-CDIP (0.600", 15.24mm) | Tube | Active | Not Verified | 12 | 1 | 500ns | Current - Unbuffered | No | Parallel | External, Internal | ±11.4V ~ 16.5V | - | ±0.5, ±0.5 | R-2R | 0°C ~ 70°C | 28-CDIP | Through Hole | - | - |
|
AD5380BSTZ-3IC DAC 14BIT V-OUT 100LQFP |
5 |
|
Datasheet |
- | 100-LQFP | Tray | Active | Not Verified | 14 | 40 | 8µs | Voltage - Buffered | No | I2C, Parallel, SPI, DSP | External, Internal | 2.7V ~ 3.6V | 2.7V ~ 5.5V | ±4 (Max), -1/+2 (Max) | String DAC | -40°C ~ 85°C | 100-LQFP (14x14) | Surface Mount | - | - |
|
|
AD5379ABCZIC DAC 14BIT V-OUT 108CSPBGA |
2 |
|
Datasheet |
- | 108-BGA, CSPBGA | Tray | Active | Not Verified | 14 | 40 | 30µs | Voltage - Buffered | No | SPI, DSP | External | 8.5V ~ 16.5V , -3V ~ 16.5V | 2.7V ~ 5.5V | ±3 (Max), -1/+1.5 (Max) | String DAC | -40°C ~ 85°C | 108-CSPBGA (13x13) | Surface Mount | - | - |
|
AD7249SQIC DAC 12BIT V-OUT 16CDIP |
1 |
|
Datasheet |
DACPORT® | 16-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | 12 | 2 | 10µs | Voltage - Buffered | No | SPI | External, Internal | ±10.8V ~ 16.5V | - | ±1 (Max), ±0.9 (Max) | R-2R | -55°C ~ 125°C | 16-CERDIP | Through Hole | - | - |
|
MAX5735BUTN+IC DAC 16BIT V-OUT 56TQFN |
179 |
|
Datasheet |
- | 56-WFQFN Exposed Pad | Tube | Active | Not Verified | 16 | 32 | 20µs (Typ) | Voltage - Buffered | No | SPI, DSP | External | 5V | 2.7V ~ 5.25V | ±8, ±1 (Max) | Pipelined | 0°C ~ 85°C | 56-TQFN (8x8) | Surface Mount | - | - |
|
AD5781SRUZ-EPIC DAC 18BIT 20TSSOP |
28 |
|
Datasheet |
- | 20-TSSOP (0.173", 4.40mm Width) | Tube | Active | Not Verified | 18 | 1 | 1µs | Voltage - Unbuffered | Yes | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5 (Max), ±0.5 (Max) | - | -55°C ~ 125°C | 20-TSSOP | Surface Mount | - | - |
|
AD9154BCPZIC DAC 16BIT A-OUT 88LFCSP |
30 |
|
Datasheet |
TxDAC+® | 88-VFQFN Exposed Pad, CSP | Tray | Active | Not Verified | 16 | 4 | - | Current - Unbuffered | Yes | JESD204B | Internal | 3.13V ~ 3.47V | 1.14V ~ 1.26V | ±8.2, ±4.3 | Quad-Switch | -40°C ~ 85°C | 88-LFCSP-VQ (12x12) | Surface Mount | - | - |
|
LTC2000ACY-16#PBFIC DAC 16BIT A-OUT 170BGA |
121 |
|
Datasheet |
- | 170-LFBGA | Tray | Active | Not Verified | 16 | 1 | 2.2ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 1.8V ~ 1.92V, 3.135V ~ 3.465V | 1.8V ~ 1.92V, 3.135V ~ 3.465V | ±1, ±0.5 | Current Steering | 0°C ~ 70°C | 170-BGA (15x9) | Surface Mount | - | - |
|
AD9154BCPAZIC DAC 16BIT A-OUT 88LFCSP |
8 |
|
Datasheet |
TxDAC+® | 88-VFQFN Exposed Pad, CSP | Tray | Active | Not Verified | 16 | 4 | - | Current - Unbuffered | Yes | JESD204B | Internal | 3.13V ~ 3.47V | 1.14V ~ 1.26V | ±8.2, ±4.3 | Quad-Switch | -40°C ~ 85°C | 88-LFCSP-VQ (12x11.75) | Surface Mount | - | - |
|
AD9161BBCZIC DAC 11BIT A-OUT 169CSPBGA |
4 |
|
Datasheet |
- | 169-VFBGA, CSPBGA | Tray | Active | Not Verified | 11 | 1 | - | Current - Unbuffered | No | JESD204B | External, Internal | 1.14V ~ 1.326V, 2.375V ~ 2.625V | - | ±2.7, ±1.7 | Quad-Switch | -40°C ~ 85°C | 169-CSPBGA (11x11) | Surface Mount | - | - |
Digital to Analog Converters (DAC) Electronic Components
Explore Digital to Analog Converters (DAC) electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
