Current Sensors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | For Measuring | Sensor Type | Current - Sensing | Number of Channels | Output | Sensitivity | Frequency | Linearity | Accuracy | Voltage - Supply | Response Time | Current - Supply (Max) | Operating Temperature | Grade | Qualification | Polarization | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

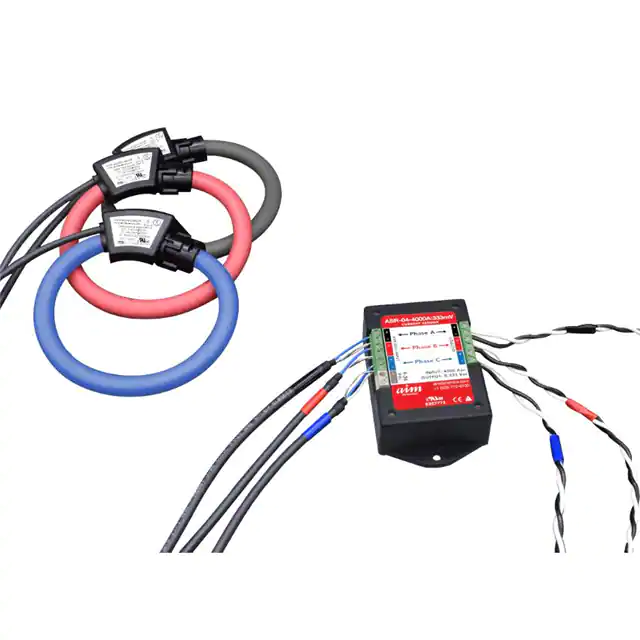

ASR-04-500A:333MV4" COIL 500A:333MV 3PH INTEGRATR |
3 |
|
Datasheet |
ASR-400MV | - | Bag | Active | AC | Rogowski Coil | 500A | 3 | Ratiometric, 0V ~ 0.333V | - | 25Hz ~ 100kHz | - | ±1% | 9V ~ 36V | - | - | -20°C ~ 80°C | - | - | - | - | - |
|
ASR-04-1200A:4-20MA4" COIL 1200A:4-20MA 3PH INTGRTR |
10 |
|
Datasheet |
ASR-400MV | - | Bag | Active | AC | Rogowski Coil | 1200A | 3 | Ratiometric, 4mA ~ 20mA | - | 40Hz ~ 3kHz | - | ±1% | 8V ~ 35V | - | - | -20°C ~ 80°C | - | - | - | - | - |
|
|
ASR-07-800A:4-20MA7" COIL 800A:4-20MA 3PH INTEGRTR |
10 |
|
Datasheet |
ASR-400MV | - | Bag | Active | AC | Rogowski Coil | 800A | 3 | Ratiometric, 4mA ~ 20mA | - | 40Hz ~ 3kHz | - | ±1% | 8V ~ 35V | - | - | -20°C ~ 80°C | - | - | - | - | - |
|
|
ASR-07-100A:4-20MA7" COIL 100A:4-20MA 3PH INTEGRTR |
5 |
|
Datasheet |
ASR-400MV | - | Bag | Active | AC | Rogowski Coil | 100A | 3 | Ratiometric, 4mA ~ 20mA | - | 40Hz ~ 3kHz | - | ±1% | 8V ~ 35V | - | - | -20°C ~ 80°C | - | - | - | - | - |
|
CPCO-12000-77-MADC-AC CURRENT PROBE, CLAMP-ON, 1 |
10 |
|
Datasheet |
CPCO | Box | Box | Active | AC/DC | Open Loop | 12000A | 1 | Ratiometric, 4mA ~ 20mA | - | DC ~ 40kHz | ±0.5% | 1% | 11V ~ 26V | 10µs | 47mA | -40°C ~ 100°C | - | - | Bidirectional | Panel Mount | - |
|
|
CPCO-12000-77-BP10DC-AC CURRENT PROBE, CLAMP-ON, 1 |
9 |
|
Datasheet |
CPCO | Box | Box | Active | AC/DC | Open Loop | 12000A | 1 | Ratiometric, ±10V | - | DC ~ 40kHz | ±0.5% | 1% | 11V ~ 31V | 10µs | 47mA | -40°C ~ 100°C | - | - | Bidirectional | Panel Mount | - |
|
|
CPCO-12000-77-BP5DC-AC CURRENT PROBE, CLAMP-ON, 1 |
5 |
|
Datasheet |
CPCO | Box | Box | Active | AC/DC | Open Loop | 12000A | 1 | Ratiometric, ±5V | - | DC ~ 40kHz | ±0.5% | 1% | 11V ~ 31V | 10µs | 47mA | -40°C ~ 100°C | - | - | Bidirectional | Panel Mount | - |
|
|
CPCO-8000-77-BP10DC-AC CURRENT PROBE, CLAMP-ON, 8 |
4 |
|
Datasheet |
CPCO | Box | Box | Active | AC/DC | Open Loop | 8000A | 1 | Ratiometric, ±10V | - | DC ~ 40kHz | ±0.5% | 1% | 11V ~ 31V | 10µs | 47mA | -40°C ~ 100°C | - | - | Bidirectional | Panel Mount | - |
|

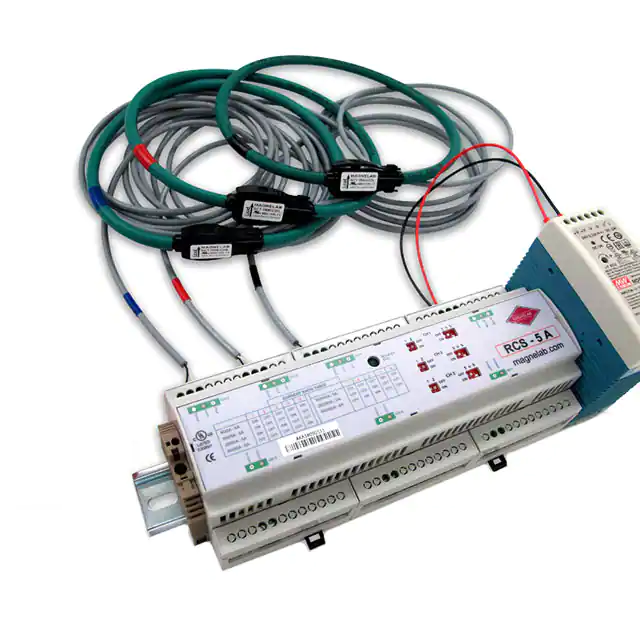

RCS-1805-VAR3PH 18" COILS SELECTABLE IN:5A |
10 |
|
Datasheet |
RCS-XX05-VAR | Module | Bag | Active | AC | AC Single Phase/Three Phase | Programmable | 3 | Ratiometric, Current | - | 50Hz ~ 60Hz | - | ±1% | 24VDC | - | - | -20°C ~ 55°C | - | - | - | DIN Rail | - |
|
|
RCS-2405-VAR3PH 24" COILS SELECTABLE IN:5A |
10 |
|
Datasheet |
RCS-XX05-VAR | Module | Bag | Active | AC | AC Single Phase/Three Phase | Programmable | 1 | Ratiometric, Current | - | 50Hz ~ 60Hz | - | ±1% | 24VDC | - | - | -20°C ~ 55°C | - | - | - | DIN Rail | - |
|
RIK-5A:RCT163PH 5A INT 4" COIL KIT |
5 |
|
Datasheet |
RIK | - | Tape & Box (TB) | Active | AC | Rogowski Coil | 500A, 1000A, 2500A, 5000A, 10000A, 25000A, 50000A (Selectable) | 3 | Ratiometric, 5A | - | 50/60Hz | - | ±1% | 24VDC | 10ms | - | -20°C ~ 55°C | - | - | - | DIN Rail, Panel | - |
|
CPCO-4000-160-BP10DC-AC CURRENT PROBE, CLAMP-ON, 4 |
10 |
|
Datasheet |
CPCO | Box | Box | Active | AC/DC | Open Loop | 4000A | 1 | Ratiometric, ±10V | - | DC ~ 40kHz | ±0.5% | 1% | 11V ~ 31V | 10µs | 80mA | -40°C ~ 100°C | - | - | Bidirectional | Panel Mount | - |
|
|
CPCO-1000-160-BP10DC-AC CURRENT PROBE, CLAMP-ON, 1 |
10 |
|
Datasheet |
CPCO | Box | Box | Active | AC/DC | Open Loop | 1000A | 1 | Ratiometric, ±10V | - | DC ~ 40kHz | ±0.5% | 1% | 11V ~ 31V | 10µs | 80mA | -40°C ~ 100°C | - | - | Bidirectional | Panel Mount | - |
|
|
CPCO-2000-160-SEDC-AC CURRENT PROBE, CLAMP-ON, 2 |
10 |
|
Datasheet |
CPCO | Box | Box | Active | AC/DC | Open Loop | 2000A | 1 | Ratiometric, 0V ~ 10V | - | DC ~ 40kHz | ±0.5% | 1% | 11V ~ 31V | 10µs | 80mA | -40°C ~ 100°C | - | - | Bidirectional | Panel Mount | - |
|
|
CPCO-16000-160-MADC-AC CURRENT PROBE, CLAMP-ON, 1 |
10 |
|
Datasheet |
CPCO | Box | Box | Active | AC/DC | Open Loop | 16000A | 1 | Ratiometric, 4mA ~ 20mA | - | DC ~ 40kHz | ±0.5% | 1% | 11V ~ 26V | 10µs | 80mA | -40°C ~ 100°C | - | - | Bidirectional | Panel Mount | - |
|
|
CPCO-16000-160-BP10DC-AC CURRENT PROBE, CLAMP-ON, 1 |
10 |
|
Datasheet |
CPCO | Box | Box | Active | AC/DC | Open Loop | 16000A | 1 | Ratiometric, ±10V | - | DC ~ 40kHz | ±0.5% | 1% | 11V ~ 31V | 10µs | 80mA | -40°C ~ 100°C | - | - | Bidirectional | Panel Mount | - |
|
DM1200UB-10VCURRENT TRANSDUCER 1200A |
3 |
|
- |
DM | Module, Single Pass Through | Bulk | Active | AC/DC | Flux Gate, Closed Loop | 1200A | 1 | Ratiometric, Voltage | - | DC ~ 300kHz | ±0.0015% | - | ±14.25V ~ 15.75V | 1µs | 141mA | -40°C ~ 65°C | - | - | Bidirectional | Chassis Mount | - |
|
|
TMR7302-250E/PFF5BBMini TMR Current Sensor NOM 250A |
50 |
|
Datasheet |
- | 5-CB Formed Leads, PFF | Bulk | Active | AC/DC | Open Loop | 250A | 1 | Analog Voltage | 8mV/A | 50kHz | ±0.5% | ±2% | 4.75V ~ 5.25V | 10µs | 7.5mA | -40°C ~ 125°C | - | - | Bidirectional | Through Hole | - |
|
|
TMR7302-100E/PFF5BBMini TMR Current Sensor NOM 100A |
50 |
|
Datasheet |
- | 5-CB Formed Leads, PFF | Bulk | Active | AC/DC | Open Loop | 100A | 1 | Analog Voltage | 20mV/A | 50kHz | ±0.5% | ±2% | 4.75V ~ 5.25V | 10µs | 7.5mA | -40°C ~ 125°C | - | - | Bidirectional | Through Hole | - |
|
|
TMR7302-200E/PFF5BBMini TMR Current Sensor NOM 200A |
50 |
|
Datasheet |
- | 5-CB Formed Leads, PFF | Bulk | Active | AC/DC | Open Loop | 200A | 1 | Analog Voltage | 10mV/A | 50kHz | ±0.5% | ±2% | 4.75V ~ 5.25V | 10µs | 7.5mA | -40°C ~ 125°C | - | - | Bidirectional | Through Hole | - |
