Crystals
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AV-27.000MAGE-TCRYSTAL 27.0000MHZ 12PF SMD |
9,165 |
|
Datasheet |
AV | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 27 MHz | ±50ppm | ±30ppm | 12pF | 60 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
AV-14.31818MAGV-TCRYSTAL 14.31818MHZ 8PF SMD |
3,158 |
|
Datasheet |
AV | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 14.31818 MHz | ±50ppm | ±30ppm | 8pF | 120 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
AV-13.560MAGE-TCRYSTAL 13.5600MHZ 12PF SMD |
2,294 |
|
Datasheet |
AV | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 13.56 MHz | ±50ppm | ±30ppm | 12pF | 120 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
AV-33.333MAGV-TCRYSTAL 33.3330MHZ 8PF SMD |
7,997 |
|
Datasheet |
AV | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 33.333 MHz | ±50ppm | ±30ppm | 8pF | 60 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
AV-41.600MAGQ-TCRYSTAL 41.6000MHZ 10PF SMD |
7,106 |
|
Datasheet |
AV | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 41.6 MHz | ±50ppm | ±30ppm | 10pF | 60 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
AM-33.333MAGV-TCRYSTAL 33.3330MHZ 8PF SMD |
5,105 |
|
Datasheet |
AM | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 33.333 MHz | ±50ppm | ±30ppm | 8pF | 60 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
AM-14.31818MAGQ-TCRYSTAL 14.31818MHZ 10PF SMD |
5,796 |
|
Datasheet |
AM | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 14.31818 MHz | ±50ppm | ±30ppm | 10pF | 100 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
AM-24.576MAGE-TCRYSTAL 24.5760MHZ 12PF SMD |
3,666 |
|
Datasheet |
AM | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24.576 MHz | ±50ppm | ±30ppm | 12pF | 80 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
AM-28.63636MAGK-TCRYSTAL 28.63636MHZ 20PF SMD |
6,941 |
|
Datasheet |
AM | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 28.63636 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
AM-26.000MAGE-TCRYSTAL 26.0000MHZ 12PF SMD |
5,708 |
|
Datasheet |
AM | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 26 MHz | ±50ppm | ±30ppm | 12pF | 80 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
7M13500011CRYSTAL 13.5600MHZ 16PF SMD |
45,000 |
|
Datasheet |
7M | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 13.56 MHz | ±20ppm | ±20ppm | 16pF | - | - | -20°C ~ 75°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
7V-19.6608MAAQ-TCRYSTAL 19.6608MHZ 10PF SMD |
3,000 |
|
Datasheet |
7V | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 19.6608 MHz | ±30ppm | ±30ppm | 10pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
7V-38.000MAAQ-TCRYSTAL 38.0000MHZ 10PF SMD |
2,813 |
|
Datasheet |
7V | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 38 MHz | ±30ppm | ±30ppm | 10pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
7V-28.63636MAAJ-TCRYSTAL 28.63636MHZ 18PF SMD |
2,768 |
|
Datasheet |
7V | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 28.63636 MHz | ±30ppm | ±30ppm | 18pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
7V-28.224MAAQ-TCRYSTAL 28.2240MHZ 10PF SMD |
2,476 |
|
Datasheet |
7V | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 28.224 MHz | ±30ppm | ±30ppm | 10pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
7V-38.000MAAV-TCRYSTAL 38.0000MHZ 8PF SMD |
2,257 |
|
Datasheet |
7V | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 38 MHz | ±30ppm | ±30ppm | 8pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|

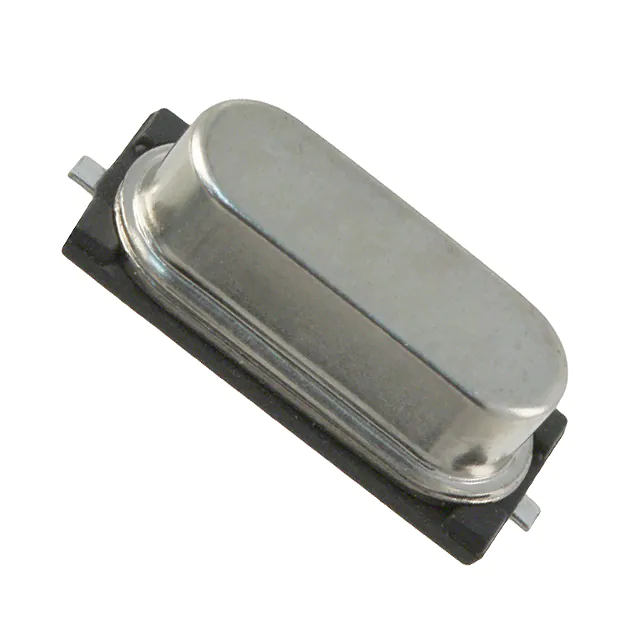

9C-64.000MAAJ-TCRYSTAL 64.0000MHZ 18PF SMD |
1,002 |
|
Datasheet |
9C | HC-49/US | Tape & Reel (TR) | Obsolete | MHz Crystal | 64 MHz | ±30ppm | ±30ppm | 18pF | 60 Ohms | 3rd Overtone | -20°C ~ 70°C | - | Surface Mount | - | 0.449" L x 0.189" W (11.40mm x 4.80mm) | 0.161" (4.10mm) |
|
|
7V-18.432MAHQ-TCRYSTAL 18.4320MHZ 10PF SMD |
1,087 |
|
Datasheet |
7V | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 18.432 MHz | ±30ppm | ±30ppm | 10pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
7V-37.125MDHV-TCRYSTAL 37.1250MHZ 8PF SMD |
2,859 |
|
Datasheet |
7V | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 37.125 MHz | ±30ppm | ±20ppm | 8pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
7V-40.000MDHV-TCRYSTAL 40.0000MHZ 8PF SMD |
2,809 |
|
Datasheet |
7V | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 40 MHz | ±30ppm | ±20ppm | 8pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
