Crystals
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC-406 32.7680K-E3:PURE SNCRYSTAL 32.7680KHZ 6PF SMD |
7,387 |
|
Datasheet |
MC-406 | 4-SOJ, 2.29mm pitch | Tape & Reel (TR) | Obsolete | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 6pF | 50 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | 4-SOJ | 0.378" L x 0.160" W (9.60mm x 4.06mm) | 0.142" (3.60mm) |
|
|
MC-405 32.7680K-E3:PURE SNCRYSTAL 32.7680KHZ 6PF SMD |
2,988 |
|
Datasheet |
MC-405 | 4-SOJ, 2.29mm pitch | Tape & Reel (TR) | Obsolete | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 6pF | 50 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | 4-SOJ | 0.378" L x 0.160" W (9.60mm x 4.06mm) | 0.142" (3.60mm) |
|
FC-255 32.7680K-AC5CRYSTAL 32.7680KHZ 9PF SMD |
6,780 |
|
Datasheet |
FC-255 | 2-SMD, No Lead | Tape & Reel (TR) | Obsolete | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 9pF | 65 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | 2-SMD (4.9x1.8) | 0.193" L x 0.071" W (4.90mm x 1.80mm) | 0.035" (0.90mm) |
|
|
FC-255 32.7680K-AG5CRYSTAL 32.7680KHZ 7PF SMD |
6,937 |
|
Datasheet |
FC-255 | 2-SMD, No Lead | Tape & Reel (TR) | Obsolete | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 7pF | 65 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | 2-SMD (4.9x1.8) | 0.193" L x 0.071" W (4.90mm x 1.80mm) | 0.035" (0.90mm) |
|

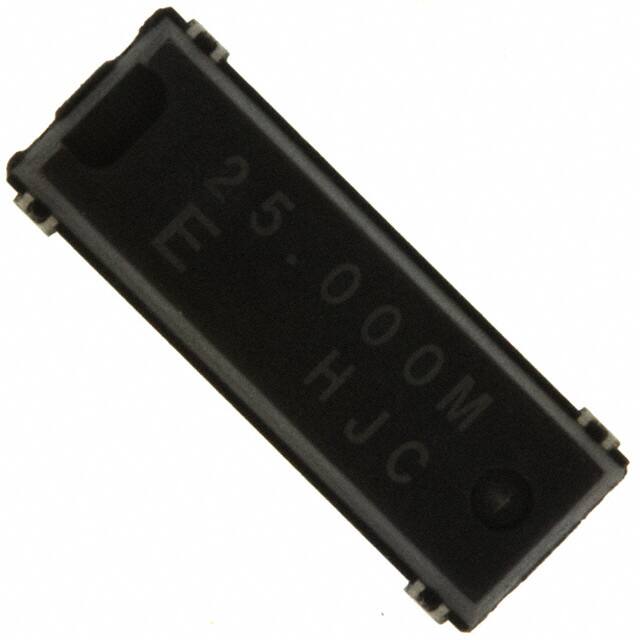

MA-406 25.0000M-G3:ROHSCRYSTAL 25.0000MHZ 20PF SMD |
6,919 |
|
Datasheet |
MA-406 | 4-SOJ, 9.60mm pitch | Tape & Reel (TR) | Obsolete | MHz Crystal | 25 MHz | ±30ppm | ±50ppm | 20pF | 40 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | 4-SOJ | 0.461" L x 0.157" W (11.70mm x 4.00mm) | 0.146" (3.70mm) |
|
MA-406 14.31818M-C3:ROHSCRYSTAL 14.31818MHZ 18PF SMD |
3,557 |
|
Datasheet |
MA-406 | 4-SOJ, 9.60mm pitch | Tape & Reel (TR) | Obsolete | MHz Crystal | 14.31818 MHz | ±30ppm | ±50ppm | 18pF | 50 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | 4-SOJ | 0.461" L x 0.157" W (11.70mm x 4.00mm) | 0.146" (3.70mm) |
|
7B-12.288MAAJ-TCRYSTAL 12.2880MHZ 18PF SMD |
9,281 |
|
Datasheet |
7B | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | MHz Crystal | 12.288 MHz | ±30ppm | ±30ppm | 18pF | 40 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.041" (1.05mm) |
|
7B-14.31818MAAJ-TCRYSTAL 14.31818MHZ 18PF SMD |
4,983 |
|
Datasheet |
7B | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | MHz Crystal | 14.31818 MHz | ±30ppm | ±30ppm | 18pF | 40 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.041" (1.05mm) |
|
|
7B-36.000MAAJ-TCRYSTAL 36.0000MHZ 18PF SMD |
3,075 |
|
Datasheet |
7B | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | MHz Crystal | 36 MHz | ±30ppm | ±30ppm | 18pF | 40 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.041" (1.05mm) |
|
|
7B-40.000MAAJ-TCRYSTAL 40.0000MHZ 18PF SMD |
6,428 |
|
Datasheet |
7B | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | MHz Crystal | 40 MHz | ±30ppm | ±30ppm | 18pF | 40 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.041" (1.05mm) |
|
|
7B-10.000MAAJ-TCRYSTAL 10.0000MHZ 18PF SMD |
4,912 |
|
Datasheet |
7B | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | MHz Crystal | 10 MHz | ±30ppm | ±30ppm | 18pF | 100 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.041" (1.05mm) |
|
|
7B-50.000MAAJ-TCRYSTAL 50.0000MHZ 18PF SMD |
3,280 |
|
Datasheet |
7B | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | MHz Crystal | 50 MHz | ±30ppm | ±30ppm | 18pF | 120 Ohms | 3rd Overtone | -20°C ~ 70°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.041" (1.05mm) |
|
AX-12.000MAGV-TCRYSTAL 12.0000MHZ 8PF SMD |
7,661 |
|
Datasheet |
AX | 2-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 12 MHz | ±50ppm | ±30ppm | 8pF | 80 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.315" L x 0.177" W (8.00mm x 4.50mm) | 0.059" (1.50mm) |
|
|
AX-16.000MAGV-TCRYSTAL 16.0000MHZ 8PF SMD |
2,469 |
|
Datasheet |
AX | 2-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 8pF | 80 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.315" L x 0.177" W (8.00mm x 4.50mm) | 0.059" (1.50mm) |
|
AX-16.9344MAGV-TCRYSTAL 16.9344MHZ 8PF SMD |
3,360 |
|
Datasheet |
AX | 2-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16.9344 MHz | ±50ppm | ±30ppm | 8pF | 80 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.315" L x 0.177" W (8.00mm x 4.50mm) | 0.059" (1.50mm) |
|
|
AX-20.000MAGE-TCRYSTAL 20.0000MHZ 12PF SMD |
7,396 |
|
Datasheet |
AX | 2-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 20 MHz | ±50ppm | ±30ppm | 12pF | 80 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.315" L x 0.177" W (8.00mm x 4.50mm) | 0.059" (1.50mm) |
|
|
AX-24.576MAGV-TCRYSTAL 24.5760MHZ 8PF SMD |
8,898 |
|
Datasheet |
AX | 2-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24.576 MHz | ±50ppm | ±30ppm | 8pF | 80 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.315" L x 0.177" W (8.00mm x 4.50mm) | 0.059" (1.50mm) |
|
|
AX-33.333MAGQ-TCRYSTAL 33.3330MHZ 10PF SMD |
4,305 |
|
Datasheet |
AX | 2-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 33.333 MHz | ±50ppm | ±30ppm | 10pF | 80 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.315" L x 0.177" W (8.00mm x 4.50mm) | 0.059" (1.50mm) |
|
|
AX-10.000MALV-TCRYSTAL 10.0000MHZ 8PF SMD |
8,832 |
|
Datasheet |
AX | 2-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 10 MHz | ±150ppm | ±30ppm | 8pF | 100 Ohms | Fundamental | -40°C ~ 125°C | AEC-Q200 | Surface Mount | - | 0.315" L x 0.177" W (8.00mm x 4.50mm) | 0.059" (1.50mm) |
|
AV-37.050MAGV-TCRYSTAL 37.0500MHZ 8PF SMD |
5,244 |
|
Datasheet |
AV | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 37.05 MHz | ±50ppm | ±30ppm | 8pF | 60 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
