Crystals
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA-506 20.0000M-G3:ROHSCRYSTAL 20.0000MHZ 20PF SMD |
9,486 |
|
Datasheet |
MA-506 | 4-SOJ, 3.30mm pitch | Tape & Reel (TR) | Obsolete | MHz Crystal | 20 MHz | ±30ppm | ±50ppm | 20pF | 40 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | 4-SOJ | 0.500" L x 0.200" W (12.70mm x 5.08mm) | 0.181" (4.60mm) |
|
|
MA-505 8.0000M-C3:PURE SNCRYSTAL 8.0000MHZ 18PF SMD |
2,286 |
|
Datasheet |
MA-505 | 4-SOJ, 3.30mm pitch | Tape & Reel (TR) | Obsolete | MHz Crystal | 8 MHz | ±30ppm | ±50ppm | 18pF | 80 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | 4-SOJ | 0.500" L x 0.200" W (12.70mm x 5.08mm) | 0.181" (4.60mm) |
|
|
MA-506 14.31818M-C3:PURE SNCRYSTAL 14.31818MHZ 18PF SMD |
4,973 |
|
Datasheet |
MA-506 | 4-SOJ, 3.30mm pitch | Tape & Reel (TR) | Obsolete | MHz Crystal | 14.31818 MHz | ±30ppm | ±50ppm | 18pF | 50 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | 4-SOJ | 0.500" L x 0.200" W (12.70mm x 5.08mm) | 0.181" (4.60mm) |
|
|
MA-506 16.0000M-C3:PURE SNCRYSTAL 16.0000MHZ 18PF SMD |
8,005 |
|
Datasheet |
MA-506 | 4-SOJ, 3.30mm pitch | Tape & Reel (TR) | Obsolete | MHz Crystal | 16 MHz | ±30ppm | ±50ppm | 18pF | 40 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | 4-SOJ | 0.500" L x 0.200" W (12.70mm x 5.08mm) | 0.181" (4.60mm) |
|
|
MA-506 8.0000M-C3:PURE SNCRYSTAL 8.0000MHZ 18PF SMD |
7,107 |
|
Datasheet |
MA-506 | 4-SOJ, 3.30mm pitch | Tape & Reel (TR) | Obsolete | MHz Crystal | 8 MHz | ±30ppm | ±50ppm | 18pF | 80 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | 4-SOJ | 0.500" L x 0.200" W (12.70mm x 5.08mm) | 0.181" (4.60mm) |
|
|
MA-505 19.6600M-C3: ROHSCRYSTAL 19.6600MHZ 18PF SMD |
9,523 |
|
Datasheet |
MA-505 | 4-SOJ, 3.30mm pitch | Tape & Reel (TR) | Obsolete | MHz Crystal | 19.66 MHz | ±30ppm | ±50ppm | 18pF | 40 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | 4-SOJ | 0.500" L x 0.200" W (12.70mm x 5.08mm) | 0.181" (4.60mm) |
|
|
MA-506 8.0000M-G3: ROHSCRYSTAL 8.0000MHZ 20PF SMD |
8,292 |
|
Datasheet |
MA-506 | 4-SOJ, 3.30mm pitch | Tape & Reel (TR) | Obsolete | MHz Crystal | 8 MHz | ±30ppm | ±50ppm | 20pF | 80 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | 4-SOJ | 0.500" L x 0.200" W (12.70mm x 5.08mm) | 0.181" (4.60mm) |
|

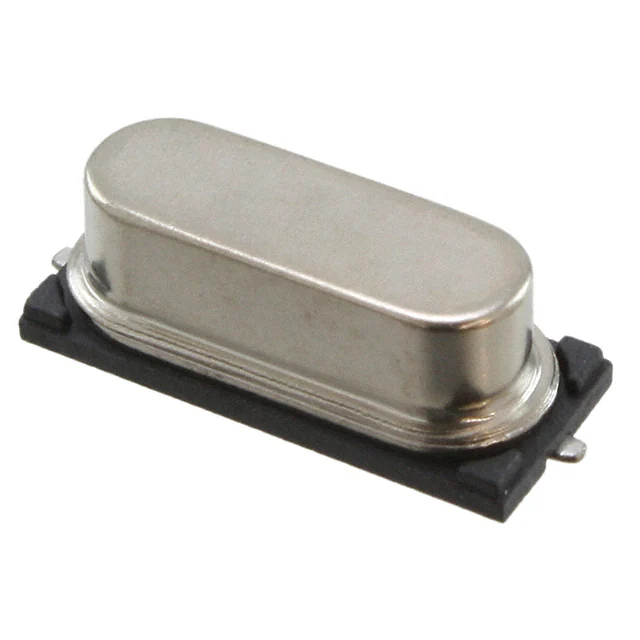

AT-6.000MAGB-TCRYSTAL 6.0000MHZ 8.5PF SMD |
4,133 |
|
Datasheet |
AT | HC-49/US | Tape & Reel (TR) | Obsolete | MHz Crystal | 6 MHz | ±50ppm | ±30ppm | 8.5pF | 120 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.449" L x 0.189" W (11.40mm x 4.80mm) | 0.161" (4.10mm) |
|
7V-62.500MDHV-TCRYSTAL 62.5000MHZ 8PF SMD |
8,250 |
|
Datasheet |
7V | 4-SMD, No Lead | Cut Tape (CT) | Active | MHz Crystal | 62.5 MHz | ±30ppm | ±20ppm | 8pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
7V-18.432MDDE-TCRYSTAL 18.4320MHZ 12PF SMD |
4,434 |
|
Datasheet |
7V | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 18.432 MHz | ±20ppm | ±20ppm | 12pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
7V-16.670MDIK-TCRYSTAL 16.6700MHZ 20PF SMD |
3,419 |
|
Datasheet |
7V | 4-SMD, No Lead | Cut Tape (CT) | Active | MHz Crystal | 16.67 MHz | ±30ppm | ±20ppm | 20pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
7V-16.667MDDE-TCRYSTAL 16.6670MHZ 12PF SMD |
9,795 |
|
Datasheet |
7V | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16.667 MHz | ±20ppm | ±20ppm | 12pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
7V-40.500MDDV-TCRYSTAL 40.5000MHZ 8PF SMD |
4,719 |
|
Datasheet |
7V | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 40.5 MHz | ±20ppm | ±20ppm | 8pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
TSX-3225 27.0000MF10Z-C3CRYSTAL 27.0000MHZ 18PF SMD |
9,852 |
|
Datasheet |
TSX-3225 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 27 MHz | ±10ppm | ±10ppm | 18pF | 40 Ohms | Fundamental | -20°C ~ 75°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.024" (0.60mm) |
|
|
TSX-3225 30.0000MF20X-W3CRYSTAL 30.0000MHZ 12PF SMD |
4,571 |
|
Datasheet |
TSX-3225 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 30 MHz | ±20ppm | ±10ppm | 12pF | 40 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.024" (0.60mm) |
|
|
TSX-3225 20.0000MF18X-C3CRYSTAL 20.0000MHZ 18PF SMD |
7,300 |
|
Datasheet |
TSX-3225 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 20 MHz | ±18ppm | ±10ppm | 18pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.024" (0.60mm) |
|
|
TSX-3225 24.0000MF20X-W3CRYSTAL 24.0000MHZ 12PF SMD |
4,787 |
|
Datasheet |
TSX-3225 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24 MHz | ±20ppm | ±10ppm | 12pF | 40 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.024" (0.60mm) |
|
|
TSX-3225 26.0000MF10Z-W3CRYSTAL 26.0000MHZ 12PF SMD |
8,036 |
|
Datasheet |
TSX-3225 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 26 MHz | ±10ppm | ±10ppm | 12pF | 40 Ohms | Fundamental | -20°C ~ 75°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.024" (0.60mm) |
|
|
TSX-3225 25.0000MF10Z-W3CRYSTAL 25.0000MHZ 12PF SMD |
7,817 |
|
Datasheet |
TSX-3225 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±10ppm | ±10ppm | 12pF | 40 Ohms | Fundamental | -20°C ~ 75°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.024" (0.60mm) |
|
|
TSX-3225 20.0000MF10V-K3CRYSTAL 20.0000MHZ 10PF SMD |
4,981 |
|
Datasheet |
TSX-3225 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 20 MHz | ±10ppm | ±10ppm | 10pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.024" (0.60mm) |
