Crystals
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AB-25.000MDHI-TCRYSTAL 25.0000MHZ 16PF SMD |
3,683 |
|
Datasheet |
AB | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±30ppm | ±20ppm | 16pF | 60 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.041" (1.05mm) |
|
|
AB-25.000MDPE-TCRYSTAL 25.0000MHZ 12PF SMD |
8,480 |
|
Datasheet |
AB | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±50ppm | ±20ppm | 12pF | 60 Ohms | Fundamental | -40°C ~ 105°C | AEC-Q200 | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.041" (1.05mm) |
|
AB-14.31818MAHQ-TCRYSTAL 14.3180MHZ 10PF SMD |
5,351 |
|
Datasheet |
AB | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 14.318 MHz | ±30ppm | ±30ppm | 10pF | 80 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.041" (1.05mm) |
|
|
AB-14.31818MAME-TCRYSTAL 14.3180MHZ 12PF SMD |
7,315 |
|
Datasheet |
AB | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 14.318 MHz | ±100ppm | ±30ppm | 12pF | 80 Ohms | Fundamental | -40°C ~ 125°C | AEC-Q200 | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.041" (1.05mm) |
|
|
AB-16.000MANE-TCRYSTAL 16.0000MHZ 12PF SMD |
2,521 |
|
Datasheet |
AB | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 12pF | 80 Ohms | Fundamental | -40°C ~ 125°C | AEC-Q200 | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.041" (1.05mm) |
|
|
AB-19.200MAGE-TCRYSTAL 19.2000MHZ 12PF SMD |
4,662 |
|
Datasheet |
AB | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 19.2 MHz | ±50ppm | ±30ppm | 12pF | 80 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.041" (1.05mm) |
|
|
AB-19.68750MEME-TCRYSTAL 19.6870MHZ 12PF SMD |
5,746 |
|
Datasheet |
AB | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 19.687 MHz | ±50ppm | ±30ppm | 12pF | 80 Ohms | Fundamental | -40°C ~ 125°C | AEC-Q200 | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.041" (1.05mm) |
|
|
AB-24.000MAPE-TCRYSTAL 24.0000MHZ 12PF SMD |
4,747 |
|
Datasheet |
AB | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24 MHz | ±50ppm | ±30ppm | 12pF | 60 Ohms | Fundamental | -40°C ~ 105°C | AEC-Q200 | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.041" (1.05mm) |
|
|
AB-8.000MANV-TCRYSTAL 8.0000MHZ 8PF SMD |
4,495 |
|
Datasheet |
AB | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 8pF | 35 Ohms | Fundamental | -40°C ~ 125°C | AEC-Q200 | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.041" (1.05mm) |
|
|
AB-8.192MAHJ-T5.0X3.2 SEAM SEAL MHZ QUARTZ XTA |
6,236 |
|
Datasheet |
AB | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 8.192 MHz | ±30ppm | ±30ppm | 18pF | 150 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.041" (1.05mm) |
|
|
AB-8.000MAGK-T5.0X3.2 SEAM SEAL MHZ QUARTZ XTA |
7,693 |
|
Datasheet |
AB | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 20pF | 150 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.041" (1.05mm) |
|
|
AB-20.000MAHJ-T5.0X3.2 SEAM SEAL MHZ QUARTZ XTA |
9,760 |
|
Datasheet |
AB | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 20 MHz | ±30ppm | ±30ppm | 18pF | 60 Ohms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.041" (1.05mm) |
|
|
AB-13.560MENE-T5.0X3.2 SEAM SEAL MHZ QUARTZ XTA |
7,721 |
|
Datasheet |
AB | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 13.56 MHz | ±50ppm | ±10ppm | 12pF | 80 Ohms | Fundamental | -40°C ~ 125°C | AEC-Q200 | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.041" (1.05mm) |
|
8Y50072002CRYSTAL 50.0000MHZ 9PF SMD |
8,146 |
|
Datasheet |
8Y | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 50 MHz | ±18ppm | ±7ppm | 9pF | 80 Ohms | Fundamental | -40°C ~ 105°C | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.022" (0.55mm) |
|
MA-406 12.0000M-C3:ROHSCRYSTAL 12.0000MHZ 18PF SMD |
5,969 |
|
Datasheet |
MA-406 | 4-SOJ, 9.60mm pitch | Tape & Reel (TR) | Obsolete | MHz Crystal | 12 MHz | ±30ppm | ±50ppm | 18pF | 50 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | 4-SOJ | 0.461" L x 0.157" W (11.70mm x 4.00mm) | 0.146" (3.70mm) |
|
MA-406 25.0000M-C3:ROHSCRYSTAL 25.0000MHZ 18PF SMD |
3,409 |
|
Datasheet |
MA-406 | 4-SOJ, 9.60mm pitch | Tape & Reel (TR) | Obsolete | MHz Crystal | 25 MHz | ±30ppm | ±50ppm | 18pF | 40 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | 4-SOJ | 0.461" L x 0.157" W (11.70mm x 4.00mm) | 0.146" (3.70mm) |
|
MA-406 16.0000M-C3:ROHSCRYSTAL 16.0000MHZ 18PF SMD |
5,136 |
|
Datasheet |
MA-406 | 4-SOJ, 9.60mm pitch | Tape & Reel (TR) | Obsolete | MHz Crystal | 16 MHz | ±30ppm | ±50ppm | 18pF | 40 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | 4-SOJ | 0.461" L x 0.157" W (11.70mm x 4.00mm) | 0.146" (3.70mm) |
|

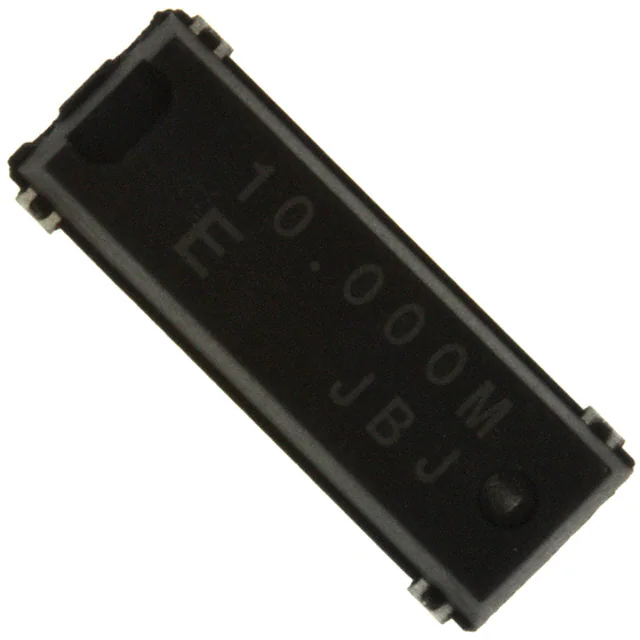

MA-406 10.0000M-C3:ROHSCRYSTAL 10.0000MHZ 18PF SMD |
5,456 |
|
Datasheet |
MA-406 | 4-SOJ, 9.60mm pitch | Tape & Reel (TR) | Obsolete | MHz Crystal | 10 MHz | ±30ppm | ±50ppm | 18pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | 4-SOJ | 0.461" L x 0.157" W (11.70mm x 4.00mm) | 0.146" (3.70mm) |
|
FA-238 30.0000MD-AB0CRYSTAL 30.0000MHZ 30PF SMD |
5,911 |
|
Datasheet |
FA-238 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 30 MHz | ±30ppm | ±30ppm | 30pF | 40 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.028" (0.70mm) |
|
|
MA-406 10.0000M-W3:ROHSCRYSTAL 10.0000MHZ 12PF SMD |
5,097 |
|
Datasheet |
MA-406 | 4-SOJ, 9.60mm pitch | Tape & Reel (TR) | Obsolete | MHz Crystal | 10 MHz | ±30ppm | ±50ppm | 12pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | 4-SOJ | 0.461" L x 0.189" W (11.70mm x 4.80mm) | 0.146" (3.70mm) |
