Configurable Switch Bodies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Requires | Type | Illumination | Actuator Type | (Select First, Then Apply Filters) Compatible Series | Panel Cutout Dimensions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

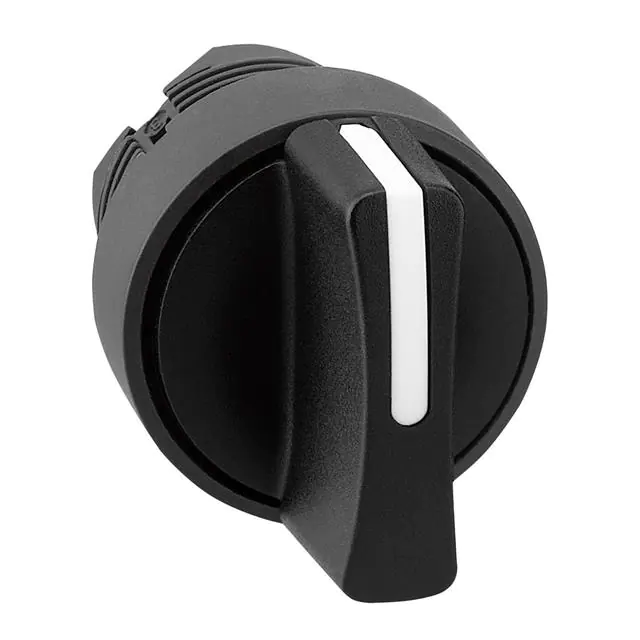

ZB5AD5TQCONFIG SW BODY SELECT NON-ILLUM |
82 |
|
Datasheet |
Harmony XB5 | Box | Active | Contact Block(s) | Momentary | Non-Illuminated | Selector | Schneider, Harmony XB5 | 22mm (Round) |
|
ZB5AC24TQCONFIG SW BODY MUSH PB NON-ILLUM |
50 |
|
Datasheet |
Harmony XB5 | Box | Active | Contact Block(s) | Momentary | Non-Illuminated | Pushbutton, Mushroom | Schneider, Harmony XB5 | 22mm (Round) |
.jpg)
|
1.30.280.001/2501CONFIG SW BODY PUSHBUTTON ILLUM |
16 |
|
Datasheet |
RAFIX 22 FSR | Box | Active | Contact Block(s), Illumination Source | Momentary | Illuminated - Green | Pushbutton, Round | Rafix 22 FSR | 22.3mm (Round) |
|
1.30.093.721/2000CONFIG SW BODY SELECTOR ILLUM |
8 |
|
Datasheet |
RAFIX 16 F | Box | Active | Contact Block(s), Illumination Source | Maintained | Illuminated | Selector | Rafix 16 F | 22.3mm (Round) |
|
ZB5FD7CONFIG SW BODY SELECT NON-ILLUM |
10 |
|
Datasheet |
ZB5 | Box | Active | Contact Block(s) | Momentary | Non-Illuminated | Selector | Schneider, Harmony XB5 | 30.5mm (Round) |
|
ZB5FD8CONFIG SW BODY SELECT NON-ILLUM |
10 |
|
Datasheet |
ZB5 | Box | Active | Contact Block(s) | Momentary | Non-Illuminated | Selector | Schneider Electric, XB5 | 30mm (Round) |
|
ZB5FD4CONFIG SW BODY SELECT NON-ILLUM |
10 |
|
Datasheet |
ZB5 | Box | Active | Contact Block(s) | Maintained | Non-Illuminated | Selector | Schneider Electric, XB5 | 30mm (Round) |
|
ZB5FD5CONFIG SW BODY SELECT NON-ILLUM |
10 |
|
Datasheet |
ZB5 | Box | Active | Contact Block(s) | Momentary | Non-Illuminated | Selector | Schneider Electric, XB5 | 30mm (Round) |
|
ZB4BD2TQCONFIG SW BODY SELECT NON-ILLUM |
95 |
|
Datasheet |
Harmony XB4 | Box | Active | Contact Block(s) | Maintained | Non-Illuminated | Selector | Schneider, Harmony XB4 | 22mm (Round) |
|

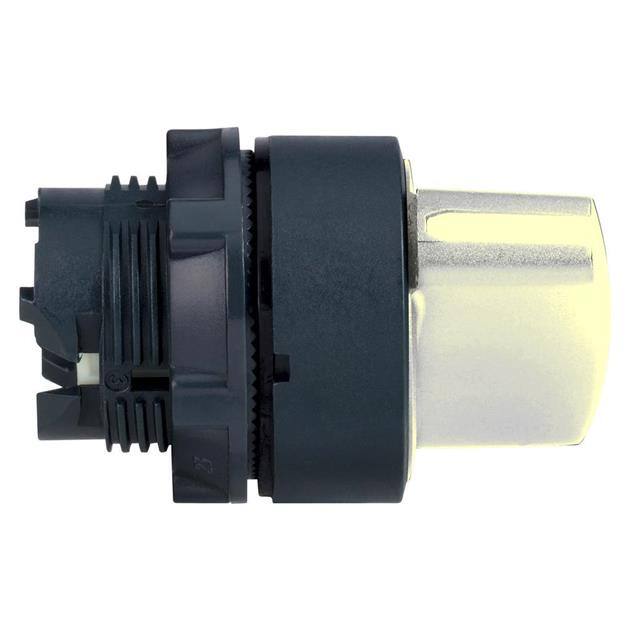

ZB5AD201CONFIG SW BODY SELECT NON-ILLUM |
7 |
|
Datasheet |
Harmony XB5 | Box | Active | Contact Block(s) | Maintained | Non-Illuminated | Selector | Schneider, Harmony XB5 | 22mm (Round) |
|
1.30.096.071/0000CONFIG SW BODY KEYLOCK NON-ILLUM |
7 |
|
Datasheet |
RAFIX 16 F | Box | Active | Contact Block(s) | Maintained | Non-Illuminated | Keylock | Rafix 16 F | 22.3mm (Round) |
|
1.30.076.071/0000CONFIG SW BODY KEYLOCK NON-ILLUM |
0 |
|
Datasheet |
RAFIX 16 | Bulk | Active | Contact Block(s) | Maintained | Non-Illuminated | Keylock | Rafix 16 | 16.2mm (Round) |
.jpg)
|
1.30.290.031/2500CONFIG SW BODY PUSHBUTTON ILLUM |
13 |
|
Datasheet |
RAFIX 30 FS | Bulk | Active | Contact Block(s), Illumination Source | Maintained | Illuminated - Green | Pushbutton, Round | Rafix 30 FS | 30.3mm (Round) |
|
|
1.30.290.031/2300CONFIG SW BODY PUSHBUTTON ILLUM |
10 |
|
Datasheet |
RAFIX 30 FS | Bulk | Active | Contact Block(s), Illumination Source | Maintained | Illuminated - Red | Pushbutton, Round | Rafix 30 FS | 30.3mm (Round) |
|
1.30.282.301/2201CONFIG SW BODY SELECTOR ILLUM |
8 |
|
Datasheet |
RAFIX 22 FSR | Box | Active | Contact Block(s), Illumination Source | Maintained | Illuminated | Selector | Rafix 22 FSR | 22.3mm (Round) |
|
1.30.282.026/2201CONFIG SW BODY SELECTOR ILLUM |
6 |
|
Datasheet |
RAFIX 22 FSR | Box | Active | Contact Block(s), Illumination Source | Momentary | Illuminated | Selector | Rafix 22 FSR | 22.3mm (Round) |
|
1.30.076.101/0000CONFIG SW BODY KEYLOCK NON-ILLUM |
10 |
|
Datasheet |
RAFIX 16 | Box | Active | Contact Block(s) | Maintained | Non-Illuminated | Keylock | Rafix 16 | 16.2mm (Round) |
|
45-2D36.2A20.000CONFIG SW BODY E-STOP NON-ILLUM |
6 |
|
Datasheet |
45 | Bag | Active | Contact Block(s) | Maintained | Non-Illuminated | E-Stop, Round | EAO, 45 | 22.3mm (Round) |
|
ZB5AA791CONFIG SW BODY PUSHBUT NON-ILLUM |
5 |
|
Datasheet |
Harmony XB5 | Box | Active | Contact Block(s) | Momentary | Non-Illuminated | Pushbutton, Rectangular | Schneider, Harmony XB5 | 22mm (Round) |
|
ZB5AR3CONFIG SW BODY MUSH PB NON-ILLUM |
5 |
|
Datasheet |
Harmony XB5 | Box | Active | Contact Block(s) | Momentary | Non-Illuminated | Pushbutton, Mushroom | Schneider, Harmony XB5 | 22mm (Round) |
