Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2744041447CMC 5A 2LN 33 OHM SMD Fair-Rite Products Corp. |
54,352 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 33 Ohms @ 100 MHz | - | 5A | 1.1mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
2744045447CMC 5A 2LN 60 OHM SMD Fair-Rite Products Corp. |
138,230 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 64 Ohms @ 100 MHz | - | 5A | 1.4mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
2744051447CMC 5A 2LN 230 OHM SMD Fair-Rite Products Corp. |
14,751 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 230 Ohms @ 100 MHz | - | 5A | 4mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
2744065447CMC 5A 2LN 255 OHM SMD Fair-Rite Products Corp. |
2,318 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 255 Ohms @ 100 MHz | - | 5A | 4.1mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
2752045447CMC 2LN 58 OHM SMD Fair-Rite Products Corp. |
1,722 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 58 Ohms @ 100 MHz | - | - | - | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
2752065447CMC 5A 2LN 230 OHM SMD Fair-Rite Products Corp. |
8,099 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 230 Ohms @ 100 MHz | - | 5A | 4.1mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

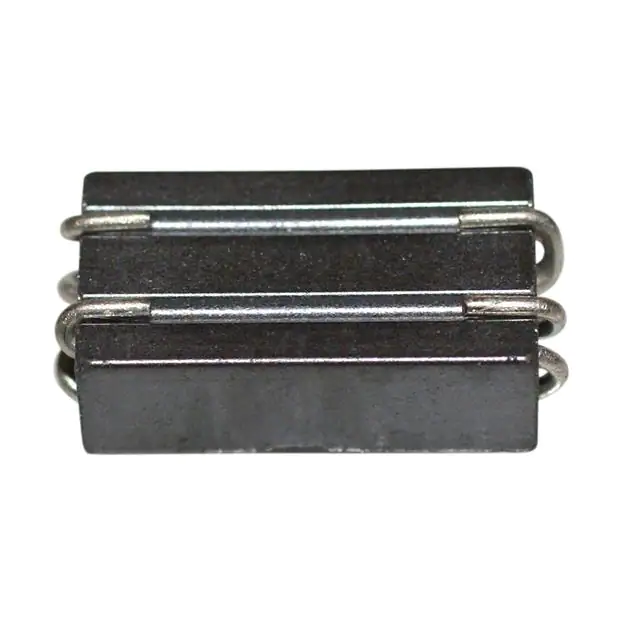

2744065446CMC 2LN 255 OHM SMD Fair-Rite Products Corp. |
4,639 |
|
Datasheet |
- | Signal Line | 2 | 255 Ohms @ 100 MHz | - | - | - | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
2744041446CMC 5A 2LN 33 OHM SMD Fair-Rite Products Corp. |
28,919 |
|
Datasheet |
- | Signal Line | 2 | 33 Ohms @ 100 MHz | - | 5A | 1.1Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
2752051447CMC 5A 2LN 200 OHM SMD Fair-Rite Products Corp. |
10,380 |
|
Datasheet |
- | Signal Line | 2 | 200 Ohms @ 100 MHz | - | 5A | - | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
2744045446CMC 2LN 60 OHM SMD Fair-Rite Products Corp. |
274 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 60 Ohms @ 100 MHz | - | - | - | - | - | -55°C ~ 125°C | - | - | - | - | - |
