Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

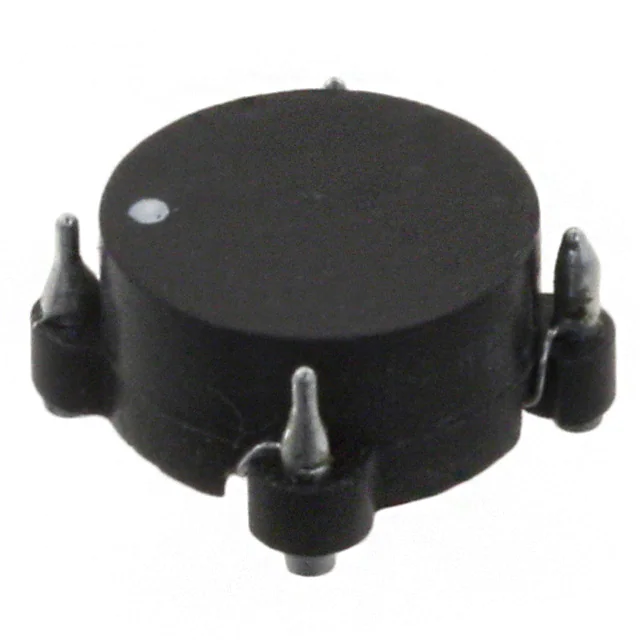

CM6350R-683CMC 68UH 4.2A 2LN SMD Delevan |
2,183 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 68 µH @ 10 kHz | 4.2A | 10mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6350R-105CMC 1MH 900MA 2LN SMD Delevan |
1,940 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 1 mH @ 10 kHz | 900mA | 130mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
CM6460R-334CMC 330UH 4A 2LN SMD Delevan |
3,259 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 330 µH @ 10 kHz | 4A | 17mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6460R-504CMC 500UH 3.3A 2LN SMD Delevan |
2,343 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 500 µH @ 10 kHz | 3.3A | 24mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6350R-224CMC 220UH 2.2A 2LN SMD Delevan |
735 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 220 µH @ 10 kHz | 2.2A | 27mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6350R-474CMC 470UH 1.5A 2LN SMD Delevan |
734 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 470 µH @ 10 kHz | 1.5A | 60mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6350R-334CMC 330UH 1.8A 2LN SMD Delevan |
492 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 330 µH @ 10 kHz | 1.8A | 40mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6350R-104CMC 100UH 3.3A 2LN SMD Delevan |
469 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 100 µH @ 10 kHz | 3.3A | 14mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6350R-333CMC 33UH 5.5A 2LN SMD Delevan |
171 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 33 µH @ 10 kHz | 5.5A | 7mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6350R-684CMC 680UH 1.2A 2LN SMD Delevan |
150 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 680 µH @ 10 kHz | 1.2A | 90mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
