Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMF-0056CMC 5.6MH 550MA 2LN |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 5.6 mH @ 1 kHz | 550mA | 840mOhm | - | 250V | - | - | - | - | - | - |
|
|
CMF-0100CMC 10MH 450MA 2LN |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 10 mH @ 1 kHz | 450mA | 1.36Ohm | - | 250V | - | - | - | - | - | - |
|
|
CMF-2100CMC 10MH 2.2A 2LN |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 10 mH @ 1 kHz | 2.2A | 300mOhm | - | 250V | - | - | - | - | - | - |
|
|
CMF-6033CMC 3.3MH 2A 2LN |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 3.3 mH @ 1 kHz | 2A | 300mOhm | - | 250V | - | - | - | - | - | - |
|
|
CMF-6056CMC 5.6MH 1A 2LN |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 5.6 mH @ 1 kHz | 1A | 300mOhm | - | 250V | - | - | - | - | - | - |
|
|
CMF-6100CMC 10MH 900MA 2LN |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 10 mH @ 1 kHz | 900mA | 520mOhm | - | 250V | - | - | - | - | - | - |
|
|
CMF-6330CMC 33MH 500MA 2LN |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 33 mH @ 1 kHz | 500mA | 1.76Ohm | - | 250V | - | - | - | - | - | - |
|
|
CMF-8033CMC 3.3MH 2A 2LN |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 3.3 mH @ 1 kHz | 2A | 170mOhm | - | 250V | - | - | - | - | - | - |
|
|
NAC-30-0101/12130252360ZCOMMON MODE CHOKE |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LXES21DAA4-140CMC |
0 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
EXC-14CG120UCMC 130MA 2LN 12 OHM SMD |
0 |
|
Datasheet |
0302 (0805 Metric) | Signal Line | 2 | 12 Ohms @ 100 MHz | - | 130mA | 2Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
EXC-18CG430UCMC 100MA 4LN 43 OHM SMD |
0 |
|
Datasheet |
0603 (1608 Metric) | Signal Line | 4 | 43 Ohms @ 100 MHz | - | 100mA | 2.7Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
SP5002-06TTGCMC 100MA 6LN SMD ESD AEC-Q101 |
0 |
|
Datasheet |
16-WFDFN | Signal Line | 6 | - | - | 100mA | - | - | - | -40°C ~ 125°C | - | - | TVS Diode ESD Protection | - | - |
|

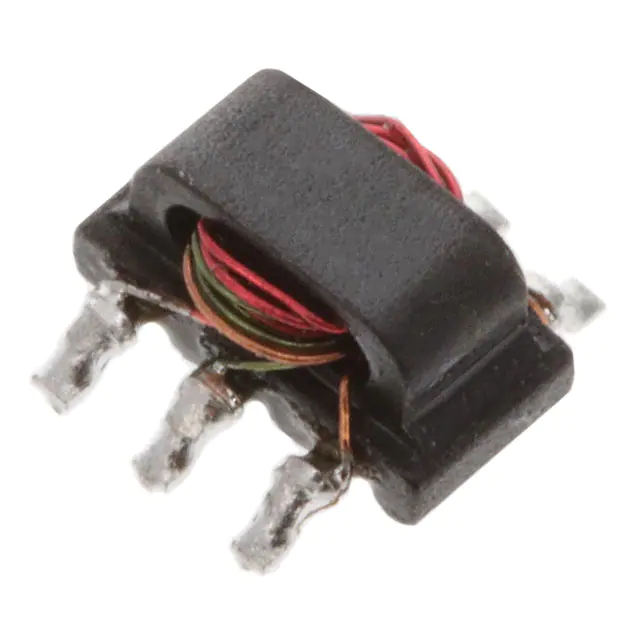

BU05MC08TCMC 500MA 3LN 700 OHM SMD |
0 |
|
Datasheet |
6-SMD, Gull Wing | Signal Line | 3 | 700 Ohms @ 60 MHz | - | 500mA | 110mOhm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
BU08RA11CMC 4A 2LN 1K OHM TH |
0 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power, Signal Line | 2 | 1 kOhms @ 250 MHz | - | 4A | 13mOhm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
BU08RA16CMC 3A 2LN 1.2K OHM TH |
0 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Signal Line | 2 | 1.2 kOhms @ 200 MHz | - | 3A | 11mOhm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
TLF24HB1031R0K1CMC 1A 2LN TH |
0 |
|
- |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 1A | 345mOhm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
|
TLF24HB1223R0K1CMC 3A 2LN TH |
0 |
|
- |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 3A | 45mOhm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
|
TLF24HB1230R9K1CMC 900MA 2LN TH |
0 |
|
- |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 900mA | 350mOhm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
|
TLF24HB2222R2K1CMC 2.2A 2LN TH |
0 |
|
- |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 2.2A | 80mOhm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
