Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
42Z4000NLCMC TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PE-65738NLTCMC 4LN SMD |
0 |
|
Datasheet |
16-SMD | Signal Line | 4 | - | - | - | 300mOhm | - | - | - | - | - | - | - | - |
|
|
PE-65944NLCMC 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | - | - | 300mOhm | - | - | - | - | - | - | - | - |
|
|
PE-68002NLCMC 4LN TH |
0 |
|
Datasheet |
Vertical, 8 PC Pin | Signal Line | 4 | - | - | - | 350mOhm | - | - | - | - | - | - | - | - |
|
|
H6033NLCMC 4LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | - | 4 | - | - | - | 400mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
|
H6036NLCMC 2LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | Power Line | 2 | - | - | - | 500mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
TCE1210U-500-2PCMC 100MA 2LN 50 OHM SMD ESD |
0 |
|
Datasheet |
0504 (1210 Metric), 6 Lead | Signal Line | 2 | 50 Ohms @ 100 MHz | - | 100mA | 1.7Ohm | 10V | - | -25°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
TCE1210U-120-2PCMC 100MA 2LN 12 OHM SMD ESD |
0 |
|
Datasheet |
0504 (1210 Metric), 6 Lead | Signal Line | 2 | 12 Ohms @ 100 MHz | - | 100mA | 700mOhm | 10V | - | -25°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
B82502WC10CMC 680UH 2A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 680 µH @ 100 kHz | 2A | 550mOhm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82502WC2CMC 82MH 200MA 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 82 mH @ 10 kHz | 200mA | 45Ohm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82502WC5CMC 15MH 500MA 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 500mA | 8.5Ohm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82502WC8CMC 3.3MH 1A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 1A | 1.9Ohm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82503UE1CMC 25UH 15A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 25 µH @ 100 kHz | 15A | 15mOhm (Typ) | 450V | 400V | - | - | - | - | - | - |
|
|
B82503UE3CMC 100UH 10A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 100 µH @ 100 kHz | 10A | 30mOhm (Typ) | 450V | 400V | - | - | - | - | - | - |
|
|
B82504WA1CMC 27MH 1A 2LN CHAS MNT |
0 |
|
Datasheet |
- | Power Line | 2 | - | 27 mH @ 10 kHz | 1A | 5.25Ohm (Typ) | 600V | 500V | - | - | - | - | - | - |
|

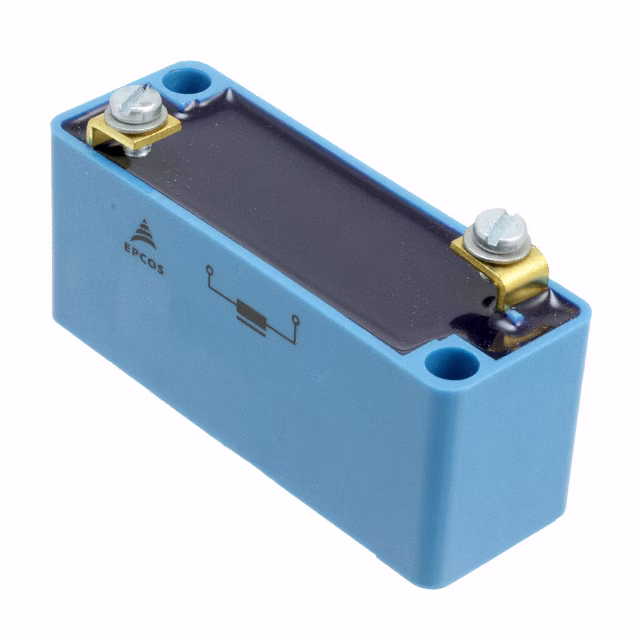

B82504WA16CMC 120UH 16A 2LN CHAS MNT |
0 |
|
Datasheet |
- | Power Line | 2 | - | 120 µH @ 100 kHz | 16A | 19mOhm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82504WA2CMC 7.5MH 2A 2LN CHAS MNT |
0 |
|
Datasheet |
- | Power Line | 2 | - | 7.5 mH @ 10 kHz | 2A | 1.3Ohm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82504WA3CMC 2MH 4A 2LN CHAS MNT |
0 |
|
Datasheet |
- | Power Line | 2 | - | 2 mH @ 10 kHz | 4A | 330mOhm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82504WA5CMC 200UH 10A 2LN CHAS MNT |
0 |
|
Datasheet |
- | Power Line | 2 | - | 200 µH @ 100 kHz | 10A | 54mOhm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82504WA7CMC 65UH 25A 2LN CHAS MNT |
0 |
|
Datasheet |
- | Power Line | 2 | - | 65 µH @ 100 kHz | 25A | 9mOhm (Typ) | 600V | 500V | - | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
