Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELF-22V060BCMC 6A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 6A | 27mOhm (Typ) | - | - | - | - | - | - | - | - |
|
ELF-22V070BCMC 7A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 7A | 22mOhm (Typ) | - | - | - | - | - | - | - | - |
|

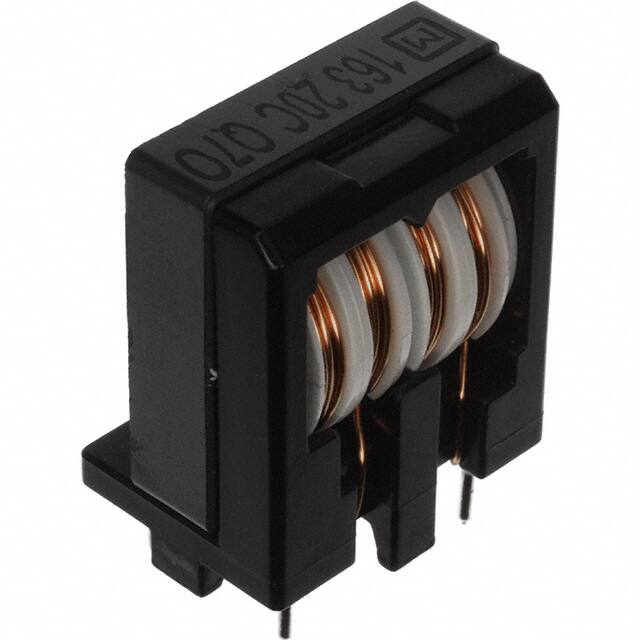

ELF-22V020CCMC 2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 2A | 170mOhm (Typ) | - | - | - | - | - | - | - | - |
|
ELF-22V025CCMC 2.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 2.5A | 115mOhm (Typ) | - | - | - | - | - | - | - | - |
|
ELF-22V030CCMC 3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 3A | 91mOhm (Typ) | - | - | - | - | - | - | - | - |
|
ELF-22V035CCMC 3.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 3.5A | 69mOhm (Typ) | - | - | - | - | - | - | - | - |
|

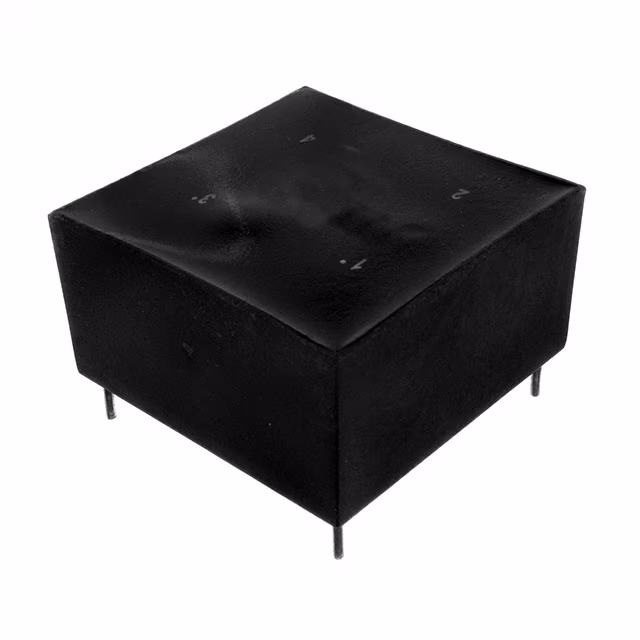

PE-62897CMC 2MH 7.5A 2LN TH |
0 |
|
- |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2 mH @ 1 kHz | 7.5A | 20mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

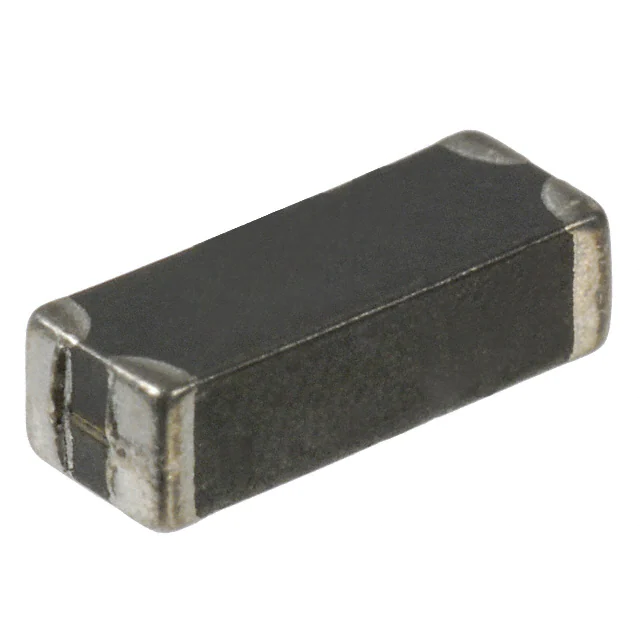

CM3312R111R-10CMC 5A 2LN 110 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 110 Ohms @ 100 MHz | - | 5A | 5mOhm | - | - | - | - | - | - | - | - |
|
ZCYS51R5-M6PT-01CMC 500MA 6LN 200 OHM SMD |
0 |
|
Datasheet |
- | Signal Line | 6 | 200 Ohms @ 100 MHz | - | 500mA | 250mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
ZCYS51R5-M8PT-01CMC 500MA 8LN 100 OHM SMD |
0 |
|
Datasheet |
- | Signal Line | 8 | 100 Ohms @ 100 MHz | - | 500mA | 300mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
CM05RB01CMC 2A 2LN 700 OHM TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | 700 Ohms @ 70 MHz | - | 2A | 50mOhm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
CM05RB02CMC 2LN TH |
0 |
|
- |
Vertical, 4 PC Pin | Power Line | 2 | - | - | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
CM05RB03CMC 1.5A 2LN 1.4K OHM TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power, Signal Line | 2 | 1.4 kOhms @ 100 MHz | - | 1.5A | 60mOhm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
CM08RA17CMC 2.4A 2LN 2K OHM TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | 2 kOhms @ 80 MHz | - | 2.4A | 40mOhm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
CM08RA20CMC 5.5A 2LN 500 OHM TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | 500 Ohms @ 200 MHz | - | 5.5A | 20mOhm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
CM08RB01CMC 2A 2LN 2.5K OHM TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | 2.5 kOhms @ 30 MHz | - | 2A | 40mOhm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
CM08RB02CMC 2.4A 2LN 2K OHM TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | 2 kOhms @ 50 MHz | - | 2.4A | 40mOhm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
CM08RB03CMC 2A 4LN 1K OHM TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power, Signal Line | 4 | 1 kOhms @ 50 MHz | - | 2A | 50mOhm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
CM08RB04CMC 3A 2LN 2K OHM TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | 2 kOhms @ 70 MHz | - | 3A | 40mOhm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
CM08RB05CMC 4A 2LN 450 OHM TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | 450 Ohms @ 100 MHz | - | 4A | 20mOhm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
