Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
UU9LFBNP-B-B902COMMON MODE CHOKE |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 18 mH @ 1 kHz | 180mA | 5Ohm | - | - | - | - | - | - | - | - |
|
|
UU9LFBNP-B-B471COMMON MODE CHOKE |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
UU9LFBNP-B-B163COMMON MODE CHOKE |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 33 mH @ 1 kHz | 160mA | 7Ohm | - | - | - | - | - | - | - | - |
|
|
UU9LFBNP-B-B103COMMON MODE CHOKE |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
UU9LFBNP-B-B283COMMON MODE CHOKE |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 56 mH @ 1 kHz | 130mA | 13Ohm | - | - | - | - | - | - | - | - |
|
|
CMS2-5.6/3/4.8-4S2-ZSMD CMM choke |
0 |
|
Datasheet |
4-SMD, J-Lead | - | 2 | 21 Ohms @ 25 MHz | - | - | 600µOhm | - | - | - | - | - | - | - | - |
|
MGDU1-00005-PCOMMON MODE CHOKE |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CM2722R151R-00CMC 5A 4LN 150 OHM SMD |
0 |
|
Datasheet |
Vertical, 8 Flat Lead | Power Line | 4 | 150 Ohms @ 100 MHz | - | 5A | 20mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CSLF4D17NP-781INDUCTOR |
0 |
|
Datasheet |
Nonstandard | - | 2 | 780 Ohms @ 100 MHz | - | 1A | 50mOhm | 50V | - | - | - | - | - | - | - |
|
|
CSLF4D17NP-391INDUCTOR |
0 |
|
Datasheet |
Nonstandard | - | 2 | 390 Ohms @ 100 MHz | - | 1.2A | 40mOhm | 50V | - | - | - | - | - | - | - |
|
LF2020NP-392CMC 3.9MH 1A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.9 mH @ 1 kHz | 1A | 410mOhm | - | - | - | - | - | - | - | - |
|
|
LF2020NP-103CMC 10MH 600MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 600mA | 1Ohm | - | - | - | - | - | - | - | - |
|
|
LF2020NP-183CMC 18MH 500MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 18 mH @ 1 kHz | 500mA | 1.63Ohm | - | - | - | - | - | - | - | - |
|
|
LF2020NP-223CMC 22MH 400MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 22 mH @ 1 kHz | 400mA | 2.04Ohm | - | - | - | - | - | - | - | - |
|
|
LF2020NP-333CMC 33MH 300MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 33 mH @ 1 kHz | 300mA | 3.42Ohm | - | - | - | - | - | - | - | - |
|

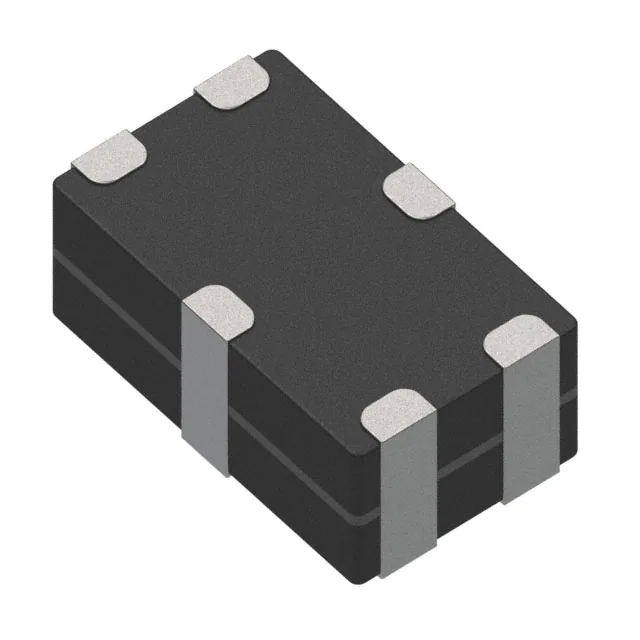

LCFEA201204A101TGCMC 100MA 4LN 90OHM SMD |
0 |
|
Datasheet |
0805 (2012 Metric), 6 Lead | Signal Line | 4 | 90 Ohms @ 100 MHz | - | 100mA | 4Ohm | 5V | - | -40°C ~ 125°C | AEC-Q200 | - | TVS Diode ESD Protection | - | - |
|
CM04RC08TCMC 500MA 3LN 1K OHM SMD |
0 |
|
Datasheet |
6-SMD, Gull Wing | Power, Signal Line | 3 | 1 kOhms @ 200 MHz | - | 500mA | 200mOhm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
FL2D-10-4724.7MH 2 LINE COMMON MODE CHOKE T |
20 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.7 mH @ 1 kHz | 1A | 140mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
ECMF2-0730V12M12CMC 100MA 2LN ESD |
21 |
|
- |
12-UFDFN | Signal Line | 2 | - | - | 100mA | 5.5Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
DLW44SN101SK2LCMC 3.1A 100 OHM SMD |
0 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
