Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
PE-1206CCMC222STSCMC 200MA 2LN 2.2K OHM SMD Pulse Electronics |
112,900 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 2.2 kOhms @ 100 MHz | - | 200mA | 1.2Ohm | 50V | - | - | - | - | - | - | - |
|
PE-1812ACC101STSCMC 200MA 2LN 7.5KOHM SMD Pulse Electronics |
36,407 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 7.5 kOhms @ 10 MHz | - | 200mA | 2Ohm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
PE-1812ACC510STSCMC 230MA 2LN 3.5KOHM SMD Pulse Electronics |
12,343 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 3.5 kOhms @ 10 MHz | - | 230mA | 1Ohm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
PE-1210CCMC601STSCMC 1A 2LN 600 OHM SMD Pulse Electronics |
39,331 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 600 Ohms @ 100 MHz | - | 1A | 120mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
PE-1210CCMC102STSCMC 480MA 2LN 1K OHM SMD Pulse Electronics |
71,780 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 1 kOhms @ 100 MHz | - | 480mA | 350mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|

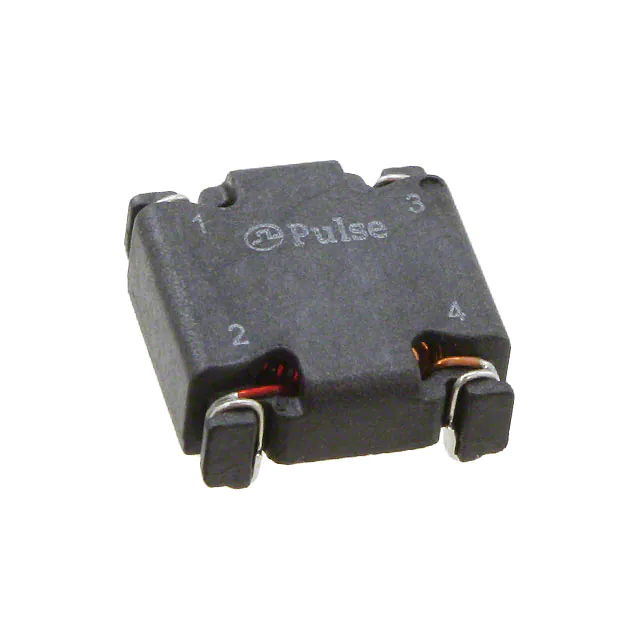

PA2746NLCMC 6A 2LN SMD Pulse Electronics |
11,692 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | - | 6A | 4.3mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
PA4339.101NLTCMC 1.8UH 9A 2LN 140 OHM SMD Pulse Electronics |
15,622 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 140 Ohms @ 100 MHz | 1.8 µH @ 100 kHz | 9A | 10mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA4339.132NLTCMC 9UH 2.5A 2LN 1.3K OHM SMD Pulse Electronics |
5,005 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 1.3 kOhms @ 100 MHz | 9 µH @ 100 kHz | 2.5A | 21mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA4339.701NLTCMC 5UH 4A 2LN 700 OHM SMD Pulse Electronics |
3,678 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 700 Ohms @ 100 MHz | 5 µH @ 100 kHz | 4A | 15mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
PA2756NLCMC 8A 2LN SMD Pulse Electronics |
3,020 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 484 µH @ 100 MHz | 8A | 7.7mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
