Delay Lines
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Taps/Steps | Function | Delay to 1st Tap | Tap Increment | Available Total Delays | Number of Independent Delays | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS1135U-15+IC DELAY LINE 15NS 8UMAX |
0 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | - | Multiple, NonProgrammable | 15ns | - | 15ns | 3 | 4.75V ~ 5.25V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
DS1100U-45+IC DELAY LINE 5TAP 45NS 8UMAX |
0 |
|
Datasheet |
* | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
DS1135LU-15+IC DELAY LINE 15NS 8UMAX |
0 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | - | Multiple, NonProgrammable | 15ns | - | 15ns | 3 | 2.7V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
DS1020S-25+T&RIC DEL LN 256TAP 73.75NS 16SOIC |
0 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | 256 | Programmable | 10ns | 250 ps | 73.75ns | 1 | 4.75V ~ 5.25V | 0°C ~ 70°C | - | - | Surface Mount | 16-SOIC |
|
|
DS1135U-8+T&RIC DELAY LINE 8NS 8UMAX |
0 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | - | Multiple, NonProgrammable | 8ns | - | 8ns | 3 | 4.75V ~ 5.25V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
DS1135U-20+T&RIC DELAY LINE 20NS 8UMAX |
0 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | - | Multiple, NonProgrammable | 20ns | - | 20ns | 3 | 4.75V ~ 5.25V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
DS1135U-15+T&RIC DELAY LINE 15NS 8UMAX |
0 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | - | Multiple, NonProgrammable | 15ns | - | 15ns | 3 | 4.75V ~ 5.25V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
DS1100LU-75+T&RIC DELAY LINE 5TAP 75NS 8UMAX |
0 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | 5 | Nonprogrammable | 15ns | 15 ns | 75ns | 1 | 3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
DS1135LU-20+T&RIC DELAY LINE 20NS 8UMAX |
0 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | - | Multiple, NonProgrammable | 20ns | - | 20ns | 3 | 2.7V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
DS1135LU-15+T&RIC DELAY LINE 15NS 8UMAX |
0 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | - | Multiple, NonProgrammable | 15ns | - | 15ns | 3 | 2.7V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
DS1100LU-45+T&RIC DELAY LINE 5TAP 45NS 8UMAX |
0 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | 5 | Nonprogrammable | 9ns | 9 ns | 45ns | 1 | 3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
DS1135LU-12+T&RIC DELAY LINE 12NS 8UMAX |
0 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | - | Multiple, NonProgrammable | 12ns | - | 12ns | 3 | 2.7V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
DS1135U-10+T&RIC DELAY LINE 10NS 8UMAX |
0 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | - | Multiple, NonProgrammable | 10ns | - | 10ns | 3 | 4.75V ~ 5.25V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
DS1135LU-10+T&RIC DELAY LINE 10NS 8UMAX |
0 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | - | Multiple, NonProgrammable | 10ns | - | 10ns | 3 | 2.7V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
SY604JZIC DELAY LINE 255TAP PROG 28PLCC |
0 |
|
Datasheet |
- | 28-LCC (J-Lead) | Tube | Obsolete | 255 | Programmable | 4ns | 15.7 ps | 4ns ~ 40ns | 1 | 4.2V ~ 5.7V | 0°C ~ 85°C | - | - | Surface Mount | 28-PLCC (11.48x11.48) |
|
|
DS1010S-50+IC DELAY LINE 10TAP 50NS 16SOIC |
0 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | 10 | Nonprogrammable | 5ns | 5 ns | 50ns | 1 | 4.75V ~ 5.25V | 0°C ~ 70°C | - | - | Surface Mount | 16-SOIC |
|
|
DS1010S-50+T&RIC DELAY LINE 10TAP 50NS 16SOIC |
0 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | 10 | Nonprogrammable | 5ns | 5 ns | 50ns | 1 | 4.75V ~ 5.25V | 0°C ~ 70°C | - | - | Surface Mount | 16-SOIC |
|

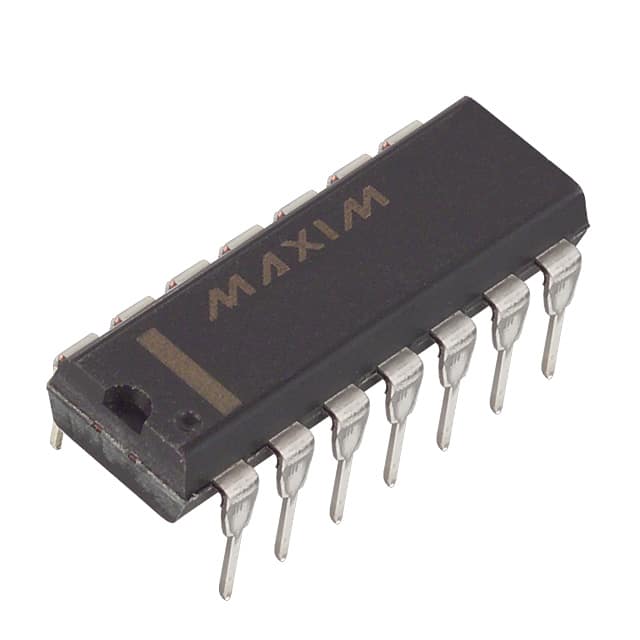

DS1013-100+IC DELAY LINE 100NS 14DIP |
0 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | - | Multiple, NonProgrammable | 100ns | - | 100ns | 3 | 4.75V ~ 5.25V | 0°C ~ 70°C | - | - | Through Hole | 14-PDIP |
|
|
DS1020S-100+IC DELAY LN 256TAP 265NS 16SOIC |
0 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | 256 | Programmable | 10ns | 1 ns | 265ns | 1 | 4.75V ~ 5.25V | 0°C ~ 70°C | - | - | Surface Mount | 16-SOIC |
|
|
DS1020S-15+IC DEL LN 256TAP 48.25NS 16SOIC |
0 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | 256 | Programmable | 10ns | 150 ps | 48.25ns | 1 | 4.75V ~ 5.25V | 0°C ~ 70°C | - | - | Surface Mount | 16-SOIC |
Delay Lines Electronic Components
Explore Delay Lines electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
