Chip Resistor - Surface Mount
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3503G2B86R6FTDRES 86.6 OHM 1% 2W 1206 |
4,707 |
|
Datasheet |
3503 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 86.6 Ohms | ±1% | 2W | Thin Film | - | ±50ppm/°C | -55°C ~ 155°C | - | 1206 | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.023" (0.58mm) | 2 | - |
|
|
3503G2B806RFTDRES 806 OHM 1% 2W 1206 |
4,682 |
|
Datasheet |
3503 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 806 Ohms | ±1% | 2W | Thin Film | - | ±50ppm/°C | -55°C ~ 155°C | - | 1206 | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.023" (0.58mm) | 2 | - |
|
|
3503G2B90R9FTDRES 90.9 OHM 1% 2W 1206 |
4,578 |
|
Datasheet |
3503 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 90.9 Ohms | ±1% | 2W | Thin Film | - | ±50ppm/°C | -55°C ~ 155°C | - | 1206 | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.023" (0.58mm) | 2 | - |
|
|
3503G2B110RFTDRES 110 OHM 1% 2W 1206 |
4,518 |
|
Datasheet |
3503 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 110 Ohms | ±1% | 2W | Thin Film | - | ±50ppm/°C | -55°C ~ 155°C | - | 1206 | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.023" (0.58mm) | 2 | - |
|
|
3503G2B191RFTDRES 191 OHM 1% 2W 1206 |
4,438 |
|
Datasheet |
3503 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 191 Ohms | ±1% | 2W | Thin Film | - | ±50ppm/°C | -55°C ~ 155°C | - | 1206 | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.023" (0.58mm) | 2 | - |
|
|
3503G2B147RFTDRES 147 OHM 1% 2W 1206 |
4,387 |
|
Datasheet |
3503 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 147 Ohms | ±1% | 2W | Thin Film | - | ±50ppm/°C | -55°C ~ 155°C | - | 1206 | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.023" (0.58mm) | 2 | - |
|
|
3503G2B698RFTDRES 698 OHM 1% 2W 1206 |
4,358 |
|
Datasheet |
3503 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 698 Ohms | ±1% | 2W | Thin Film | - | ±50ppm/°C | -55°C ~ 155°C | - | 1206 | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.023" (0.58mm) | 2 | - |
|
|
3503G2B499RFTDRES 499 OHM 1% 2W 1206 |
4,342 |
|
Datasheet |
3503 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 499 Ohms | ±1% | 2W | Thin Film | - | ±50ppm/°C | -55°C ~ 155°C | - | 1206 | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.023" (0.58mm) | 2 | - |
|
|
3503G2B2K8FTDRES 2.8K OHM 1% 2W 1206 |
4,281 |
|
Datasheet |
3503 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 2.8 kOhms | ±1% | 2W | Thin Film | - | ±50ppm/°C | -55°C ~ 155°C | - | 1206 | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.023" (0.58mm) | 2 | - |
|
|
3503G2B6K04FTDRES 6.04K OHM 1% 2W 1206 |
4,072 |
|
Datasheet |
3503 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 6.04 kOhms | ±1% | 2W | Thin Film | - | ±50ppm/°C | -55°C ~ 155°C | - | 1206 | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.023" (0.58mm) | 2 | - |
|
|
3503G2B143RFTDRES 143 OHM 1% 2W 1206 |
3,952 |
|
Datasheet |
3503 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 143 Ohms | ±1% | 2W | Thin Film | - | ±50ppm/°C | -55°C ~ 155°C | - | 1206 | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.023" (0.58mm) | 2 | - |
|
|
3503G2B140RFTDRES 140 OHM 1% 2W 1206 |
3,948 |
|
Datasheet |
3503 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 140 Ohms | ±1% | 2W | Thin Film | - | ±50ppm/°C | -55°C ~ 155°C | - | 1206 | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.023" (0.58mm) | 2 | - |
|
|
3503G2B162RFTDRES 162 OHM 1% 2W 1206 |
3,747 |
|
Datasheet |
3503 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 162 Ohms | ±1% | 2W | Thin Film | - | ±50ppm/°C | -55°C ~ 155°C | - | 1206 | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.023" (0.58mm) | 2 | - |
|
|
3503G2B255RFTDRES 255 OHM 1% 2W 1206 |
3,696 |
|
Datasheet |
3503 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 255 Ohms | ±1% | 2W | Thin Film | - | ±50ppm/°C | -55°C ~ 155°C | - | 1206 | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.023" (0.58mm) | 2 | - |
|
|
3503G2B249RFTDRES 249 OHM 1% 2W 1206 |
3,600 |
|
Datasheet |
3503 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 249 Ohms | ±1% | 2W | Thin Film | - | ±50ppm/°C | -55°C ~ 155°C | - | 1206 | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.023" (0.58mm) | 2 | - |
|
|
3503G2B78R7FTDRES 78.7 OHM 1% 2W 1206 |
3,531 |
|
Datasheet |
3503 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 78.7 Ohms | ±1% | 2W | Thin Film | - | ±50ppm/°C | -55°C ~ 155°C | - | 1206 | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.023" (0.58mm) | 2 | - |
|
355022RJTRES 3550 22R 5% |
3,037 |
|
Datasheet |
3550, CGS | Nonstandard | Tape & Reel (TR) | Active | 22 Ohms | ±5% | 5W | Thick Film | - | ±100ppm/°C | -55°C ~ 155°C | - | - | 0.433" L x 0.197" W (11.00mm x 5.00mm) | 0.047" (1.20mm) | 2 | - |
|
|
3503G2B287RFTDRES 287 OHM 1% 2W 1206 |
2,157 |
|
Datasheet |
3503 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 287 Ohms | ±1% | 2W | Thin Film | - | ±50ppm/°C | -55°C ~ 155°C | - | 1206 | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.023" (0.58mm) | 2 | - |
|

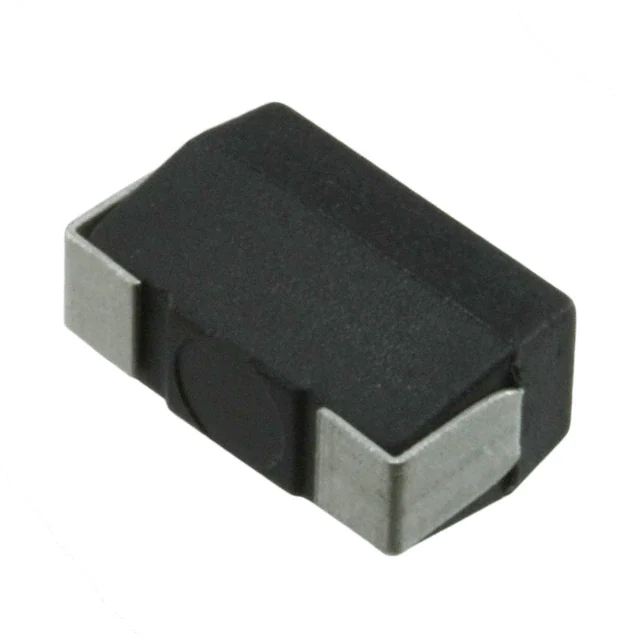

PWR3014W10R0JERES SMD 10 OHM 5% 1W 3014 |
1,576 |
|
Datasheet |
PWR3014 | 3014 J-Lead | Tape & Reel (TR) | Active | 10 Ohms | ±5% | 1W | Wirewound | Current Sense, Pulse Withstanding | ±50ppm/°C | -55°C ~ 155°C | - | 3014 | 0.295" L x 0.138" W (7.50mm x 3.50mm) | 0.203" (5.15mm) | 2 | - |
-J-Lead.jpg)
|
SMV3W100KJTSMV 3W 100K 5% |
1,380 |
|
Datasheet |
SMV | 5329 (13573 Metric), J-Lead | Tape & Reel (TR) | Active | 100 kOhms | ±5% | 3W | Metal Film | Anti-Sulfur, Flame Proof, High Voltage, Pulse Withstanding, Safety | ±200ppm/°C | -65°C ~ 200°C | - | SMD | 0.531" L x 0.287" W (13.50mm x 7.30mm) | 0.280" (7.10mm) | 2 | - |
