Chip Resistor - Surface Mount
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE2010FKM7W0R006ZRES 0.006 OHM 1% 1W 2010 |
0 |
|
Datasheet |
PE | 2010 (5025 Metric) | Tape & Reel (TR) | Active | 6 mOhms | ±1% | 1W | Metal Foil | Current Sense | ±75ppm/°C | -55°C ~ 170°C | - | 2010 | 0.197" L x 0.098" W (5.00mm x 2.50mm) | 0.033" (0.85mm) | 2 | - |
|
|
PE0603JRF7T0R01ZRES 0.01 OHM 5% 1/3W 0603 |
0 |
|
Datasheet |
PE | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 10 mOhms | ±5% | 0.333W, 1/3W | Metal Foil | Current Sense | ±100ppm/°C | -55°C ~ 170°C | - | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.033" (0.85mm) | 2 | - |
|
|
PE0603FRM7T0R02ZRES 0.02 OHM 1% 1/3W 0603 |
0 |
|
Datasheet |
PE | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 20 mOhms | ±1% | 0.333W, 1/3W | Metal Foil | Current Sense | ±75ppm/°C | -55°C ~ 170°C | - | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.033" (0.85mm) | 2 | - |
|
|
PE2010FKM7W0R047ZRES 0.047 OHM 1% 1W 2010 |
0 |
|
Datasheet |
PE | 2010 (5025 Metric) | Tape & Reel (TR) | Active | 47 mOhms | ±1% | 1W | Metal Foil | Current Sense | ±75ppm/°C | -55°C ~ 170°C | - | 2010 | 0.197" L x 0.098" W (5.00mm x 2.50mm) | 0.033" (0.85mm) | 2 | - |
|
|
PE2010FKM7W0R008ZRES 0.008 OHM 1% 1W 2010 |
0 |
|
Datasheet |
PE | 2010 (5025 Metric) | Tape & Reel (TR) | Active | 8 mOhms | ±1% | 1W | Metal Foil | Current Sense | ±75ppm/°C | -55°C ~ 170°C | - | 2010 | 0.197" L x 0.098" W (5.00mm x 2.50mm) | 0.033" (0.85mm) | 2 | - |
|
|
PE2010FKF7W0R082LRES 0.082 OHM 1% 1W 2010 |
0 |
|
Datasheet |
PE_L | 2010 (5025 Metric) | Tape & Reel (TR) | Active | 82 mOhms | ±1% | 1W | Metal Film | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 170°C | AEC-Q200 | 2010 | 0.200" L x 0.100" W (5.08mm x 2.54mm) | 0.035" (0.89mm) | 2 | - |
|
|
PE0603FRM7T0R02LRES 0.02 OHM 1% 1/3W 0603 |
0 |
|
Datasheet |
PE_L | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 20 mOhms | ±1% | 0.333W, 1/3W | Metal Film | Automotive AEC-Q200, Current Sense | ±75ppm/°C | -55°C ~ 170°C | AEC-Q200 | 0603 | 0.063" L x 0.030" W (1.60mm x 0.76mm) | 0.024" (0.60mm) | 2 | - |
|
|
PE0603FRM7T0R03LRES 0.03 OHM 1% 1/3W 0603 |
0 |
|
Datasheet |
PE_L | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 30 mOhms | ±1% | 0.333W, 1/3W | Metal Film | Automotive AEC-Q200, Current Sense | ±75ppm/°C | -55°C ~ 170°C | AEC-Q200 | 0603 | 0.063" L x 0.030" W (1.60mm x 0.76mm) | 0.024" (0.60mm) | 2 | - |
|
|
PE0603FRM7T0R015ZRES 0.015 OHM 1% 1/3W 0603 |
0 |
|
Datasheet |
PE | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 15 mOhms | ±1% | 0.333W, 1/3W | Metal Foil | Current Sense | ±75ppm/°C | -55°C ~ 170°C | - | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.033" (0.85mm) | 2 | - |
|
RL1218FK-070R4LRES 0.4 OHM 1W 1812 WIDE |
0 |
|
Datasheet |
RL | Wide 1812 (4532 Metric), 1218 | Tape & Reel (TR) | Active | 400 mOhms | ±1% | 1W | Thick Film | Current Sense | ±250ppm/°C | -55°C ~ 155°C | - | 1218 | 0.120" L x 0.181" W (3.05mm x 4.60mm) | 0.026" (0.65mm) | 2 | - |
|
RT0603BRB0722K1LRES SMD 22.1KOHM 0.1% 1/10W 0603 |
0 |
|
Datasheet |
RT | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 22.1 kOhms | ±0.1% | 0.1W, 1/10W | Thin Film | - | ±10ppm/°C | -55°C ~ 155°C | - | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) | 2 | - |
|
|
RC2512JK-7W24RLRES 24 OHM 5% 2W 2512 |
0 |
|
Datasheet |
RC_L | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 24 Ohms | ±5% | 2W | Thick Film | Moisture Resistant | ±200ppm/°C | -55°C ~ 155°C | - | 2512 | 0.250" L x 0.122" W (6.35mm x 3.10mm) | 0.026" (0.65mm) | 2 | - |
|
|
PA1206FRF470R033LRES 0.033 OHM 1% 1W 1206 |
0 |
|
Datasheet |
PA | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 33 mOhms | ±1% | 1W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±100ppm/°C | -55°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.026" (0.65mm) | 2 | - |
|
MMP200JR-100KRES SMD 5% 2W MELF |
0 |
|
Datasheet |
MMP | MELF, 0309 | Tape & Reel (TR) | Active | 100 kOhms | ±5% | 2W | Metal Film | - | - | -55°C ~ 155°C | - | MELF | 0.126" Dia x 0.335" L (3.20mm x 8.50mm) | - | 2 | - |
|
MMP200JR-10KRES SMD 5% 2W MELF |
0 |
|
Datasheet |
MMP | MELF, 0309 | Tape & Reel (TR) | Active | 10 kOhms | ±5% | 2W | Metal Film | - | - | -55°C ~ 155°C | - | MELF | 0.126" Dia x 0.335" L (3.20mm x 8.50mm) | - | 2 | - |
|
MMP200JR-110KRES SMD 5% 2W MELF |
0 |
|
Datasheet |
MMP | MELF, 0309 | Tape & Reel (TR) | Active | 110 kOhms | ±5% | 2W | Metal Film | - | - | -55°C ~ 155°C | - | MELF | 0.126" Dia x 0.335" L (3.20mm x 8.50mm) | - | 2 | - |
|
MMP200JR-110RRES SMD 5% 2W MELF |
0 |
|
Datasheet |
MMP | MELF, 0309 | Tape & Reel (TR) | Active | 110 Ohms | ±5% | 2W | Metal Film | - | - | -55°C ~ 155°C | - | MELF | 0.126" Dia x 0.335" L (3.20mm x 8.50mm) | - | 2 | - |
|
MMP200JR-11KRES SMD 5% 2W MELF |
0 |
|
Datasheet |
MMP | MELF, 0309 | Tape & Reel (TR) | Active | 11 kOhms | ±5% | 2W | Metal Film | - | - | -55°C ~ 155°C | - | MELF | 0.126" Dia x 0.335" L (3.20mm x 8.50mm) | - | 2 | - |
|
MMP200JR-11RRES SMD 5% 2W MELF |
0 |
|
Datasheet |
MMP | MELF, 0309 | Tape & Reel (TR) | Active | 11 Ohms | ±5% | 2W | Metal Film | - | - | -55°C ~ 155°C | - | MELF | 0.126" Dia x 0.335" L (3.20mm x 8.50mm) | - | 2 | - |
|

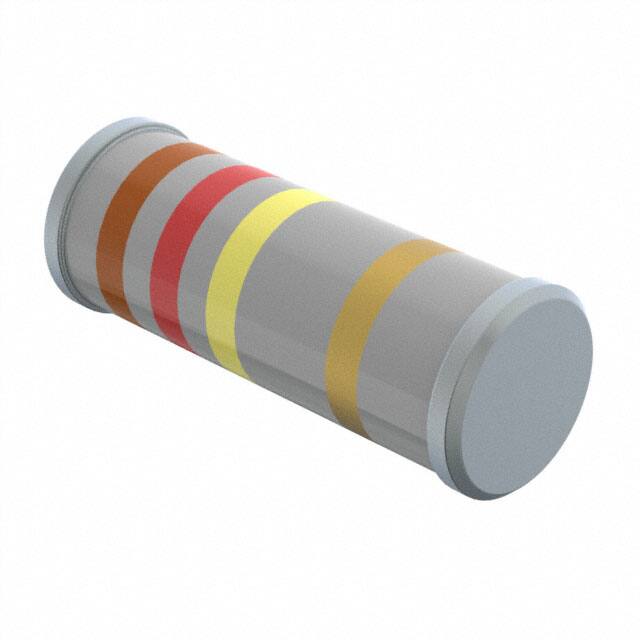

MMP200JR-120KRES SMD 5% 2W MELF |
0 |
|
Datasheet |
MMP | MELF, 0309 | Tape & Reel (TR) | Active | 120 kOhms | ±5% | 2W | Metal Film | - | - | -55°C ~ 155°C | - | MELF | 0.126" Dia x 0.335" L (3.20mm x 8.50mm) | - | 2 | - |
Chip Resistor - Surface Mount Electronic Components
Frequently Asked Questions
Q1: What products are included in Chip Resistor - Surface Mount?
This category includes related Chip Resistor - Surface Mount subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Chip Resistor - Surface Mount components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Chip Resistor - Surface Mount and other electronic components.
