Chip Resistor - Surface Mount
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

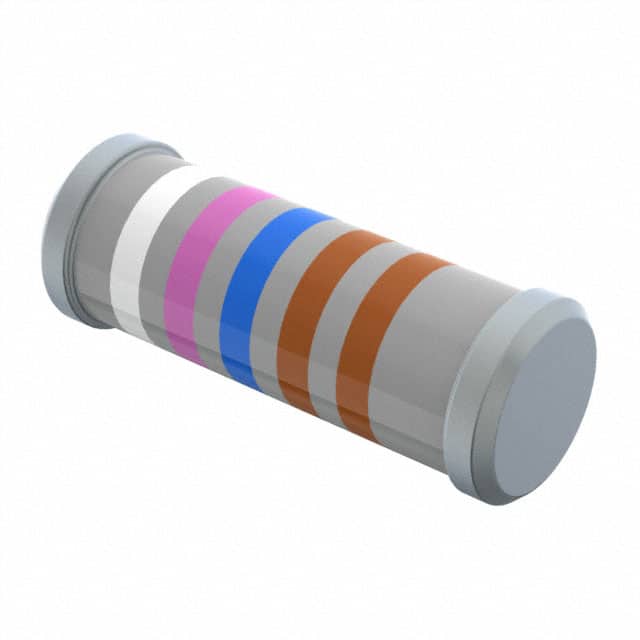

MMP100FRF9K76RES SMD 1% 1W MELF |
0 |
|
Datasheet |
MMP | MELF, 0207 | Tape & Reel (TR) | Active | 9.76 kOhms | ±1% | 1W | Metal Film | - | ±100ppm/°C | -55°C ~ 155°C | - | MELF | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | - | 2 | - |
|
PE1206FRF470R16LRES 0.16 OHM 1% 1W 1206 |
0 |
|
Datasheet |
PE_L | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 160 mOhms | ±1% | 1W | Metal Film | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.89mm) | 2 | - |
|
|
PE1206FRF470R11LRES 0.11 OHM 1% 1W 1206 |
0 |
|
Datasheet |
PE_L | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 110 mOhms | ±1% | 1W | Metal Film | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.89mm) | 2 | - |
|
|
PE1206FRF470R4LRES 0.4 OHM 1% 1W 1206 |
0 |
|
Datasheet |
PE_L | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 400 mOhms | ±1% | 1W | Metal Film | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.89mm) | 2 | - |
|
|
PE1206FRF470R13LRES 0.13 OHM 1% 1W 1206 |
0 |
|
Datasheet |
PE_L | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 130 mOhms | ±1% | 1W | Metal Film | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.89mm) | 2 | - |
|
|
PE1206FRF470R39LRES 0.39 OHM 1% 1W 1206 |
0 |
|
Datasheet |
PE_L | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 390 mOhms | ±1% | 1W | Metal Film | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.89mm) | 2 | - |
|
|
PE1206FRF470R18LRES 0.18 OHM 1% 1W 1206 |
0 |
|
Datasheet |
PE_L | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 180 mOhms | ±1% | 1W | Metal Film | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.89mm) | 2 | - |
|
|
PE1206FRF470R82LRES 0.82 OHM 1% 1W 1206 |
0 |
|
Datasheet |
PE_L | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 820 mOhms | ±1% | 1W | Metal Film | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.89mm) | 2 | - |
|
|
PE1206FRF470R47LRES 0.47 OHM 1% 1W 1206 |
0 |
|
Datasheet |
PE_L | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 470 mOhms | ±1% | 1W | Metal Film | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.89mm) | 2 | - |
|
CFN0603AFX-R010ELFRESMETALFOIL A 0603 R010 1% 0.5W |
0 |
|
Datasheet |
CFN-A | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 10 mOhms | ±1% | 0.5W, 1/2W | Metal Foil | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) | 2 | - |
|
|
CFN0603AFZ-R020ELFRESMETALFOIL A 0603 R020 1% 0.5W |
0 |
|
Datasheet |
CFN-A | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 20 mOhms | ±1% | 0.5W, 1/2W | Metal Foil | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±50ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) | 2 | - |
|
PE1206FRF070R007LRES 0.007 OHM 1% 1/4W 1206 |
0 |
|
Datasheet |
PE_L | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 7 mOhms | ±1% | 0.25W, 1/4W | Metal Film | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.89mm) | 2 | - |
|
|
PE1206FRF070R008LRES 0.008 OHM 1% 1/4W 1206 |
0 |
|
Datasheet |
PE_L | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 8 mOhms | ±1% | 0.25W, 1/4W | Metal Film | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.89mm) | 2 | - |
|
|
PE1206FRF070R009LRES 0.009 OHM 1% 1/4W 1206 |
0 |
|
Datasheet |
PE_L | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 9 mOhms | ±1% | 0.25W, 1/4W | Metal Film | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.89mm) | 2 | - |
|
|
PE1206FRF070R012LRES 0.012 OHM 1% 1/4W 1206 |
0 |
|
Datasheet |
PE_L | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 12 mOhms | ±1% | 0.25W, 1/4W | Metal Film | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.89mm) | 2 | - |
|
|
PE1206FRF070R022LRES 0.022 OHM 1% 1/4W 1206 |
0 |
|
Datasheet |
PE_L | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 22 mOhms | ±1% | 0.25W, 1/4W | Metal Film | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.89mm) | 2 | - |
|
|
PE1206FRF070R039LRES 0.039 OHM 1% 1/4W 1206 |
0 |
|
Datasheet |
PE_L | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 39 mOhms | ±1% | 0.25W, 1/4W | Metal Film | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.89mm) | 2 | - |
|
|
PE1206FRF070R051LRES 0.051 OHM 1% 1/4W 1206 |
0 |
|
Datasheet |
PE_L | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 51 mOhms | ±1% | 0.25W, 1/4W | Metal Film | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.89mm) | 2 | - |
|
|
PE1206FRF070R056LRES 0.056 OHM 1% 1/4W 1206 |
0 |
|
Datasheet |
PE_L | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 56 mOhms | ±1% | 0.25W, 1/4W | Metal Film | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.89mm) | 2 | - |
|
|
PE1206FRF070R068LRES 0.068 OHM 1% 1/4W 1206 |
0 |
|
Datasheet |
PE_L | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 68 mOhms | ±1% | 0.25W, 1/4W | Metal Film | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.89mm) | 2 | - |
Chip Resistor - Surface Mount Electronic Components
Frequently Asked Questions
Q1: What products are included in Chip Resistor - Surface Mount?
This category includes related Chip Resistor - Surface Mount subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Chip Resistor - Surface Mount components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Chip Resistor - Surface Mount and other electronic components.
