Chip Resistor - Surface Mount
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CRM2512-FX-3R90ELFRES SMD 3.9 OHM 1% 2W 2512 |
6,495 |
|
Datasheet |
CRM2512 | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 3.9 Ohms | ±1% | 2W | Thick Film | Current Sense | ±100ppm/°C | -55°C ~ 155°C | - | 2512 | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.031" (0.80mm) | 2 | - |
|
|
CRM2512-FX-4R30ELFRES SMD 4.3 OHM 1% 2W 2512 |
4,764 |
|
Datasheet |
CRM2512 | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 4.3 Ohms | ±1% | 2W | Thick Film | Current Sense | ±100ppm/°C | -55°C ~ 155°C | - | 2512 | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.031" (0.80mm) | 2 | - |
|
RLP73V3AR016FTDFRES 0.016 OHM 1% 2W 2512 |
5,105 |
|
Datasheet |
RL73, CGS | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 16 mOhms | ±1% | 2W | Thick Film | Current Sense | ±600ppm/°C | -55°C ~ 155°C | - | 2512 | 0.250" L x 0.124" W (6.35mm x 3.15mm) | 0.028" (0.70mm) | 2 | - |
|
RN73C1J10KBTGRES SMD 10K OHM 0.1% 1/16W 0603 |
77,551 |
|
Datasheet |
RN73, Holsworthy | 0603 (1608 Metric) | Strip | Active | 10 kOhms | ±0.1% | 0.063W, 1/16W | Thin Film | - | ±10ppm/°C | -55°C ~ 155°C | - | 0603 | 0.061" L x 0.031" W (1.55mm x 0.80mm) | 0.022" (0.55mm) | 2 | - |
|
|
CRM2512-FX-6R80ELFRES SMD 6.8 OHM 1% 2W 2512 |
20,748 |
|
Datasheet |
CRM2512 | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 6.8 Ohms | ±1% | 2W | Thick Film | Current Sense | ±100ppm/°C | -55°C ~ 155°C | - | 2512 | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.031" (0.80mm) | 2 | - |
|

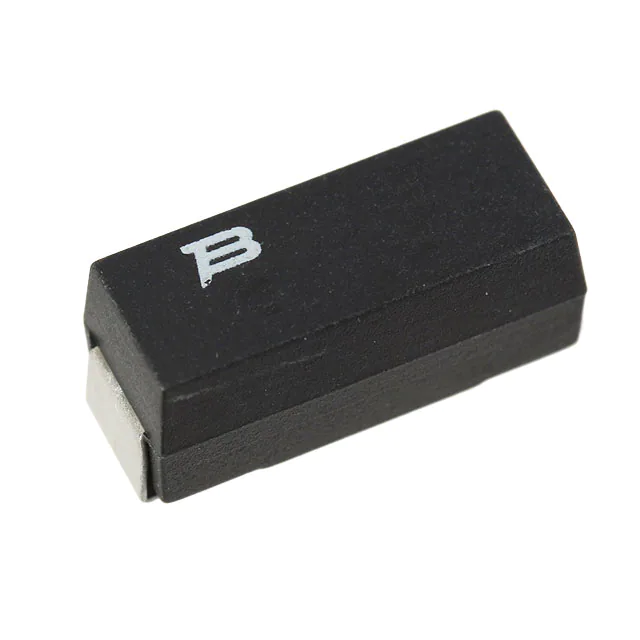

PWR5322WR500JERES 0.5 OHM 5% 3W 5322 |
1,645 |
|
Datasheet |
PWR5322 | 5322 J-Lead | Tape & Reel (TR) | Active | 500 mOhms | ±5% | 3W | Wirewound | Current Sense, Pulse Withstanding | ±90ppm/°C | -55°C ~ 155°C | - | 5322 | 0.532" L x 0.217" W (13.50mm x 5.50mm) | 0.243" (6.16mm) | 2 | - |
|
|
RN73C1J2K0BTGRES SMD 2K OHM 0.1% 1/16W 0603 |
36,309 |
|
Datasheet |
RN73, Holsworthy | 0603 (1608 Metric) | Strip | Active | 2 kOhms | ±0.1% | 0.063W, 1/16W | Thin Film | - | ±10ppm/°C | -55°C ~ 155°C | - | 0603 | 0.061" L x 0.031" W (1.55mm x 0.80mm) | 0.022" (0.55mm) | 2 | - |
|
RN73C2A2K0BTGRES SMD 2K OHM 0.1% 1/10W 0805 |
8,366 |
|
Datasheet |
RN73, Holsworthy | 0805 (2012 Metric) | Strip | Active | 2 kOhms | ±0.1% | 0.1W, 1/10W | Thin Film | - | ±10ppm/°C | -55°C ~ 155°C | - | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.026" (0.65mm) | 2 | - |
.jpg)
|
PF2512FKF7W0R05LRES 0.05 OHM 1% 2W 2512 |
7,874 |
|
Datasheet |
PF | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 50 mOhms | ±1% | 2W | Metal Foil | Current Sense, Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | - | 2512 | 0.254" L x 0.128" W (6.45mm x 3.25mm) | 0.033" (0.85mm) | 2 | - |
|
CSS2H-2512R-L500FERES SMD 500 UOHM 1% 6W 2512 |
1,845 |
|
Datasheet |
CSS2H-2512 | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 0.5 mOhms | ±1% | 6W | Metal Element | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 170°C | AEC-Q200 | 2512 | 0.250" L x 0.120" W (6.35mm x 3.05mm) | 0.056" (1.42mm) | 2 | - |
|
354010RJTRES 3540 10R 5% |
3,522 |
|
Datasheet |
3540, CGS | Nonstandard | Tape & Reel (TR) | Active | 10 Ohms | ±5% | 4W | Thick Film | - | ±200ppm/°C | -55°C ~ 155°C | - | 2816 | 0.280" L x 0.165" W (7.10mm x 4.20mm) | 0.047" (1.20mm) | 2 | - |
|
RA73F2A1K5BTDRA73F 2A 1K5 0.1% 5K RL |
2,732 |
|
Datasheet |
RA73 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 1.5 kOhms | ±0.1% | 1W | Thin Film | - | 25ppm/°C | -55°C ~ 155°C | - | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.023" (0.58mm) | 2 | - |
.jpg)
|
PE0402FRF470R01LRES 0.01 OHM 1% 1/4W 0402 |
5,100 |
|
Datasheet |
PE_L | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 10 mOhms | ±1% | 0.25W, 1/4W | Metal Film | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.020" (0.50mm) | 2 | - |
|
PU2512FKM130R003LRES 0.003 OHM 1% 4W 2512 |
3,327 |
|
Datasheet |
PU | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 3 mOhms | ±1% | 4W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 2512 | 0.250" L x 0.125" W (6.35mm x 3.18mm) | 0.041" (1.03mm) | 2 | - |
|
CSS2H-3920K-4L00FCURRENTSENSESHUNT 3920 R004 1% 4 |
946 |
|
Datasheet |
CSS2H-3920 | 3920 (1052 Metric) | Tape & Reel (TR) | Active | 4 mOhms | ±1% | 4W | Metal Element | Automotive AEC-Q200, Current Sense | ±75ppm/°C | -55°C ~ 170°C | AEC-Q200 | 3920 | 0.394" L x 0.205" W (10.00mm x 5.20mm) | 0.042" (1.06mm) | 2 | - |
|
|
352212RFTRES SMD 12 OHM 1% 3W 2512 |
135,330 |
|
Datasheet |
3522, CGS | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 12 Ohms | ±1% | 3W | Thick Film | Automotive AEC-Q200 | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | - | 0.250" L x 0.126" W (6.35mm x 3.20mm) | 0.047" (1.20mm) | 2 | - |
|
3522130RFTRES SMD 130 OHM 1% 3W 2512 |
60,448 |
|
Datasheet |
3522, CGS | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 130 Ohms | ±1% | 3W | Thick Film | Automotive AEC-Q200 | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | - | 0.250" L x 0.126" W (6.35mm x 3.20mm) | 0.047" (1.20mm) | 2 | - |
|
|
352251RFTRES SMD 51 OHM 1% 3W 2512 |
40,528 |
|
Datasheet |
3522, CGS | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 51 Ohms | ±1% | 3W | Thick Film | Automotive AEC-Q200 | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | - | 0.250" L x 0.126" W (6.35mm x 3.20mm) | 0.047" (1.20mm) | 2 | - |
|
|
3522240RFTRES SMD 240 OHM 1% 3W 2512 |
33,188 |
|
Datasheet |
3522, CGS | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 240 Ohms | ±1% | 3W | Thick Film | Automotive AEC-Q200 | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | - | 0.250" L x 0.126" W (6.35mm x 3.20mm) | 0.047" (1.20mm) | 2 | - |
|
|
3522100KFTRES SMD 100K OHM 1% 3W 2512 |
33,137 |
|
Datasheet |
3522, CGS | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 100 kOhms | ±1% | 3W | Thick Film | Automotive AEC-Q200 | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | - | 0.250" L x 0.126" W (6.35mm x 3.20mm) | 0.047" (1.20mm) | 2 | - |
Chip Resistor - Surface Mount Electronic Components
Frequently Asked Questions
Q1: What products are included in Chip Resistor - Surface Mount?
This category includes related Chip Resistor - Surface Mount subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Chip Resistor - Surface Mount components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Chip Resistor - Surface Mount and other electronic components.
