Chip Resistor - Surface Mount
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE0603FRF070R04LRES 0.04 OHM 1% 1/10W 0603 |
9,191 |
|
Datasheet |
PE_L | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 40 mOhms | ±1% | 0.1W, 1/10W | Metal Film | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 170°C | AEC-Q200 | 0603 | 0.063" L x 0.030" W (1.60mm x 0.76mm) | 0.024" (0.60mm) | 2 | - |
.jpg)
|
PE0402FRF070R02LRES 0.02 OHM 1% 1/16W 0402 |
9,144 |
|
Datasheet |
PE_L | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 20 mOhms | ±1% | 0.063W, 1/16W | Metal Film | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.020" (0.50mm) | 2 | - |
.jpg)
|
CRL2512-FW-R100ELFRES 0.1 OHM 1% 1W 2512 |
8,254 |
|
Datasheet |
CRL | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 100 mOhms | ±1% | 1W | Thick Film | - | ±200ppm/°C | -55°C ~ 155°C | - | 2512 | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.028" (0.70mm) | 2 | - |
|
CRM2512-FX-7500ELFRES SMD 750 OHM 1% 2W 2512 |
6,487 |
|
Datasheet |
CRM2512 | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 750 Ohms | ±1% | 2W | Thick Film | Current Sense | ±100ppm/°C | -55°C ~ 155°C | - | 2512 | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.031" (0.80mm) | 2 | - |
|
|
CRM2512-FX-7502ELFRES SMD 75K OHM 1% 2W 2512 |
4,609 |
|
Datasheet |
CRM2512 | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 75 kOhms | ±1% | 2W | Thick Film | Current Sense | ±100ppm/°C | -55°C ~ 155°C | - | 2512 | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.031" (0.80mm) | 2 | - |
.jpg)
|
RL1210FR-070R015LRES 0.015 OHM 1% 1/2W 1210 |
4,122 |
|
Datasheet |
RL | 1210 (3225 Metric) | Tape & Reel (TR) | Active | 15 mOhms | ±1% | 0.5W, 1/2W | Thick Film | Current Sense | ±1500ppm/°C | -55°C ~ 155°C | - | 1210 | 0.122" L x 0.102" W (3.10mm x 2.60mm) | 0.026" (0.65mm) | 2 | - |
|
VT1206BRD07330KLRES FILM 330K OHM 0.1% 1/4W 1206 |
3,500 |
|
Datasheet |
VT | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 330 kOhms | ±0.1% | 0.25W, 1/4W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, High Voltage, Moisture Resistant | ±25ppm/°C | -55°C ~ 155°C | AEC-Q200 | 1206 | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.026" (0.65mm) | 2 | - |
|
|
CRM2512-FX-51R0ELFRES SMD 51 OHM 1% 2W 2512 |
2,757 |
|
Datasheet |
CRM2512 | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 51 Ohms | ±1% | 2W | Thick Film | Current Sense | ±100ppm/°C | -55°C ~ 155°C | - | 2512 | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.031" (0.80mm) | 2 | - |
|
PE1206FRF470R12LRES 0.12 OHM 1% 1W 1206 |
2,394 |
|
Datasheet |
PE_L | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 120 mOhms | ±1% | 1W | Metal Film | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.89mm) | 2 | - |
|
|
CRM2512AJW-100ELFRES 10 OHM 5% 2W 2512 |
43,793 |
|
Datasheet |
CRM-A | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 10 Ohms | ±5% | 2W | Thick Film | Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 2512 | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.031" (0.80mm) | 2 | - |
|
CRGH2512J4K7RES 4.7K OHM 5% 2W 2512 |
28,653 |
|
Datasheet |
CRGH, Neohm | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 4.7 kOhms | ±5% | 2W | Thick Film | Automotive AEC-Q200 | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 2512 | 0.252" L x 0.126" W (6.40mm x 3.20mm) | - | 2 | - |
.jpg)
|
PE2512FKE7W0R025LRES 0.025 OHM 1% 2W 2512 |
25,184 |
|
Datasheet |
PE_L | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 25 mOhms | ±1% | 2W | Metal Film | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 170°C | AEC-Q200 | 2512 | 0.250" L x 0.125" W (6.35mm x 3.18mm) | 0.035" (0.89mm) | 2 | - |
|
|
CRGH2512J220RRES 220 OHM 5% 2W 2512 |
24,652 |
|
Datasheet |
CRGH, Neohm | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 220 Ohms | ±5% | 2W | Thick Film | Automotive AEC-Q200 | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 2512 | 0.252" L x 0.126" W (6.40mm x 3.20mm) | - | 2 | - |
|
|
RL2512FK-070R75LRES 0.75 OHM 1% 1W 2512 |
18,913 |
|
Datasheet |
RL | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 750 mOhms | ±1% | 1W | Thick Film | Current Sense | ±200ppm/°C | -55°C ~ 155°C | - | 2512 | 0.250" L x 0.126" W (6.35mm x 3.20mm) | 0.026" (0.65mm) | 2 | - |
|
RN73C1J511KBTDRES SMD 511K OHM 0.1% 1/16W 0603 |
14,791 |
|
Datasheet |
RN73, Holsworthy | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 511 kOhms | ±0.1% | 0.063W, 1/16W | Thin Film | - | ±10ppm/°C | -55°C ~ 155°C | - | 0603 | 0.061" L x 0.031" W (1.55mm x 0.80mm) | 0.022" (0.55mm) | 2 | - |
|
RT0805BRB071KLRES SMD 1K OHM 0.1% 1/8W 0805 |
14,765 |
|
Datasheet |
RT | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 1 kOhms | ±0.1% | 0.125W, 1/8W | Thin Film | - | ±10ppm/°C | -55°C ~ 155°C | - | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) | 2 | - |
|
|
CRGH2512J15KRES 15K OHM 5% 2W 2512 |
14,668 |
|
Datasheet |
CRGH, Neohm | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 15 kOhms | ±5% | 2W | Thick Film | Automotive AEC-Q200 | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 2512 | 0.252" L x 0.126" W (6.40mm x 3.20mm) | - | 2 | - |
|
RN73C2A100RBTDRES SMD 100 OHM 0.1% 1/10W 0805 |
12,973 |
|
Datasheet |
RN73, Holsworthy | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 100 Ohms | ±0.1% | 0.1W, 1/10W | Thin Film | - | ±10ppm/°C | -55°C ~ 155°C | - | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.026" (0.65mm) | 2 | - |
|
|
RN73C2A4K02BTDRES SMD 4.02KOHM 0.1% 1/10W 0805 |
11,573 |
|
Datasheet |
RN73, Holsworthy | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 4.02 kOhms | ±0.1% | 0.1W, 1/10W | Thin Film | - | ±10ppm/°C | -55°C ~ 155°C | - | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.026" (0.65mm) | 2 | - |
|

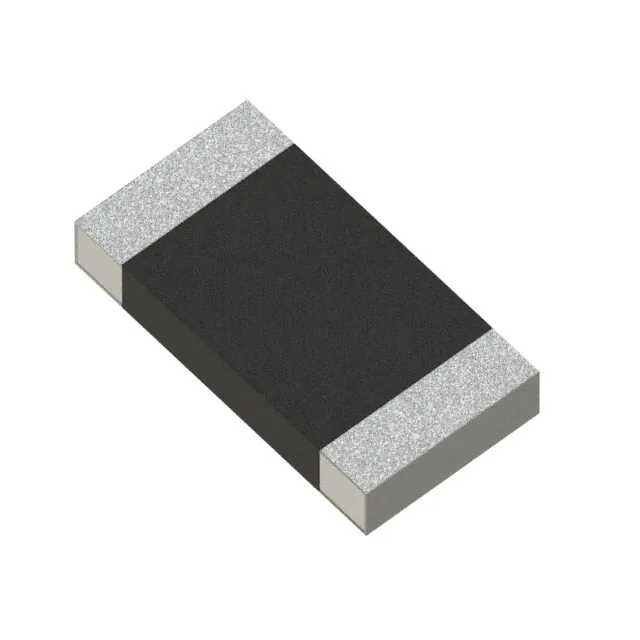

PA1206FRF7W0R005LRES 0.005 OHM 1% 1/2W 1206 |
11,168 |
|
Datasheet |
PA | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 5 mOhms | ±1% | 0.5W, 1/2W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±100ppm/°C | -55°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.90mm) | 2 | - |
Chip Resistor - Surface Mount Electronic Components
Frequently Asked Questions
Q1: What products are included in Chip Resistor - Surface Mount?
This category includes related Chip Resistor - Surface Mount subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Chip Resistor - Surface Mount components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Chip Resistor - Surface Mount and other electronic components.
