Chip Resistor - Surface Mount
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CRM2512-FX-3900ELFRES SMD 390 OHM 1% 2W 2512 |
9,289 |
|
Datasheet |
CRM2512 | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 390 Ohms | ±1% | 2W | Thick Film | Current Sense | ±100ppm/°C | -55°C ~ 155°C | - | 2512 | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.031" (0.80mm) | 2 | - |
|
PE0603FRF570R2LRES 0.2 OHM 1% 1/2W 0603 |
8,809 |
|
Datasheet |
PE_L | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 200 mOhms | ±1% | 0.5W, 1/2W | Metal Film | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 170°C | AEC-Q200 | 0603 | 0.060" L x 0.030" W (1.52mm x 0.76mm) | 0.022" (0.55mm) | 2 | - |
|
|
PE0603FRF570R5LRES 0.5 OHM 1% 1/2W 0603 |
8,085 |
|
Datasheet |
PE_L | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 500 mOhms | ±1% | 0.5W, 1/2W | Metal Film | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 170°C | AEC-Q200 | 0603 | 0.060" L x 0.030" W (1.52mm x 0.76mm) | 0.022" (0.55mm) | 2 | - |
|
|
CRM2512-FX-4990ELFRES SMD 499 OHM 1% 2W 2512 |
7,130 |
|
Datasheet |
CRM2512 | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 499 Ohms | ±1% | 2W | Thick Film | Current Sense | ±100ppm/°C | -55°C ~ 155°C | - | 2512 | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.031" (0.80mm) | 2 | - |
.jpg)
|
PT2512FK-070R4LRES 0.4 OHM 1% 1W 2512 |
6,239 |
|
Datasheet |
PT | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 400 mOhms | ±1% | 1W | Thick Film | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±75ppm/°C | -55°C ~ 155°C | AEC-Q200 | 2512 | 0.250" L x 0.126" W (6.35mm x 3.20mm) | 0.026" (0.65mm) | 2 | - |
-SR-Series.jpg)
|
SR2512JK-7W1KLRES 1K OHM 5% 2W 2512 |
2,945 |
|
Datasheet |
SR | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 1 kOhms | ±5% | 2W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 2512 | 0.250" L x 0.122" W (6.35mm x 3.10mm) | 0.026" (0.65mm) | 2 | - |
|
PE1206FRF470R25LRES 0.25 OHM 1% 1W 1206 |
1,975 |
|
Datasheet |
PE_L | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 250 mOhms | ±1% | 1W | Metal Film | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.89mm) | 2 | - |
|
|
SR2512JK-7W100KLRES 100K OHM 5% 2W 2512 |
1,353 |
|
Datasheet |
SR | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 100 kOhms | ±5% | 2W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 2512 | 0.250" L x 0.122" W (6.35mm x 3.10mm) | 0.026" (0.65mm) | 2 | - |
|
|
PA2512FKF070R003ERES 0.003 OHM 1% 1W 2512 |
25,701 |
|
Datasheet |
PA_E | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 3 mOhms | ±1% | 1W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±100ppm/°C | -55°C ~ 170°C | AEC-Q200 | 2512 | 0.250" L x 0.125" W (6.35mm x 3.18mm) | 0.035" (0.88mm) | 2 | - |
|
|
PE2512FKE070R01LRES 0.01 OHM 1% 1W 2512 |
22,056 |
|
Datasheet |
PE_L | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 10 mOhms | ±1% | 1W | Metal Film | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 170°C | AEC-Q200 | 2512 | 0.250" L x 0.125" W (6.35mm x 3.18mm) | 0.035" (0.89mm) | 2 | - |
|
AC2512FK-073RLRES 3 OHM 1% 1W 2512 |
17,613 |
|
Datasheet |
AC | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 3 Ohms | ±1% | 1W | Thick Film | Automotive AEC-Q200, Moisture Resistant | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 2512 | 0.250" L x 0.122" W (6.35mm x 3.10mm) | 0.026" (0.65mm) | 2 | - |
|
|
PA2512FKF070R004ERES 0.004 OHM 1% 1W 2512 |
16,158 |
|
Datasheet |
PA_E | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 4 mOhms | ±1% | 1W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±100ppm/°C | -55°C ~ 170°C | AEC-Q200 | 2512 | 0.250" L x 0.125" W (6.35mm x 3.18mm) | 0.035" (0.88mm) | 2 | - |
|
|
PA2512FKF070R005ERES 0.005 OHM 1% 1W 2512 |
13,720 |
|
Datasheet |
PA_E | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 5 mOhms | ±1% | 1W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±100ppm/°C | -55°C ~ 170°C | AEC-Q200 | 2512 | 0.250" L x 0.125" W (6.35mm x 3.18mm) | 0.035" (0.88mm) | 2 | - |
-PA_E-Series.jpg)
|

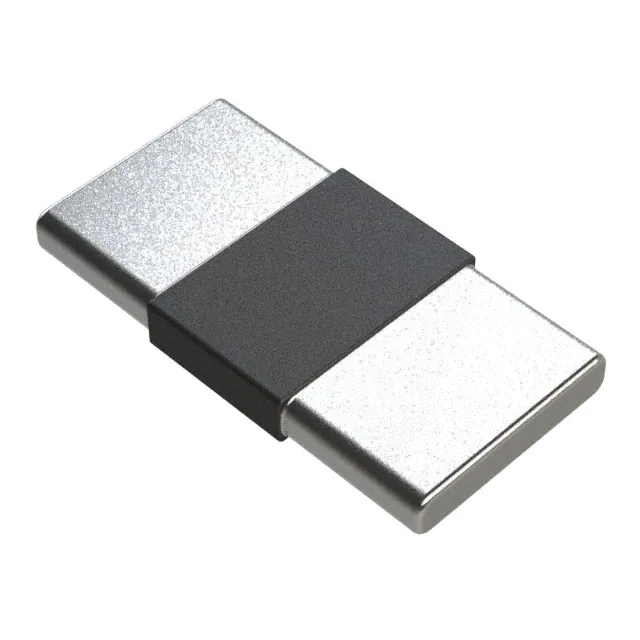

PA2512FKM7W0R001ERES 0.001 OHM 1% 2W 2512 |
13,068 |
|
Datasheet |
PA_E | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 1 mOhms | ±1% | 2W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±75ppm/°C | -55°C ~ 170°C | AEC-Q200 | 2512 | 0.250" L x 0.125" W (6.35mm x 3.18mm) | 0.035" (0.88mm) | 2 | - |
|
|
PE2512FKE7W0R033LRES 0.033 OHM 1% 2W 2512 |
12,113 |
|
Datasheet |
PE_L | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 33 mOhms | ±1% | 2W | Metal Film | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 170°C | AEC-Q200 | 2512 | 0.250" L x 0.125" W (6.35mm x 3.18mm) | 0.035" (0.89mm) | 2 | - |
|
|
PA1206FRE470R01LRES 0.01 OHM 1% 1W 1206 |
8,645 |
|
Datasheet |
PA | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 10 mOhms | ±1% | 1W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±50ppm/°C | -55°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.90mm) | 2 | - |
|
CRT1206-BY-4R70ELFRES SMD 4.7 OHM 0.1% 1/4W 1206 |
7,592 |
|
Datasheet |
CRT | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 4.7 Ohms | ±0.1% | 0.25W, 1/4W | Thin Film | Current Sense | ±25ppm/°C | -55°C ~ 155°C | - | 1206 | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.026" (0.65mm) | 2 | - |
|
|
PE1206FRF070R02LRES 0.02 OHM 1% 1/4W 1206 |
4,403 |
|
Datasheet |
PE_L | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 20 mOhms | ±1% | 0.25W, 1/4W | Metal Film | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.89mm) | 2 | - |
|
|
PA1206FRE7W0R002ZRES 0.002 OHM 1% 1/2W 1206 |
3,598 |
|
Datasheet |
PA | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 2 mOhms | ±1% | 0.5W, 1/2W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±50ppm/°C | -55°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.031" (0.80mm) | 2 | - |
|
|
PT2512FK-7W0R1LRES 0.1 OHM 1% 2W 2512 |
3,044 |
|
Datasheet |
PT | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 100 mOhms | ±1% | 2W | Thick Film | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 2512 | 0.250" L x 0.126" W (6.35mm x 3.20mm) | 0.026" (0.65mm) | 2 | - |
Chip Resistor - Surface Mount Electronic Components
