Chip Resistor - Surface Mount
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
PE2512FKE7W0R02LRES 0.02 OHM 1% 2W 2512 |
26,964 |
|
Datasheet |
PE_L | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 20 mOhms | ±1% | 2W | Metal Film | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 170°C | AEC-Q200 | 2512 | 0.250" L x 0.125" W (6.35mm x 3.18mm) | 0.035" (0.89mm) | 2 | - |
|
CFN1206-FX-R020ELFRES 0.02 OHM 1% 1W 1206 |
18,369 |
|
Datasheet |
CFN | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 20 mOhms | ±1% | 1W | Metal Foil | Current Sense, Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | - | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.90mm) | 2 | - |
-SR-Series.jpg)
|
SR1206JR-7T36RLRES 36 OHM 5% 3/4W 1206 |
18,272 |
|
Datasheet |
SR | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 36 Ohms | ±5% | 0.75W, 3/4W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 1206 | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.026" (0.65mm) | 2 | - |
|
CRT1206-BY-1003ELFRES SMD 100K OHM 0.1% 1/4W 1206 |
17,930 |
|
Datasheet |
CRT | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 100 kOhms | ±0.1% | 0.25W, 1/4W | Thin Film | Current Sense | ±25ppm/°C | -55°C ~ 155°C | - | 1206 | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.026" (0.65mm) | 2 | - |
|
|
CFN1206-FX-R005ELFRES 0.005 OHM 1% 1W 1206 |
15,184 |
|
Datasheet |
CFN | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 5 mOhms | ±1% | 1W | Metal Foil | Current Sense, Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | - | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.90mm) | 2 | - |
-PE_L-Series.jpg)
|

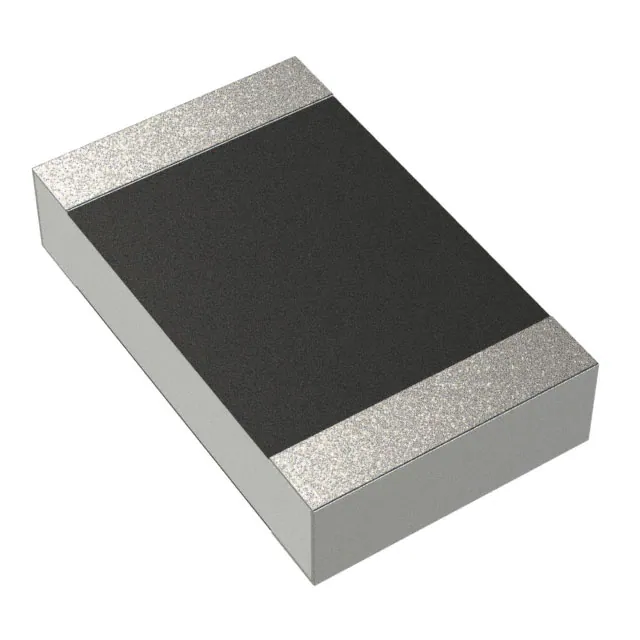

PE1206FRM7W0R1LRES 0.1 OHM 1% 1/2W 1206 |
14,795 |
|
Datasheet |
PE_L | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 100 mOhms | ±1% | 0.5W, 1/2W | Metal Film | Automotive AEC-Q200, Current Sense | ±75ppm/°C | -55°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.89mm) | 2 | - |
.jpg)
|
CRM2010-FX-51R0ELFRES SMD 51 OHM 1% 1W 2010 |
14,076 |
|
Datasheet |
CRM2010 | 2010 (5025 Metric) | Tape & Reel (TR) | Active | 51 Ohms | ±1% | 1W | Thick Film | Current Sense | ±100ppm/°C | -55°C ~ 155°C | - | 2010 | 0.197" L x 0.098" W (5.00mm x 2.50mm) | 0.028" (0.70mm) | 2 | - |
-SR-Series.jpg)
|
SR0402FR-7T4K7LRES 4.7K OHM 1% 1/5W 0402 |
10,078 |
|
Datasheet |
SR | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 4.7 kOhms | ±1% | 0.2W, 1/5W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) | 2 | - |
-SR-Series.jpg)
|
SR0805FR-7W10RLRES 10 OHM 1% 1/4W 0805 |
8,757 |
|
Datasheet |
SR | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 10 Ohms | ±1% | 0.25W, 1/4W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) | 2 | - |
|
|
RC2512JK-7W100RLRES 100 OHM 5% 2W 2512 |
7,150 |
|
Datasheet |
RC_L | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 100 Ohms | ±5% | 2W | Thick Film | Moisture Resistant | ±200ppm/°C | -55°C ~ 155°C | - | 2512 | 0.250" L x 0.122" W (6.35mm x 3.10mm) | 0.026" (0.65mm) | 2 | - |
|
CRM2512-FX-75R0ELFRES SMD 75 OHM 1% 2W 2512 |
7,055 |
|
Datasheet |
CRM2512 | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 75 Ohms | ±1% | 2W | Thick Film | Current Sense | ±100ppm/°C | -55°C ~ 155°C | - | 2512 | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.031" (0.80mm) | 2 | - |
|
CFN0603-FZ-R005ELFRESMETALFOIL 0603 R005 1% 0.5W T |
5,321 |
|
Datasheet |
CFN | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 5 mOhms | ±1% | 0.5W, 1/2W | Metal Foil | Current Sense | ±50ppm/°C | -55°C ~ 155°C | - | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) | 2 | - |
|
RL2512FK-070R1LRES 0.1 OHM 1% 1W 2512 |
91,760 |
|
Datasheet |
RL | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 100 mOhms | ±1% | 1W | Thick Film | Current Sense | ±600ppm/°C | -55°C ~ 155°C | - | 2512 | 0.250" L x 0.126" W (6.35mm x 3.20mm) | 0.026" (0.65mm) | 2 | - |
|
|
PE2512FKE7W0R009LRES 0.009 OHM 1% 2W 2512 |
23,009 |
|
Datasheet |
PE_L | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 9 mOhms | ±1% | 2W | Metal Film | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 170°C | AEC-Q200 | 2512 | 0.250" L x 0.125" W (6.35mm x 3.18mm) | 0.035" (0.89mm) | 2 | - |
|
|
RC2512JK-071RLRES 1 OHM 5% 1W 2512 |
20,435 |
|
Datasheet |
RC_L | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 1 Ohms | ±5% | 1W | Thick Film | Moisture Resistant | ±200ppm/°C | -55°C ~ 155°C | - | 2512 | 0.250" L x 0.122" W (6.35mm x 3.10mm) | 0.026" (0.65mm) | 2 | - |
|
|
CRM2010-JW-4R7ELFRES SMD 4.7 OHM 5% 1W 2010 |
17,208 |
|
Datasheet |
CRM2010 | 2010 (5025 Metric) | Tape & Reel (TR) | Active | 4.7 Ohms | ±5% | 1W | Thick Film | Current Sense | ±200ppm/°C | -55°C ~ 155°C | - | 2010 | 0.197" L x 0.098" W (5.00mm x 2.50mm) | 0.028" (0.70mm) | 2 | - |
|
|
CRM2512-FX-2000ELFRES SMD 200 OHM 1% 2W 2512 |
13,946 |
|
Datasheet |
CRM2512 | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 200 Ohms | ±1% | 2W | Thick Film | Current Sense | ±100ppm/°C | -55°C ~ 155°C | - | 2512 | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.031" (0.80mm) | 2 | - |
.jpg)
|
RL0805FR-7W0R47LRES 0.47 OHM 1% 1/4W 0805 |
12,023 |
|
Datasheet |
RL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 470 mOhms | ±1% | 0.25W, 1/4W | Thick Film | Current Sense | ±300ppm/°C | -55°C ~ 125°C | - | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) | 2 | - |
|
RT1206CRD072RLRES SMD 2 OHM 0.25% 1/4W 1206 |
11,485 |
|
Datasheet |
RT | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 2 Ohms | ±0.25% | 0.25W, 1/4W | Thin Film | - | ±25ppm/°C | -55°C ~ 155°C | - | 1206 | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.026" (0.65mm) | 2 | - |
|
|
RC2512JK-7W150RLRES 150 OHM 5% 2W 2512 |
9,175 |
|
Datasheet |
RC_L | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 150 Ohms | ±5% | 2W | Thick Film | Moisture Resistant | ±200ppm/°C | -55°C ~ 155°C | - | 2512 | 0.250" L x 0.122" W (6.35mm x 3.10mm) | 0.026" (0.65mm) | 2 | - |
Chip Resistor - Surface Mount Electronic Components
