Chip Resistor - Surface Mount
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RT0201BRD071KLRES SMD 1K OHM 0.1% 1/20W 0201 |
6,964 |
|
Datasheet |
RT | 0201 (0603 Metric) | Tape & Reel (TR) | Active | 1 kOhms | ±0.1% | 0.05W, 1/20W | Thin Film | - | ±25ppm/°C | -55°C ~ 125°C | - | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.010" (0.26mm) | 2 | - |
-PA_E-Series.jpg)
|

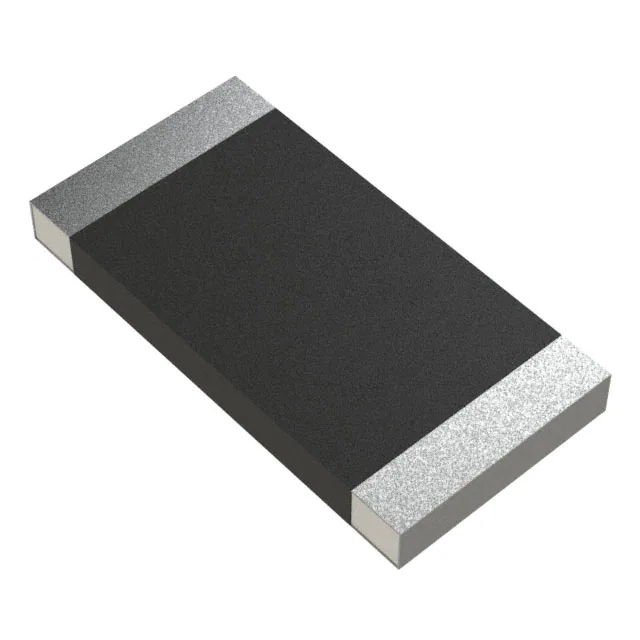

PA2512FKF7W0R01ERES 0.01 OHM 1% 2W 2512 |
5,425 |
|
Datasheet |
PA_E | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 10 mOhms | ±1% | 2W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±100ppm/°C | -55°C ~ 170°C | AEC-Q200 | 2512 | 0.250" L x 0.125" W (6.35mm x 3.18mm) | 0.035" (0.88mm) | 2 | - |
|
RP73PF1J40R2BTDFRES SMD 40.2 OHM 0.1% 1/6W 0603 |
5,215 |
|
Datasheet |
RP73, Holsworthy | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 40.2 Ohms | ±0.1% | 0.167W, 1/6W | Thin Film | - | ±25ppm/°C | -55°C ~ 155°C | - | 0603 | 0.061" L x 0.031" W (1.55mm x 0.80mm) | 0.022" (0.55mm) | 2 | - |
|
RC2512JK-7W15RLRES 15 OHM 5% 2W 2512 |
4,185 |
|
Datasheet |
RC_L | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 15 Ohms | ±5% | 2W | Thick Film | Moisture Resistant | ±200ppm/°C | -55°C ~ 155°C | - | 2512 | 0.250" L x 0.122" W (6.35mm x 3.10mm) | 0.026" (0.65mm) | 2 | - |
|
PE1206FRE470R05LRES 0.05 OHM 1% 1W 1206 |
4,155 |
|
Datasheet |
PE_L | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 50 mOhms | ±1% | 1W | Metal Film | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.89mm) | 2 | - |
|
CPF0402B309KE1CPF 0402 309K 0.1% 25PPM 1K RL |
3,803 |
|
Datasheet |
CPF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 309 kOhms | ±0.1% | 0.063W, 1/16W | Thin Film | - | ±25ppm/°C | -55°C ~ 155°C | - | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.014" (0.35mm) | 2 | - |
|
|
PE1206FRE470R04LRES 0.04 OHM 1% 1W 1206 |
3,803 |
|
Datasheet |
PE_L | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 40 mOhms | ±1% | 1W | Metal Film | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.89mm) | 2 | - |
|
|
RP73PF1J100RBTDFRES SMD 100 OHM 0.1% 1/6W 0603 |
3,795 |
|
Datasheet |
RP73, Holsworthy | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 100 Ohms | ±0.1% | 0.167W, 1/6W | Thin Film | - | ±25ppm/°C | -55°C ~ 155°C | - | 0603 | 0.061" L x 0.031" W (1.55mm x 0.80mm) | 0.022" (0.55mm) | 2 | - |
|
|
CPF0402B301KE1CPF 0402 301K 0.1% 25PPM 1K RL |
2,744 |
|
Datasheet |
CPF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 301 kOhms | ±0.1% | 0.063W, 1/16W | Thin Film | - | ±25ppm/°C | -55°C ~ 155°C | - | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.014" (0.35mm) | 2 | - |
|
|
RP73PF1J604RBTDFRES SMD 604 OHM 0.1% 1/6W 0603 |
2,717 |
|
Datasheet |
RP73, Holsworthy | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 604 Ohms | ±0.1% | 0.167W, 1/6W | Thin Film | - | ±25ppm/°C | -55°C ~ 155°C | - | 0603 | 0.061" L x 0.031" W (1.55mm x 0.80mm) | 0.022" (0.55mm) | 2 | - |
|
CPF0402B300RE1RES SMD 300 OHM 0.1% 1/16W 0402 |
2,539 |
|
Datasheet |
CPF, Neohm | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 300 Ohms | ±0.1% | 0.063W, 1/16W | Thin Film | - | ±25ppm/°C | -55°C ~ 155°C | - | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.014" (0.35mm) | 2 | - |
|
|
PA2010FKE7W0R001ZRES 0.001 OHM 1% 1W 2010 |
1,370 |
|
Datasheet |
PA | 2010 (5025 Metric) | Tape & Reel (TR) | Active | 1 mOhms | ±1% | 1W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±50ppm/°C | -55°C ~ 170°C | AEC-Q200 | 2010 | 0.200" L x 0.100" W (5.08mm x 2.54mm) | 0.030" (0.75mm) | 2 | - |
.jpg)
|
RL0805FR-7W0R5LRES 0.5 OHM 1% 1/4W 0805 |
38,295 |
|
Datasheet |
RL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 500 mOhms | ±1% | 0.25W, 1/4W | Thick Film | Current Sense | ±300ppm/°C | -55°C ~ 125°C | - | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) | 2 | - |
|
CRM2512-FX-4992ELFRES SMD 49.9K OHM 1% 2W 2512 |
29,806 |
|
Datasheet |
CRM2512 | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 49.9 kOhms | ±1% | 2W | Thick Film | Current Sense | ±100ppm/°C | -55°C ~ 155°C | - | 2512 | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.031" (0.80mm) | 2 | - |
|
CHP0805AFX-1002ELFRESHIGHPOWERA 0805 10K 1% 1/2W T |
24,560 |
|
Datasheet |
CHP-A | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 10 kOhms | ±1% | 0.5W, 1/2W | Thick Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) | 2 | - |
.jpg)
|
RL2512FK-070R15LRES 0.15 OHM 1% 1W 2512 |
22,525 |
|
Datasheet |
RL | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 150 mOhms | ±1% | 1W | Thick Film | Current Sense | ±600ppm/°C | -55°C ~ 155°C | - | 2512 | 0.250" L x 0.126" W (6.35mm x 3.20mm) | 0.026" (0.65mm) | 2 | - |
|
|
CHP0805AFX-1003ELFRESHIGHPOWERA 0805 100K 1% 1/2W |
14,399 |
|
Datasheet |
CHP-A | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 100 kOhms | ±1% | 0.5W, 1/2W | Thick Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) | 2 | - |
|
|
CPF0402B1K3E1RES SMD 1.3K OHM 0.1% 1/16W 0402 |
11,565 |
|
Datasheet |
CPF, Neohm | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 1.3 kOhms | ±0.1% | 0.063W, 1/16W | Thin Film | - | ±25ppm/°C | -55°C ~ 155°C | - | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.014" (0.35mm) | 2 | - |
|
|
PA1206FRE070R006ZRES 0.006 OHM 1% 1/4W 1206 |
11,516 |
|
Datasheet |
PA | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 6 mOhms | ±1% | 0.25W, 1/4W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±50ppm/°C | -55°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.026" (0.65mm) | 2 | - |
|
|
PA1206FRE070R008ZRES 0.008 OHM 1% 1/4W 1206 |
8,419 |
|
Datasheet |
PA | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 8 mOhms | ±1% | 0.25W, 1/4W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±50ppm/°C | -55°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.026" (0.65mm) | 2 | - |
Chip Resistor - Surface Mount Electronic Components
Frequently Asked Questions
Q1: What products are included in Chip Resistor - Surface Mount?
This category includes related Chip Resistor - Surface Mount subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Chip Resistor - Surface Mount components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Chip Resistor - Surface Mount and other electronic components.
