Chip Resistor - Surface Mount
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
, J-Lead.JPG)
|
SMF53K6JTRES SMD 3.6K OHM 5% 5W 5329 |
328 |
|
Datasheet |
SM, CGS | 5329 (13573 Metric), J-Lead | Tape & Reel (TR) | Active | 3.6 kOhms | ±5% | 5W | Metal Film | Flame Retardant Coating, Safety | ±100ppm/°C | -55°C ~ 200°C | - | SMD | 0.531" L x 0.287" W (13.50mm x 7.30mm) | 0.280" (7.10mm) | 2 | - |
|
RN73C1J25K5BTGRES SMD 25.5KOHM 0.1% 1/16W 0603 |
400 |
|
Datasheet |
RN73, Holsworthy | 0603 (1608 Metric) | Strip | Active | 25.5 kOhms | ±0.1% | 0.063W, 1/16W | Thin Film | - | ±10ppm/°C | -55°C ~ 155°C | - | 0603 | 0.061" L x 0.031" W (1.55mm x 0.80mm) | 0.022" (0.55mm) | 2 | - |
|
355015KJTRES 3550 15K 5% |
2,263 |
|
Datasheet |
3550, CGS | Nonstandard | Tape & Reel (TR) | Active | 15 kOhms | ±5% | 5W | Thick Film | - | ±100ppm/°C | -55°C ~ 155°C | - | - | 0.433" L x 0.197" W (11.00mm x 5.00mm) | 0.047" (1.20mm) | 2 | - |
|
|
355039KJTRES 3550 39K 5% |
1,018 |
|
Datasheet |
3550, CGS | Nonstandard | Tape & Reel (TR) | Active | 39 kOhms | ±5% | 5W | Thick Film | - | ±100ppm/°C | -55°C ~ 155°C | - | - | 0.433" L x 0.197" W (11.00mm x 5.00mm) | 0.047" (1.20mm) | 2 | - |
|
3503G2B6K65FTDRES 6.65K OHM 1% 2W 1206 |
4,990 |
|
Datasheet |
3503 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 6.65 kOhms | ±1% | 2W | Thin Film | - | ±50ppm/°C | -55°C ~ 155°C | - | 1206 | 0.120" L x 0.061" W (3.05mm x 1.55mm) | 0.023" (0.58mm) | 2 | - |
|
RL73H3AR10FTDFRES 0.1 OHM 1% 1W 2512 |
2,878 |
|
Datasheet |
RL73, CGS | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 100 mOhms | ±1% | 1W | Thick Film | Current Sense | ±100ppm/°C | -55°C ~ 155°C | - | 2512 | 0.250" L x 0.122" W (6.35mm x 3.10mm) | 0.028" (0.70mm) | 2 | - |
|
|
RLP73N3AR068FTDFRES 0.068 OHM 1% 2W 2512 |
2,457 |
|
Datasheet |
RL73, CGS | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 68 mOhms | ±1% | 2W | Thick Film | Current Sense | ±300ppm/°C | -55°C ~ 155°C | - | 2512 | 0.250" L x 0.124" W (6.35mm x 3.15mm) | 0.028" (0.70mm) | 2 | - |
|
PWR4318WR100JERES 0.1 OHM 5% 2W 4318 |
13,730 |
|
Datasheet |
PWR4318 | 4318 J-Lead | Tape & Reel (TR) | Active | 100 mOhms | ±5% | 2W | Wirewound | Current Sense, Pulse Withstanding | ±90ppm/°C | -55°C ~ 155°C | - | 4318 | 0.433" L x 0.177" W (11.00mm x 4.50mm) | 0.203" (5.16mm) | 2 | - |
|
|
35503K3JTRES 3550 3K3 5% |
2,972 |
|
Datasheet |
3550, CGS | Nonstandard | Tape & Reel (TR) | Active | 3.3 kOhms | ±5% | 5W | Thick Film | - | ±100ppm/°C | -55°C ~ 155°C | - | - | 0.433" L x 0.197" W (11.00mm x 5.00mm) | 0.047" (1.20mm) | 2 | - |
|
|
PWR4318W5R00JERES SMD 5 OHM 5% 2W 4318 |
1,645 |
|
Datasheet |
PWR4318 | 4318 J-Lead | Tape & Reel (TR) | Active | 5 Ohms | ±5% | 2W | Wirewound | Current Sense, Pulse Withstanding | ±50ppm/°C | -55°C ~ 155°C | - | 4318 | 0.433" L x 0.177" W (11.00mm x 4.50mm) | 0.203" (5.16mm) | 2 | - |
|
|
PWR4318W1R00JERES SMD 1 OHM 5% 2W 4318 |
1,100 |
|
Datasheet |
PWR4318 | 4318 J-Lead | Tape & Reel (TR) | Active | 1 Ohms | ±5% | 2W | Wirewound | Current Sense, Pulse Withstanding | ±50ppm/°C | -55°C ~ 155°C | - | 4318 | 0.433" L x 0.177" W (11.00mm x 4.50mm) | 0.203" (5.16mm) | 2 | - |
|
PU5931FKMP70R002LRES 0.002 OHM 1% 7W 5931 |
1,478 |
|
Datasheet |
PU | Nonstandard | Tape & Reel (TR) | Active | 2 mOhms | ±1% | 7W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | - | 0.591" L x 0.305" W (15.00mm x 7.75mm) | 0.082" (2.09mm) | 2 | - |
|
|
PWR4318W24R0JERES SMD 24 OHM 5% 2W 4318 |
597 |
|
Datasheet |
PWR4318 | 4318 J-Lead | Tape & Reel (TR) | Active | 24 Ohms | ±5% | 2W | Wirewound | Current Sense, Pulse Withstanding | ±20ppm/°C | -55°C ~ 155°C | - | 4318 | 0.433" L x 0.177" W (11.00mm x 4.50mm) | 0.203" (5.16mm) | 2 | - |
|

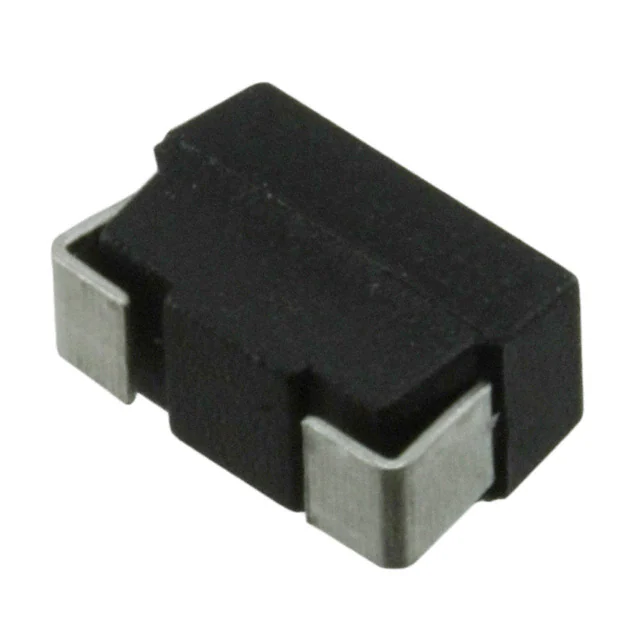

PWR2010W10R0JERES SMD 10 OHM 5% 1/2W 2010 |
4,415 |
|
Datasheet |
PWR2010 | 2010 J-Lead | Tape & Reel (TR) | Active | 10 Ohms | ±5% | 0.5W, 1/2W | Wirewound | Current Sense, Pulse Withstanding | ±50ppm/°C | -55°C ~ 155°C | - | 2010 | 0.200" L x 0.100" W (5.08mm x 2.54mm) | 0.148" (3.76mm) | 2 | - |
|
|
PWR2010WR500JERES 0.5 OHM 5% 1/2W 2010 |
352 |
|
Datasheet |
PWR2010 | 2010 J-Lead | Tape & Reel (TR) | Active | 500 mOhms | ±5% | 0.5W, 1/2W | Wirewound | Current Sense, Pulse Withstanding | ±90ppm/°C | -55°C ~ 155°C | - | 2010 | 0.200" L x 0.100" W (5.08mm x 2.54mm) | 0.148" (3.76mm) | 2 | - |
|
|
RN73C1J75RBTGRES SMD 75 OHM 0.1% 1/16W 0603 |
352 |
|
Datasheet |
RN73, Holsworthy | 0603 (1608 Metric) | Strip | Active | 75 Ohms | ±0.1% | 0.063W, 1/16W | Thin Film | - | ±10ppm/°C | -55°C ~ 155°C | - | 0603 | 0.061" L x 0.031" W (1.55mm x 0.80mm) | 0.022" (0.55mm) | 2 | - |
|
RN73C2A34K8BTGRES SMD 34.8KOHM 0.1% 1/10W 0805 |
745 |
|
Datasheet |
RN73, Holsworthy | 0805 (2012 Metric) | Strip | Active | 34.8 kOhms | ±0.1% | 0.1W, 1/10W | Thin Film | - | ±10ppm/°C | -55°C ~ 155°C | - | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.026" (0.65mm) | 2 | - |
|
|
RN73C1J2K15BTGRES SMD 2.15KOHM 0.1% 1/16W 0603 |
183 |
|
Datasheet |
RN73, Holsworthy | 0603 (1608 Metric) | Strip | Active | 2.15 kOhms | ±0.1% | 0.063W, 1/16W | Thin Film | - | ±10ppm/°C | -55°C ~ 155°C | - | 0603 | 0.061" L x 0.031" W (1.55mm x 0.80mm) | 0.022" (0.55mm) | 2 | - |
|
|
PU5931FKNPA0U5LRES SMD 500 UOHM 1% 10W 5931 |
2,856 |
|
Datasheet |
PU | Nonstandard | Tape & Reel (TR) | Active | 0.5 mOhms | ±1% | 10W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±175ppm/°C | -65°C ~ 170°C | AEC-Q200 | - | 0.591" L x 0.305" W (15.00mm x 7.75mm) | 0.054" (1.36mm) | 2 | - |
|
|
SMF515KFTRES SMD 15K OHM 1% 5W 5329 |
986 |
|
Datasheet |
SM, CGS | 5329 (13573 Metric), J-Lead | Tape & Reel (TR) | Active | 15 kOhms | ±1% | 5W | Metal Film | Flame Retardant Coating, Safety | ±100ppm/°C | -55°C ~ 200°C | - | SMD | 0.531" L x 0.287" W (13.50mm x 7.30mm) | 0.280" (7.10mm) | 2 | - |
Chip Resistor - Surface Mount Electronic Components
Frequently Asked Questions
Q1: What products are included in Chip Resistor - Surface Mount?
This category includes related Chip Resistor - Surface Mount subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Chip Resistor - Surface Mount components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Chip Resistor - Surface Mount and other electronic components.
