Ceramic Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Impedance | Bandwidth | Insertion Loss | Filter Type | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AM881B1468881.5 MHZ CERAMIC BAND PASS FILT |
15 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 881.5MHz Center | 50Ohm | 25 MHz | 3.5dB | Band Pass | Surface Mount | 0.512" L x 0.484" W (13.00mm x 12.30mm) | 0.177" (4.50mm) |
|
|
AM897B1284897 MHZ CERAMIC BAND PASS FILTER |
14 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 897.5MHz Center | 50Ohm | 35 MHz | 3dB | Band Pass | Surface Mount | 0.551" L x 0.512" W (14.00mm x 13.00mm) | 0.177" (4.50mm) |
|
|
AM1601B15301601 MHZ CERAMIC BAND PASS FILTE |
14 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 1.6015GHz Center | 50Ohm | 17 MHz | 4.7dB | Band Pass | Surface Mount | 0.669" L x 0.331" W (17.00mm x 8.40mm) | 0.222" (5.65mm) |
|

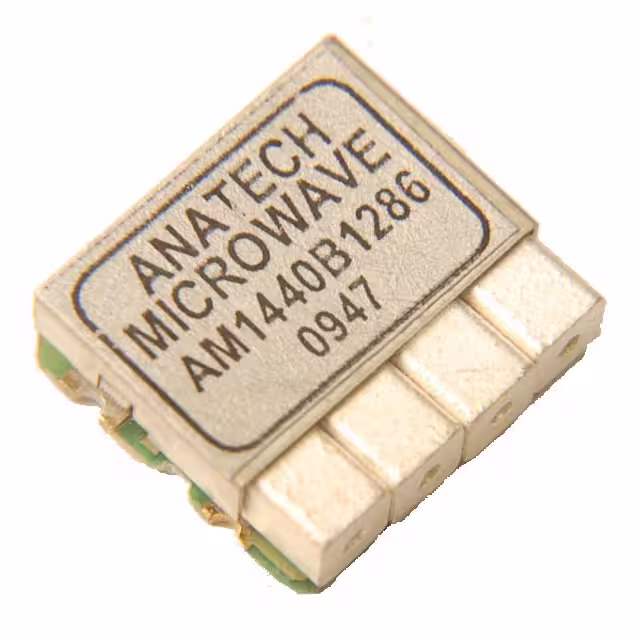

AM1440B12861440 MHZ CERAMIC BAND PASS |
15 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 1.4404GHz Center | 50Ohm | 25 MHz | 4dB | Band Pass | Surface Mount | 0.512" L x 0.472" W (13.00mm x 12.00mm) | 0.177" (4.50mm) |
|
|
AM1455B13931455.4 MHZ CERAMIC BAND PASS FIL |
11 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 1.4554GHz Center | 50Ohm | 15 MHz | 2dB | Band Pass | Surface Mount | 0.551" L x 0.512" W (14.00mm x 13.00mm) | 0.177" (4.50mm) |
|
|
AM1750B15241750 MHZ CERAMIC BAND PASS FILTE |
15 |
|
Datasheet |
- | 16-SMD Module | Tape & Box (TB) | Active | 1.75GHz Center | 50Ohm | 200 MHz | 1.2dB | Band Pass | Surface Mount | 1.039" L x 0.551" W (26.40mm x 14.00mm) | 0.195" (4.95mm) |
|
|
AM1960B14251960 MHZ CERAMIC BAND PASS FILTE |
15 |
|
Datasheet |
- | 10-SMD Module | Tape & Box (TB) | Active | 1.96GHz Center | 50Ohm | 60 MHz | 3dB | Band Pass | Surface Mount | 1.024" L x 0.669" W (26.00mm x 17.00mm) | 0.295" (7.50mm) |
|
|
AM1900B14791900 MHZ CERAMIC BAND PASS FILTE |
14 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 1.9GHz Center | 50Ohm | 40 MHz | 2dB | Band Pass | Surface Mount | 0.900" L x 0.500" W (22.86mm x 12.70mm) | 0.202" (5.13mm) |
|
|
AM1503B13941503.4 MHZ CERAMIC BAND PASS FIL |
15 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 1.5034GHz Center | 50Ohm | 15 MHz | 2dB | Band Pass | Surface Mount | 0.551" L x 0.512" W (14.00mm x 13.00mm) | 0.177" (4.50mm) |
|
|
AM960B593960 MHZ CERAMIC BAND PASS FILTER |
25 |
|
Datasheet |
- | 12-SMD Module | Tape & Box (TB) | Active | 960MHz Center | 50Ohm | 30 MHz | 3dB | Band Pass | Surface Mount | 0.717" L x 0.551" W (18.20mm x 14.00mm) | 0.209" (5.30mm) |
|
|
AM1210B14991210 MHZ CERAMIC BAND PASS FILTE |
20 |
|
Datasheet |
- | 12-SMD Module | Tape & Box (TB) | Active | 1.21GHz Center | 50Ohm | 10 MHz | 4dB | Band Pass | Surface Mount | 0.720" L x 0.550" W (18.29mm x 13.97mm) | 0.202" (5.13mm) |
|
|
AM2593B14882593 MHZ CERAMIC BAND PASS FILTE |
12 |
|
Datasheet |
- | 8-SMD Module | Tape & Box (TB) | Active | 2.593GHz Center | 50Ohm | 194 MHz | 1.8dB | Band Pass | Surface Mount | 0.900" L x 0.500" W (22.86mm x 12.70mm) | 0.202" (5.13mm) |
|
|
AM763B1385763 MHZ CERAMIC BAND PASS FILTER |
5 |
|
Datasheet |
- | 10-SMD Module | Tape & Box (TB) | Active | 763MHz Center | 50Ohm | 5 MHz | 3dB | Band Pass | Surface Mount | 1.024" L x 0.669" W (26.00mm x 17.00mm) | 0.295" (7.50mm) |
|
|
AM847B1333847 MHZ CERAMIC BAND PASS FILTER |
23 |
|
Datasheet |
- | 18-SMD Module | Tape & Box (TB) | Active | 847MHz Center | 50Ohm | 30 MHz | 4dB | Band Pass | Surface Mount | 1.496" L x 0.669" W (38.00mm x 17.00mm) | 0.295" (7.50mm) |
|
|
AM881B1470881.5 MHZ CERAMIC BAND PASS FILT |
14 |
|
Datasheet |
- | 10-SMD Module | Tape & Box (TB) | Active | 881.5MHz Center | 50Ohm | 25 MHz | 2.3dB | Band Pass | Surface Mount | 1.024" L x 0.669" W (26.00mm x 17.00mm) | 0.295" (7.50mm) |
|
|
AM4450B12344450 MHZ CERAMIC BAND PASS FILTE |
7 |
|
Datasheet |
- | 16-SMD Module | Tape & Box (TB) | Active | 4.45GHz Center | 50Ohm | 100 MHz | 3dB | Band Pass | Surface Mount | 1.039" L x 0.551" W (26.40mm x 14.00mm) | 0.195" (4.95mm) |
|
|
AM4640B17294640 MHZ CERAMIC BANDPASS FILTER |
16 |
|
- |
- | 16-SMD Module | Tape & Box (TB) | Active | 4.64GHz Center | 50Ohm | 80 MHz | 4dB | Band Pass | Surface Mount | 1.039" L x 0.551" W (26.40mm x 14.00mm) | 0.195" (4.95mm) |
|
|
AM3600B10663600 MHZ CERAMIC BAND PASS FILTE |
22 |
|
Datasheet |
- | 12-SMD Module | Tape & Box (TB) | Active | 3.6GHz Center | 50Ohm | 80 MHz | 4dB | Band Pass | Surface Mount | 1.339" L x 0.551" W (34.00mm x 14.00mm) | 0.197" (5.00mm) |
|
|
AM2245B14662245 MHZ CERAMIC BAND PASS FILTE |
15 |
|
Datasheet |
- | 10-SMD Module | Tape & Box (TB) | Active | 2.245GHz Center | 50Ohm | 540 MHz | 1.2dB | Band Pass | Surface Mount | 1.339" L x 0.551" W (34.00mm x 14.00mm) | 0.197" (5.00mm) |
|

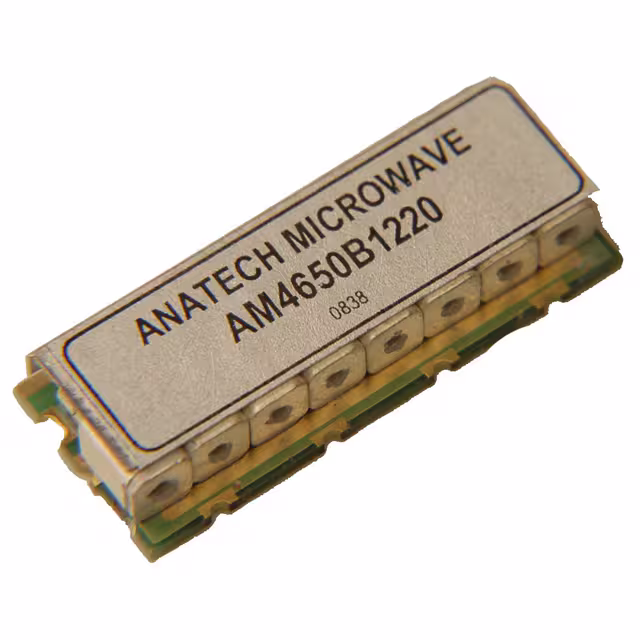

AM4650B12204650 MHZ CERAMIC BAND PASS FILTE |
25 |
|
Datasheet |
- | 10-SMD Module | Tape & Box (TB) | Active | 4.65GHz Center | 50Ohm | 500 MHz | 3.5dB | Band Pass | Surface Mount | 1.339" L x 0.551" W (34.00mm x 14.00mm) | 0.197" (5.00mm) |
Ceramic Filters Electronic Components
Explore Ceramic Filters electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
