Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M39014/22-0838CAP CER 0.22UF 50V X7R 2-DIP |
0 |
|
Datasheet |
Military, MIL-PRF-39014, CKR22 | Tube | Active | 0.22 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | High Reliability | R (0.01%) | Through Hole | 2-DIP | 0.260" L x 0.092" W (6.60mm x 2.34mm) | 0.175" (4.45mm) | - | 0.325" (8.25mm) | - |
|
SV01AC471KARCAP CER 470PF 1KV X7R RADIAL |
4 |
|
Datasheet |
SV | Bulk | Active | 470 pF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial | 0.250" L x 0.200" W (6.35mm x 5.08mm) | 0.220" (5.59mm) | - | 0.170" (4.32mm) | Straight |
.jpg)
|
100B4R7CP500XT1KCAP CER 4.7PF 500V P90 1111 |
0 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 4.7 pF | ±0.25pF | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
MD015E104ZABCAP CER 0.1UF 50V Z5U 2-DIP |
0 |
|
Datasheet |
DIPGuard® MD | Bulk | Active | 0.1 µF | -20%, +80% | 50V | Z5U | 10°C ~ 85°C | - | - | General Purpose | - | Through Hole | 2-DIP | 0.260" L x 0.100" W (6.60mm x 2.54mm) | 0.175" (4.45mm) | - | 0.325" (8.25mm) | - |
|
|
SV02AC223MARCAP CER 0.022UF 1KV X7R RADIAL |
0 |
|
Datasheet |
SV | Bulk | Active | 0.022 µF | ±20% | 1000V (1kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial | 0.320" L x 0.200" W (8.13mm x 5.08mm) | 0.280" (7.11mm) | - | 0.220" (5.59mm) | Straight |
.jpg)
|
800A3R3BT250XT4KCAP CER 3.3PF 250V C0G/NP0 0505 |
0 |
|
Datasheet |
ATC 800A | Tape & Reel (TR) | Active | 3.3 pF | ±0.1pF | 250V | C0G, NP0 | -55°C ~ 125°C | Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0505 (1313 Metric) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | - | 0.057" (1.45mm) | - | - |
|
|
100B270GW500XT1KCAP CER 27PF 500V P90 1111 |
0 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 27 pF | ±2% | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
-0,94mm.jpg)
|
LD03YC105KAB2A\500CAP CER 1UF 16V X7R 0603 |
0 |
|
Datasheet |
LD | Tape & Reel (TR) | Active | 1 µF | ±10% | 16V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.037" (0.94mm) | - | - |
|
|
100B300JP500XT1KCAP CER 30PF 500V P90 1111 |
0 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 30 pF | ±5% | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
|
100B360JTN500XTCAP CER 36PF 500V P90 1111 |
0 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 36 pF | ±5% | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
-9,30x10,20x2,70mm.jpg)
|
CKC33C823JWGACAUTOKC LINK AUTO C0G, CERAMIC, 0.082 |
0 |
|
Datasheet |
KC Link Auto C0G | Tape & Reel (TR) | Active | 0.082 µF | ±5% | 650V | C0G, NP0 | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 3640 (9110 Metric) | 0.366" L x 0.402" W (9.30mm x 10.20mm) | - | 0.087" (2.20mm) | - | - |
-7,10x6,10x2,70mm.jpg)
|
C2824C563JCGACAUTOCAP CER 0.056UF 500V C0G 2824 |
0 |
|
Datasheet |
SMD Auto C0G HV | Tape & Reel (TR) | Active | 0.056 µF | ±5% | 500V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2824 (7260 Metric) | 0.280" L x 0.240" W (7.10mm x 6.10mm) | - | 0.106" (2.70mm) | - | - |
|
CCR06CG153FRVCAP CER 0.015UF 50V 1% RADIAL |
0 |
|
Datasheet |
Military, MIL-PRF-20, CCR06 | Bulk | Active | 0.015 µF | ±1% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | High Reliability | R (0.01%) | Through Hole | Radial | 0.290" L x 0.090" W (7.37mm x 2.29mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Straight |
.jpg)
|
C4540C154JCGACAUTOCAP CER 0.15UF 500V C0G NONSTND |
0 |
|
Datasheet |
SMD Auto C0G HV | Tape & Reel (TR) | Active | 0.15 µF | ±5% | 500V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | Nonstandard SMD | 0.449" L x 0.402" W (11.40mm x 10.20mm) | - | 0.106" (2.70mm) | - | - |
|
SV03GC472KARCAP CER 4700PF 2KV X7R RADIAL |
0 |
|
Datasheet |
SV | Bulk | Active | 4700 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial | 0.370" L x 0.200" W (9.40mm x 5.08mm) | 0.300" (7.62mm) | - | 0.275" (6.99mm) | Straight |
|
CHT12C272J1GAFT050CAP CER 2700PF 100V C0G/NP0 1206 |
0 |
|
Datasheet |
C0G HT 260C | Tape & Reel (TR) | Active | 2700 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 260°C | Low ESL, High Temperature | - | Downhole | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.039" (1.00mm) | - | - |
|
SV13AA222KARCAP CER 2200PF 1KV NP0 RADIAL |
0 |
|
Datasheet |
SV | Bulk | Active | 2200 pF | ±10% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial | 0.300" L x 0.200" W (7.62mm x 5.08mm) | 0.360" (9.14mm) | - | 0.200" (5.08mm) | Straight |
|
ST103C826MAM02CAP CER 82UF 25V X7R 4SMD |
2 |
|
Datasheet |
Mini-TurboCap™ | Bulk | Active | 82 µF | ±20% | 25V | X7R | -55°C ~ 125°C | Low ESL (Stacked) | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | Stacked SMD, 4 L-Lead | 0.210" L x 0.190" W (5.33mm x 4.83mm) | - | 0.220" (5.59mm) | 0.150" (3.80mm) | L-Lead |
|

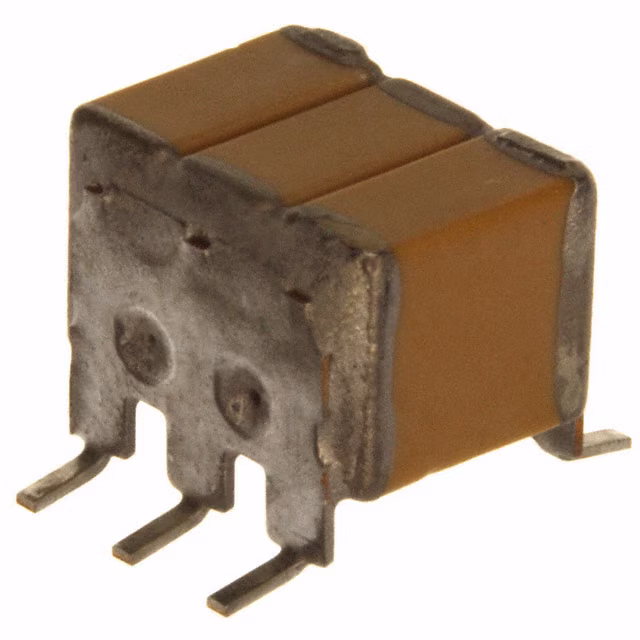

ST205C276MAL03CAP CER 27UF 50V X7R SMD |
0 |
|
Datasheet |
TurboCap™ | Bulk | Active | 27 µF | ±20% | 50V | X7R | -55°C ~ 125°C | Low ESL (Stacked) | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | Stacked SMD, 6 L-Lead | 0.325" L x 0.300" W (8.26mm x 7.62mm) | - | 0.220" (5.59mm) | - | L-Lead |
|
715C30KTT19CAP CER 190PF 30KV N4700 DISK |
0 |
|
Datasheet |
Cera-Mite 715C | Bulk | Active | 190 pF | -20%, +80% | 30000V (30kV) | N4700 | -30°C ~ 85°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 0.827" Dia x 1.142" L (21.00mm x 29.00mm) | - | - | - | - |
Ceramic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Ceramic Capacitors?
This category includes related Ceramic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Ceramic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Ceramic Capacitors and other electronic components.
