Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M39014/22-0850-TUBECAP CER 2DIP |
0 |
|
Datasheet |
Military, MIL-PRF-39014, CKR05 | Bulk | Active | 0.47 µF | ±10% | 50V | BR | -55°C ~ 125°C | - | - | High Reliability | R (0.01%) | Through Hole | 2-DIP | 0.260" L x 0.092" W (6.60mm x 2.34mm) | 0.320" (8.13mm) | - | 0.035" (0.89mm) | Straight |
|

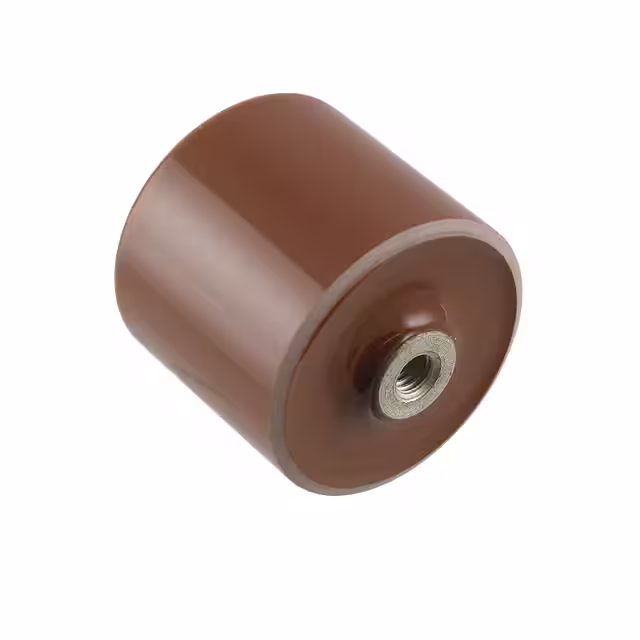

UHV-231ACAP CER 200PF 30KV Z5T DISK |
1 |
|
Datasheet |
UHV | Bulk | Active | 200 pF | ±10% | 30000V (30kV) | Z5T | -30°C ~ 85°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 0.984" Dia x 1.024" L (25.00mm x 26.00mm) | - | - | - | - |
|

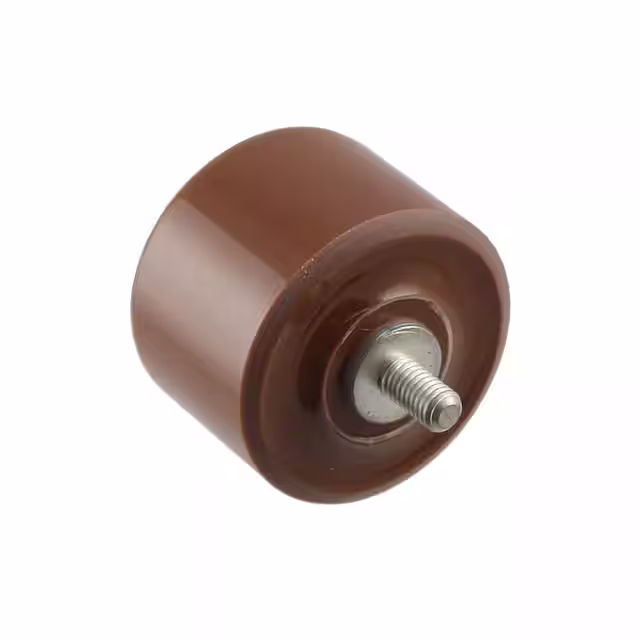

FD-10AUCAP CER 250PF 10KV Y5P DISK |
1 |
|
Datasheet |
FD | Bulk | Active | 250 pF | ±10% | 10000V (10kV) | Y5P (B) | -30°C ~ 85°C | High Voltage | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 0.827" Dia x 1.063" L (21.00mm x 27.00mm) | - | - | - | - |
|

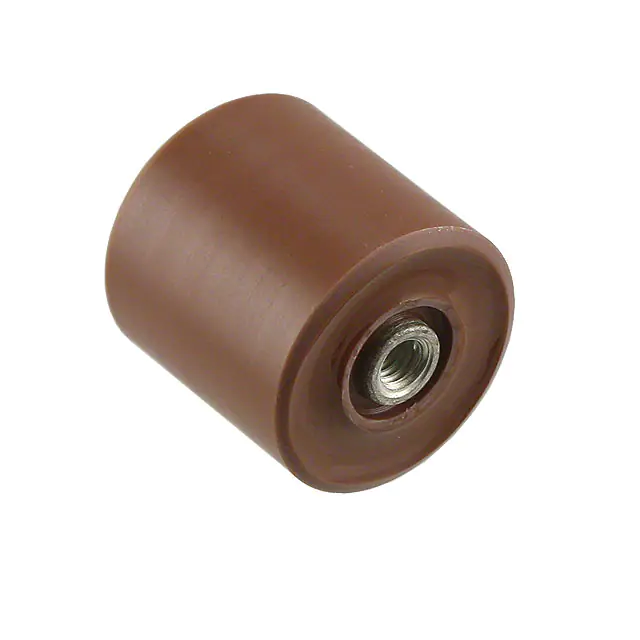

UHV-221ACAP CER 200PF 20KV Z5T DISK |
1 |
|
Datasheet |
UHV | Bulk | Active | 200 pF | ±10% | 20000V (20kV) | Z5T | -30°C ~ 85°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 0.787" Dia x 0.906" L (20.00mm x 23.00mm) | - | - | - | - |
|

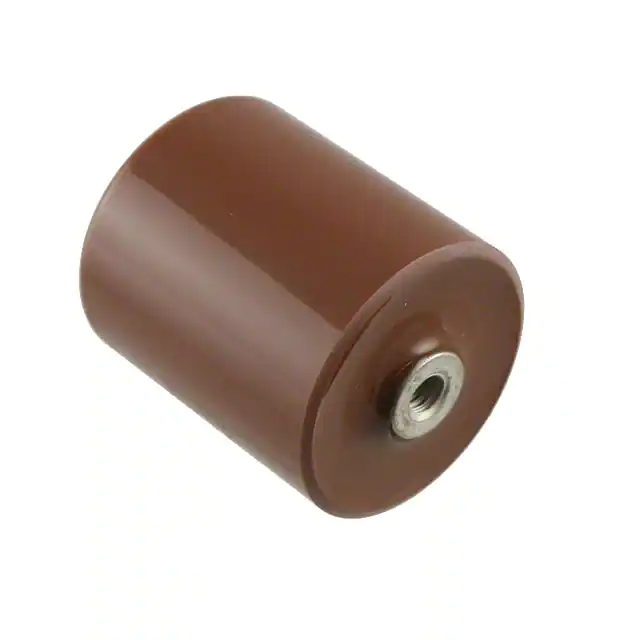

UHV-242ACAP CER 200PF 40KV Z5T DISK |
1 |
|
Datasheet |
UHV | Bulk | Active | 200 pF | ±10% | 40000V (40kV) | Z5T | -30°C ~ 85°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 0.984" Dia x 1.260" L (25.00mm x 32.00mm) | - | - | - | - |
|

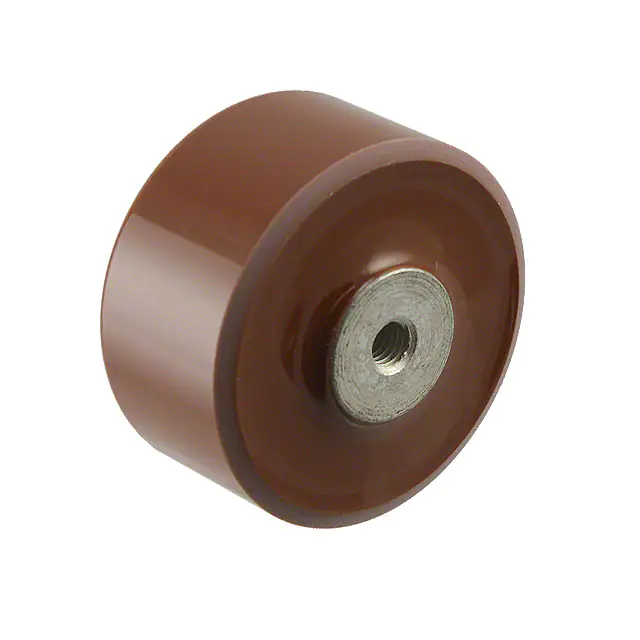

UHV-1ACAP CER 1400PF 20KV Z5T DISK |
0 |
|
Datasheet |
UHV | Bulk | Active | 1400 pF | ±10% | 20000V (20kV) | Z5T | -30°C ~ 85°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 1.496" Dia x 0.906" L (38.00mm x 23.00mm) | - | - | - | - |
|

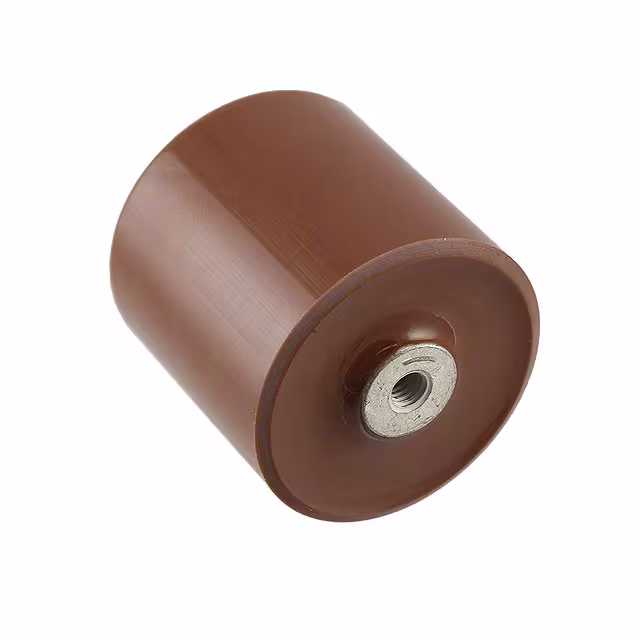

FD-22AUCAP CER 250PF 20KV Y5P DISK |
0 |
|
Datasheet |
FD | Bulk | Active | 250 pF | ±10% | 20000V (20kV) | Y5P (B) | -30°C ~ 85°C | High Voltage | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 1.181" Dia x 1.299" L (30.00mm x 33.00mm) | - | - | - | - |
|

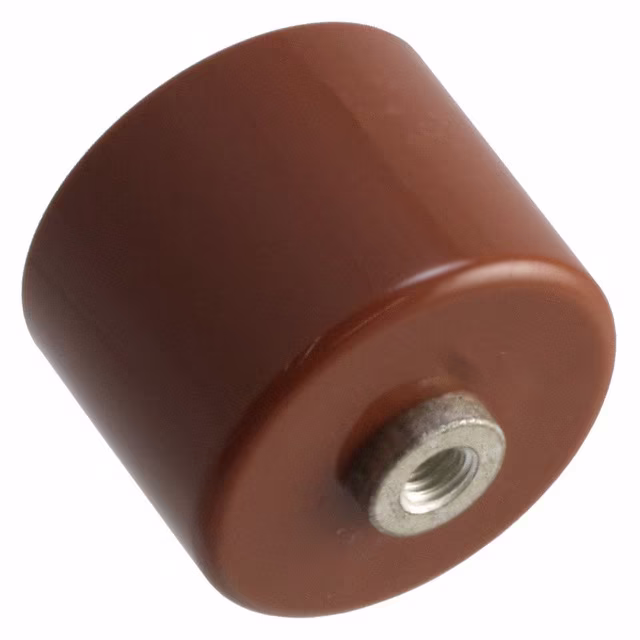

UHV-222ACAP CER 400PF 20KV Z5T DISK |
1 |
|
Datasheet |
UHV | Bulk | Active | 400 pF | ±10% | 20000V (20kV) | Z5T | -30°C ~ 85°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 0.984" Dia x 0.906" L (25.00mm x 23.00mm) | - | - | - | - |
|

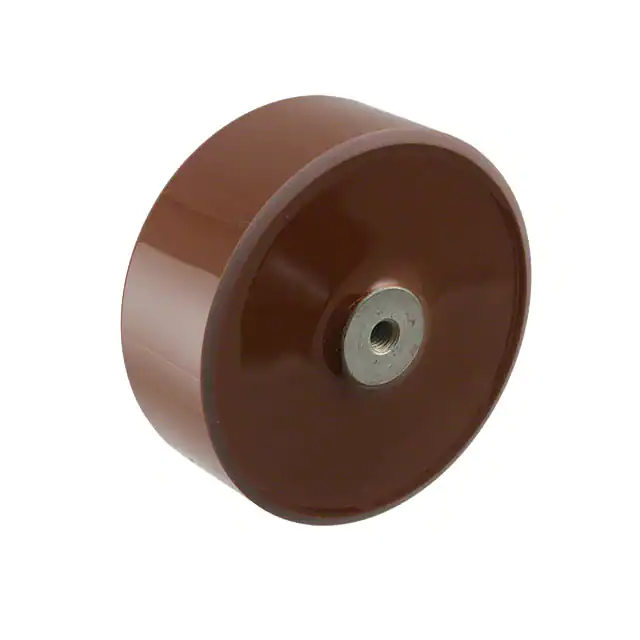

UHV-6ACAP CER 2700PF 30KV Z5T DISK |
0 |
|
Datasheet |
UHV | Bulk | Active | 2700 pF | ±10% | 30000V (30kV) | Z5T | -30°C ~ 85°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 2.362" Dia x 1.024" L (60.00mm x 26.00mm) | - | - | - | - |
|

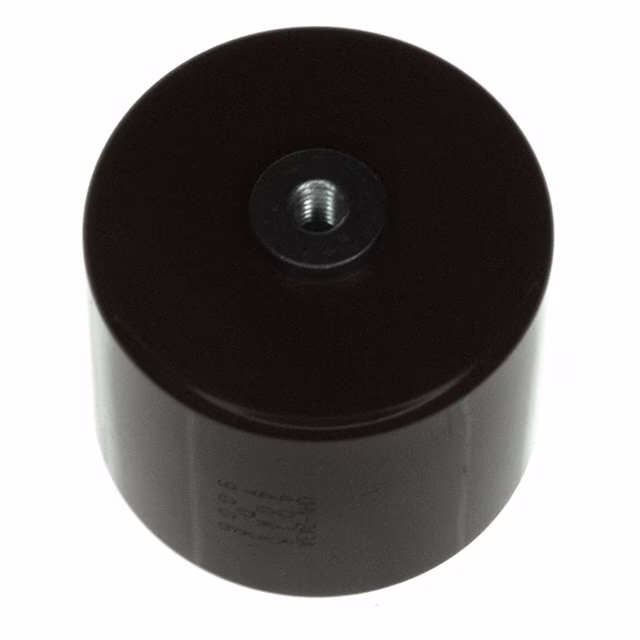

UHV-243ACAP CER 400PF 40KV Z5T DISK |
1 |
|
Datasheet |
UHV | Bulk | Active | 400 pF | ±10% | 40000V (40kV) | Z5T | -30°C ~ 85°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 1.339" Dia x 1.260" L (34.00mm x 32.00mm) | - | - | - | - |
|

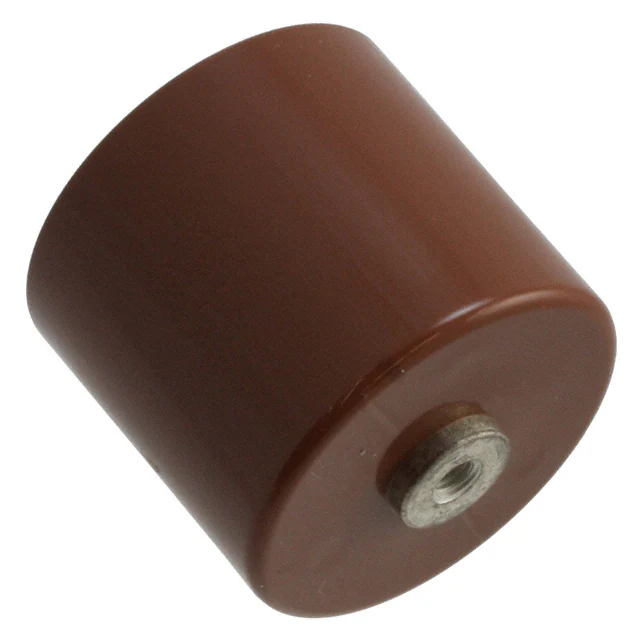

UHV-253ACAP CER 400PF 50KV Z5T DISK |
0 |
|
Datasheet |
UHV | Bulk | Active | 400 pF | ±10% | 50000V (50kV) | Z5T | -30°C ~ 85°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 1.339" Dia x 1.378" L (34.00mm x 35.00mm) | - | - | - | - |
|

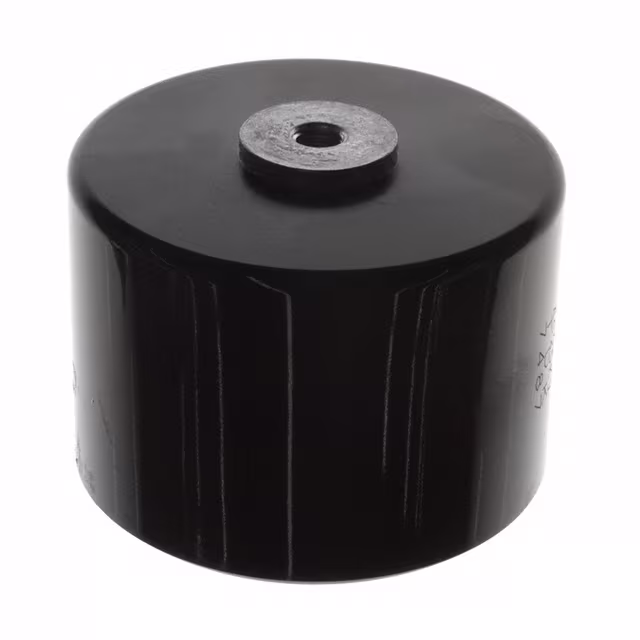

FD-36AUCAP CER 500PF 25KV Y5P DISK |
0 |
|
Datasheet |
FD | Bulk | Active | 500 pF | ±10% | 25000V (25kV) | Y5P (B) | -30°C ~ 85°C | High Voltage | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 1.890" Dia x 1.535" L (48.00mm x 39.00mm) | - | - | - | - |
|

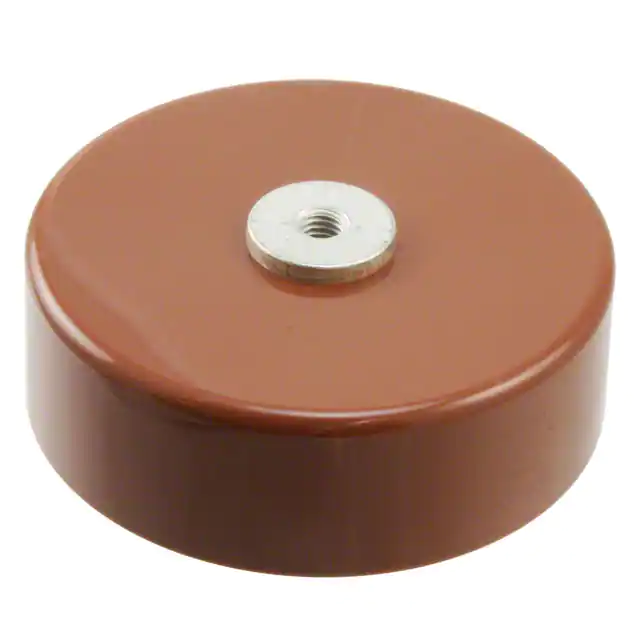

UHV-3ACAP CER 4000PF 20KV Z5T DISK |
0 |
|
Datasheet |
UHV | Bulk | Active | 4000 pF | ±10% | 20000V (20kV) | Z5T | -30°C ~ 85°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 2.362" Dia x 0.906" L (60.00mm x 23.00mm) | - | - | - | - |
|

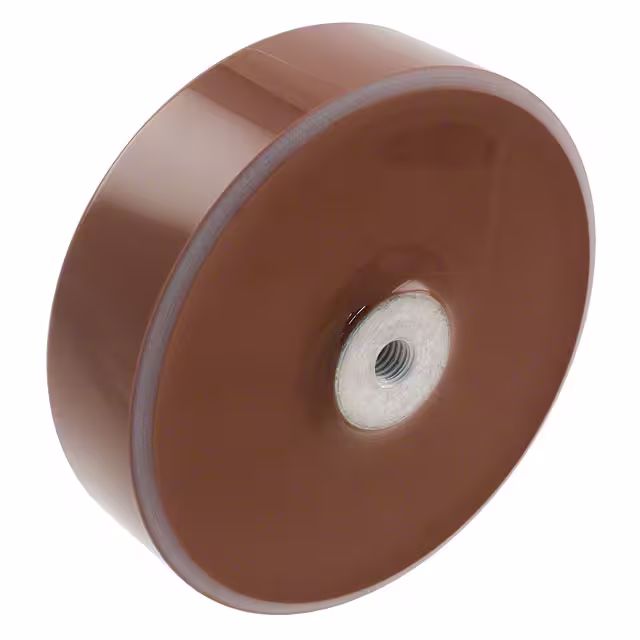

FHV-153ANCAP CER 7000PF 15KV Y5S DISK |
1 |
|
Datasheet |
FHV | Bulk | Active | 7000 pF | ±10% | 15000V (15kV) | Y5S | -30°C ~ 85°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 2.362" Dia x 0.807" L (60.00mm x 20.50mm) | - | - | - | - |
|
715C50KTD10M5715C 50KVDC 1000PF 20% N4700 743 |
0 |
|
Datasheet |
Cera-Mite 715C | Bulk | Active | 1000 pF | ±20% | 50000V (50kV) | N4700 | -30°C ~ 85°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 1.890" Dia x 1.378" L (48.00mm x 35.00mm) | - | - | - | - |
|
RM042C225KAJ240CAP CER 2.2UF 200V X7R SMD |
1 |
|
Datasheet |
RM | Bulk | Active | 2.2 µF | ±10% | 200V | X7R | -55°C ~ 125°C | Low ESL (Stacked) | - | Bypass, Decoupling | - | Surface Mount, MLCC | Stacked SMD, 8 J-Lead | 0.402" L x 0.441" W (10.20mm x 11.20mm) | - | 0.320" (8.13mm) | - | J-Lead |
|
L1GN30C205KA10CAP CER 2UF 500V C0G/NP0 20 LEAD |
0 |
|
Datasheet |
KPS-MCC Indust C0G HT200C | Tray | Active | 2 µF | ±10% | 500V | C0G, NP0 | -55°C ~ 200°C | Low ESL (Stacked), High Temperature | - | SMPS Filtering | - | Through Hole | Stacked DIP, 20 Lead | 1.009" L x 0.500" W (25.64mm x 12.70mm) | 0.600" (15.24mm) | - | 0.450" (11.43mm) | Straight |
|
|
KAM31BR72D103KMCAP CER 10000PF 200V X7R 1206 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 10000 pF | ±10% | 200V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.037" (0.94mm) | - | - |
|
FG18X7R1H332KNT00CAP CER 3300PF 50V X7R RADIAL |
0 |
|
Datasheet |
FG | Bulk | Not For New Designs | 3300 pF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.157" L x 0.098" W (4.00mm x 2.50mm) | 0.217" (5.50mm) | - | 0.098" (2.50mm) | Formed Leads |
|
|
FK18X7R1H473KN020CAP CER 0.047UF 50V X7R RADIAL |
0 |
|
Datasheet |
FK | Bulk | Not For New Designs | 0.047 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.157" L x 0.098" W (4.00mm x 2.50mm) | 0.217" (5.50mm) | - | 0.098" (2.50mm) | Formed Leads - Kinked |
