Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DHRB34C221M2BBCAP CER 220PF 15KV RADIAL |
0 |
|
Datasheet |
DHR | Bulk | Obsolete | 220 pF | ±20% | 15000V (15kV) | B | -25°C ~ 85°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.394" Dia (10.00mm) | 0.591" (15.00mm) | - | 0.374" (9.50mm) | Straight |
|
|
DHRB34C331M2BBCAP CER 330PF 15KV RADIAL |
0 |
|
Datasheet |
DHR | Bulk | Obsolete | 330 pF | ±20% | 15000V (15kV) | B | -25°C ~ 85°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.472" Dia (12.00mm) | 0.669" (17.00mm) | - | 0.374" (9.50mm) | Straight |
|
|
DHRB34C471M2BBCAP CER 470PF 15KV RADIAL |
0 |
|
Datasheet |
DHR | Bulk | Obsolete | 470 pF | ±20% | 15000V (15kV) | B | -25°C ~ 85°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.512" Dia (13.00mm) | 0.709" (18.00mm) | - | 0.374" (9.50mm) | Straight |
|
|
DHRB34C681M2BBCAP CER 680PF 15KV RADIAL |
0 |
|
Datasheet |
DHR | Bulk | Obsolete | 680 pF | ±20% | 15000V (15kV) | B | -25°C ~ 100°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.591" Dia (15.00mm) | 0.787" (20.00mm) | - | 0.374" (9.50mm) | Straight |
|
DHS4E4A282KL2BCAP CER 2800PF 10KV N4700 DISK |
0 |
|
Datasheet |
DHS | Box | Obsolete | 2800 pF | ±10% | 10000V (10kV) | N4700 | 20°C ~ 85°C | High Voltage | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 1.496" Dia x 0.689" L (38.00mm x 17.50mm) | - | - | - | - |
|
|
DHS4E4A502KR2BCAP CER 5000PF 10KV N4700 DISK |
0 |
|
Datasheet |
DHS | Box | Obsolete | 5000 pF | ±10% | 10000V (10kV) | N4700 | 20°C ~ 85°C | High Voltage | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 2.047" Dia x 0.689" L (52.00mm x 17.50mm) | - | - | - | - |
|
|
DHS4E4A561KC2BCAP CER 560PF 10KV N4700 DISK |
0 |
|
Datasheet |
DHS | Box | Obsolete | 560 pF | ±10% | 10000V (10kV) | N4700 | 20°C ~ 85°C | High Voltage | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 0.787" Dia x 0.689" L (20.00mm x 17.50mm) | - | - | - | - |
|
|
DHS4E4A802KT2BCAP CER 8000PF 10KV N4700 DISK |
0 |
|
Datasheet |
DHS | Box | Obsolete | 8000 pF | ±10% | 10000V (10kV) | N4700 | 20°C ~ 85°C | High Voltage | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 2.362" Dia x 0.689" L (60.00mm x 17.50mm) | - | - | - | - |
|
|
DHS4E4C112KH2BCAP CER 1100PF 15KV N4700 DISK |
0 |
|
Datasheet |
DHS | Box | Obsolete | 1100 pF | ±10% | 15000V (15kV) | N4700 | 20°C ~ 85°C | High Voltage | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 1.181" Dia x 0.768" L (30.00mm x 19.50mm) | - | - | - | - |
|
|
DHS4E4C112MHXBCAP CER 1100PF 15KV N4700 DISK |
0 |
|
Datasheet |
DHS | Box | Obsolete | 1100 pF | ±20% | 15000V (15kV) | N4700 | 20°C ~ 85°C | High Voltage | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 1.181" Dia x 0.768" L (30.00mm x 19.50mm) | - | - | - | - |
|

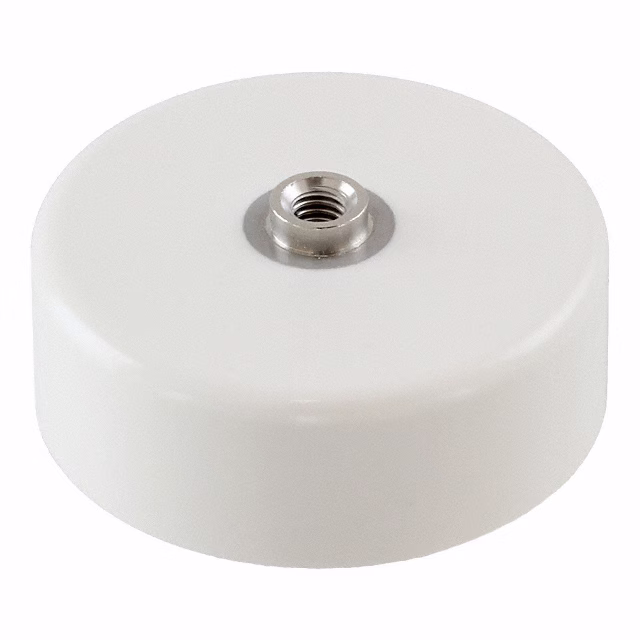

DHS4E4C192KL2BCAP CER 1900PF 15KV N4700 DISK |
0 |
|
Datasheet |
DHS | Box | Obsolete | 1900 pF | ±10% | 15000V (15kV) | N4700 | 20°C ~ 85°C | High Voltage | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 1.496" Dia x 0.768" L (38.00mm x 19.50mm) | - | - | - | - |
|
|
DHS4E4C192MLXBCAP CER 1900PF 15KV N4700 DISK |
0 |
|
Datasheet |
DHS | Box | Obsolete | 1900 pF | ±20% | 15000V (15kV) | N4700 | 20°C ~ 85°C | High Voltage | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 1.496" Dia x 0.768" L (38.00mm x 19.50mm) | - | - | - | - |
|

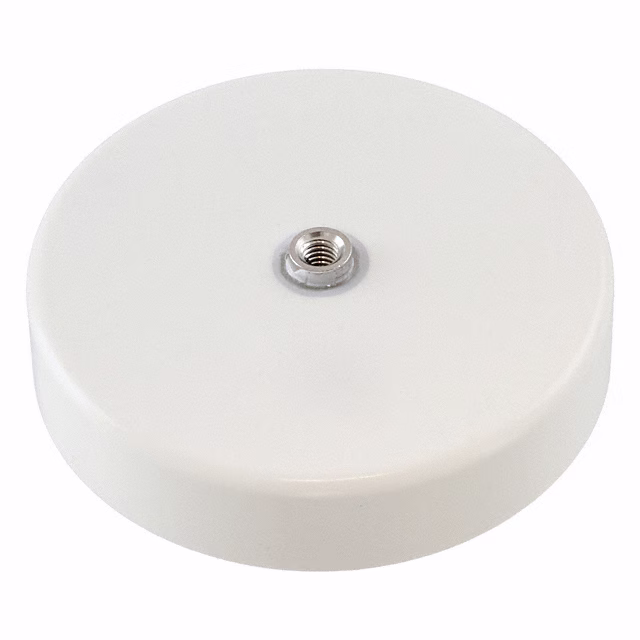

DHS4E4C532KT2BCAP CER 5300PF 15KV N4700 DISK |
0 |
|
Datasheet |
DHS | Box | Obsolete | 5300 pF | ±10% | 15000V (15kV) | N4700 | 20°C ~ 85°C | High Voltage | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 2.362" Dia x 0.768" L (60.00mm x 19.50mm) | - | - | - | - |
|
DHS4E4D142KL2BCAP CER 1400PF 20KV N4700 DISK |
0 |
|
Datasheet |
DHS | Box | Obsolete | 1400 pF | ±10% | 20000V (20kV) | N4700 | 20°C ~ 85°C | High Voltage | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 1.496" Dia x 1.004" L (38.00mm x 25.50mm) | - | - | - | - |
|
|
DHS4E4D142MLXBCAP CER 1400PF 20KV N4700 DISK |
0 |
|
Datasheet |
DHS | Box | Obsolete | 1400 pF | ±20% | 20000V (20kV) | N4700 | 20°C ~ 85°C | High Voltage | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 1.496" Dia x 1.004" L (38.00mm x 25.50mm) | - | - | - | - |
|
|
DHS4E4D252KR2BCAP CER 2500PF 20KV N4700 DISK |
0 |
|
Datasheet |
DHS | Box | Obsolete | 2500 pF | ±10% | 20000V (20kV) | N4700 | 20°C ~ 85°C | High Voltage | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 2.047" Dia x 1.004" L (52.00mm x 25.50mm) | - | - | - | - |
|
|
DHS4E4D281KC2BCAP CER 280PF 20KV N4700 DISK |
0 |
|
Datasheet |
DHS | Box | Obsolete | 280 pF | ±10% | 20000V (20kV) | N4700 | 20°C ~ 85°C | High Voltage | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 0.787" Dia x 1.004" L (20.00mm x 25.50mm) | - | - | - | - |
|
|
DHS4E4D281MCXBCAP CER 280PF 20KV N4700 DISK |
0 |
|
Datasheet |
DHS | Box | Obsolete | 280 pF | ±20% | 20000V (20kV) | N4700 | 20°C ~ 85°C | High Voltage | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 0.787" Dia x 1.004" L (20.00mm x 25.50mm) | - | - | - | - |
|
|
DHS4E4D402KT2BCAP CER 4000PF 20KV N4700 DISK |
0 |
|
Datasheet |
DHS | Box | Obsolete | 4000 pF | ±10% | 20000V (20kV) | N4700 | 20°C ~ 85°C | High Voltage | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 2.362" Dia (60.00mm) | - | 0.945" (24.00mm) | - | - |
|
|
DHS4E4D402MTXBCAP CER 4000PF 20KV N4700 DISK |
0 |
|
Datasheet |
DHS | Box | Obsolete | 4000 pF | ±20% | 20000V (20kV) | N4700 | 20°C ~ 85°C | High Voltage | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 2.362" Dia (60.00mm) | - | 0.945" (24.00mm) | - | - |
