Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HQCEMA750FAT9ACAP CER 75PF 7.2KV NP0 3838 |
0 |
|
- |
Hi-Q® | Bulk | Obsolete | 75 pF | ±1% | 7200V (7.2kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR, High Voltage | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 3838 (9797 Metric) | 0.380" L x 0.380" W (9.65mm x 9.65mm) | - | 0.170" (4.32mm) | - | - |
|
CK45-B3AD221KYNRCAP CER 220PF 1KV RADIAL |
0 |
|
Datasheet |
CK45 | Bulk | Obsolete | 220 pF | ±10% | 1000V (1kV) | B | -25°C ~ 105°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.217" Dia (5.50mm) | 0.374" (9.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
CK45-B3AD681KYNRCAP CER 680PF 1KV RADIAL |
0 |
|
Datasheet |
CK45 | Bulk | Obsolete | 680 pF | ±10% | 1000V (1kV) | B | -25°C ~ 105°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.217" Dia (5.50mm) | 0.374" (9.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
CK45-B3AD821KYNRCAP CER 820PF 1KV RADIAL |
0 |
|
Datasheet |
CK45 | Bulk | Obsolete | 820 pF | ±10% | 1000V (1kV) | B | -25°C ~ 105°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.217" Dia (5.50mm) | 0.374" (9.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
CK45-B3AD102KYNRCAP CER 1000PF 1KV RADIAL |
0 |
|
Datasheet |
CK45 | Bulk | Obsolete | 1000 pF | ±10% | 1000V (1kV) | B | -25°C ~ 105°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.236" Dia (6.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
CK45-B3AD222KYNRCAP CER 2200PF 1KV RADIAL |
0 |
|
Datasheet |
CK45 | Bulk | Obsolete | 2200 pF | ±10% | 1000V (1kV) | B | -25°C ~ 105°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.335" Dia (8.50mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
CK45-B3DD221KYNRCAP CER 220PF 2KV RADIAL |
0 |
|
Datasheet |
CK45 | Bulk | Obsolete | 220 pF | ±10% | 2000V (2kV) | B | -25°C ~ 105°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.217" Dia (5.50mm) | 0.374" (9.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
CK45-B3FD102KYNRCAP CER 1000PF 3KV RADIAL |
0 |
|
Datasheet |
CK45 | Bulk | Obsolete | 1000 pF | ±10% | 3000V (3kV) | B | -25°C ~ 105°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.354" Dia (9.00mm) | 0.512" (13.00mm) | - | 0.295" (7.50mm) | Formed Leads - Kinked |
|

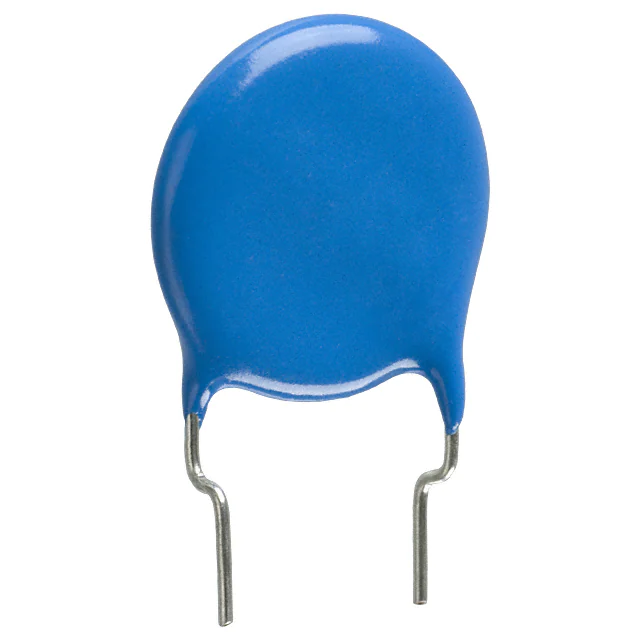

CK45-B3FD152KYNRCAP CER 1500PF 3KV RADIAL |
0 |
|
Datasheet |
CK45 | Bulk | Obsolete | 1500 pF | ±10% | 3000V (3kV) | B | -25°C ~ 105°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.413" Dia (10.50mm) | 0.571" (14.50mm) | - | 0.295" (7.50mm) | Formed Leads - Kinked |
|
CK45-B3AD471KYNNCAP CER 470PF 1KV RADIAL |
0 |
|
Datasheet |
CK45 | Bulk | Obsolete | 470 pF | ±10% | 1000V (1kV) | B | -25°C ~ 105°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.217" Dia (5.50mm) | 0.374" (9.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
CK45-B3AD102KYNNCAP CER 1000PF 1KV RADIAL |
0 |
|
Datasheet |
CK45 | Bulk | Obsolete | 1000 pF | ±10% | 1000V (1kV) | B | -25°C ~ 105°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.236" Dia (6.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
CK45-B3AD152KYNNCAP CER 1500PF 1KV RADIAL |
0 |
|
Datasheet |
CK45 | Bulk | Obsolete | 1500 pF | ±10% | 1000V (1kV) | B | -25°C ~ 105°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.276" Dia (7.00mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
CK45-B3AD222KYNNCAP CER 2200PF 1KV RADIAL |
0 |
|
Datasheet |
CK45 | Bulk | Obsolete | 2200 pF | ±10% | 1000V (1kV) | B | -25°C ~ 105°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.335" Dia (8.50mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
CK45-B3AD822KYNNCAP CER 8200PF 1KV RADIAL |
0 |
|
Datasheet |
CK45 | Bulk | Obsolete | 8200 pF | ±10% | 1000V (1kV) | B | -25°C ~ 105°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.512" Dia (13.00mm) | 0.669" (17.00mm) | - | 0.295" (7.50mm) | Formed Leads - Kinked |
|
|
CK45-B3AD103KYNNCAP CER 10000PF 1KV RADIAL |
0 |
|
Datasheet |
CK45 | Bulk | Obsolete | 10000 pF | ±10% | 1000V (1kV) | B | -25°C ~ 105°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.591" Dia (15.00mm) | 0.748" (19.00mm) | - | 0.295" (7.50mm) | Formed Leads - Kinked |
|
|
CK45-B3DD101KYNNCAP CER 100PF 2KV RADIAL |
0 |
|
Datasheet |
CK45 | Bulk | Obsolete | 100 pF | ±10% | 2000V (2kV) | B | -25°C ~ 105°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.217" Dia (5.50mm) | 0.374" (9.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
CK45-B3DD471KYNNCAP CER 470PF 2KV RADIAL |
0 |
|
Datasheet |
CK45 | Bulk | Obsolete | 470 pF | ±10% | 2000V (2kV) | B | -25°C ~ 105°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.217" Dia (5.50mm) | 0.374" (9.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
CK45-B3DD102KYNNCAP CER 1000PF 2KV RADIAL |
0 |
|
Datasheet |
CK45 | Bulk | Obsolete | 1000 pF | ±10% | 2000V (2kV) | B | -25°C ~ 105°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.295" Dia (7.50mm) | 0.453" (11.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
CK45-B3DD152KYNNCAP CER 1500PF 2KV RADIAL |
0 |
|
Datasheet |
CK45 | Bulk | Obsolete | 1500 pF | ±10% | 2000V (2kV) | B | -25°C ~ 105°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.335" Dia (8.50mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
CK45-B3DD222KYNNCAP CER 2200PF 2KV RADIAL |
0 |
|
Datasheet |
CK45 | Bulk | Obsolete | 2200 pF | ±10% | 2000V (2kV) | B | -25°C ~ 105°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
Ceramic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Ceramic Capacitors?
This category includes related Ceramic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Ceramic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Ceramic Capacitors and other electronic components.
