Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

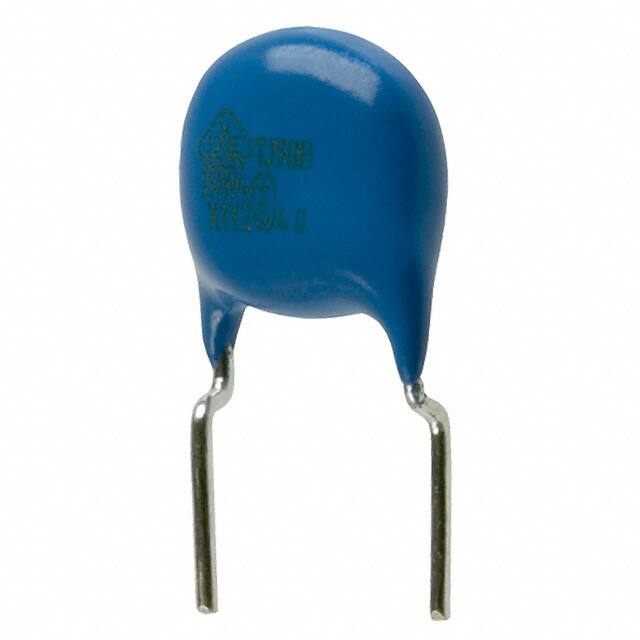

CS90-E2GA152MYNSCAP CER 1500PF 250VAC RADIAL |
0 |
|
Datasheet |
CS | Bulk | Obsolete | 1500 pF | ±20% | 250VAC | E | -25°C ~ 105°C | High Voltage | X1, Y2 | Safety | - | Through Hole | Radial, Disc | 0.354" Dia (9.00mm) | 0.512" (13.00mm) | - | 0.295" (7.50mm) | Formed Leads - Kinked |
|
CS11-E2GA222MYNSCAP CER 2200PF 250VAC RADIAL |
0 |
|
Datasheet |
CS | Bulk | Obsolete | 2200 pF | ±20% | 250VAC | E | -25°C ~ 105°C | High Voltage | X1, Y2 | Safety | - | Through Hole | Radial, Disc | 0.413" Dia (10.50mm) | 0.571" (14.50mm) | - | 0.295" (7.50mm) | Formed Leads - Kinked |
|
CS13-E2GA332MYNSCAP CER 3300PF 250VAC RADIAL |
0 |
|
Datasheet |
CS | Bulk | Obsolete | 3300 pF | ±20% | 250VAC | E | -25°C ~ 105°C | High Voltage | X1, Y2 | Safety | - | Through Hole | Radial, Disc | 0.492" Dia (12.50mm) | 0.650" (16.50mm) | - | 0.295" (7.50mm) | Formed Leads - Kinked |
|
CS15-E2GA472MYNSCAP CER 4700PF 250VAC RADIAL |
0 |
|
Datasheet |
CS | Bulk | Obsolete | 4700 pF | ±20% | 250VAC | E | -25°C ~ 105°C | High Voltage | X1, Y2 | Safety | - | Through Hole | Radial, Disc | 0.571" Dia (14.50mm) | 0.728" (18.50mm) | - | 0.295" (7.50mm) | Formed Leads - Kinked |
|
CS12-F2GA472MYNSCAP CER 4700PF 250VAC RADIAL |
0 |
|
Datasheet |
CS | Bulk | Obsolete | 4700 pF | ±20% | 250VAC | F | -25°C ~ 105°C | High Voltage | X1, Y2 | Safety | - | Through Hole | Radial, Disc | 0.472" Dia (12.00mm) | 0.354" (9.00mm) | - | 0.295" (7.50mm) | Formed Leads - Kinked |
|
CS17-F2GA103MYNSCAP CER 10000PF 250VAC RADIAL |
0 |
|
Datasheet |
CS | Bulk | Obsolete | 10000 pF | ±20% | 250VAC | F | -25°C ~ 105°C | High Voltage | X1, Y2 | Safety | - | Through Hole | Radial, Disc | 0.650" Dia (16.50mm) | 0.807" (20.50mm) | - | 0.394" (10.00mm) | Formed Leads - Kinked |
-2,54mm.jpg)
|
2225CC224KAT1ACAP CER 0.22UF 630V X7R 2225 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | 0.22 µF | ±10% | 630V | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.225" L x 0.250" W (5.72mm x 6.35mm) | - | 0.100" (2.54mm) | - | - |
|
DHR4E4A102K2BBCAP CER 1000PF 10KV ZM RADIAL |
0 |
|
Datasheet |
DHR | Bulk | Obsolete | 1000 pF | ±10% | 10000V (10kV) | ZM | -25°C ~ 100°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.591" Dia (15.00mm) | 0.630" (16.00mm) | - | 0.374" (9.50mm) | Formed Leads |
|
DE1E3KX332MA5BA01CAP CER 3300PF 250V RADIAL |
0 |
|
Datasheet |
KX | Bulk | Obsolete | 3300 pF | ±20% | 250VAC | E | -40°C ~ 125°C | Flame Retardant | X1, Y1 | Safety | - | Through Hole | Radial, Disc | 0.472" Dia (12.00mm) | 0.630" (16.00mm) | - | 0.394" (10.00mm) | Straight |
|
AQ11EA330GA7MECAP CER 33PF 150V 0505 |
0 |
|
Datasheet |
AQ | Tape & Reel (TR) | Obsolete | 33 pF | ±2% | 150V | A | -55°C ~ 175°C | - | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0505 (1313 Metric) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | - | 0.057" (1.45mm) | - | - |
|
|
AQ11EA150FA1MECAP CER 15PF 150V 0505 |
0 |
|
Datasheet |
AQ | Tape & Reel (TR) | Active | 15 pF | ±1% | 150V | A | -55°C ~ 175°C | - | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0505 (1313 Metric) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | - | 0.057" (1.45mm) | - | - |
|
UVK105CH0R3BW-FCAP CER 0.3PF 50V C0H 0402 |
0 |
|
Datasheet |
V | Tape & Reel (TR) | Obsolete | 0.3 pF | ±0.1pF | 50V | C0H | -55°C ~ 125°C | High Q, Low Loss | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
UVK105CH0R4BW-FCAP CER 0.4PF 50V C0H 0402 |
0 |
|
Datasheet |
V | Tape & Reel (TR) | Obsolete | 0.4 pF | ±0.1pF | 50V | C0H | -55°C ~ 125°C | High Q, Low Loss | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
UMK107SD272KA-TCAP CER 2700PF 50V 0603 |
0 |
|
Datasheet |
CFCAP™ | Tape & Reel (TR) | Discontinued at Digi-Key | 2700 pF | ±10% | 50V | - | -55°C ~ 125°C | Low Distortion | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.035" (0.90mm) | - | - |
.jpg)
|
UMK105CG1R8CW-FCAP CER 1.8PF 50V C0G/NP0 0402 |
0 |
|
Datasheet |
M | Tape & Reel (TR) | Obsolete | 1.8 pF | ±0.25pF | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
UMK105CG3R9CW-FCAP CER 3.9PF 50V C0G/NP0 0402 |
0 |
|
Datasheet |
M | Tape & Reel (TR) | Obsolete | 3.9 pF | ±0.25pF | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
UMK105CG6R8DW-FCAP CER 6.8PF 50V C0G/NP0 0402 |
0 |
|
Datasheet |
M | Tape & Reel (TR) | Obsolete | 6.8 pF | ±0.5pF | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
UMK105CG8R2DW-FCAP CER 8.2PF 50V C0G/NP0 0402 |
0 |
|
Datasheet |
M | Tape & Reel (TR) | Obsolete | 8.2 pF | ±0.5pF | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
UMK105CG100DW-FCAP CER 10PF 50V C0G/NP0 0402 |
0 |
|
Datasheet |
M | Tape & Reel (TR) | Obsolete | 10 pF | ±0.5pF | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
UMK105CG120JW-FCAP CER 12PF 50V C0G/NP0 0402 |
0 |
|
Datasheet |
M | Tape & Reel (TR) | Obsolete | 12 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
