Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30HV14B123KNCAP CER 0.012UF 3KV X7R RADIAL |
0 |
|
Datasheet |
HV RAD-LDD Indust X7R HVHT200C | Bulk | Active | 0.012 µF | ±10% | 3000V (3kV) | X7R | -55°C ~ 200°C | High Voltage, High Temperature | - | Downhole | - | Through Hole | Radial | 0.620" L x 0.300" W (15.75mm x 7.62mm) | 0.500" (12.70mm) | - | 0.500" (12.70mm) | Straight |
|
|
30HV14B103PNCAP CER 10000PF 3KV X7R RADIAL |
0 |
|
Datasheet |
HV RAD-LDD Indust X7R HVHT200C | Bulk | Active | 10000 pF | 0%, +100% | 3000V (3kV) | X7R | -55°C ~ 200°C | High Voltage, High Temperature | - | Downhole | - | Through Hole | Radial | 0.620" L x 0.300" W (15.75mm x 7.62mm) | 0.500" (12.70mm) | - | 0.500" (12.70mm) | Straight |
|
BF016010BE50038BJ1CAP CER 50PF 5KV R85 AXIAL |
0 |
|
Datasheet |
TOF | Bulk | Active | 50 pF | ±20% | 5000V (5kV) | R85 | -55°C ~ 100°C | - | - | General Purpose | - | Chassis Mount | Axial, Can | 0.630" Dia x 0.394" W (16.00mm x 10.00mm) | - | - | - | Straight |
|
PS0055BE50160BJ1CAP CER 500PF 5KV R85 DISK |
0 |
|
Datasheet |
PS | Bulk | Obsolete | 500 pF | ±6% | 5000V (5kV) | R85 | -55°C ~ 100°C | High Voltage | - | RF, Microwave, High Frequency | - | Requires Holder | Disk, Metal Fitting - Threaded | 2.244" Dia (57.00mm) | 0.827" (21.00mm) | - | - | - |
|
|
40HS24N102JCCAP CER 1000PF 4KV NP0 RADIAL |
0 |
|
Datasheet |
HS RAD-LDD Space C0G HV | Bulk | Active | 1000 pF | ±5% | 4000V (4kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial | 0.570" L x 0.271" W (14.48mm x 6.89mm) | 0.500" (12.70mm) | - | 0.475" (12.06mm) | Straight |
|
|
PD0070WH50138BJ2CAP CER 500PF 13KV R85 DISK |
0 |
|
- |
P | Bulk | Active | 500 pF | ±20% | 13000V (13kV) | R85 | -55°C ~ 100°C | High Voltage | - | RF, Microwave, High Frequency | - | Requires Holder | Disk, Metal Fitting - Threaded | 2.756" Dia (70.00mm) | 1.417" (36.00mm) | - | - | - |
|
|
PD0070WJ50038BG2CAP CER 50PF 14KV R16 DISK |
0 |
|
- |
P | Bulk | Active | 50 pF | ±20% | 14000V (14kV) | R16 | -55°C ~ 100°C | High Voltage | - | RF, Microwave, High Frequency | - | Requires Holder | Disk, Metal Fitting - Threaded | 2.756" Dia (70.00mm) | 1.417" (36.00mm) | - | - | - |
|
|
HR0035BB50291BA1CAP CER 5000PF 2KV Y5U NONSTND |
0 |
|
Datasheet |
HR35 | Bulk | Active | 5000 pF | -20%, +50% | 2000V (2kV) | Y5U (E) | -55°C ~ 100°C | High Voltage | - | General Purpose | - | Screw Mount | Button | 1.378" Dia (35.00mm) | 0.244" (6.20mm) | - | - | - |
|

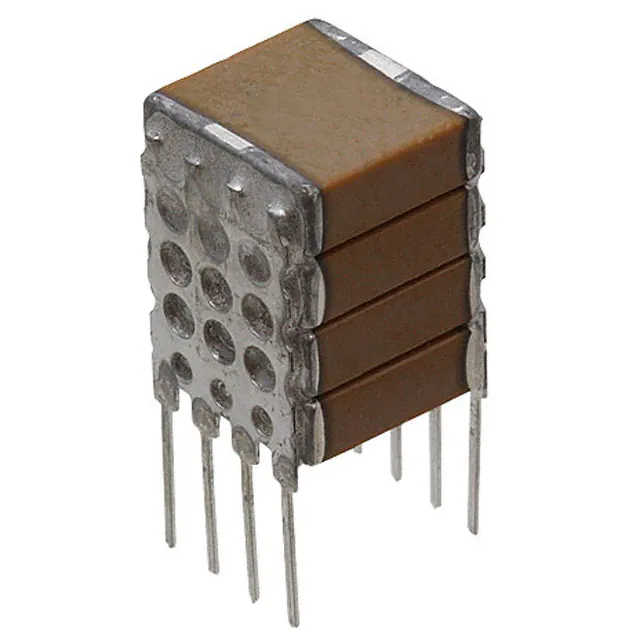

87106-191 RWCAP CER 1UF 500V X7R 8DIP |
0 |
|
Datasheet |
Military, MIL-PRF-49470, SM | Bulk | Active | 1 µF | ±10% | 500V | X7R | -55°C ~ 125°C | - | - | High Reliability | - | Through Hole | Stacked DIP, 8 Lead | 0.402" L x 0.441" W (10.20mm x 11.20mm) | 0.425" (10.80mm) | - | - | - |
|
|
BS016010BE92013BF1CAP CER 2PF 5KV AXIAL |
0 |
|
Datasheet |
- | Bulk | Active | 2 pF | ±0.5pF | 5000V (5kV) | - | - | - | - | General Purpose | - | Chassis Mount | Axial, Can - Screw Terminals | 0.630" Dia x 0.906" L (16.00mm x 23.00mm) | - | - | - | - |
|
PS0055BE15138BH1CAP CER 150PF 5KV R42 DISK |
0 |
|
Datasheet |
PS | Bulk | Active | 150 pF | ±20% | 5000V (5kV) | R42 | -55°C ~ 100°C | High Voltage | - | RF, Microwave, High Frequency | - | Requires Holder | Disk, Metal Fitting - Threaded | 2.244" Dia (57.00mm) | 0.827" (21.00mm) | - | - | - |
|
|
C1210H104K1GAE7130CAP CER 1210 |
0 |
|
Datasheet |
SMD Indust C0G HT200C | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 100V | C0G, NP0 | -55°C ~ 200°C | Low ESL, High Temperature | - | Downhole | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.075" (1.90mm) | - | - |
|
10HV16N103KNCAP CER 10000PF 1KV NP0 RADIAL |
0 |
|
Datasheet |
HV RAD-LDD Indust C0G HVHT200C | Bulk | Active | 10000 pF | ±10% | 1000V (1kV) | C0G, NP0 | -55°C ~ 200°C | High Voltage, High Temperature | - | Downhole | - | Through Hole | Radial | 0.820" L x 0.350" W (20.83mm x 8.89mm) | 0.700" (17.78mm) | - | 0.700" (17.78mm) | Straight |
|
|
BF016010BE91512BF1CAP CER 1.5PF 5KV R7 AXIAL |
0 |
|
Datasheet |
TOF | Bulk | Obsolete | 1.5 pF | ±0.25pF | 5000V (5kV) | R7 | -55°C ~ 100°C | - | - | General Purpose | - | Chassis Mount | Axial, Can | 0.630" Dia x 0.394" W (16.00mm x 10.00mm) | - | - | - | Straight |
|
|
BF016010BE92012BF1CAP CER 2PF 5KV R7 AXIAL |
0 |
|
Datasheet |
TOF | Bulk | Obsolete | 2 pF | ±0.25pF | 5000V (5kV) | R7 | -55°C ~ 100°C | - | - | General Purpose | - | Chassis Mount | Axial, Can | 0.630" Dia x 0.394" W (16.00mm x 10.00mm) | - | - | - | Straight |
|
|
BF025016WC12036BH1CAP CER 12PF 9KV R42 AXIAL |
0 |
|
Datasheet |
TOF | Bulk | Active | 12 pF | ±10% | 9000V (9kV) | R42 | -55°C ~ 100°C | - | - | General Purpose | - | Chassis Mount | Axial, Can | 0.984" Dia x 0.630" W (25.00mm x 16.00mm) | - | - | - | Straight |
|
|
BF016010BE10036BH1CAP CER 10PF 5KV R42 AXIAL |
0 |
|
Datasheet |
TOF | Bulk | Active | 10 pF | ±10% | 5000V (5kV) | R42 | -55°C ~ 100°C | - | - | General Purpose | - | Chassis Mount | Axial, Can | 0.630" Dia x 0.394" W (16.00mm x 10.00mm) | - | - | - | Straight |
|
|
BF016010BE16036BH1CAP CER 16PF 5KV R42 AXIAL |
0 |
|
Datasheet |
TOF | Bulk | Active | 16 pF | ±10% | 5000V (5kV) | R42 | -55°C ~ 100°C | - | - | General Purpose | - | Chassis Mount | Axial, Can | 0.630" Dia x 0.394" W (16.00mm x 10.00mm) | - | - | - | Straight |
|
|
BF016010BE25036BJ1CAP CER 25PF 5KV R85 AXIAL |
0 |
|
Datasheet |
TOF | Bulk | Active | 25 pF | ±10% | 5000V (5kV) | R85 | -55°C ~ 100°C | - | - | General Purpose | - | Chassis Mount | Axial, Can | 0.630" Dia x 0.394" W (16.00mm x 10.00mm) | - | - | - | Straight |
|
|
BF016010BE50036BJ1CAP CER 50PF 5KV R85 AXIAL |
0 |
|
Datasheet |
TOF | Bulk | Active | 50 pF | ±10% | 5000V (5kV) | R85 | -55°C ~ 100°C | - | - | General Purpose | - | Chassis Mount | Axial, Can | 0.630" Dia x 0.394" W (16.00mm x 10.00mm) | - | - | - | Straight |
Ceramic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Ceramic Capacitors?
This category includes related Ceramic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Ceramic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Ceramic Capacitors and other electronic components.
