Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UHV-10ACAP CER 560PF 50KV Z5T DISK |
198 |
|
Datasheet |
UHV | Tray | Active | 560 pF | ±10% | 50000V (50kV) | Z5T | -30°C ~ 85°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 1.496" Dia x 1.378" L (38.00mm x 35.00mm) | - | - | - | - |
|

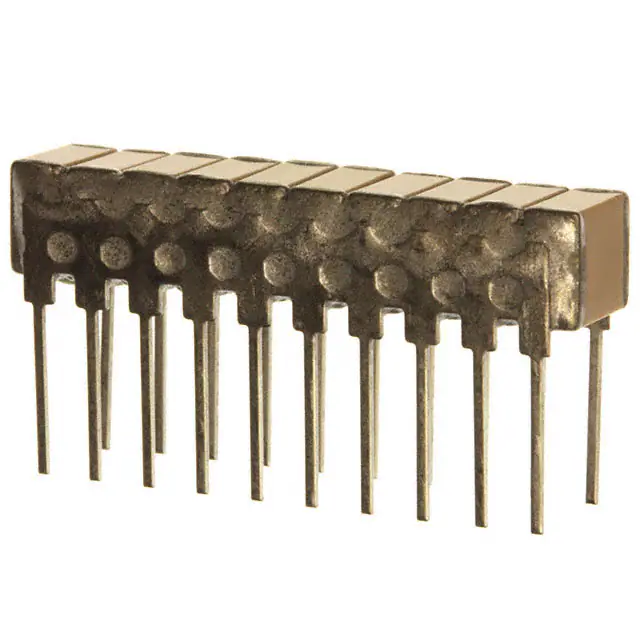

ST205C107MAN10CAP CER 100UF 50V X7R DIP |
37 |
|
Datasheet |
TurboCap™ | Bulk | Active | 100 µF | ±20% | 50V | X7R | -55°C ~ 125°C | Low ESL (Stacked) | - | SMPS Filtering, Bypass, Decoupling | - | Through Hole | Stacked DIP, 20 Lead | 1.025" L x 0.300" W (26.04mm x 7.62mm) | 0.220" (5.59mm) | - | 0.220" (5.59mm) | - |
|
ST203C227MAJ10CAP CER 220UF 25V X7R SMD |
30 |
|
Datasheet |
TurboCap™ | Bulk | Active | 220 µF | ±20% | 25V | X7R | -55°C ~ 125°C | Low ESL (Stacked) | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | Stacked SMD, 20 J-Lead | 1.025" L x 0.300" W (26.04mm x 7.62mm) | - | 0.220" (5.59mm) | - | J-Lead |
|
M39014/22-0697CAP CER 2DIP |
200 |
|
Datasheet |
Military, MIL-PRF-39014, CKR05 | Bulk | Active | 470 pF | ±1% | 200V | C0G, NP0 | -55°C ~ 125°C | - | - | High Reliability | R (0.01%) | Through Hole | 2-DIP | 0.260" L x 0.092" W (6.60mm x 2.34mm) | 0.175" (4.45mm) | - | 0.035" (0.89mm) | Straight |
|
|
M39014/22-3856-TUBECAP CER 2-DIP |
190 |
|
Datasheet |
Military, MIL-PRF-39014, CKR05 | Bulk | Active | 1 µF | ±10% | 50V | BR | -55°C ~ 125°C | - | - | High Reliability | R (0.01%) | Through Hole | 2-DIP | 0.260" L x 0.092" W (6.60mm x 2.34mm) | 0.320" (8.13mm) | - | 0.035" (0.89mm) | Straight |
|
ACR05B103KGSCAP CER 10000PF 50V NP0 RADIAL |
60 |
|
Datasheet |
ACR Indust C0G HT200C | Bulk | Active | 10000 pF | ±10% | 50V | C0G, NP0 | -55°C ~ 200°C | High Temperature | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.100" W (5.08mm x 2.54mm) | 0.200" (5.08mm) | - | 0.200" (5.08mm) | Straight |
|
UHV-8ACAP CER 1300PF 40KV Z5T DISK |
33 |
|
Datasheet |
UHV | Bulk | Active | 1300 pF | ±10% | 40000V (40kV) | Z5T | -30°C ~ 85°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 1.890" Dia x 1.299" L (48.00mm x 33.00mm) | - | - | - | - |
|
715C30DKD33CAP CER 3300PF 30KV Y5U DISK |
40 |
|
Datasheet |
Cera-Mite 715C | Bulk | Active | 3300 pF | -20%, +80% | 30000V (30kV) | Y5U (E) | -30°C ~ 85°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 2.130" Dia x 1.181" L (54.10mm x 30.00mm) | - | - | - | - |
-4,50x3,20x2,7mm.jpg)
|
C1812H224J5GAFT050CAP CER 0.22UF 50V C0G/NP0 1812 |
54 |
|
Datasheet |
SMD Indust C0G HT200C | Tape & Reel (TR) | Active | 0.22 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 200°C | Low ESL, High Temperature | - | Downhole | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
|
715C50KTT70M5CAP CER 700PF 50KV N4700 DISK |
34 |
|
Datasheet |
Cera-Mite 715C | Bulk | Active | 700 pF | ±20% | 50000V (50kV) | N4700 | -30°C ~ 85°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 1.732" Dia x 1.378" L (44.00mm x 35.00mm) | - | - | - | - |
|
715C50KTD13M5CAP CER 1300PF 50KV N4700 DISK |
37 |
|
Datasheet |
Cera-Mite 715C | Bulk | Active | 1300 pF | ±20% | 50000V (50kV) | N4700 | -30°C ~ 85°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 2.047" Dia x 1.378" L (52.00mm x 35.00mm) | - | - | - | - |
|
VRR07T102KGACAP CER 1000PF 2KV X7R RADIAL |
335 |
|
Datasheet |
VRR Indust X7R HVHT200C | Bulk | Active | 1000 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 200°C | High Voltage, High Temperature | - | General Purpose | - | Through Hole | Radial | 0.300" L x 0.150" W (7.62mm x 3.81mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Straight |
|
VCR40V102KGSCAP CER 1000PF 3KV NP0 RADIAL |
480 |
|
Datasheet |
VCR Indust C0G HVHT200C | Bulk | Active | 1000 pF | ±10% | 3000V (3kV) | C0G, NP0 | -55°C ~ 200°C | High Voltage, High Temperature | - | General Purpose | - | Through Hole | Radial | 0.350" L x 0.275" W (8.89mm x 6.98mm) | 0.400" (10.16mm) | - | 0.250" (6.35mm) | Straight |
|
ARR07L103KGACAP CER 10000PF 500V X7R RADIAL |
99 |
|
Datasheet |
ARR Indust X7R HT200C | Bulk | Active | 10000 pF | ±10% | 500V | X7R | -55°C ~ 200°C | High Temperature | - | General Purpose | - | Through Hole | Radial | 0.300" L x 0.150" W (7.62mm x 3.81mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Straight |
|
VCR60W392KGSCAP CER 3900PF 4KV NP0 RADIAL |
105 |
|
Datasheet |
VCR Indust C0G HVHT200C | Bulk | Active | 3900 pF | ±10% | 4000V (4kV) | C0G, NP0 | -55°C ~ 200°C | High Voltage, High Temperature | - | General Purpose | - | Through Hole | Radial | 0.550" L x 0.375" W (13.97mm x 9.52mm) | 0.600" (15.24mm) | - | 0.400" (10.16mm) | Straight |
|
10HV36B225KNCAP CER 2.2UF 1KV X7R RADIAL |
324 |
|
Datasheet |
HV RAD-LDD Indust X7R HV | Bulk | Active | 2.2 µF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | High Voltage | - | SMPS Filtering | - | Through Hole | Radial | 1.450" L x 0.270" W (36.83mm x 6.86mm) | 0.720" (18.29mm) | - | 1.375" (34.92mm) | Straight |
.jpg)
|
CGA3E2C0G2A220J080AACAP CER 22PF 100V C0G 0603 |
13,802 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 22 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.035" (0.90mm) | - | - |
.jpg)
|
CGA4J1X8L1E475K125AECAP CER 4.7UF 25V X8L 0805 |
11,194 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 25V | X8L | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.059" (1.50mm) | - | - |
|
|
CGA4J1X7R1V475M125ACCAP CER 4.7UF 35V X7R 0805 |
2,090 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 4.7 µF | ±20% | 35V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
.jpg)
|
VJ0402Y102KXJPW1BCCAP CER 1000PF 16V X7R 0402 |
50,000 |
|
Datasheet |
VJ W1BC | Tape & Reel (TR) | Active | 1000 pF | ±10% | 16V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
Ceramic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Ceramic Capacitors?
This category includes related Ceramic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Ceramic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Ceramic Capacitors and other electronic components.
