Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KTD101B107M99A0B00CAP CER 100UF 100V X7R RADIAL |
539 |
|
Datasheet |
NTD | Bulk | Active | 100 µF | ±20% | 100V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Through Hole | Radial | 1.122" L x 0.354" W (28.50mm x 9.00mm) | 0.787" (20.00mm) | - | 0.984" (25.00mm) | Straight |
|
C3640H473KGGWCT050CAP CER 0.047UF 2KV C0G/NP0 3640 |
1,120 |
|
Datasheet |
SMD Indust C0G HVHT200C Pulse | Tape & Reel (TR) | Active | 0.047 µF | ±10% | 2000V (2kV) | C0G, NP0 | -55°C ~ 200°C | Low ESL, High Voltage, High Temperature | - | Downhole | - | Surface Mount, MLCC | 3640 (9110 Metric) | 0.358" L x 0.402" W (9.10mm x 10.20mm) | - | 0.106" (2.70mm) | - | - |
|
SV09AC474KARCAP CER 0.47UF 1KV X7R RADIAL |
198 |
|
Datasheet |
SV | Bulk | Active | 0.47 µF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial | 0.772" L x 0.200" W (19.60mm x 5.08mm) | 0.720" (18.30mm) | - | 0.673" (17.10mm) | Straight |
|
B58035U5106M001CAP CER 10UF 500V 20SMD |
957 |
|
Datasheet |
CeraLink™ FA10 | Bulk | Active | 10 µF | ±20% | 500V | - | -40°C ~ 150°C | Low ESL (Stacked), High Temperature | AEC-Q200 | Automotive, SMPS Filtering | - | Surface Mount, MLCC | Stacked SMD, 20 J-Lead | 1.142" L x 0.289" W (29.00mm x 7.34mm) | 0.378" (9.60mm) | - | - | J-Lead |
|
|
KTD500B227M99A0B00CAP CER 220UF 50V X7R RADIAL |
565 |
|
Datasheet |
NTD | Bulk | Active | 220 µF | ±20% | 50V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Through Hole | Radial | 1.122" L x 0.394" W (28.50mm x 10.00mm) | 0.787" (20.00mm) | - | 0.984" (25.00mm) | Straight |
|
|
C4540H683KGGWCT050CAP CER 0.068UF 2KV C0G/NP0 4540 |
295 |
|
Datasheet |
SMD Indust C0G HVHT200C Pulse | Tape & Reel (TR) | Active | 0.068 µF | ±10% | 2000V (2kV) | C0G, NP0 | -55°C ~ 200°C | Low ESL, High Voltage, High Temperature | - | Downhole | - | Surface Mount, MLCC | Nonstandard SMD | 0.449" L x 0.402" W (11.40mm x 10.20mm) | - | 0.106" (2.70mm) | - | - |
|
|
B58035U7505M001CAP CER 5UF 700V 20SMD |
830 |
|
Datasheet |
CeraLink™ FA10 | Bulk | Active | 5 µF | ±20% | 700V | - | -40°C ~ 150°C | Low ESL (Stacked), High Temperature | AEC-Q200 | Automotive, SMPS Filtering | - | Surface Mount, MLCC | Stacked SMD, 20 J-Lead | 1.142" L x 0.289" W (29.00mm x 7.34mm) | 0.378" (9.60mm) | - | - | J-Lead |
|
|
C4540H273KHGWCT050CAP CER 0.027UF 3KV C0G/NP0 4540 |
168 |
|
Datasheet |
SMD Indust C0G HVHT200C Pulse | Tape & Reel (TR) | Active | 0.027 µF | ±10% | 3000V (3kV) | C0G, NP0 | -55°C ~ 200°C | Low ESL, High Voltage, High Temperature | - | Downhole | - | Surface Mount, MLCC | Nonstandard SMD | 0.449" L x 0.402" W (11.40mm x 10.20mm) | - | 0.106" (2.70mm) | - | - |
|
|
B58035U9255M001CAP CER 2.5UF 900V 20SMD |
1,004 |
|
Datasheet |
CeraLink™ FA10 | Bulk | Active | 2.5 µF | ±20% | 900V | - | -40°C ~ 150°C | Low ESL (Stacked), High Temperature | AEC-Q200 | Automotive, SMPS Filtering | - | Surface Mount, MLCC | Stacked SMD, 20 J-Lead | 1.142" L x 0.289" W (29.00mm x 7.34mm) | 0.378" (9.60mm) | - | - | J-Lead |
|
C2220H474J5GACTUCAP CER 0.47UF 50V C0G/NP0 2220 |
268 |
|
Datasheet |
SMD Indust C0G HT200C | Tape & Reel (TR) | Active | 0.47 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 200°C | Low ESL, High Temperature | - | Downhole | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.093" (2.35mm) | - | - |
|

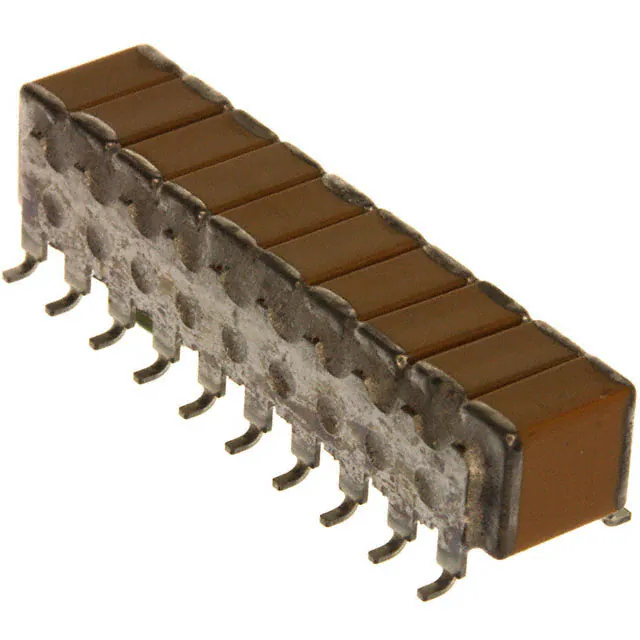

ST205C107MAL10CAP CER 100UF 50V X7R SMD |
90 |
|
Datasheet |
TurboCap™ | Bulk | Active | 100 µF | ±20% | 50V | X7R | -55°C ~ 125°C | Low ESL (Stacked) | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | Stacked SMD, 20 L-Lead | 1.025" L x 0.300" W (26.04mm x 7.62mm) | - | 0.220" (5.59mm) | - | L-Lead |
|
M39014/22-0856CAP CER 1UF 50V X7R 2-DIP |
200 |
|
Datasheet |
Military, MIL-PRF-39014, CKR22 | Tube | Active | 1 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | High Reliability | R (0.01%) | Through Hole | 2-DIP | 0.260" L x 0.092" W (6.60mm x 2.34mm) | 0.175" (4.45mm) | - | 0.325" (8.25mm) | - |
|

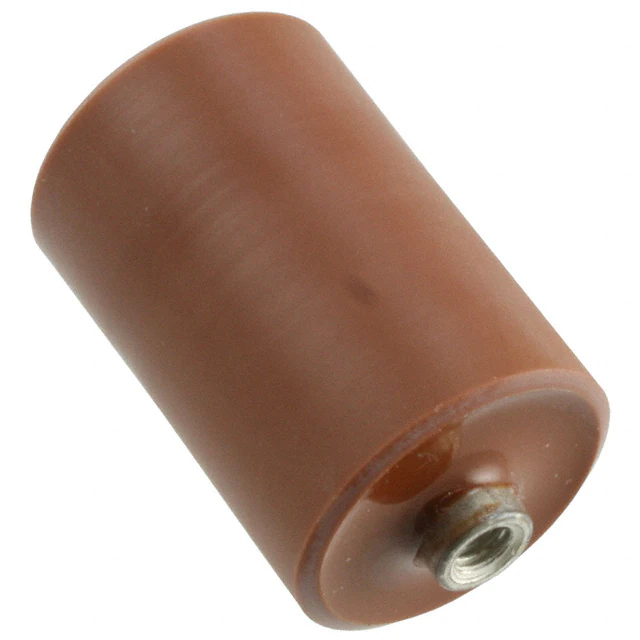

UHV-251ACAP CER 100PF 50KV Z5T DISK |
65 |
|
Datasheet |
UHV | Bulk | Active | 100 pF | ±10% | 50000V (50kV) | Z5T | -30°C ~ 85°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 0.787" Dia x 1.378" L (20.00mm x 35.00mm) | - | - | - | - |
|
715C10DKS20CAP CER 0.02UF 10KV Y5U DISK |
98 |
|
Datasheet |
Cera-Mite 715C | Bulk | Active | 0.02 µF | -20%, +80% | 10000V (10kV) | Y5U (E) | -30°C ~ 85°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | - | - | - | - | - |
|

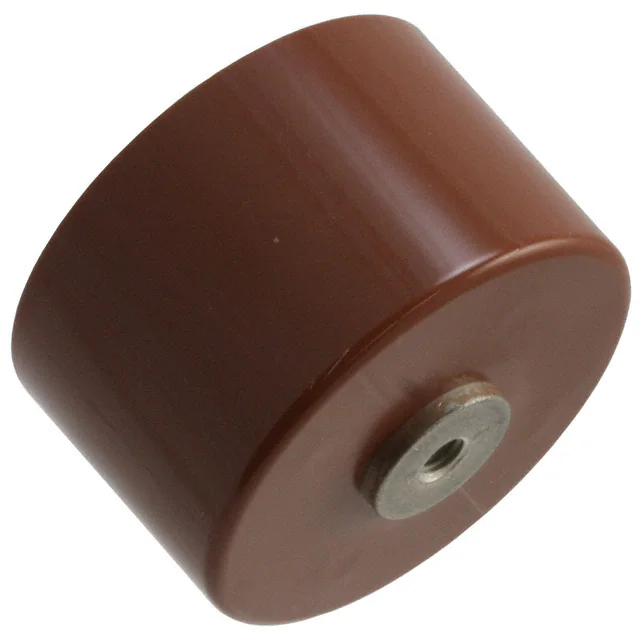

UHV-11ACAP CER 1000PF 50KV Z5T DISK |
54 |
|
Datasheet |
UHV | Tray | Active | 1000 pF | ±10% | 50000V (50kV) | Z5T | -30°C ~ 85°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 1.890" Dia x 1.378" L (48.00mm x 35.00mm) | - | - | - | - |
|
UHV-9ACAP CER 2000PF 40KV Z5T DISK |
208 |
|
Datasheet |
UHV | Bulk | Active | 2000 pF | ±10% | 40000V (40kV) | Z5T | -30°C ~ 85°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 2.362" Dia x 1.299" L (60.00mm x 33.00mm) | - | - | - | - |
|
715C30DKD47CAP CER 4700PF 30KV Y5U DISK |
42 |
|
Datasheet |
Cera-Mite 715C | Bulk | Active | 4700 pF | -20%, +80% | 30000V (30kV) | Y5U (E) | -30°C ~ 85°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 2.421" Dia x 1.181" L (61.50mm x 30.00mm) | - | - | - | - |
|
FHV-10ANCAP CER 700PF 50KV Y5S DISK |
108 |
|
Datasheet |
FHV | Bulk | Active | 700 pF | ±10% | 50000V (50kV) | Y5S | -30°C ~ 85°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 1.496" Dia x 1.299" L (38.00mm x 33.00mm) | - | - | - | - |
|
30HV12N102KCCAP CER 1000PF 3KV NP0 RADIAL |
95 |
|
Datasheet |
HV RAD-LDD Indust C0G HVHT200C | Bulk | Active | 1000 pF | ±10% | 3000V (3kV) | C0G, NP0 | -55°C ~ 200°C | High Voltage, High Temperature | - | Downhole | - | Through Hole | Radial | 0.420" L x 0.250" W (10.67mm x 6.35mm) | 0.400" (10.16mm) | - | 0.300" (7.62mm) | Straight |
|
FHV-6ANCAP CER 3500PF 30KV Y5S DISK |
29 |
|
Datasheet |
FHV | Bulk | Active | 3500 pF | ±10% | 30000V (30kV) | Y5S | -30°C ~ 85°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 2.362" Dia x 1.024" L (60.00mm x 26.00mm) | - | - | - | - |
