Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-1,55mm-C-Series.jpg)
|
C4532X7T2W474K230KECAP CER 0.47UF 450V X7T 1812 |
17,795 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 450V | X7T | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.126" (3.20mm) | - | - |
.JPG)
|
CDR32BX103BKURCAP CER 10000PF 100V 10% BX 1206 |
14,856 |
|
Datasheet |
Military, MIL-PRF-55681, CDR32 | Bulk | Active | 10000 pF | ±10% | 100V | BX | -55°C ~ 125°C | - | - | High Reliability | R (0.01%) | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.051" (1.30mm) | - | - |
|
564RX7RAA602EF271KCAP CER 270PF 6KV X7R RADIAL |
2,829 |
|
Datasheet |
Cera-Mite 564R | Bulk | Active | 270 pF | ±10% | 6000V (6kV) | X7R | -25°C ~ 105°C | Low Dissipation Factor | - | General Purpose | - | Through Hole | Radial, Disc | - | - | - | - | Straight |
|
|
C1812C154J5GACTUCAP CER 0.15UF 50V C0G/NP0 1812 |
1,444 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 0.15 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.055" (1.40mm) | - | - |
|
CS11ZU2GA472MANKACAP CER 4700PF 300/440VAC Z5U |
1,420 |
|
Datasheet |
CS | Bulk | Active | 4700 pF | ±20% | 300VAC/440VAC | Z5U | -55°C ~ 125°C | High Voltage | AEC-Q200, X1, Y2 | Safety, Automotive | - | Through Hole | Radial, Disc | 0.531" Dia (13.50mm) | - | - | 0.295" (7.50mm) | Formed Leads - Kinked |
|
|
EMDR500W474M1GV001ECAP CER 0.47UF 50V X7R 1812 |
18,458 |
|
Datasheet |
X2Y® | Tape & Reel (TR) | Active | 0.47 µF | ±20% | 50V | X7R | -55°C ~ 125°C | Low ESL (X2Y) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.174" L x 0.125" W (4.42mm x 3.18mm) | - | 0.090" (2.29mm) | - | - |
|
|
600S0R3AT250XT4KCAP CER 0.3PF 250V C0G/NP0 0603 |
10,725 |
|
Datasheet |
ATC 600S | Tape & Reel (TR) | Active | 0.3 pF | ±0.05pF | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.89mm) | - | - |
-2,70mm.jpg)
|
GRM32ER61C226KE20LCAP CER 22UF 16V X5R 1210 |
377,713 |
|
Datasheet |
GRM | Tape & Reel (TR) | Not For New Designs | 22 µF | ±10% | 16V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.106" (2.70mm) | - | - |
|
|
GRM32ER61C226ME20LCAP CER 22UF 16V X5R 1210 |
86,816 |
|
Datasheet |
GRM | Tape & Reel (TR) | Not For New Designs | 22 µF | ±20% | 16V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.106" (2.70mm) | - | - |
.jpg)
|
GCJ32EC71E226KE02LCAP CER |
43,494 |
|
Datasheet |
GCJ | Tape & Reel (TR) | Active | 22 µF | ±10% | 25V | X7S | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.112" (2.85mm) | - | - |
|

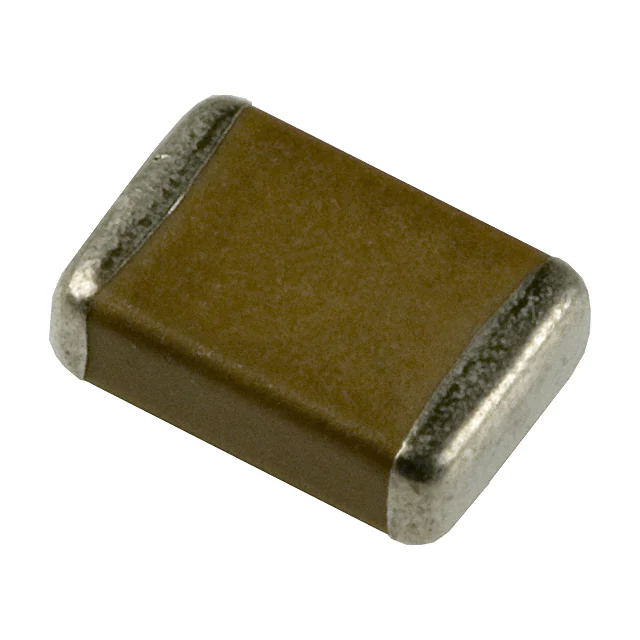

GA352QR7GF101KW31LCAP CER 100PF 250VAC X7R 2211 |
6,799 |
|
Datasheet |
GA3 | Tape & Reel (TR) | Active | 100 pF | ±10% | 250VAC | X7R | -55°C ~ 125°C | - | X1, Y2 | Safety | - | Surface Mount, MLCC | 2211 (5728 Metric) | 0.224" L x 0.110" W (5.70mm x 2.80mm) | - | 0.059" (1.50mm) | - | - |
-2,80mm-C-Series.jpg)
|
C3225X7S2A475K200AECAP CER 4.7UF 100V X7S 1210 |
12,498 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 100V | X7S | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.098" (2.50mm) | - | - |
|
|
600F101JT250XT4KCAP CER 100PF 250V C0G/NP0 0805 |
12,099 |
|
Datasheet |
ATC 600F | Tape & Reel (TR) | Active | 100 pF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.24mm) | - | 0.051" (1.30mm) | - | - |
-0,40mm.jpg)
|
0508ZC105KAT2ACAP CER 1UF 10V X7R 0508 |
3,327 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1 µF | ±10% | 10V | X7R | -55°C ~ 125°C | Low ESL (Reverse Geometry) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0508 (1220 Metric) | 0.050" L x 0.079" W (1.27mm x 2.00mm) | - | 0.040" (1.02mm) | - | - |
|
C330C103J2G5TACAP CER 10000PF 200V NP0 RADIAL |
730 |
|
Datasheet |
GoldMax 300 Comm C0G | Bulk | Active | 10000 pF | ±5% | 200V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Radial | 0.280" L x 0.160" W (7.11mm x 4.07mm) | 0.360" (9.14mm) | - | 0.200" (5.08mm) | Formed Leads |
|
116TGA101K100TTCAP CER 100PF 100V 2525 |
1,400 |
|
Datasheet |
ATC 116T | Tray | Active | 100 pF | ±10% | 100V | - | - | - | - | General Purpose | - | Surface Mount, MLCC | 2525 (6464 Metric) | 0.025" L x 0.025" W (0.64mm x 0.64mm) | - | 0.012" (0.30mm) | - | - |
|
|
600S0R5AT250XT4KCAP CER 0.5PF 250V C0G/NP0 0603 |
7,952 |
|
Datasheet |
ATC 600S | Tape & Reel (TR) | Active | 0.5 pF | ±0.05pF | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.89mm) | - | - |
|
|
C1210C226M3RACTUCAP CER 22UF 25V X7R 1210 |
72,577 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 22 µF | ±20% | 25V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|
|
600L1R0AT200T4KCAP CER 1PF 200V C0G/NP0 0402 |
20,266 |
|
Datasheet |
ATC 600L | Tape & Reel (TR) | Active | 1 pF | ±0.05pF | 200V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.040" L x 0.020" W (1.02mm x 0.51mm) | - | 0.024" (0.60mm) | - | - |
|
|
600L0R5AT200T4KCAP CER 0.5PF 200V C0G/NP0 0402 |
18,925 |
|
Datasheet |
ATC 600L | Tape & Reel (TR) | Active | 0.5 pF | ±0.05pF | 200V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.040" L x 0.020" W (1.02mm x 0.51mm) | - | 0.024" (0.60mm) | - | - |
