Single Bipolar Transistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TIP41B-BPTRANS NPN 80V 6A TO-220AB |
7,726 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | NPN | 6 A | 80 V | 1.5V @ 600mA, 6A | 700µA | 30 @ 300mA, 4V | 2 W | 3MHz | 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
D882-O-TPTRANS NPN 30V 3A DPAK |
2,350 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | NPN | 3 A | 30 V | 500mV @ 200mA, 2A | 10µA | 100 @ 1A, 2V | 1.25 W | 90MHz | 150°C (TJ) | - | - | Surface Mount | DPAK |
|
|
TIP30C-BPTRANS PNP 100V 1A TO-220AB |
2,574 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | PNP | 1 A | 100 V | 700mV @ 125mA, 1A | 300µA | 40 @ 200mA, 4V | 30 W | 3MHz | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
D882-Y-TPTRANS NPN 30V 3A DPAK |
3,821 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | NPN | 3 A | 30 V | 500mV @ 200mA, 2A | 10µA | 160 @ 1A, 2V | 1.25 W | 90MHz | 150°C (TJ) | - | - | Surface Mount | DPAK |
|
2N3725A PBFREETRANS NPN 50V 1.2A TO-39 |
9,382 |
|
Datasheet |
- | TO-205AD, TO-39-3 Metal Can | Box | Obsolete | NPN | 1.2 A | 50 V | 900mV @ 100mA, 1A | 10µA | 60 @ 100mA, 1V | 1 W | 300MHz | -65°C ~ 200°C (TJ) | - | - | Through Hole | TO-39 |
|
|
2N3725 PBFREETRANS NPN 50V 1.2A TO-39 |
9,450 |
|
Datasheet |
- | TO-205AD, TO-39-3 Metal Can | Box | Obsolete | NPN | 1.2 A | 50 V | 950mV @ 100mA, 1A | 10µA | 60 @ 100mA, 1V | 800 mW | 300MHz | -65°C ~ 200°C (TJ) | - | - | Through Hole | TO-39 |
|

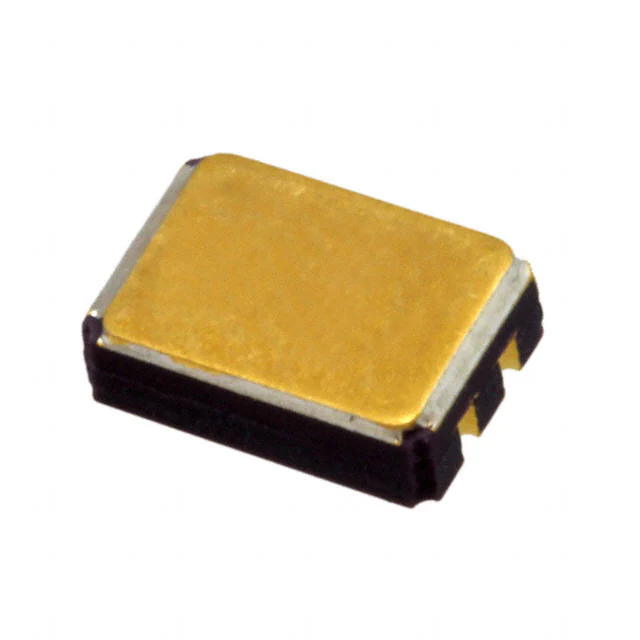

JANS2N3440UA/TRTRANS NPN 250V 1A UA |
9,102 |
|
- |
- | 4-SMD, No Lead | Tape & Reel (TR) | Active | NPN | 1 A | 250 V | 500mV @ 4mA, 50mA | 2µA | 40 @ 20mA, 10V | 800 mW | - | -65°C ~ 200°C (TJ) | Military | MIL-PRF-19500/368 | Surface Mount | UA |
|
|
JANHCA2N3637TRANS PNP 175V 1A TO39 |
7,161 |
|
Datasheet |
- | TO-205AD, TO-39-3 Metal Can | Tape & Reel (TR) | Active | PNP | 1 A | 175 V | 600mV @ 5mA, 50mA | 10µA | 100 @ 50mA, 10V | 1 W | - | -65°C ~ 200°C (TJ) | Military | MIL-PRF-19500/357 | Through Hole | TO-39 (TO-205AD) |
|
|
JANSL2N3439UATRANS NPN 350V 1A UA |
6,498 |
|
- |
- | 4-SMD, No Lead | Bulk | Active | NPN | 1 A | 350 V | 500mV @ 4mA, 50mA | 2µA | 40 @ 20mA, 10V | 800 mW | - | -65°C ~ 200°C (TJ) | Military | MIL-PRF-19500/368 | Surface Mount | UA |
|
|
JANSM2N3440UATRANS NPN 250V 1A UA |
9,008 |
|
- |
- | 4-SMD, No Lead | Bulk | Active | NPN | 1 A | 250 V | 500mV @ 4mA, 50mA | 2µA | 40 @ 20mA, 10V | 800 mW | - | -65°C ~ 200°C (TJ) | Military | MIL-PRF-19500/368 | Surface Mount | UA |
|
|
JANKCA2N3637TRANS PNP 175V 1A TO39 |
7,545 |
|
Datasheet |
- | TO-205AD, TO-39-3 Metal Can | Tape & Reel (TR) | Active | PNP | 1 A | 175 V | 600mV @ 5mA, 50mA | 10µA | 100 @ 50mA, 10V | 1 W | - | -65°C ~ 200°C (TJ) | Military | MIL-PRF-19500/357 | Through Hole | TO-39 (TO-205AD) |
|
|
JANKCA2N3634TRANS PNP 140V 1A TO39 |
8,703 |
|
Datasheet |
- | TO-205AD, TO-39-3 Metal Can | Tape & Reel (TR) | Active | PNP | 1 A | 140 V | 600mV @ 5mA, 50mA | 10µA | 50 @ 50mA, 10V | 1 W | - | -65°C ~ 200°C (TJ) | Military | MIL-PRF-19500/357 | Through Hole | TO-39 (TO-205AD) |
|
JANTX2N2369AU/TRTRANS NPN 15V UB |
2,879 |
|
- |
- | 3-SMD, No Lead | Tape & Reel (TR) | Active | NPN | - | 15 V | 450mV @ 10mA, 100mA | 400nA | 20 @ 100mA, 1V | 500 mW | - | -65°C ~ 200°C (TJ) | Military | MIL-PRF-19500/317 | Surface Mount | U1 (SMD-1) |
|
|
CET3906EVL TRTRANS NPN 60V 0.2A SOT-883VL |
2,288 |
|
- |
- | SC-101, SOT-883 | Tape & Reel (TR) | Obsolete | NPN | 200 mA | 60 V | 100mV @ 5mA, 50mA | - | 100 @ 10mA, 1V | 250 mW | 300MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-883VL |
|
|
CET3904EVL TRTRANS NPN 40V 0.2A SOT-883VL |
8,801 |
|
- |
- | SC-101, SOT-883 | Tape & Reel (TR) | Obsolete | NPN | 200 mA | 40 V | 200mV @ 5mA, 50mA | - | 100 @ 10mA, 1V | 250 mW | 300MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-883VL |
|
ZXTP03200GTAIC TRANSISTOR HIGH VOLT SOT223 |
3,143 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MMBT3906-7-F-79IC TRANSISTOR ARRAY SMD |
3,313 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BC847BVC-7-FIC TRANSISTOR ARRAY SOT563 |
5,138 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ZTX452STZIC TRANSISTOR ARRAY SMD |
5,751 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MMBT3904T-7-F-79IC TRANSISTOR ARRAY SMD |
3,340 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
Single Bipolar Transistors Electronic Components
Explore Single Bipolar Transistors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
