Single Bipolar Transistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BU508AWTRANS NPN 700V 8A TO-247-3 |
260 |
|
Datasheet |
- | TO-247-3 | Tube | Active | NPN | 8 A | 700 V | 1V @ 1.6A, 4.5A | 200µA | 10 @ 100mA, 5V | 125 W | - | 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
2SC4131TRANS NPN 50V 15A TO-3PF |
297 |
|
Datasheet |
- | TO-3P-3 Full Pack | Bulk | Active | NPN | 15 A | 50 V | 500mV @ 80mA, 400mA | 10µA (ICBO) | 60 @ 5A, 1V | 60 W | 18MHz | 150°C (TJ) | - | - | Through Hole | TO-3PF |
|
TTC0002(Q)TRANS NPN 160V 18A TO-3P |
131 |
|
Datasheet |
- | TO-3PL | Bulk | Active | NPN | 18 A | 160 V | 2V @ 900mA, 9A | 1µA (ICBO) | 80 @ 1A, 5V | 180 W | 30MHz | 150°C (TJ) | - | - | Through Hole | TO-3P(L) |
|
|
2SC5359-O(Q)TRANS NPN 230V 15A TO-3P |
280 |
|
Datasheet |
- | TO-3PL | Bulk | Active | NPN | 15 A | 230 V | 3V @ 800mA, 8A | 5µA (ICBO) | 80 @ 1A, 5V | 180 W | 30MHz | 150°C (TJ) | - | - | Through Hole | TO-3P(L) |
|
|
TTA0002(Q)TRANS PNP 160V 18A TO-3P |
319 |
|
Datasheet |
- | TO-3PL | Bulk | Active | PNP | 18 A | 160 V | 2V @ 900mA, 9A | 1µA (ICBO) | 80 @ 1A, 5V | 180 W | 30MHz | 150°C (TJ) | - | - | Through Hole | TO-3P(L) |
|
MJE5852GTRANS PNP 400V 8A TO-220 |
1,338 |
|
Datasheet |
SWITCHMODE™ | TO-220-3 | Tube | Active | PNP | 8 A | 400 V | 5V @ 3A, 8A | - | 5 @ 5A, 5V | 80 W | - | -65°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
2SA1746TRANS PNP 50V 12A TO-3PF |
1,226 |
|
Datasheet |
- | TO-3P-3 Full Pack | Bulk | Active | PNP | 12 A | 50 V | 500mV @ 80mA, 5A | 10µA (ICBO) | 50 @ 5A, 1V | 60 W | 25MHz | 150°C (TJ) | - | - | Through Hole | TO-3PF |
|
2N2222AE3TRANS NPN 50V 0.8A TO-18 |
251 |
|
Datasheet |
- | TO-206AA, TO-18-3 Metal Can | Bulk | Active | NPN | 800 mA | 50 V | 1V @ 50mA, 500mA | 50nA | 100 @ 150mA, 10V | 500 mW | - | -65°C ~ 200°C (TJ) | - | - | Through Hole | TO-18 (TO-206AA) |
|

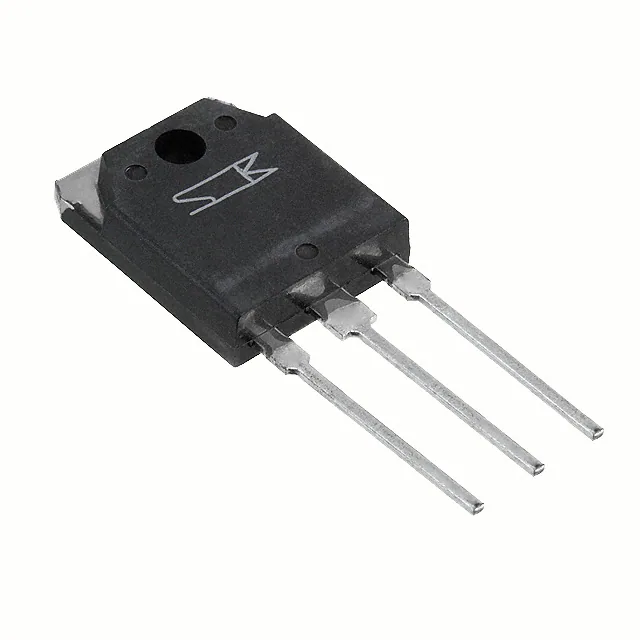

2SB1560TRANS PNP DARL 150V 10A TO-3P |
736 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Bulk | Active | PNP - Darlington | 10 A | 150 V | 2.5V @ 7mA, 7A | 100µA (ICBO) | 5000 @ 7A, 4V | 100 W | 50MHz | 150°C (TJ) | - | - | Through Hole | TO-3P |
|
TIP36CGTRANS PNP 100V 25A TO-247-3 |
498 |
|
Datasheet |
- | TO-247-3 | Tube | Active | PNP | 25 A | 100 V | 4V @ 5A, 25A | 1mA | 15 @ 15A, 4V | 125 W | 3MHz | -65°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
2N3964 PBFREETRANS PNP 45V 0.2A TO-18 |
1,140 |
|
Datasheet |
- | TO-206AA, TO-18-3 Metal Can | Bulk | Active | PNP | 200 mA | 45 V | 400mV @ 5mA, 50mA | 10nA | 250 @ 1mA, 5V | 360 mW | 50MHz | -65°C ~ 200°C (TJ) | - | - | Through Hole | TO-18 |
|
NJW1302GTRANS PNP 250V 15A TO-3P-3L |
285 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Tube | Active | PNP | 15 A | 250 V | 600mV @ 800mA, 8A | 50µA (ICBO) | 75 @ 3A, 5V | 200 W | 30MHz | -65°C ~ 150°C (TJ) | - | - | Through Hole | TO-3P-3L |
|
|
MJW1302AGTRANS PNP 230V 15A TO-247-3 |
674 |
|
Datasheet |
- | TO-247-3 | Tube | Active | PNP | 15 A | 230 V | 2V @ 1A, 10A | 50µA (ICBO) | 50 @ 7A, 5V | 200 W | 30MHz | -65°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
|
MJW3281AGTRANS NPN 230V 15A TO-247-3 |
414 |
|
Datasheet |
- | TO-247-3 | Tube | Active | NPN | 15 A | 230 V | 2V @ 1A, 10A | 50µA (ICBO) | 50 @ 7A, 5V | 200 W | 30MHz | -65°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
|
NJW21194GTRANS NPN 250V 16A TO-3P-3L |
392 |
|
- |
- | TO-3P-3, SC-65-3 | Tube | Active | NPN | 16 A | 250 V | 4V @ 3.2A, 16A | 100µA | 20 @ 8A, 5V | 200 W | 4MHz | -65°C ~ 150°C (TJ) | - | - | Through Hole | TO-3P-3L |
|
|
NJW21193GTRANS PNP 250V 16A TO-3P-3L |
180 |
|
- |
- | TO-3P-3, SC-65-3 | Tube | Active | PNP | 16 A | 250 V | 4V @ 3.2A, 16A | 100µA | 20 @ 8A, 5V | 200 W | 4MHz | -65°C ~ 150°C (TJ) | - | - | Through Hole | TO-3P-3L |
|
|
MJW21196GTRANS NPN 250V 16A TO-247-3 |
171 |
|
Datasheet |
- | TO-247-3 | Tube | Active | NPN | 16 A | 250 V | 3V @ 3.2A, 16A | 100µA | 20 @ 8A, 5V | 200 W | 4MHz | -65°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
|
MJW21195GTRANS PNP 250V 16A TO-247-3 |
135 |
|
Datasheet |
- | TO-247-3 | Tube | Active | PNP | 16 A | 250 V | 3V @ 3.2A, 16A | 100µA | 20 @ 8A, 5V | 200 W | 4MHz | -65°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
2N5322 PBFREETRANS PNP 75V 2A TO-39 |
445 |
|
Datasheet |
- | TO-205AD, TO-39-3 Metal Can | Bulk | Active | PNP | 2 A | 75 V | 700mV @ 50mA, 500mA | 500nA (ICBO) | 30 @ 500mA, 4V | 10 W | 50MHz | -65°C ~ 200°C (TJ) | - | - | Through Hole | TO-39 |
|
BU931PTRANS NPN DARL 400V 15A TO-247-3 |
471 |
|
Datasheet |
- | TO-247-3 | Tube | Active | NPN - Darlington | 15 A | 400 V | 1.8V @ 250mA, 10A | 100µA | 300 @ 5A, 10V | 135 W | - | 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247-3 |
