Single Bipolar Transistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
,TO-226_straightlead.jpg)
|
2N3906GTRANS PNP 40V 0.2A TO92 |
3,910 |
|
Datasheet |
- | TO-226-3, TO-92-3 Long Body | Bulk | Obsolete | PNP | 200 mA | 40 V | 400mV @ 5mA, 50mA | - | 100 @ 10mA, 1V | 625 mW | 250MHz | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92 (TO-226) |
|
2N3906RL1GTRANS PNP 40V 0.2A TO92 |
7,405 |
|
Datasheet |
- | TO-226-3, TO-92-3 Long Body, Formed Leads | Tape & Reel (TR) | Obsolete | PNP | 200 mA | 40 V | 400mV @ 5mA, 50mA | - | 100 @ 10mA, 1V | 625 mW | 250MHz | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92 (TO-226) |
|
2N3906RLRMGTRANS PNP 40V 0.2A TO92 |
7,294 |
|
Datasheet |
- | TO-226-3, TO-92-3 Long Body, Formed Leads | Cut Tape (CT) | Obsolete | PNP | 200 mA | 40 V | 400mV @ 5mA, 50mA | - | 100 @ 10mA, 1V | 625 mW | 250MHz | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92 (TO-226) |
|
|
2N4401GTRANS NPN 40V 0.6A TO92 |
4,258 |
|
Datasheet |
- | TO-226-3, TO-92-3 Long Body | Bulk | Obsolete | NPN | 600 mA | 40 V | 750mV @ 50mA, 500mA | - | 100 @ 150mA, 1V | 625 mW | 250MHz | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92 (TO-226) |
|
|
2N4401RLRPGTRANS NPN 40V 0.6A TO92 |
5,408 |
|
Datasheet |
- | TO-226-3, TO-92-3 Long Body, Formed Leads | Cut Tape (CT) | Obsolete | NPN | 600 mA | 40 V | 750mV @ 50mA, 500mA | - | 100 @ 150mA, 1V | 625 mW | 250MHz | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92 (TO-226) |
|
|
2N4403GTRANS PNP 40V 0.6A TO92 |
4,266 |
|
Datasheet |
- | TO-226-3, TO-92-3 Long Body | Bulk | Obsolete | PNP | 600 mA | 40 V | 750mV @ 50mA, 500mA | - | 100 @ 150mA, 2V | 625 mW | 200MHz | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92 (TO-226) |
|
|
2N4403RLRMGTRANS PNP 40V 0.6A TO92 |
3,105 |
|
Datasheet |
- | TO-226-3, TO-92-3 Long Body, Formed Leads | Tape & Box (TB) | Obsolete | PNP | 600 mA | 40 V | 750mV @ 50mA, 500mA | - | 100 @ 150mA, 2V | 625 mW | 200MHz | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92 (TO-226) |
|
2N4919TRANS PNP 60V 1A TO-126 |
8,728 |
|
Datasheet |
- | TO-225AA, TO-126-3 | Bulk | Obsolete | PNP | 1 A | 60 V | 600mV @ 100mA, 1A | 500µA | 30 @ 500mA, 1V | 30 W | 3MHz | -65°C ~ 150°C (TJ) | - | - | Through Hole | TO-126 |
|
|
2N5087GTRANS PNP 50V 0.05A TO92 |
8,326 |
|
Datasheet |
- | TO-226-3, TO-92-3 Long Body | Bulk | Obsolete | PNP | 50 mA | 50 V | 300mV @ 1mA, 10mA | 50nA (ICBO) | 250 @ 100µA, 5V | 625 mW | 40MHz | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92 (TO-226) |
|
|
2N5088RLRAGTRANS NPN 30V 0.05A TO92 |
5,445 |
|
Datasheet |
- | TO-226-3, TO-92-3 Long Body, Formed Leads | Tape & Reel (TR) | Obsolete | NPN | 50 mA | 30 V | 500mV @ 1mA, 10mA | 50nA (ICBO) | 300 @ 100µA, 5V | 625 mW | 50MHz | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92 (TO-226) |
|
|
2N5401GTRANS PNP 150V 0.6A TO92 |
8,247 |
|
Datasheet |
- | TO-226-3, TO-92-3 Long Body | Bulk | Obsolete | PNP | 600 mA | 150 V | 500mV @ 5mA, 50mA | 50nA (ICBO) | 60 @ 10mA, 5V | 625 mW | 300MHz | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92 (TO-226) |
|
|
2N5550RLRPGTRANS NPN 140V 0.6A TO92 |
6,902 |
|
Datasheet |
- | TO-226-3, TO-92-3 Long Body, Formed Leads | Tape & Box (TB) | Obsolete | NPN | 600 mA | 140 V | 250mV @ 5mA, 50mA | 100nA (ICBO) | 60 @ 10mA, 5V | 625 mW | 300MHz | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92 (TO-226) |
|
2N6286GTRANS PNP DARL 80V 20A TO204 |
7,770 |
|
Datasheet |
- | TO-204AA, TO-3 | Tray | Obsolete | PNP - Darlington | 20 A | 80 V | 3V @ 200mA, 20A | 1mA | 750 @ 10A, 3V | 160 W | - | -65°C ~ 200°C (TJ) | - | - | Through Hole | TO-204 (TO-3) |
|
|
2N6287GTRANS PNP DARL 100V 20A TO204 |
8,142 |
|
Datasheet |
- | TO-204AA, TO-3 | Tray | Obsolete | PNP - Darlington | 20 A | 100 V | 3V @ 200mA, 20A | 1mA | 750 @ 10A, 3V | 160 W | - | -65°C ~ 200°C (TJ) | - | - | Through Hole | TO-204 (TO-3) |
|
2N6288TRANS NPN 30V 7A TO-220 |
7,403 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | NPN | 7 A | 30 V | 3.5V @ 3A, 7A | 1mA | 30 @ 3A, 4V | 40 W | 4MHz | -65°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|

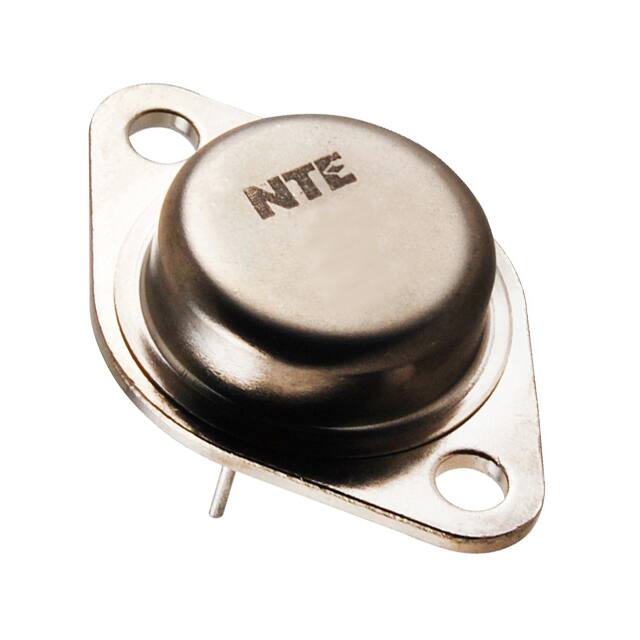

2N6338TRANS NPN 100V 25A TO204 |
2,587 |
|
Datasheet |
- | TO-204AA, TO-3 | Tray | Obsolete | NPN | 25 A | 100 V | 1.8V @ 2.5A, 25A | 50µA | 30 @ 10A, 2V | 200 W | 40MHz | -65°C ~ 200°C (TJ) | - | - | Through Hole | TO-204 (TO-3) |
|
2N6341TRANS NPN 150V 25A TO204 |
4,729 |
|
Datasheet |
- | TO-204AA, TO-3 | Tray | Obsolete | NPN | 25 A | 150 V | 1.8V @ 2.5A, 25A | 50µA | 30 @ 10A, 2V | 200 W | 40MHz | -65°C ~ 200°C (TJ) | - | - | Through Hole | TO-204 (TO-3) |
|
|
2N6426RLRAGTRANS NPN DARL 40V 0.5A TO92 |
5,883 |
|
Datasheet |
- | TO-226-3, TO-92-3 Long Body, Formed Leads | Tape & Reel (TR) | Obsolete | NPN - Darlington | 500 mA | 40 V | 1.5V @ 500µA, 500mA | 1µA | 30000 @ 100mA, 5V | 625 mW | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92 (TO-226) |
|
|
2N6427RLRATRANS NPN DARL 40V 0.5A TO92 |
5,229 |
|
Datasheet |
- | TO-226-3, TO-92-3 Long Body, Formed Leads | Tape & Reel (TR) | Obsolete | NPN - Darlington | 500 mA | 40 V | 1.5V @ 500µA, 500mA | 1µA | 20000 @ 100mA, 5V | 625 mW | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92 (TO-226) |
|
|
2N6427RLRAGTRANS NPN DARL 40V 0.5A TO92 |
6,498 |
|
Datasheet |
- | TO-226-3, TO-92-3 Long Body, Formed Leads | Tape & Reel (TR) | Obsolete | NPN - Darlington | 500 mA | 40 V | 1.5V @ 500µA, 500mA | 1µA | 20000 @ 100mA, 5V | 625 mW | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92 (TO-226) |
